Equipment qualification in GMP bioprocessing is the structured process of demonstrating, through documented testing and review, that a piece of production equipment is installed correctly, operates within its defined parameters, and consistently produces results meeting predetermined specifications. It applies to every piece of critical production equipment in a bioprocessing facility: bioreactors, chromatography systems, tangential flow filtration skids, freeze-dryers, cell expansion systems, environmental monitoring infrastructure, and the control systems that govern them all.

What Equipment Qualification Means in a Bioprocessing Context

Equipment qualification in a bioprocessing facility is governed by 21 CFR Part 211, which requires that equipment used in drug manufacturing be of appropriate design, adequate size, and suitably located, and that it be routinely calibrated, inspected, or checked according to a written program. The ISPE Baseline Guide: Commissioning and Qualification (Second Edition) is the industry reference standard for implementing science and risk-based qualification programs, and it explicitly supports bioprocessing facilities and single-use systems. For EU-regulated programs, EU GMP Annex 15: Qualification and Validation provides the equivalent framework, requiring that all GMP-critical equipment be qualified before use and requalified when changed.

What distinguishes bioprocessing equipment qualification from general pharmaceutical lab qualification is scale, complexity, and integration. A bioreactor is not a discrete instrument; it is an integrated system of vessel, sensors, actuators, controllers, and process connections that must collectively perform to specification. A chromatography skid combines pumps, valves, UV detectors, conductivity sensors, and a column, all governed by a control system that must itself be validated. Single-use systems add the complexity of per-run assembly qualification. Each of these characteristics requires qualification approaches that go beyond the generic IQ/OQ/PQ frameworks described for analytical instruments.

For the foundational overview of IQ/OQ/PQ phases applicable across pharmaceutical lab equipment, Lab Manager's IQ/OQ/PQ guide for pharma labs and introduction to pharmaceutical equipment validation provide useful reference. This article addresses the bioprocessing-specific considerations that apply when those phases are applied to bioreactors, chromatography systems, and other complex production equipment. For the broader operational context in which qualification programs sit, see GMP Compliance for Lab Managers: From Equipment Qualification to Audit Readiness.

Design Qualification: The Phase That Determines Everything Downstream

Design qualification (DQ) is the documented verification that the proposed design of equipment, systems, or facilities meets defined user requirements and GMP standards. It is the earliest phase of the qualification lifecycle, occurring before equipment is purchased or constructed, and it is the phase most often neglected in practice — typically because procurement timelines create pressure to move quickly and qualification feels like something that happens after equipment arrives.

This is a costly mistake in bioprocessing, where equipment is frequently complex, custom-specified, and expensive. DQ is the mechanism by which a facility formally captures what it needs equipment to do before specifying it to a vendor. A well-executed DQ produces a User Requirements Specification (URS) that defines operating ranges, GMP compliance requirements, material compatibility requirements, control system specifications, documentation requirements (including IQ/OQ/PQ protocol support obligations), and service and maintenance access requirements. The URS is then used to evaluate whether the proposed equipment design actually satisfies those requirements, typically through a documented design review with the vendor.

DQ is also the entry point for risk assessment in the qualification program. Applying ICH Q9 quality risk management principles at the DQ stage, through a system impact assessment that categorizes equipment based on its potential to affect product quality, allows the facility to right-size the qualification scope before any testing begins. Equipment with direct product contact and significant influence on critical quality attributes requires more extensive qualification than equipment with indirect or no product quality impact. Identifying this at DQ rather than during IQ avoids scope creep and prevents under-qualification of critical systems. The ISPE Baseline Guide: Commissioning and Qualification formalizes this approach as the foundation of a science and risk-based C&Q program.

Factory and Site Acceptance Testing

Factory Acceptance Testing (FAT)

Factory acceptance testing (FAT) is a formal testing and documentation activity conducted at the equipment manufacturer's facility before shipment. For large, complex bioprocessing equipment, FAT is one of the most effective risk reduction activities available to a lab manager. Testing a bioreactor, chromatography skid, or TFF system at the vendor's facility, before it is disassembled for shipping, allows identification and correction of installation deficiencies, sensor performance issues, and control system configuration errors while the vendor's engineering team is present and resources for correction are immediately available. The cost of identifying and correcting a control system configuration error during FAT is a fraction of the cost of doing so after the equipment is installed, commissioned, and has failed IQ. Lab Manager's guide to supplier qualification and management in GMP environments covers how FAT obligations should be specified in vendor qualification and procurement documentation.

FAT should be conducted against a formal FAT protocol that mirrors the IQ and OQ acceptance criteria, confirming that the equipment meets specifications while still at the factory. A well-executed FAT can reduce IQ scope at site significantly: if the IQ-equivalent checks were completed at FAT, with documentation reviewed and accepted by the purchaser, then IQ at site may focus on verifying that installation conditions at site match those confirmed at FAT rather than repeating all factory testing. This is only defensible when FAT documentation is formally reviewed and accepted as part of the qualification record.

Site Acceptance Testing (SAT)

Site acceptance testing (SAT) is conducted after equipment installation and before formal IQ execution. It verifies that equipment has survived transit and installation without damage or configuration change, and that site utilities (power, compressed gas, WFI, clean steam, cooling water) are connected and functioning correctly. SAT is a practical risk mitigation step that ensures the equipment as delivered to site is in the same condition as it was at FAT. Where FAT was thorough, and SAT confirms no transit damage or installation discrepancy, IQ may proceed with a narrower scope.

IQ, OQ, and PQ for Key Bioprocessing Equipment Types

Installation Qualification

IQ verifies that the equipment has been delivered and installed as specified. For bioprocessing equipment, IQ documentation must confirm: equipment identity (manufacturer, model, serial number, software version), installation location and environmental conditions, utility connections and supply parameters (within specification), all instrumentation items and their calibration status, all components and accessories against purchase order and equipment BOM, and that all vendor-required documentation (operations manual, calibration certificates, certificates of conformity) has been received.

Single-use bioreactor systems require IQ activities adapted to their specific installation model. Since the physical vessel (the bag) is replaced with each production run, IQ for a single-use system focuses primarily on the hardware platform: the bioreactor controller, the bag holder, the drive system, and all sensors and connections. Bag integrity testing, confirming that each individual bag has no leaks before it is loaded with media and inoculated, is a pre-use check performed at each run, not an IQ activity — but the procedure for conducting bag integrity tests must be established and documented during the qualification phase. Lab Manager's background on

Lab Manager's background on the operational evolution of single-use bioprocessing systems provides context for understanding how single-use adoption has changed qualification program design requirements.

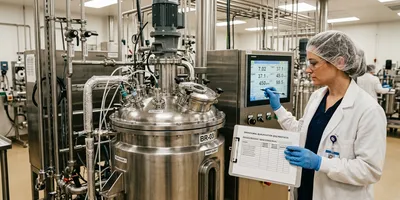

Operational Qualification and bioprocessing-specific acceptance criteria

OQ verifies that the equipment operates correctly across its defined operating range. For bioprocessing equipment, OQ acceptance criteria must be defined specifically for the parameters that govern the equipment's role in the process. The table below illustrates the typical OQ scope for the major categories of bioprocessing production equipment.

Computerized systems integrated into bioprocessing equipment, including bioreactor process control systems, chromatography data systems, and SCADA platforms, require qualification that addresses both their functional performance and their GMP data integrity obligations. Lab Manager's guide to computer system validation in pharma labs covers the validation framework applicable to computerized systems in GMP environments, including the relationship between equipment OQ and the separate but overlapping requirements of computer system validation (CSV). For a practical efficiency-focused perspective on combining GMP and GLP qualification activities, see achieving GMP/GLP compliance through more efficient equipment validation.

Performance Qualification and the process validation lifecycle

PQ verifies that the equipment consistently performs as intended under actual or simulated production conditions. The FDA's Process Validation: General Principles and Practices guidance (2011) defines a three-stage lifecycle approach to process validation that positions equipment PQ within a broader framework: Stage 1 (Process Design) establishes the commercial manufacturing process and equipment requirements; Stage 2 (Process Qualification) includes facility qualification, equipment qualification including PQ, and production of conformance batches to demonstrate consistent performance; Stage 3 (Continued Process Verification) provides ongoing assurance that the process remains in a state of control during routine production. EU-regulated programs follow the equivalent framework in EU GMP Annex 15.

In practice, this means PQ for a bioreactor is not simply a test conducted once at commissioning. The PQ study must demonstrate that the bioreactor produces consistent critical quality attributes across multiple production runs under the range of conditions expected in routine manufacturing, using actual or representative product and process conditions. PQ acceptance criteria are therefore process-specific, not equipment-generic: they are defined based on the critical quality attributes of the product being manufactured and the critical process parameters that govern them.

The relationship between equipment PQ and process validation is one of the most commonly misunderstood aspects of GMP bioprocessing qualification. Lab Manager's coverage of process validation and continued process verification in pharma labs addresses how ongoing performance monitoring in Stage 3 connects back to equipment qualification, and how out-of-trend data in continued process verification can trigger requalification review.

Risk-Based Qualification Scope: Right-Sizing the Program

Not all equipment in a bioprocessing facility requires the same depth of qualification. The appropriate qualification scope for a given piece of equipment depends on its potential to affect product quality, patient safety, or regulatory compliance. A risk-based approach to qualification scope, consistent with ICH Q9 principles and the ISPE C&Q framework, categorizes equipment based on its impact classification and applies qualification rigor proportionally.

The standard categorization uses three impact levels. Direct impact equipment has the potential to directly affect product quality: bioreactors, chromatography systems, filtration skids, water for injection systems, clean steam systems, and environmental monitoring systems. These require DQ, IQ, OQ, and PQ. Indirect impact equipment supports direct impact equipment but does not itself contact the product or directly control critical process parameters: HVAC systems serving non-classified areas, general laboratory equipment. These require engineering assessment and may require commissioning verification but not the full DQ through PQ qualification package. No direct-impact equipment has no plausible route of effect on product quality and does not require formal GMP qualification, though it may require standard maintenance and calibration programs.

Applying this framework correctly prevents two opposite errors: under-qualifying critical systems (which creates regulatory exposure) and over-qualifying non-critical systems (which wastes resources and can actually compromise a qualification program by diluting attention across too many systems). The qualification master plan is the document that captures impact classifications, qualification strategies, and schedules for all equipment in the facility.

Managing Requalification: The Ongoing Qualification Obligation

Qualification is not a milestone; it is a status that must be actively maintained. Equipment loses its qualified status when it is moved, significantly modified, or when monitoring data demonstrates that qualified performance parameters are no longer being maintained. The qualification master plan should define, for each item of equipment, the conditions that trigger a requalification assessment and the process for determining the appropriate requalification scope. Lab Manager's practical guide to commissioning new lab equipment addresses related planning considerations for equipment entering service. For GMP documentation requirements throughout the qualification lifecycle, see GMP documentation best practices for modern pharma labs.

The requalification scope determination must be documented. It is not acceptable to decide informally that a change does not require requalification; that determination must be captured in a written impact assessment reviewed and approved by QA. The assessment should document: the nature of the change, the potential for that change to affect the qualified performance of the equipment, the qualification activities that would verify performance is still within acceptance criteria, and the justification for any qualification activities omitted. When the impact assessment concludes that no requalification is needed, that conclusion must be as well-documented as the conclusion that full requalification is required.

For USP <1058>-applicable analytical instruments such as spectrophotometers, balances, and dissolved oxygen meters, the pharmacopeial qualification framework aligns with IQ/OQ/PQ principles but uses instrument-specific qualification categories. Instruments embedded in bioprocessing equipment control systems are subject to both the equipment qualification framework and, where applicable, USP <1058> requirements.
