Traditional quality checks confirm that instruments were working after the fact. AI-assisted instrument monitoring shifts that detection window earlier, flagging drift, signal degradation, and anomalous behavior before samples are compromised and results require investigation. Lab managers running high-throughput environments, regulated workflows, or time-sensitive sample queues now have practical options for continuous, automated instrument oversight that older statistical tools could not deliver.
Quick take
- AI instrument monitoring tracks continuous operational signals, including temperature stability, signal baseline, detector response, and pump pressure, to detect deviations invisible to run-by-run system suitability testing.
- AI-based anomaly detection differs meaningfully from traditional out-of-trend (OOT) and system suitability testing (SST) approaches because it evaluates multivariate patterns across time rather than single parameters against fixed thresholds.
- Signal drift and contamination are among the most common failure modes AI monitoring catches early, often before any result would flag out-of-specification.
- Integration with laboratory information management systems (LIMS) allows AI monitoring alerts to trigger documented responses, supporting audit trail requirements in regulated environments.
- Threshold tuning and false positive management are operational responsibilities that require lab-specific calibration; out-of-the-box settings rarely suit every instrument population.
What AI instrument monitoring actually tracks
AI instrument monitoring in the laboratory applies machine learning models to continuous streams of operational data generated by analytical instruments during and between runs. Rather than checking a single parameter at a single moment, these systems analyze patterns across multiple signals simultaneously, identifying combinations of deviations that individually appear normal but together indicate an emerging problem.
The signals that feed AI monitoring models vary by instrument type but commonly include detector response curves, baseline noise levels, pump pressure profiles, column backpressure, temperature stability readings, and retention time drift across successive injections. Chromatographic systems are particularly well-suited to this approach because every run generates a rich, structured data record. Research on sensor anomaly detection methods demonstrates that a two-step approach combining unsupervised anomaly labeling with supervised predictive models produces robust, scalable real-time fault detection across instrument sensor streams.
For instruments such as mass spectrometers, spectrophotometers, and automated liquid handlers, the monitored signals shift accordingly: ionization efficiency, lamp intensity decay, pipette dispense accuracy, and cycle time consistency all become inputs. The common principle across instrument types is that AI monitoring builds a behavioral baseline during normal operation and then flags deviations from that baseline rather than relying solely on fixed specification limits.
AI instrument monitoring vs. traditional SST and OOT detection

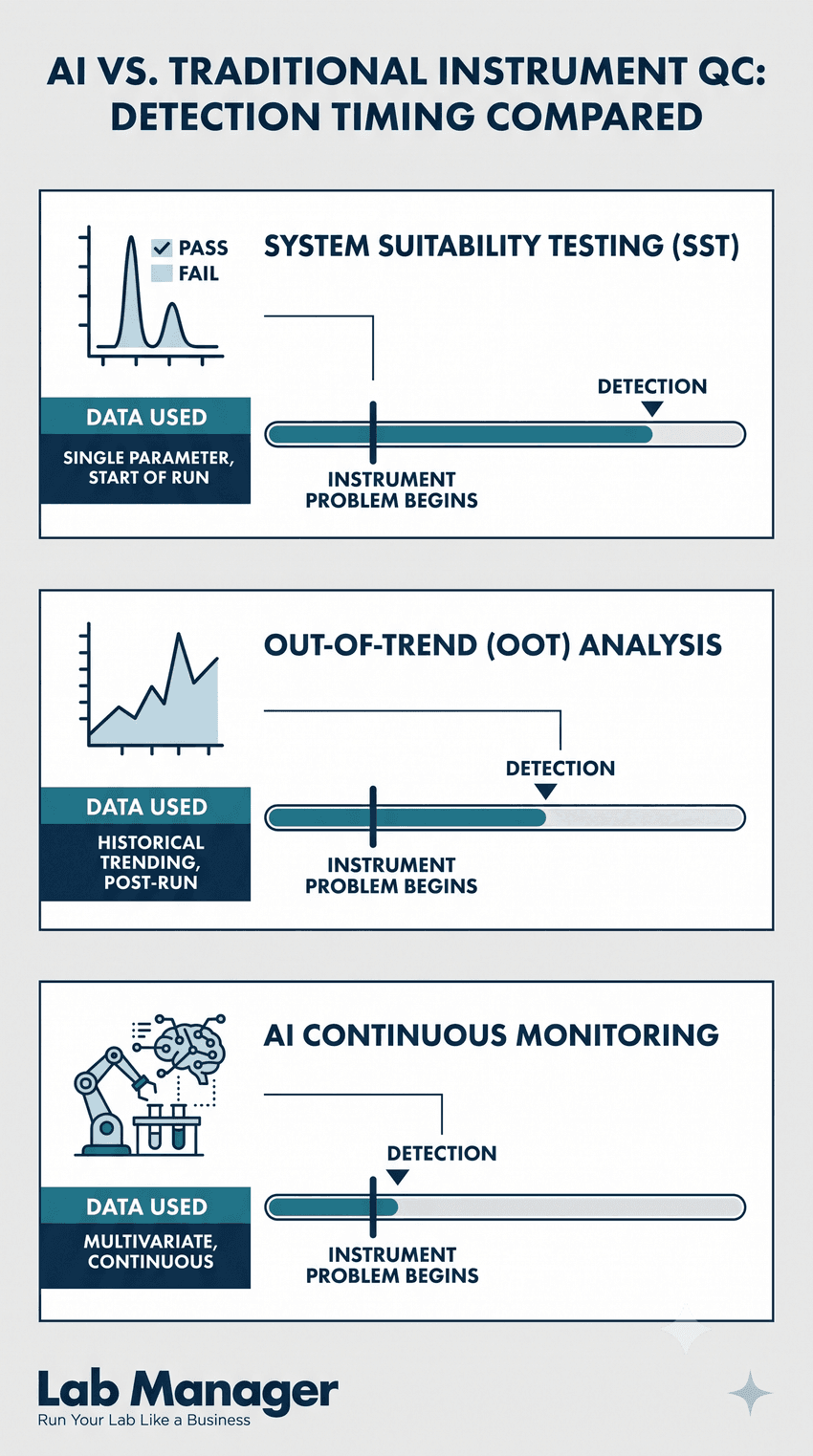

Catching the drift: How real-time AI monitoring closes the critical time gap between instrument failure and detection that traditional post-run testing leaves wide open.
GEMINI (2026)
System suitability testing (SST) and out-of-trend (OOT) detection represent the traditional architecture of instrument quality oversight. SST verifies that an instrument meets defined performance criteria at the start of an analytical run; OOT analysis reviews historical trending data to identify when a parameter is moving toward a limit. Both approaches are retrospective relative to the sample population already analyzed.
AI-assisted monitoring operates differently in two important ways. First, it evaluates instruments continuously, not only at defined checkpoints. Second, it models the relationship among parameters, not just the value of each parameter individually. A small, gradual shift in column temperature that coincides with a modest increase in baseline noise and a slight retention time change may each individually fall within SST pass criteria while together indicating imminent instrument failure. AI models trained on multivariate instrument data can recognize that pattern. Research on multivariate anomaly detection in equipment demonstrates that ML algorithms applied to multiple sensor variables are effective at identifying anomalous operating states across distinct fault scenarios, supporting the case for multivariate rather than single-parameter monitoring.
Lab Quality Management Certificate
The Lab Quality Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
This distinction matters for lab managers because it changes the intervention window. SST failure stops a run already in progress. OOT triggers a review after results are already in a queue. AI monitoring can alert lab staff to investigate an instrument before a run begins or during early stages, when corrective action costs far less in time and sample consumption than a post-run investigation.
AI detection of instrument signal drift and contamination
Two of the most operationally significant problems AI monitoring addresses are signal drift and contamination, both of which tend to develop gradually and are easy to miss in run-by-run review.
Signal drift in chromatographic systems typically manifests as a slow shift in retention times, baseline elevation, or detector sensitivity over tens or hundreds of injections. The change is often imperceptible from one run to the next but becomes consequential across a working day or across a sample batch. AI models trained on historical instrument data establish expected drift envelopes and flag when observed drift exceeds the predicted normal trajectory, providing earlier warning than a human reviewer conducting periodic manual checks. The FDA PAT guidance framework established the regulatory framework for real-time, in-process quality monitoring in pharmaceutical labs, and AI-assisted drift detection extends that principle to routine analytical instruments.
Interested in lab leadership?
Contamination events, including column fouling, source contamination in mass spectrometers, and sample carryover, produce characteristic signal signatures that AI models can distinguish from baseline variability. A review of PAT tools in pharmaceutical manufacturing documents how multivariate statistical tools applied alongside PAT sensors support continuous process monitoring and early quality control, a framework directly applicable to AI-assisted laboratory instrument oversight.
Integrating AI instrument monitoring with LIMS and data systems
AI instrument monitoring generates value only when its alerts connect to actionable workflow responses. In practice, this means integration with the lab's data systems, including the LIMS, the chromatography data system (CDS), or the laboratory execution system (LES), so that anomaly alerts trigger documented responses rather than appearing as disconnected notifications. How labs turn instrument output into actionable intelligence depends heavily on the strength of this integration layer.
The most functional integrations achieve bidirectional data flow. The monitoring system pulls instrument operational data from the CDS or instrument software in real time; when an anomaly is detected, an alert is pushed to the LIMS, which automatically opens a deviation record, holds the affected sample queue, or flags associated results for review. This creates an auditable chain of events that satisfies the documentation requirements regulators expect from AI-assisted laboratory systems. The NIST AI Risk Management Framework provides governance guidance relevant to deploying AI systems in high-stakes environments, including the need for human oversight mechanisms at critical decision points in automated workflows.
| Integration layer | Function | Regulatory benefit |
|---|---|---|
| CDS or instrument software | Real-time operational data collection | Continuous monitoring record |
| AI monitoring engine | Pattern detection and anomaly scoring | Early deviation identification |
| LIMS or LES | Alert routing, sample hold, deviation log | Audit trail and traceability |
| QC review dashboard | Human review and disposition | Oversight and documented judgment |
Laboratories without full LIMS integration can still benefit from standalone AI monitoring platforms that log alerts with timestamps and instrument identifiers, though the operational value and regulatory defensibility are greater when alerts connect directly to sample management systems.
Setting thresholds and managing false positives
A persistent operational challenge with AI instrument monitoring is calibrating alert sensitivity appropriately for a given lab environment. Models trained on generic instrument data will not reflect the normal variation profiles of a specific column population, a specific mobile phase preparation practice, or a specific room environment. False positives, defined as alerts for conditions that do not represent genuine instrument problems, consume analyst time and erode confidence in the monitoring system.
Effective threshold management requires a commissioning period in which the AI model learns the baseline behavior of each instrument in its actual operating context. During this period, flagged anomalies should be reviewed by experienced analysts who can confirm whether each alert corresponded to a genuine deviation. That feedback loop improves model performance and allows sensitivity adjustments that reduce false positive rates without raising the detection threshold high enough to miss real problems. Research on ML-based IoT anomaly detection reports that training machine learning models on historical sensor data from a manufacturing environment produced a measurable improvement in anomaly detection rate alongside a reduction in false positives, illustrating the value of environment-specific model training.
Managing false positives also requires defining escalation tiers. Not every anomaly alert requires immediate sample hold; some warrant only a logged note and continued monitoring. A tiered response protocol, documented in the lab's standard operating procedure for AI monitoring, ensures that analyst attention is directed appropriately and that the monitoring system supports rather than disrupts routine throughput.
Regulatory considerations for AI-assisted instrument monitoring
AI-assisted instrument monitoring in regulated laboratories sits within an evolving regulatory landscape. In environments subject to current good manufacturing practice (CGMP) or 21 CFR Part 11, the monitoring system itself is subject to data integrity requirements. FDA data integrity guidance establishes that records must be attributable, legible, contemporaneous, original, and accurate, a set of principles commonly abbreviated as ALCOA, and AI-generated monitoring records are not exempt.
Practically, this means the AI monitoring system must generate tamper-evident logs of all anomaly alerts, instrument data inputs, and analyst responses. If the system modifies data (for example, by placing a sample hold in the LIMS), that action must be traceable to the system and timestamped. The PMC review on data fusion in PAT systems outlines how integrating multiple sensor streams for pharmaceutical monitoring requires well-governed data management to satisfy regulatory expectations.
Validation requirements for AI monitoring systems vary depending on how the system is used. A monitoring system that generates alerts for human review and disposition carries different risk weighting than one that automatically holds samples or modifies instrument run sequences without human confirmation. Lab managers should classify AI monitoring tools using a risk-based framework consistent with their quality management system before deployment in regulated workflows.
For labs considering AI instrument monitoring as a component of an evolving operations AI strategy, that strategy should account for instrument monitoring programs alongside broader AI applications in laboratory operations.
AI instrument monitoring supports proactive lab quality management
Integrating AI instrument monitoring into laboratory operations changes the quality management posture from reactive to anticipatory. The technology is not a replacement for calibrated instruments, validated methods, or trained analysts. It is an additional layer of continuous oversight that extends the sensitivity of instrument QC beyond what periodic checks and human review can achieve alone.
Labs that implement AI instrument monitoring with appropriate LIMS integration, calibrated alert thresholds, and documented response protocols are better positioned to protect sample integrity, reduce investigation burden, and demonstrate continuous instrument oversight to auditors. For any lab manager evaluating AI in lab operations, instrument monitoring represents a practical starting point with direct impact on data quality and operational efficiency.
