Lab robotics operations management centers on a different set of concerns than the engineering specifications that dominate vendor conversations: space, power, workflow continuity, maintenance planning, validation obligations, and getting staff ready to work alongside machines they did not choose. Automated liquid handling and robotic systems are reshaping how laboratories operate, and the manager responsible for that transition is not expected to be a robotics engineer. These are the questions that determine whether a deployment succeeds or stalls.
Quick take
- Automated liquid handling systems require dedicated infrastructure planning before installation, including space, power supply, and environmental controls that may not match existing lab layouts.
- Workflow integration must be staged carefully: running automated and manual processes in parallel during transition reduces disruption and reveals integration gaps before full cutover.
- Planned maintenance schedules and service contracts, established at procurement, prevent the unplanned downtime that erodes the throughput gains automation was intended to deliver.
- Regulated labs must complete installation qualification, operational qualification, and performance qualification (IQ/OQ/PQ) before any system enters routine use, with documentation sufficient to satisfy inspection.
- Staff readiness depends on structured training in both system operation and oversight: technicians who understand what the system should produce are better positioned to detect when it is not performing correctly.
Lab robotics infrastructure: space, power, and siting requirements

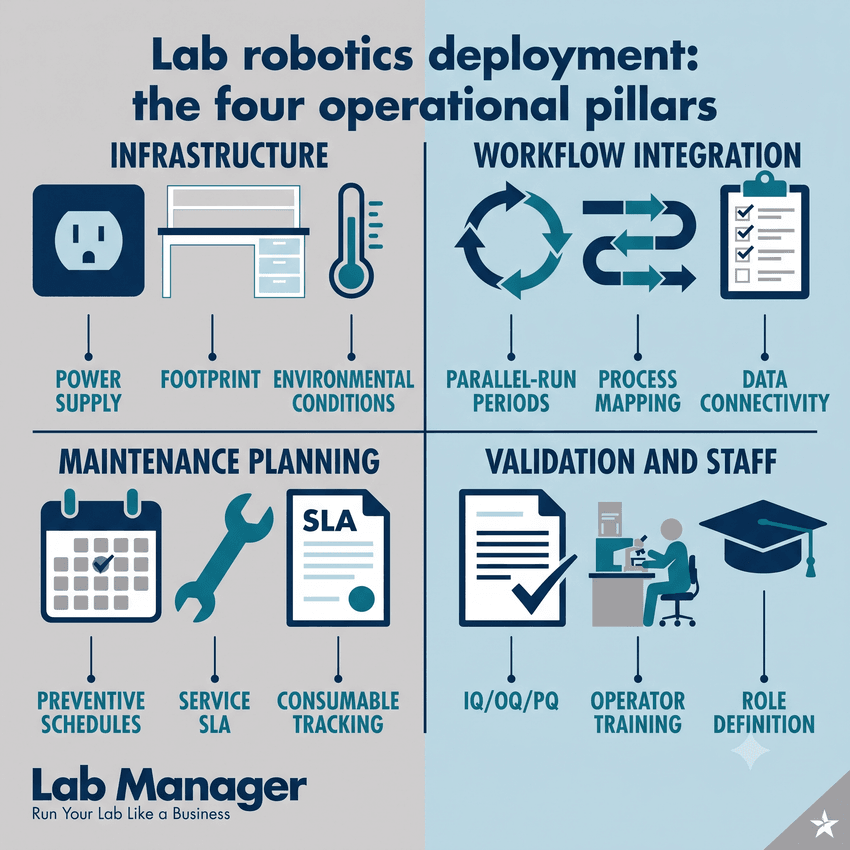

Automation is more than just unboxing a robot. Ensure a seamless rollout by mastering these four foundational pillars of deployment.
GEMINI (2026)

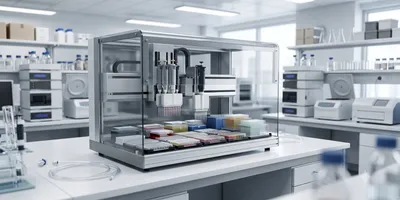

Lab robotics operations management starts with the physical environment, not the software. Automated liquid handling workstations and robotic platforms require significantly more dedicated space than the manual processes they replace. A midrange liquid handler occupies a footprint of roughly 0.5 to 1.5 square meters, but the operational clearance zone around the deck (required for safe tip loading, plate movement, and maintenance access) extends that requirement substantially. Managers assessing deployment sites should budget for access on all serviceable sides, not just the front.
Electrical requirements often exceed standard laboratory circuits. Automation platforms operate at 120 or 240 volts, depending on regional standards and system configuration, and larger integrated systems (including robotic plate movers and incubator stackers) frequently require dedicated circuits beyond what a shared laboratory outlet provides. Checking existing panel capacity against manufacturer-specified electrical requirements before committing to a site prevents costly infrastructure work after equipment delivery. OSHA's laboratory guidance covers electrical hazard assessment in laboratory environments and provides relevant baseline criteria for evaluating installation sites.
Environmental controls also factor into siting decisions. Liquid handling systems that process temperature-sensitive reagents or operate in low-humidity conditions may require climate-controlled enclosures or placement away from heating, ventilation, and air conditioning (HVAC) vents. Vibration from adjacent equipment is a less obvious concern but relevant for high-precision dispensing systems; dedicated bench surfaces with vibration-dampening properties are available and worth specifying in environments where centrifuges or sonicators operate nearby.
Lab Management Certificate
The Lab Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
Automated liquid handling workflow integration for lab managers
Robotic lab deployment succeeds or fails at the integration stage, not the installation stage. The most common failure mode is cutting over from manual to automated processing in a single step, which exposes the entire workflow to any integration gap that was not identified in pre-deployment testing. A parallel-run period, in which the automated system processes a subset of samples alongside the manual workflow, generates the comparative data needed to validate performance and builds operator confidence before full transition.
Workflow mapping before deployment is not optional. Automated systems are optimized for defined, repeatable processes, and they expose variability in upstream and downstream steps that manual technicians compensate for implicitly. If sample tube formats are inconsistent, if reagent labeling is not standardized, or if downstream analytical instruments do not accept the output format the automation produces, the integration will fail at those points. A pre-deployment process review that maps every handoff in the affected workflow reduces the number of surprises encountered at go-live.
Interested in lab design?
Lab automation operational continuity also depends on data connectivity. Automated systems generate structured run data that should feed into sample tracking and quality records automatically; configuring those connections with the lab information management infrastructure before go-live, rather than after, avoids a period of manual transcription that defeats some of the efficiency rationale for deploying automation in the first place.
Lab robotics maintenance planning and service contracts
Lab robotics operations management does not end at installation; planned maintenance is the discipline that protects throughput gains over the system's lifetime. Automated liquid handling systems are precision instruments with consumable components (O-rings, pipetting channels, tip adapters, dispensing valves) that degrade with use and must be replaced on defined schedules. Reactive maintenance (responding to failures) is consistently more disruptive and expensive than scheduled preventive service, and the downstream effects of an unplanned system outage on sample queues can take days to clear.
| Maintenance category | Typical interval | Lab manager action |
|---|---|---|
| Daily function checks | Every run day | Assign to trained operator; document result |
| Preventive service (internal) | Monthly or per manufacturer spec | Schedule in advance; protect from sample queue pressure |
| Manufacturer service visit | Annually or per contract | Specify service level agreement (SLA) terms at procurement |
| Tip and consumable replacement | Per volume thresholds | Track usage; maintain stocked spares |
| Calibration and performance verification | Quarterly or per validation protocol | Document with instrument log entries |
Service contract terms should be negotiated at procurement, not after system installation. Response time guarantees, loaner equipment availability during extended repairs, and the scope of what the contract covers (parts, labor, travel) vary significantly between vendors and contract tiers. For systems that are critical-path, meaning a failure halts the entire workflow, the contract terms are as operationally important as the system specifications, and a gap in service coverage can translate directly into missed throughput targets and delayed results.
Lab automation validation requirements: IQ, OQ, and PQ essentials
Lab automation validation in regulated environments is a non-negotiable precondition for routine use. Automated liquid handling and robotic systems must complete installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) before the laboratory processes any samples for real results, and the documentation generated must be sufficient to withstand regulatory inspection. A peer-reviewed overview of equipment qualification for regulated labs covers the scope of what each phase must demonstrate and how it differs from general-use verification outside current Good Manufacturing Practice (GMP) settings.
IQ confirms that the system was installed correctly: hardware components match the specification, connections are properly made, and environmental conditions fall within the manufacturer's required range. OQ demonstrates that the system operates as intended across its defined functional parameters, including pipetting accuracy and precision, volume linearity, temperature control, and software function. PQ demonstrates that the system performs acceptably in the actual laboratory environment on the intended sample types, under normal operating conditions. All three qualification phases generate documentation that becomes part of the equipment's permanent record.
Lab automation validation also has a change control dimension. When a validated automated system is modified (whether through a software update, a hardware replacement, or a method change), the impact on the validated state must be assessed. Not every change requires full revalidation, but the assessment must be documented, and significant changes affecting critical quality attributes typically require at least a partial OQ or PQ re-run. Regulated lab managers should ensure that their change control SOPs (standard operating procedures) explicitly address automated systems, since most legacy SOPs cover manual processes only and do not extend to software or configuration changes.
Lab automation staff training and role readiness
Lab automation staff training determines whether operators can run the system and whether they understand what correct performance looks like. Those are different competencies, and the second is the one most deployments underinvest in. Operators who treat an automated system as a black box are less able to detect developing problems, whether a pipetting channel is experiencing early degradation or a protocol file has been inadvertently altered. A review of occupational safety in human-robot collaboration identifies worker preparedness and risk awareness as central requirements for safely integrating robotic systems into shared workspaces, a consideration that applies to laboratory automation alongside industrial settings.
Effective training programs for automated liquid handling cover three areas: instrument mechanics (how the system physically operates and what can go wrong), protocol management (how methods are created, modified, and version-controlled), and quality oversight (what the system should produce, what acceptable variation looks like, and how to document deviations). Vendor training at installation provides the mechanical foundation; internal training on quality oversight and protocol management must be developed and maintained by the laboratory itself.
Role definition matters during and after transition. A peer-reviewed analysis of laboratory medicine training needs documents a consistent pattern in which automation and digital system integration are shifting the professional scope of laboratory specialists, from analytical execution toward system oversight, data interpretation, and technological leadership. Training programs that do not address this shift leave capability gaps in the skills that matter most for operating AI-enabled and automated systems effectively. Building staff skills in automation oversight connects directly to the broader challenge of managing workforce transitions in AI-enabled laboratory environments, a topic covered in the Lab Manager resource on building an AI-ready team.
Lab robotics and AI: connecting automation data to intelligent systems
Lab robotics and AI converge most practically at the data layer. Automated liquid handling and robotic systems generate structured operational data as a byproduct of every run (dispense volumes, cycle times, error flags, and environmental logs), and that data becomes the input for predictive maintenance models, throughput optimization algorithms, and anomaly detection systems when it is connected to AI-enabled monitoring platforms. How labs convert instrument output into decisions is a practical question of data architecture, and robotic deployments are well-positioned to answer it when connectivity is planned from the start.
Several areas show practical convergence between physical automation and AI-assisted intelligence. Predictive maintenance models trained on dispense volume trends and motor current data can identify pipetting channel degradation before it produces out-of-tolerance results, converting reactive service calls to scheduled replacements. Scheduling algorithms that incorporate run-time data from liquid handlers alongside upstream and downstream instrument capacity can optimize sample sequencing across the full workflow, reducing idle time on high-throughput platforms. These capabilities represent the next operational layer above basic automation deployment, and planning for data connectivity and system interoperability at the infrastructure stage reduces the cost of enabling them later.
Lab robotics operations: translating deployment into sustained performance
Lab robotics operations management is ultimately a continuous function, not a one-time project. The infrastructure, integration, maintenance, validation, and staff readiness investments made at deployment set the baseline; sustained performance depends on treating that baseline as a starting point for ongoing operational review. Labs that establish regular performance metrics for their automated systems (dispense accuracy trends, system uptime, error flag frequency) have the data needed to detect gradual degradation before it becomes a quality event.
The distinction between deploying a robotic system and operating one effectively is where most labs find the gap between expected and realized benefits. Managers who approach automation as an operational discipline, with the same structured attention given to reagent management or instrument calibration, consistently recover more of the throughput and reproducibility gains that make automation worthwhile. For a closer look at how robotic automation in QC labs is playing out in practice, the underlying trends in pharmaceutical quality control provide useful operational context. The investment in planning is not a one-time cost; it is the foundation of the return.
