Calibration is the single most important operational decision in lab balance management, and the choice between external reference weights and automatic internal calibration systems has consequences that reach well beyond day-to-day convenience. It affects traceability documentation, regulatory compliance, total cost of ownership, and the accuracy of every result that depends on a correctly performing balance. For laboratory managers and QA professionals deciding how to configure or procure lab balances, understanding what each calibration approach actually delivers — and where each falls short — is essential.
What is external calibration and how does it work on a lab balance?

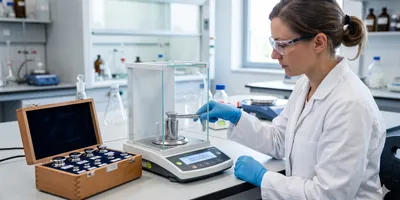

External calibration uses certified reference weights placed manually on the balance pan to verify and adjust the instrument's response. The analyst places a weight of known mass on the pan, the balance compares its reading against the expected value, and if the deviation exceeds a defined tolerance the instrument is adjusted — either automatically or by entering a correction factor — to bring its response into specification.
Reference weights used for lab balance external calibration must conform to a recognized tolerance class. The two main international standards are OIML R 111, which defines classes E1 through M3, and ASTM E617, which defines classes 000 through 7. For analytical balances with 0.1 mg readability, OIML class E2 or F1 weights are typically appropriate; for microbalances, class E1 may be required.
The choice of weight class is not arbitrary — using a weight whose own uncertainty is large relative to the balance's readability undermines the calibration's validity.
The traceability chain created by external calibration is explicit and auditable. The calibration certificate for the reference weight set documents its mass values and associated uncertainties, the accreditation of the laboratory that last calibrated the weights, and the national metrology standard to which the values are ultimately traceable. This documentation is what regulators and accreditation bodies examine when auditing a laboratory's measurement traceability.
What is internal calibration and how does lab balance internal calibration work?
Internal calibration uses a built-in reference mass that the balance deploys automatically, without any analyst intervention. The calibration motor lifts the internal weight onto the measuring system, the balance records the deviation from the expected value, and the instrument adjusts its sensitivity coefficient to bring its response into specification — typically completing the cycle in under 60 seconds.
Most analytical balances with internal calibration trigger the cycle automatically when a defined temperature change is detected at the internal sensor — commonly a shift of 1–2°C from the last calibration temperature. Some instruments also trigger on elapsed time, and all allow manual triggering by the operator. This means an internally calibrating balance is effectively recalibrating continuously in response to the environmental changes that most influence its sensitivity.
The principal advantage of this approach is that it maintains accuracy without relying on operator action. A balance that recalibrates automatically when the laboratory temperature changes after air conditioning cycles on will produce more consistent results across a working day than one calibrated manually at the start of a shift and left unchecked. In practice, internal calibration closes the gap between nominal and actual accuracy across a wider range of operating conditions.
Lab Quality Management Certificate
The Lab Quality Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
How do external and internal lab balance calibration compare for accuracy and traceability?
Both calibration methods can deliver equivalent accuracy in practice, but they achieve it differently and the documentation each produces has different regulatory standing.
External calibration offers a direct, independently verifiable traceability chain. Every calibration event can be documented with the weight's certificate number, the calibration result, the date and time, and the analyst who performed it. In ISO 17025-accredited laboratories and GMP-regulated pharmaceutical facilities, this level of documentation is frequently required.
The ability to present an unbroken chain of mass traceability from the lab balance result back to a national standard is what makes results legally and scientifically defensible.
Internal calibration provides excellent real-time accuracy maintenance but its traceability path is less transparent. The internal reference mass is factory-calibrated, but the user cannot independently verify its current value without external reference weights. Some quality systems accept this; others require periodic confirmation of internal calibration performance using external weights, which partly reintroduces the external calibration workflow.
Interested in lab tools and techniques?
Over time, internal reference masses can also drift — particularly in instruments used in harsh environments — without the user having any means of detecting the drift until external weights are applied.
| Feature | External calibration | Internal calibration |
|---|---|---|
| Traceability documentation | Explicit, certificate-based | Factory-set; less transparent |
| Frequency of calibration | Manual — daily span check minimum | Automatic — triggered by temperature change or elapsed time |
| Regulatory acceptance | Required in many GMP and ISO 17025 contexts | Accepted in many contexts; may require external verification |
| Response to environmental change | Depends on operator discipline | Automatic — recalibrates when temperature shifts |
| Ongoing cost | Reference weight sets; periodic recertification | Higher instrument purchase price; minimal running cost |
| Risk of missed calibration | Operator-dependent | Low — automatic triggers |
A hybrid approach is common in regulated laboratories: instruments with internal calibration for day-to-day accuracy maintenance, with scheduled external calibration using certified weights at defined intervals to generate the traceability documentation the quality system requires.
Which lab balance calibration approach suits different laboratory environments?
The right choice depends on the regulatory framework the laboratory operates under, the frequency and criticality of weighing operations, and the resources available for ongoing calibration management.
High-throughput analytical laboratories — including contract testing labs, environmental testing facilities, and industrial QC labs — generally benefit most from internal calibration. The combination of frequent temperature changes as personnel move through the space, high instrument utilization, and limited time for manual calibration procedures makes automatic recalibration a practical necessity. The risk of a missed calibration event in a busy environment is reduced substantially when the balance manages its own recalibration.
GMP pharmaceutical manufacturing and QC labs typically require external calibration documentation for balances used in release testing or regulatory submissions. FDA inspection expectations and EU GMP Annex 11 requirements around electronic records create a strong preference for an explicit, documented traceability chain. Many pharma labs operate internally calibrating instruments and supplement them with scheduled external calibration — using ISO 17025-accredited on-site calibration services — to satisfy both accuracy and documentation requirements simultaneously.
Research and academic laboratories with less prescriptive regulatory requirements often find internal calibration instruments easier to manage. Fewer staff may be trained in reference weight handling procedures, and the risk of weight contamination or damage — which compromises the external calibration's validity — is lower when manual weight handling is minimized.
Reference and metrology laboratories calibrating other instruments or performing legal-for-trade measurements almost always require external calibration with the highest tolerance class weights available, and will have dedicated environmental controls and procedures to support the rigour that these applications demand.
What are the operational and cost considerations for each lab balance calibration approach?
Total cost of ownership differs significantly between the two approaches and is frequently underestimated at the procurement stage.
External lab balance calibration requires an initial investment in a certified reference weight set appropriate to the balance's capacity and readability. OIML class E2 or F1 weight sets for analytical balance use typically cost several hundred to several thousand dollars depending on the range and number of weights included. The weight set must be recertified at defined intervals — typically every one to three years depending on the quality system — which incurs ongoing laboratory fees.
Weight sets require dedicated storage conditions: controlled temperature and humidity, protective cases, and handling with clean forceps or gloves to avoid contamination that shifts their mass values.
Internal calibration lab balances carry a higher purchase price — typically a premium of 20–40% over equivalent externally calibrated models, though this varies by manufacturer and specification tier. Running costs are lower: no reference weight set to purchase, store, or recertify. The balance manages its own calibration without consuming technician time.
Over a five-year ownership period, the cost difference between the two approaches often narrows substantially when technician time and weight recertification costs are fully accounted.
For labs running multiple lab balances, the economics of internal calibration become more compelling. Consider a laboratory operating ten analytical balances:
- External calibration: ten weight sets to purchase, store, and recertify; ten calibration logs to maintain; technician time for daily span checks across all instruments
- Internal calibration: higher upfront instrument cost across the fleet; no weight sets; calibration managed automatically with minimal technician involvement
- Hybrid approach: internally calibrating instruments with scheduled external verification events — typically the lowest total cost for regulated labs needing both real-time accuracy and documented traceability
Internal calibration eliminates weight management overhead entirely, at the cost of a higher upfront instrument investment per balance.
A full evaluation of the specifications, connectivity features, and purchase considerations that should inform lab balance procurement — including how calibration approach interacts with other instrument selection criteria — is covered in Lab Manager's independent purchasing guide for lab balances.
Conclusion: Matching calibration approach to your lab's actual requirements
Neither external weights nor internal calibration is universally superior — the right answer is determined by the regulatory framework, quality system requirements, operating environment, and total cost considerations specific to each laboratory. External calibration provides the strongest and most auditable traceability documentation and is the appropriate choice wherever that documentation is required. Internal calibration offers better real-time accuracy maintenance, lower operator dependence, and lower total running costs, and is appropriate wherever automatic recalibration and a less granular traceability record are acceptable.
For most regulated laboratories, the answer is not a binary choice but a structured combination: internal calibration for day-to-day operational accuracy, with scheduled external calibration events providing the traceability documentation the quality system requires. Understanding how calibration interacts with the full range of environmental, procedural, and regulatory factors that govern analytical lab balance performance gives laboratory managers the foundation to make that decision with confidence.
References
- International Organisation of Legal Metrology (2004). OIML R 111-1: Weights of classes E1 to M3 — metrological and technical requirements. OIML. https://www.oiml.org/en/files/pdf_r/r111-1-e04.pdf
- ASTM International (2023). ASTM E617-23: Standard specification for laboratory weights and precision mass standards. ASTM. https://store.astm.org/e0617-23.html
- European Commission (2011). EudraLex Volume 4: EU guidelines for good manufacturing practice for medicinal products for human and veterinary use — Annex 11: Computerised systems. EC. https://health.ec.europa.eu/system/files/2016-11/annex11_01-2011_en_0.pdf
