Lab centrifuges are among the most widely used instruments in scientific research, separating biological, chemical, and physical samples by exploiting differences in particle density under controlled centrifugal force. Selecting the right lab centrifuge — and pairing it with the correct rotor, speed profile, and run conditions — directly determines whether downstream analyses yield reliable data. This guide covers every major centrifuge type found in modern laboratories, from compact microcentrifuges to high-force ultracentrifuges, and explains how rotor selection, operating parameters, safety protocols, and maintenance discipline work together to protect samples, protect operators, and extend instrument life.
Types of lab centrifuges
Lab centrifuges are categorized primarily by maximum speed and capacity, with each class optimized for a specific range of sample volumes and separation forces. Understanding where each instrument type sits on that spectrum is the foundational decision before any rotor or protocol choice is made.
Microcentrifuges handle 0.5–2.0 mL tubes and reach maximum speeds of approximately 14,000–16,000 × g. They are the default instrument for rapid molecular biology tasks: DNA and RNA pelleting, cell debris removal, and quick clarification of small-volume samples. Their compact footprint makes them a near-universal fixture in genomics, proteomics, and clinical diagnostic laboratories.

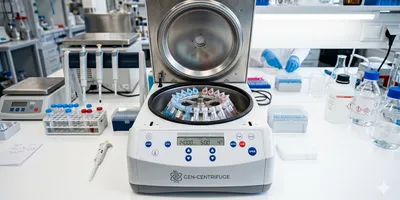

Benchtop centrifuges accommodate larger tube formats — typically 15 mL and 50 mL conicals, microplates, and specialized rotor inserts — and span a wide speed range depending on configuration. Low-speed benchtop models operate up to approximately 6,000 × g and are suited to cell culture applications, blood separation, and density-sensitive preparations; high-speed models extend to around 20,000 × g and handle bacterial pellets, protein precipitates, and organelle fractionation. Refrigerated benchtop lab centrifuges maintain sample temperature during extended runs, which is essential when working with temperature-sensitive proteins or intact cells.
Floor-standing high-capacity lab centrifuges prioritize throughput over bench space, accepting multi-liter rotor configurations while spanning a wide speed range — from low-speed high-volume models (up to ~7,000 × g) to superspeed instruments exceeding 100,000 × g. They are used in biopharmaceutical manufacturing, blood banking, and large-scale environmental sample processing where the combination of capacity and speed flexibility is the primary requirement.
Ultracentrifuges generate forces exceeding 500,000 × g, achieved at rotor speeds of 50,000 RPM or higher. These instruments are used for subcellular fractionation, virus purification, lipoprotein separation, and isopycnic density gradient work where the particles involved are too small or too similar in density to resolve at lower forces. Ultracentrifuges demand rigorous rotor inspection schedules and formal operator training because of the extreme mechanical stresses they generate.
| Centrifuge type | Typical max RCF | Common tube formats | Representative applications |
|---|---|---|---|
| Microcentrifuge | ~16,000 × g | 0.5–2.0 mL | DNA/RNA pelleting, cell debris removal |
| Benchtop (low-speed) | ~6,000 × g | 15–50 mL, plates | Cell culture, blood separation |
| Benchtop (high-speed) | ~20,000 × g | 1.5–50 mL | Protein precipitation, bacterial pelleting |
| Floor-standing | ~7,000–100,000+ × g | High-capacity buckets | Bulk cell harvest, blood fractionation |
| Ultracentrifuge | >500,000 × g | Polycarbonate/polyallomer | Subcellular fractionation, lipoprotein analysis |
Rotor selection: geometry, application, and load balancing
The rotor is the component that most directly determines separation quality. Its geometry dictates the path particles travel through the sample during a spin, the shape of the resulting pellet, and the maximum achievable force. Choosing the wrong rotor for an application introduces separation artifacts, reduces sample recovery, and can damage the instrument.
Fixed-angle rotors hold tubes at a constant angle — typically between 20° and 45° from vertical — so particles travel a short radial path to the tube wall before sliding to the bottom. This geometry produces compact, well-formed pellets quickly and is the standard choice for pelleting bacteria, cell debris, yeast, and inorganic precipitates. Fixed-angle rotors support the widest range of spin speeds within a given instrument class and are the most common rotor type across benchtop lab centrifuges.
Lab Quality Management Certificate
The Lab Quality Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
Swinging-bucket rotors allow tubes to pivot to a horizontal position once the rotor is in motion, so particles sediment along the full length of the tube. The longer sedimentation path produces softer, more loosely packed pellets — an advantage when sample recovery and resuspension ease are priorities — and makes this geometry the first choice for density gradient separations and applications where cell viability must be preserved after centrifugation. Maximum speeds are generally lower than a comparable fixed-angle rotor.
Vertical and near-vertical rotors hold tubes parallel or close to parallel with the rotation axis, minimizing the radial distance particles must travel through the gradient. This significantly reduces run time in isopycnic separations and is exploited in nucleic acid banding, lipoprotein density profiling, and other ultracentrifuge applications where speed of band formation is the priority.
Rotor loading balance is a critical quality factor that is frequently underestimated by new centrifuge users. Tubes must be balanced by mass — not volume alone — in opposing positions, because density differences between samples mean equal volumes are not necessarily equal masses. Understanding how rotor imbalance causes sample degradation and run failure is especially important for labs processing large sample batches or running high-force protocols, where even minor asymmetry between opposing tubes produces measurable differences in pellet recovery and, over time, accelerated bearing wear.
Interested in lab tools and techniques?
Key operating parameters: RCF, RPM, and temperature control
Centrifuge protocols should always be specified in relative centrifugal force (RCF), expressed as multiples of gravitational acceleration (× g), rather than in revolutions per minute (RPM). RCF accounts for rotor radius, making protocols directly reproducible between instruments; RPM without radius information does not. The same RPM setting applied to rotors of different radii produces different centrifugal forces — one of the most common causes of inter-laboratory protocol discrepancies.
Temperature control is equally consequential for biological samples. Proteins, enzymes, intact cells, and nucleic acid complexes degrade at ambient temperature during extended centrifuge runs, and refrigerated instruments must be pre-cooled — rotor and all — before sample loading. A rotor at room temperature will briefly warm refrigerated samples during the initial seconds of acceleration; pre-cooling eliminates this artifact and ensures that set temperature is maintained from the first moment of sample contact.
Acceleration and deceleration ramp rates are often overlooked but matter significantly for gradient integrity and pellet stability. Abrupt deceleration disturbs loosely packed pellets and can collapse density gradient layers that took the full run time to establish. Most modern lab centrifuges offer programmable ramp profiles; using the slowest deceleration setting compatible with throughput requirements is standard practice for gradient work and intact cell preparations.
Centrifuge applications across laboratory disciplines
Lab centrifuges serve a central role across the main scientific disciplines in modern laboratory environments, with specific instrument configurations and validated protocols developed for each field.
Pharmaceutical and biopharmaceutical laboratories depend on lab centrifuges at multiple stages of drug development and production. Cell harvesting — separating cultured cells from growth medium after a bioreactor run — is one of the highest-volume centrifuge applications in pharma, and the speed, RCF, and protocol parameters required for cell harvesting vary significantly by cell line, product type, and downstream processing step. The validation requirements imposed by good manufacturing practice (GMP) regulations mean that centrifuge protocols in these environments must be formally documented and periodically requalified.
Food science laboratories use lab centrifuges for fat extraction and phase separation in dairy products, quantitative fat content determination by the Gerber and Babcock methods, clarification of juice and beverage samples, and pelleting of microbial contaminants ahead of colony count preparation. Applications spanning fat extraction, dairy quality control, and beverage clarification require specific centrifuge configurations — including hygienic design and cleanability requirements that constrain instrument selection in ways general research labs do not encounter.
Environmental testing laboratories rely on lab centrifuges to pellet suspended solids from water and wastewater samples before trace metal, organic compound, or microbiological analysis — a step where residual solids would interfere with downstream analytical techniques. Removing suspended solids from wastewater and environmental samples is a routine but analytically critical step: pelleting conditions must be carefully controlled to avoid co-sedimenting colloidal-phase analytes that should remain in the dissolved fraction for accurate speciation analysis.
Materials science and applied research labs use lab centrifuges for size-selective fractionation of nanoparticle suspensions and colloidal materials, where differential centrifugation isolates particle populations by size and density. Nanoparticle and colloid fractionation using sedimentation rates requires precise control of temperature, acceleration rate, and run duration to achieve reproducible size cuts — and is among the most technically demanding centrifuge applications in any laboratory setting.
Centrifuge safety: aerosol containment, rotor inspection, and hazard prevention
Centrifuge-related laboratory incidents cluster around three main causes: aerosol release from leaking or broken tubes, rotor failure from imbalance or material fatigue, and containment breaches from tube-rotor incompatibilities. All three are preventable with correct procedures, appropriate consumables, and attentive rotor inspection.
Aerosol generation is the primary biosafety concern when running infectious, toxic, or radioactive samples. Sealed safety buckets and aerosol-containment rotors are required at biosafety level 2 (BSL-2) and above, as specified in the CDC/NIH Biosafety in Microbiological and Biomedical Laboratories (BMBL, 6th ed., 2020). The WHO Laboratory Biosafety Manual (4th ed., 2020) takes a complementary risk-based approach to aerosol hazard control in centrifuge operations.
Any spill inside a centrifuge bowl involving potentially infectious material must be treated as a contamination event until hazard classification confirms otherwise, and the bowl, rotor, and all exposed surfaces decontaminated accordingly.
Rotor inspection before every run is the single most effective intervention for preventing rotor failure. Rotors should be examined for surface cracks, pitting, corrosion, and discoloration — particularly around tube holes and hinge pivot points on swinging-bucket designs. Chemical incompatibility is a common failure mode: aluminium rotors are vulnerable to etching by halide salts and strong acids, and brief contact with incompatible cleaning agents can initiate corrosion that progresses invisibly between inspections.
The full scope of preventing aerosol release, rotor failure, and containment breaches — covering chemical hazard assessment, cryogenic handling, and post-incident decontamination — warrants dedicated attention in any laboratory running centrifugation on a routine basis.
Tube material selection is the third pillar of centrifuge safety. The following tube types are commonly used in lab centrifuges, each with distinct rated force limits and chemical tolerances:
- Polypropylene: general-purpose, chemically resistant, rated for most high-speed benchtop applications
- Polycarbonate: optically clear for visual pellet inspection; limited resistance to strong bases and many organic solvents
- Ultraclear polyallomer: maximum optical clarity for gradient visualization; compatible with ultracentrifuge forces
- Oak Ridge-style thick-walled tubes: designed for high-speed and ultracentrifuge applications requiring maximum mechanical strength
Always verify tube manufacturer specifications before exceeding 20,000 × g, and never use tubes showing stress whitening, deformation, or visible cracking.
Centrifuge maintenance, purchasing, and long-term performance
Routine maintenance is the most cost-effective investment a laboratory can make in centrifuge reliability. User-level tasks — wiping the bowl dry after every run, cleaning rotors with mild detergent and drying completely before storage, inspecting O-ring seals on safety bucket lids, and monitoring for unusual vibration or noise — prevent the majority of instrument failures before they occur. A structured preventive maintenance schedule covering rotor inspection intervals, cleaning procedures, and scheduled service timelines is the operational foundation for any lab running centrifuges across multiple users or shifts, and is required documentation in GMP and ISO 17025-accredited environments.
Rotor care warrants a dedicated section in any lab's standard operating procedures. Rotors must be stored upright, away from corrosive chemical vapors, and never stored with liquid remaining in tube cavities. Aluminium rotors should be washed promptly after contact with biological samples or saline-based buffers; manufacturers publish maximum cycle life limits for high-stress ultracentrifuge rotors, and these are safety thresholds — not advisory guidelines — that must be tracked and enforced.
Purchasing decisions involve considerably more variables than headline maximum speed. Evaluating lab centrifuges on rotor portfolio breadth — the number of rotor types and tube formats supported — is often a better measure of long-term versatility than the instrument's rated top speed. A structured approach to assessing rotor types, speed specifications, and buying criteria alongside refrigeration capacity, footprint, noise specification, programming flexibility, and service contract terms produces a more durable purchasing decision than comparing data sheets on speed alone.
Selecting and operating lab centrifuges for reliable results
Lab centrifuges deliver consistent, reproducible separations when instrument class, rotor geometry, operating parameters, and maintenance discipline are properly matched to the application. Selecting the correct centrifuge type is the foundational step; understanding rotor behavior, RCF calibration, temperature management, and safety protocols determines how well that instrument performs across its service life. Laboratories that match the instrument to the sample, validate protocols, inspect rotors routinely, and maintain equipment to schedule will achieve higher analytical confidence, lower sample loss rates, and significantly reduced risk of instrument failure or operator injury.
References
- World Health Organization. (2020). Laboratory Biosafety Manual, 4th edition. WHO Press, Geneva. https://www.who.int/publications/i/item/9789240011311
- Centers for Disease Control and Prevention & National Institutes of Health. (2020). Biosafety in Microbiological and Biomedical Laboratories (BMBL), 6th edition. U.S. Government Publishing Office. https://www.cdc.gov/labs/bmbl/index.html
- U.S. Department of Labor, Occupational Safety and Health Administration. Occupational Exposure to Hazardous Chemicals in Laboratories. 29 CFR §1910.1450. https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.1450
