Lab gas generators are a preferred alternative to high-pressure cylinders in many analytical settings, but lab gas generator safety requires deliberate planning around the specific hazards hydrogen introduces at the bench level. Hydrogen's extremely wide flammability range, its tendency to escape through small fittings, and its invisible flame make it among the most demanding gases to manage indoors, and the risks are amplified when generators operate continuously in occupied laboratory spaces.
Quick take
- Hydrogen has a lower explosive limit (LEL) of 4% in air and an upper explosive limit of 75%, giving it one of the widest flammability ranges of any gas used routinely in laboratories.
- On-demand hydrogen generators produce far smaller gas volumes than cylinder supplies, substantially reducing the risk of reaching the LEL during a leak event.
- Adequate room ventilation, positioned gas detectors, and automatic shutoff systems work together as a layered safety architecture; no single control is sufficient on its own.
- Regulatory frameworks, including OSHA 29 CFR 1910.1450, NFPA 2, and ISO 22734, all impose specific requirements on hydrogen use and generator design in laboratory environments.
- Installation location, tubing material selection, and grounding practices are as important to long-term safety as the generator's built-in sensors.
Understanding hydrogen flammability risk in laboratory gas generator safety
Hydrogen presents a more severe flammability hazard than most other gases used in analytical laboratories because of its unusually wide explosive range and low ignition energy. The LEL for hydrogen in air is 4% by volume, and the upper explosive limit reaches 75%, meaning that virtually any mixture between those concentrations can ignite. By comparison, methane's flammability range runs from approximately 5% to 15%. Because hydrogen is also colorless, odorless, and burns with a nearly invisible flame in daylight, a leak may not be detectable by human senses until concentrations are already at dangerous levels.
Gas detectors calibrated to trigger alarms at 10–15% of the LEL are the standard first line of hydrogen leak detection in laboratory environments, as noted in guidance from Lawrence Berkeley National Laboratory's Environmental Health and Safety program. Detector placement matters: because hydrogen is approximately 14 times lighter than air, sensors must be mounted at high points in the room or directly above the generator, not at floor level, where most combustible gas detectors are positioned for denser gases. An improperly placed detector can fail to register an accumulating overhead pocket of hydrogen until concentrations have already exceeded safe thresholds.
How hydrogen generators reduce inventory risk compared to cylinders
One of the most safety-relevant arguments for lab gas generators over compressed gas cylinders is the dramatic reduction in total hydrogen volume present in the laboratory. Effective lab gas generator safety begins with understanding this difference: a standard 50-liter hydrogen cylinder contains the equivalent of roughly 9,000 liters of gas at atmospheric pressure, while a PEM electrolysis generator produces hydrogen on demand only at the flow rates instruments require, keeping the in-system inventory to a small fraction of that volume. If a leak occurs in a generator-fed system, the total available hydrogen is far lower, and concentrations approach the LEL much more slowly in a normally ventilated room than they would following a cylinder breach.
Interested in lab design?
Generators are also equipped with internal pressure monitoring and electronic controls that cut power to the electrolysis cell the moment a leak is detected, halting gas production entirely. Best practice guidance recommends that laboratory hydrogen generators automatically shut down if gas begins accumulating in a non-ventilated space, and that agency-certified units conforming to ISO 22734 or equivalent standards provide the most reliable built-in protection.
Understanding which generator type fits your instruments is covered in more depth in this complete guide to nitrogen, hydrogen, and zero air systems.
Hydrogen generator safety features every lab should require
Not all hydrogen generators carry the same safety architecture, and lab gas generator safety begins at the procurement stage with an explicit review of built-in protection systems. The following features represent current best practice for analytical laboratory settings:
| Safety feature | Function | Why it matters |
|---|---|---|
| Internal hydrogen sensor | Detects gas accumulation inside the generator enclosure | Triggers shutdown before leaked gas reaches the lab atmosphere |
| Automatic cell shutoff | Cuts electrolysis current on alarm condition | Immediately halts hydrogen production at the source |
| Mechanical pressure relief valve | Vents system if electronic pressure control fails | Provides fail-safe protection against hydrogen generator pressure risks |
| Electronic pressure monitoring | Continuously compares output pressure against set limits | Detects downstream blockages or line failures in real time |
| Forced-air internal ventilation | Dilutes any internal hydrogen buildup | Prevents ignitable concentrations from forming inside the housing |
| Bonding and grounding terminal | Dissipates electrostatic charge | Eliminates one of the most common ignition sources near hydrogen equipment |
Generators certified to ISO 22734-1:2025, the current international standard for hydrogen generators using water electrolysis, are required to incorporate leak detection that triggers alarm and, where possible, modifies operating parameters to prevent further gas release. All pressure-bearing components must be rated at or above the maximum allowable working pressure, and pressure relief devices must be set below that threshold. When reviewing product specifications, labs should verify certification to this standard or to equivalent national adoptions such as CSA B22734 in North America.
Lab gas generator ventilation requirements for hydrogen safety
Room ventilation is one of the most frequently underspecified controls in lab gas generator safety planning. A commonly applied design benchmark of six air changes per hour may be insufficient for spaces where hydrogen is generated continuously or where higher flow rates are in use. Guidance from the DOE Hydrogen Tools Portal states that ventilation rates must be sufficient to dilute hydrogen leaks to below 25% of the lower flammable limit, and that minimum code ventilation rates should be treated as a floor, not a target. Laboratories should conduct a site-specific hazard analysis considering leak rate, generator output, and room volume before assuming minimum rates are adequate.

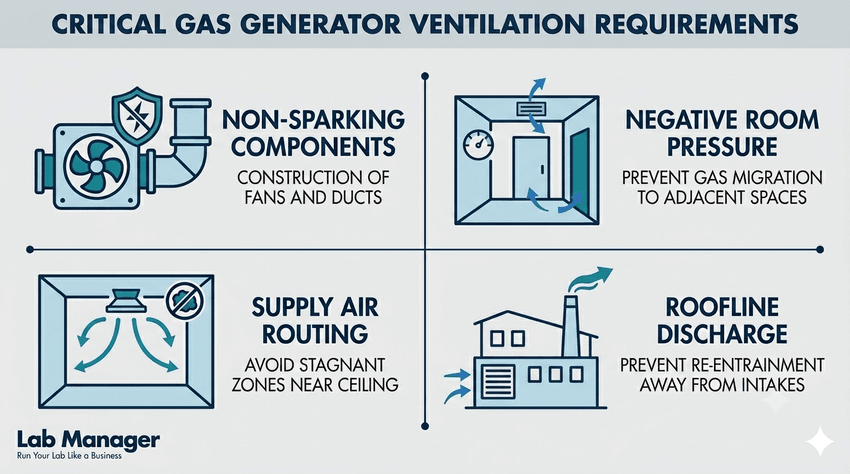

Mastering the high-stakes science of gas generator ventilation.
GEMINI (2026)
Practical lab gas generator ventilation requirements include:
- Exhaust fans and ductwork must be constructed of non-sparking materials, as hydrogen can ignite from metal-on-metal friction or static discharge in conventional fan housings.
- Room air pressure should be negative relative to corridors and adjacent non-laboratory spaces to prevent hydrogen migration under doors.
- Supply air diffusers should be located to avoid short-circuiting the ventilation path or creating stagnant zones where hydrogen could accumulate near the ceiling.
- Exhaust outlets should discharge above the roofline in a location that prevents re-entrainment into the building's fresh air intake.
The relevant ventilation standard for laboratory fume systems is ANSI/ASSP Z9.5-2022, which addresses capture velocities, exhaust fan construction, and exhaust discharge positioning. NFPA 2, the Hydrogen Technologies Code, governs enclosure and area classification requirements for laboratory systems that exceed maximum allowable quantity thresholds, and should be reviewed in conjunction with local fire codes during facility design or generator installation.
Safe installation practices for hydrogen generator tubing and ignition control
The physical installation of a hydrogen generator system introduces hazard vectors separate from the generator's built-in safety features. Tubing material selection is critical to lab gas generator safety: stainless steel is the accepted standard for laboratory hydrogen piping because it resists hydrogen embrittlement, which can degrade copper and some carbon steel alloys over time and increase the likelihood of micro-leak failures. Combustible flexible tubing materials, including rubber and certain polymer types, should not be used to convey hydrogen at any point in the run from generator to instrument.
Leak verification at all connection points, using an appropriate detector or approved leak-check solution rather than an open flame, should be completed at initial installation and after any maintenance intervention. All ventilation system components serving hydrogen spaces must be bonded and grounded, and the generator itself should have a direct earth connection to prevent electrostatic accumulation. Ignition sources, including open-flame burners and non-explosion-proof electrical equipment, should be kept away from generators and supply lines.
These installation principles align with the broader considerations covered in this independent purchasing guide for lab gas generators, which addresses infrastructure and siting questions alongside instrument compatibility. Labs using hydrogen generators with gas chromatographs should also consult gas chromatography safety best practices for hydrogen-specific handling requirements at the instrument level.
OSHA, NFPA 2, and ISO 22734: regulatory requirements for lab hydrogen systems
Laboratory managers operating hydrogen generators in the United States are subject to several overlapping requirements. OSHA 29 CFR 1910.1450, the Occupational Exposure to Hazardous Chemicals in Laboratories standard, establishes the overarching chemical hygiene framework and requires a written Chemical Hygiene Plan that must address flammable gas hazards. OSHA 29 CFR 1910.103 adds specific provisions for hydrogen systems, including electrical classification requirements for enclosures and bonding obligations for associated piping. NFPA 2, the Hydrogen Technologies Code, governs area classification, quantity thresholds, and vent stack placement for laboratory hydrogen installations. Together, these frameworks require labs to treat the generator, the surrounding space, the tubing system, and the ventilation infrastructure as interconnected components of a single safety program.
Building a complete lab gas generator safety program
Effective lab gas generator safety is not achieved by relying on a generator's built-in sensors alone. A complete program layers automatic shutoff and pressure relief with properly designed room ventilation, correctly positioned hydrogen leak detection, ignition source controls, appropriate tubing materials, and documented maintenance schedules. Regulatory frameworks from OSHA, NFPA, and ISO provide the structural foundation for these programs, but site-specific hazard analysis is necessary to confirm that minimum code requirements are adequate for actual generator output rates and room characteristics. A documented, operationally maintained approach to lab gas generator safety is the single most reliable differentiator between programs that prevent incidents and those that do not.
