Lab gas generators produce purified nitrogen, hydrogen, and zero air directly at the bench, eliminating the logistical and safety burdens of compressed-gas cylinders. Modern on-site generation systems supply gas at the purity levels required by gas chromatography (GC), liquid chromatography-mass spectrometry (LC-MS), and a range of analytical and industrial applications, at a fraction of the per-liter cost of cylinder supply over a three-to-five-year horizon.
Quick take
- Lab gas generators produce nitrogen, hydrogen, and zero air continuously on demand, removing the need for cylinder deliveries, rentals, and manual changeovers.
- Nitrogen generators use pressure swing adsorption (PSA) or membrane technology; hydrogen generators use proton exchange membrane (PEM) electrolysis; zero-air generators use catalytic oxidation to remove hydrocarbons from ambient air.
- Purity determines technology: PSA delivers nitrogen at 95% to 99.999% purity, suitable for LC-MS and high-sensitivity GC; membrane systems deliver up to approximately 99.5% and suit lower-demand applications.
- On-site generation decouples laboratories from industrial gas supply chains, eliminating the operational risk of delivery delays, cylinder shortages, and price volatility.
- Safety profiles favor generators over high-pressure cylinders: hydrogen generators store minimal gas internally and operate at low pressure, substantially reducing flammability risk.

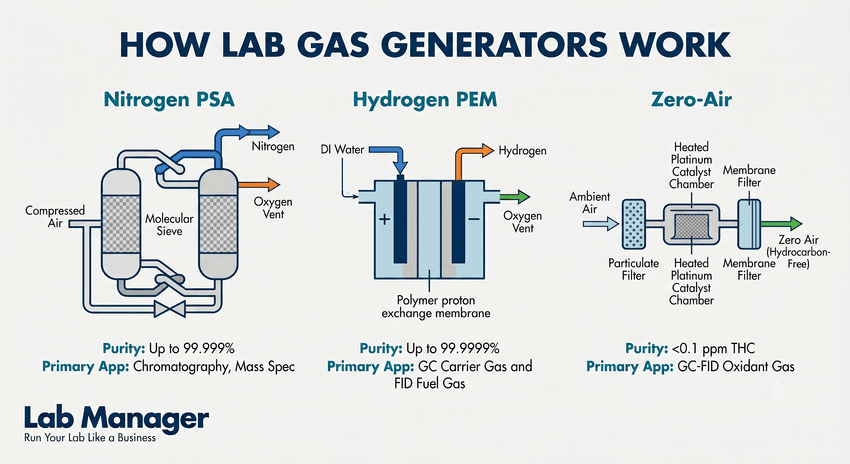

How nitrogen, hydrogen, and zero-air lab gas generators work
From ambient air to ultra-pure carrier gas, here is how modern generators deliver consistent, cylinder-free flow for GC and mass spectrometry.
GEMINI (2026)
Lab gas generators use distinct electrochemical or physical separation processes depending on the gas being produced. Understanding these mechanisms helps laboratory managers match the right technology to their application requirements.
Nitrogen generators separate nitrogen from compressed ambient air using one of two approaches. PSA technology cycles compressed air through columns packed with carbon molecular sieves, which adsorb oxygen preferentially and allow nitrogen to pass through at purities of 95% to 99.999%. Membrane technology passes compressed air through bundles of semi-permeable hollow fibers; oxygen and carbon dioxide, which have higher permeation rates through the polymer walls, diffuse out as "fast gases" while nitrogen, a "slow gas," continues through to the outlet. For purity requirements of 99.5% and above, PSA is the preferred choice; membrane systems are a cost-effective option for lower-purity applications such as solvent evaporation, sample drying, and inerting.
Hydrogen generators use PEM electrolysis to split deionized water into hydrogen and oxygen. The hydrogen produced is then dried using a PSA dryer or a desiccant-based system to reach purities as high as 99.9999%, sufficient for GC carrier gas and trace-level mass spectrometry work. Because the electrolyzer cell produces hydrogen only in response to demand, the volume of gas stored inside the unit at any moment is very small, which is a fundamental safety advantage over high-pressure cylinders.
Zero-air generators filter ambient air through a particulate stage, then pass it through a high-temperature platinum or platinum-palladium catalyst that oxidizes residual hydrocarbons and carbon monoxide to below 0.1 parts per million (ppm). The output is cooled and passed through a final membrane filter. This ultra-clean air supply is essential for flame ionization detectors (FID), where even trace hydrocarbon contamination in the oxidant stream raises the background signal and degrades baseline stability.
Nitrogen generator types: how to choose between PSA and membrane technology
For most analytical laboratories, nitrogen is the highest-volume gas, and selecting the correct generation technology has a direct impact on instrument performance and operating cost.
PSA systems cycle between two adsorption columns in alternating pressurization and regeneration phases, maintaining a continuous output stream. The purity of PSA-generated nitrogen can be tuned by adjusting cycle time and flow rate, and most commercial systems for LC-MS deliver purities of 99.5% to 99.999% with oxygen content well below 10 ppm. Membrane systems offer a simpler mechanical design with no moving parts in the separation stage, lower maintenance overhead, and quieter operation, but purity is inversely related to flow rate, and high-demand instruments may not receive consistent purity under variable load conditions.
Choosing between PSA and membrane systems comes down to the purity the instrument requires. For labs needing 99.5% nitrogen purity and above, PSA is the correct technology; for applications where lower purity is acceptable, membrane generators are considerably more cost-effective. In LC-MS, where nitrogen is used as the nebulizer and desolvation gas, a single instrument can consume volumes equivalent to a full cylinder every working day, making on-site PSA generation economically compelling within the first year of ownership.
Interested in lab design?
The question of whether on-site nitrogen generation is appropriate for pharmaceutical-grade applications, including nitrogen blanketing and packaging purity for drug product stability, involves additional regulatory and documentation requirements beyond instrument performance, a topic addressed in depth for regulated industry settings.
| Feature | PSA nitrogen generator | Membrane nitrogen generator | Hydrogen generator (PEM) | Zero-air generator |
|---|---|---|---|---|
| Technology | Pressure swing adsorption | Hollow-fiber membrane | Proton exchange membrane electrolysis | Catalytic hydrocarbon oxidation |
| Purity range | 95% to 99.999% | Up to ~99.5% | Up to 99.9999% | Total hydrocarbons < 0.1 ppm |
| Typical LC-MS/GC-MS role | Nebulizer/desolvation gas (LC-MS); make-up gas | Inerting, evaporation, drying | Carrier gas, FID fuel gas | FID oxidant gas |
| Feed requirement | Compressed air supply | Compressed air supply | Deionized water | Compressed air supply |
| Key advantage | High purity, scalable | Simple, low maintenance | Ultra-high purity, low internal H2 storage | Stable FID baseline |
| Key limitation | Higher capital cost | Purity drops with flow rate | Requires deionized water | Requires clean air inlet |
| Typical capital cost | $10,000 to $25,000+ | $3,000 to $10,000 | $3,000 to $15,000+ | $2,000 to $8,000 |
| Best for | LC-MS, high-sensitivity GC, pharma, food | Low-demand inerting, drying | GC carrier and detector gas | GC-FID, GC-FPD detector support |
Capital cost ranges are indicative and vary by flow rate, purity specification, and supplier. Total cost of ownership projections should incorporate electricity, consumables, and service contracts.
Hydrogen generators for GC and GC-MS: purity, flow rate, and carrier gas performance
Hydrogen is both the fastest and the most analytically efficient carrier gas for GC, with an optimal linear velocity of approximately 40 cm/s, roughly twice that of helium at around 20 cm/s under comparable conditions. This speed advantage translates directly to shorter run times, a meaningful throughput gain in high-volume analytical environments.
Hydrogen generators using PEM electrolysis convert deionized water into hydrogen continuously and on demand. The electrolyzer operates at low pressure, and internal hydrogen inventory at any moment is measured in milliliters, not liters. This stands in stark contrast to a standard 50-liter high-pressure cylinder at 200 bar, which stores the equivalent of approximately 8,800 liters of gas at atmospheric pressure, a substantial flammability inventory in the event of catastrophic failure. For laboratories that process routine GC work and are evaluating hydrogen as a sustainable alternative to helium, on-site generation addresses both the cost and the risk profile simultaneously.
Method validation is a prerequisite before switching carrier gases. Hydrogen's higher diffusivity and lower viscosity compared to helium alter retention times, peak efficiency, and resolution relative to established helium methods. Laboratories working under regulated methods, such as those governed by pharmacopeial monographs or US Environmental Protection Agency (EPA) compendium methods, must verify that hydrogen-based separations meet all performance criteria before adoption. The argument for hydrogen as a sustainable carrier gas in environmental monitoring laboratories, where helium dependency has historically created supply risk, merits its own detailed treatment.
What is a zero-air generator and why GC labs need one
Zero air is the critical oxidant gas in GC flame ionization detectors, and its purity directly controls background noise and baseline stability. A GC-FID burning contaminated air will show elevated background signal that masks low-concentration analyte peaks and degrades detection limits.
Zero-air generators reduce total hydrocarbons, measured as methane equivalent, to below 0.1 ppm through catalytic combustion at elevated temperatures. This purity level is substantially lower in residual hydrocarbons than compressed air supplied from most cylinders, which may harbor trace hydrocarbons from compressor lubricants or cylinder contamination. A laboratory that keeps FID detectors continuously powered, rather than lighting and extinguishing the flame at the start and end of each batch, eliminates the instrument stabilization and recalibration time that flame cycling requires, recovering productive analytical time each day.
Zero-air generators are also used as the oxidant in flame photometric detectors (FPD) and as a carrier or make-up gas in specific environmental analyzer configurations. The catalytic chamber in most commercial zero-air systems is designed to be regenerative and maintenance-free over the life of the generator, removing hydrocarbon contamination without consumable replacement.
Lab gas generator vs. gas cylinder: total cost of ownership comparison
The economic case for lab gas generators rests on total cost of ownership (TCO) rather than the lower upfront cost of cylinder purchase. High-pressure cylinders carry recurring costs that are invisible to many purchasing approvals: cylinder rental fees, delivery surcharges, regulator maintenance, user training time, safety compliance, and the labor cost of manual changeovers.
For a laboratory running LC-MS instruments on a typical eight-hour-per-day schedule at average nitrogen flow rates, the cumulative cost of cylinder supply over three years routinely exceeds the acquisition cost of a PSA generator plus its service contract. Independent TCO analyses have calculated that on-site nitrogen generation can reduce the effective cost per liter of gas by 60% to 75% compared with cylinder supply once the generator reaches full-utilization payback, typically within 12 to 24 months of installation. The payback window is shorter for higher-flow applications and longer for low-consumption benchtop instruments.
Beyond pure cost, supply chain resilience has become an increasingly material consideration. Laboratories that exhausted their nitrogen cylinder reserves during supply disruptions faced forced instrument downtime, a problem that on-site generation eliminates by decoupling gas supply from external logistics. For laboratories assessing how preventive maintenance schedules affect total cost and uptime, the economics of generator ownership extend further into service planning. Lab Manager's independent guide to purchasing a lab gas generator covers the full ROI calculation, technology selection framework, and maintenance considerations in depth.
Key cost factors to evaluate before purchasing a lab gas generator:
- Daily gas volume consumed by all instruments to be served (liters per minute at peak load)
- Required purity specification for each instrument (define before selecting technology)
- Available compressed-air infrastructure or cost to install a compressor
- Deionized water supply for hydrogen generators
- Floor space, ventilation, and electrical supply at the intended installation location
- Service contract terms and mean time between service visits for the shortlisted models
- Regulatory documentation requirements if the gas supports a GMP-regulated process
Lab gas generator safety: hydrogen flammability, nitrogen asphyxiation, and cylinder risks
The safety profile of on-site gas generation differs materially from cylinder supply, and the differences run in both directions. Understanding both risk categories is necessary for a complete installation-readiness assessment.
High-pressure cylinders pose mechanical hazards from stored energy: a ruptured valve on a nitrogen cylinder can propel the cylinder through walls and cause serious injury. Hydrogen cylinders introduce a flammability hazard on top of the pressure hazard. Hydrogen has a lower explosive limit (LEL) of 4% by volume in air and an upper explosive limit of 75%, giving it the widest flammable range of any common laboratory gas, as covered in OSHA regulation 1910.103 on hydrogen. A 50-liter cylinder stores enough hydrogen to create a severe explosive hazard if it fails catastrophically.
Hydrogen generators operated in conformance with manufacturer guidelines present a substantially lower fire and explosion risk than cylinders because the gas inventory inside the unit is minimal. However, generators are not zero-risk: hydrogen is still produced continuously and must be safely plumbed, monitored, and vented. Sensor-based leak detection, adequate room ventilation sized to prevent hydrogen accumulation above 25% of the LEL, and grounded, non-sparking electrical installations are all required for compliant hydrogen generator operation. The full requirements for managing hydrogen flammability, pressure risks, and ventilation in laboratory settings are extensive enough to warrant their own detailed treatment.
Nitrogen generators, by comparison, present minimal chemical hazard. Nitrogen itself is asphyxiating in enclosed spaces at high concentrations, but the pressures and volumes involved in bench-scale generation are far lower than those in bulk liquid nitrogen systems. Zero-air generators operate on ambient air at low internal pressures and introduce no chemical hazard beyond the catalyst chamber temperature.
How to choose a lab gas generator for GC, LC-MS, pharma, and materials applications
The correct generator for a given laboratory depends on the instrument type, purity requirement, flow demand, and regulatory context, not on a single universal specification.
For LC-MS, whether single-quadrupole, triple-quadrupole, or high-resolution mass spectrometry, nitrogen is the dominant gas and a PSA generator with verified oxygen content at or below 10 ppm is the standard choice. Nitrogen purity directly affects ionization stability and background ion noise in electrospray ionization (ESI) sources, and purity drift during extended sequences is a recognized source of signal variability. Maintaining carrier and detector gas specifications for LC-MS and GC-MS requires understanding how generator performance degrades over time and how to detect drift before it affects data quality.
For GC with flame-based detectors, the three-generator configuration of hydrogen carrier gas, zero air, and nitrogen make-up gas is the standard integrated approach for instruments equipped with a flame ionization detector. Combined generator units that produce hydrogen and zero air simultaneously from a single platform are available and reduce bench footprint.
For GC-MS, zero air is not required; the typical generator configuration supplies hydrogen as carrier gas and nitrogen as make-up or collision gas, and laboratories running multiple GC-MS instruments can centralize supply through a single high-flow generator rather than maintaining separate cylinder inventories for each instrument.
For materials science and thermal analysis applications, including thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), and tube furnace work under inert atmosphere, nitrogen generators and, in some configurations, argon supply provide the purge gas required to prevent sample oxidation. The specific purity and flow requirements for thermal analysis differ from those in chromatography, and nitrogen and argon supply for thermal analysis and inert atmosphere work in materials laboratories involve additional considerations around gas switching and sample chamber purge rates.
For pharmaceutical laboratories, on-site nitrogen generation for blanketing and packaging applications must meet the purity, documentation, and qualification requirements of current good manufacturing practice (cGMP) environments. Generator qualification protocols, certificate of analysis procedures, and purity monitoring frequency are distinct requirements from those in purely analytical settings.
For food laboratory and environmental applications, generator selection intersects with method compliance and instrument-specific gas specifications defined by the relevant regulatory compendium or standard method. Nitrogen supply for modified atmosphere packaging and shelf-life testing, for instance, requires documented purity at the point of use, not simply at the generator outlet.
Selecting the right lab gas generator for your application
Lab gas generators deliver a documented combination of cost reduction, supply security, and safety improvement over high-pressure cylinder supply, but realizing those benefits depends on selecting the correct technology for each application. PSA nitrogen generators serve high-purity LC-MS and pharmaceutical applications; membrane systems serve lower-purity applications such as sample inerting and solvent evaporation at lower capital cost; PEM hydrogen generators supply ultra-high-purity carrier and detector gas for GC with a safety profile superior to hydrogen cylinders under normal operating conditions; and zero-air generators provide the clean, hydrocarbon-free oxidant that FID-based methods require for stable baselines. The total cost of ownership calculation almost always favors generation over cylinders for laboratories consuming gas at analytical instrument rates, with payback periods typically in the 12 to 24-month range. Laboratory managers evaluating a transition should quantify current cylinder spend in full, including rental, delivery, labor, and regulatory costs, before comparing that figure against generator acquisition and service costs.
