Ceramics and advanced alloys present some of the most demanding lab mill sample preparation challenges in materials characterization work. Their extreme hardness, brittleness, and sensitivity to contamination from grinding surfaces mean that mill type, grinding media, and operating parameters directly determine whether data reflects the true material composition or artifacts of preparation. Selecting the wrong lab mill or applying incorrect parameters can introduce grinding media wear debris, generate localized heat that alters phase composition, or produce a particle size distribution that misrepresents the material's actual microstructure; any of these preparation errors then propagate through every subsequent measurement and reporting step.
Why ceramics and advanced alloys demand specialized lab milling approaches
Hard technical ceramics and advanced alloys fall outside the hardness and ductility range that standard lab mills handle reliably, which is why they require purpose-matched equipment, media, and grinding parameters. Technical ceramics, including alumina, silicon carbide, silicon nitride, and zirconia-based materials, have Mohs hardness values typically between 8 and 9.5, placing them harder than most grinding media options available for general laboratory use. Advanced alloys, including titanium alloys, nickel superalloys, and high-entropy alloys, combine high hardness with significant ductility, causing conventional impact mills to deform rather than fracture the material into representative fine particles.
The consequence of using mismatched lab mills is two-fold. Inadequate grinding energy fails to achieve the target particle size, leaving coarse fragments that produce uneven pressed pellets for XRF analysis or that resist complete dissolution during acid digestion.
Excessive grinding energy, or prolonged milling times used to compensate for underpowered equipment, can trigger amorphization in ceramic powders, altering the crystalline structure detected by X-ray diffraction (XRD) and invalidating phase identification data. A direct overview of how mill selection and grinding media hardness interact across material types is available in the complete guide to lab mills and grinders.
For high-entropy alloys and multiphase ceramics, the additional challenge of preferential grinding arises. In a material containing phases of different hardness, softer phases reduce to fine particles faster than harder phases, creating a size-fractionated powder that does not represent the bulk composition of the original sample.
Selecting lab mills for hard ceramics and refractory materials
Tungsten carbide ring mills (also called ring and puck mills or centrifugal mills) are the standard choice for reducing bulk ceramic and refractory specimens to analytical powder. They generate the high specific energy needed to fracture hard, brittle materials rapidly, typically achieving particle sizes below 75 µm from centimeter-scale fragments in under five minutes. For XRD analysis of ceramics, where particle sizes above 45 µm can produce preferred orientation artifacts in pressed samples, ring mills with longer grinding cycles or secondary sieving can push distributions below this threshold.
Lab Quality Management Certificate
The Lab Quality Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
Planetary ball mills offer greater control over grinding parameters and are preferred when minimizing heat generation is more important than throughput speed. By adjusting rotational speed, ball-to-sample mass ratio, and cycle time with intervening rest periods, planetary ball mills can grind ceramics to analytical fineness while keeping sample temperature below levels associated with phase transformation in sensitive materials. For zirconia ceramics in particular, where the tetragonal-to-monoclinic transformation occurs under specific thermal and mechanical conditions, planetary milling with controlled parameters is preferable to ring milling.
Jaw crushers are the appropriate first-step size reduction tool for bulk ceramic pieces or cast alloy offcuts that exceed ring mill feed size. Reducing material to fragments below 5–10 mm before transfer to a ring mill or planetary ball mill prevents overloading that accelerates media wear and generates disproportionate heat.
The table below summarizes recommended lab mill types by material category:
| Material type | Recommended mill | Key consideration |
|---|---|---|
| Dense technical ceramics (Al₂O₃, SiC) | Tungsten carbide ring mill | High hardness demands high energy; monitor mill wear |
| Zirconia ceramics | Planetary ball mill | Phase transformation risk; keep temperature controlled |
| Refractory oxides | Ring mill or jaw crusher + ring mill | Pre-crush if bulk feed >10 mm |
| Titanium alloys | Cryogenic ball mill | Ductility prevents brittle fracture; embrittlement needed |
| Nickel superalloys | Ring mill with tungsten carbide media | High hardness and toughness; short cycles with cooling |
| High-entropy alloys | Cryogenic or planetary ball mill | Multiphase composition; preferential grinding risk |
Contamination control when milling high-purity materials
Grinding media contamination is the most consequential source of systematic error in ceramic and alloy sample preparation. Tungsten carbide media, which contain a cobalt binder, are appropriate for most technical ceramics where cobalt and tungsten do not appear in the target analyte suite. For cobalt-containing superalloys or cobalt-bonded cermets, tungsten carbide vessels introduce exogenous cobalt that elevates measured concentrations above true values.
Interested in lab tools and techniques?
Zirconia grinding media are widely used as an alternative for applications where tungsten carbide contamination is a concern. Zirconia introduces zirconium into the sample, which is acceptable for most ceramic and alloy systems but problematic when zirconia content is itself a target parameter, as in yttria-stabilized zirconia quality control. Silicon nitride media offer low contamination levels and good wear resistance, making them suitable for high-purity oxide ceramics when zirconia or silicon is not an analyte of interest.
Monitoring contamination levels is non-negotiable in materials characterization. Running a certified reference material from the NIST Standard Reference Materials Program through the same grinding sequence as production samples allows laboratories to quantify media wear contributions at each analytical campaign. The cross-contamination and batch carryover controls that apply between successive sample types in lab mills are covered in detail in guidance on preventing batch carryover during lab milling.

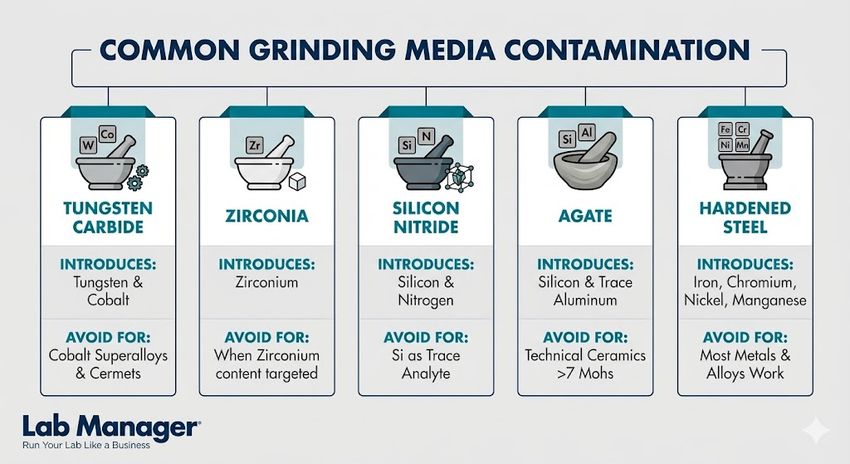

A quick-reference guide to avoiding cross-contamination profiles in common grinding media.
GEMINI (2026)
Common grinding media contamination profiles for ceramics and alloy work include:
- Tungsten carbide: Introduces tungsten and cobalt. Use for most oxide ceramics, alumina, silicates; avoid for cobalt-bearing superalloys and cermet systems.
- Zirconia: Introduces zirconium. Use for alumina and silicate ceramics; avoid when zirconia content is a target parameter.
- Silicon nitride: Introduces silicon and nitrogen. Use for high-purity oxides; avoid when silicon is a trace analyte.
- Agate: Introduces silicon and trace aluminum. Suitable for soft minerals and low-hardness ceramics only; insufficient hardness for dense technical ceramics above ~7 Mohs.
- Hardened steel: Introduces iron, chromium, nickel, and manganese. Avoid for most metals and alloy characterization work.
Particle size requirements for key materials characterization techniques
Different characterization techniques impose distinct particle size requirements, and lab milling parameters must be set to meet the downstream method rather than a generic fineness target.
XRF pressed pellet analysis of ceramics and alloys requires particle sizes below 75 µm across the entire distribution; coarser fractions produce mineralogical particle size effects that alter measured element intensities, particularly for elements with low-energy characteristic X-rays such as magnesium and aluminum. For XRF fusion bead preparation, material must be ground to no coarser than 75 µm to dissolve completely in the lithium borate flux at the required temperature and time.
XRD phase identification requires particle sizes small enough to achieve the minimum number of crystallites in the diffraction volume (typically thousands per phase) needed for statistically representative peak intensities. For most ceramic systems, this corresponds to particles between 5 and 45 µm; particles above 45 µm can produce preferred orientation artifacts in pressed samples, while particles below approximately 1 µm may show peak broadening from crystallite size effects that complicates phase identification. For quantitative phase analysis using the Rietveld method as implemented in GSAS-II, consistent particle size within this 5–45 µm range minimizes preferred orientation bias and improves the reliability of calculated phase weight fractions.
For ICP-OES or ICP-MS trace element analysis of alloys, the sample must dissolve completely in the chosen acid or flux system. Dense alloy powders with particle sizes above 75 µm frequently resist dissolution in standard nitric and hydrochloric acid digestions, requiring additional hydrofluoric acid or microwave-assisted digestion to achieve complete dissolution. Fine grinding in lab mills to below 75 µm, or ideally below 45 µm, substantially shortens digestion time and improves recovery for refractory elements such as tungsten, molybdenum, and hafnium.
Managing heat and phase integrity during lab milling of sensitive alloys
Thermal effects during grinding are a significant but often overlooked source of sample alteration in advanced alloy preparation. High-speed ring milling of titanium alloys, intermetallic compounds, and shape-memory alloys can generate sufficient localized heat to trigger phase transformations, oxidation at freshly exposed surfaces, or stress-induced martensitic transformation in metastable phases; all of these effects alter the XRD pattern or hardness profile measured after preparation.
Cryogenic grinding using liquid nitrogen-cooled lab mills addresses thermal effects by embrittling ductile metals before impact, enabling fracture-dominated size reduction rather than plastic deformation. This is the preferred preparation method for titanium and aluminum alloys, intermetallics, and any alloy system where room-temperature milling has been shown to alter phase ratios. Intermittent milling (alternating short grinding cycles with cooling intervals) is a practical alternative when cryogenic equipment is not available, limiting cumulative temperature rise to below levels associated with phase change.
Conclusion: matching lab mill parameters to materials characterization requirements
The reliability of any materials characterization result for ceramics and advanced alloys depends on whether the sample powder reaching the instrument is representative of the original material. Lab milling decisions (mill type, grinding media, particle size target, cycle duration, and thermal management) must be driven by the requirements of the downstream characterization technique and the properties of the specific material, not by laboratory habit or equipment availability.
Establishing and documenting a validated grinding protocol for each material class, verified against certified reference materials, is the standard of practice that separates defensible characterization data from results that reflect preparation artifacts as much as material properties. Revisiting those protocols whenever the material specification, analytical method, or lab mill equipment changes ensures that preparation remains the strongest link in the measurement chain.
References
- International Centre for Diffraction Data. PDF-4+ Database: Reference Patterns for Phase Identification. Newtown Square, PA: ICDD; 2024.
- Toby, B.H. and Von Dreele, R.B. GSAS-II: the genesis of a modern open-source all purpose crystallography software package. Journal of Applied Crystallography. 2013;46(2):544–549. DOI: 10.1107/S0021889813003531
- National Institute of Standards and Technology. Standard Reference Material 660c: Line Position and Line Shape Standard for Powder Diffraction (Lanthanum Hexaboride Powder). Gaithersburg, MD: NIST; 2014.
This article was created with the assistance of Generative AI and has undergone editorial review before publishing.
