Lab mixers in environmental testing serve as a foundational tool for generating defensible leaching data, particularly in regulatory programs that evaluate the mobility of contaminants from solid waste, soil, and industrial byproducts. Agitation parameters directly influence the rate and extent of analyte release during leaching extractions, meaning that even small variations in rotational speed, vessel geometry, or run time can produce measurable differences in reported concentrations. For laboratories operating under U.S. Environmental Protection Agency (EPA) methods, ISO standards, and accreditation programs such as those overseen by The NELAC Institute (TNI), agitation standardization is no longer optional but a documented requirement tied directly to data quality objectives.
Why agitation standardization is critical for leaching extractions
Agitation standardization in leaching extractions ensures that solid and liquid phases interact consistently across replicate samples, laboratories, and time points. Without controlled mixing, mass transfer rates vary, producing inconsistent equilibrium conditions and unreliable contaminant concentrations.
EPA Method 1311, the Toxicity Characteristic Leaching Procedure (TCLP), specifies a rotational agitation rate of 30 ± 2 revolutions per minute over an 18 ± 2 hour extraction window. Deviations from this range can shift reported analyte concentrations enough to change a waste classification decision.
Standardized agitation supports three key data quality outcomes:
- Reproducibility between replicates within a single laboratory
- Comparability of results across laboratories participating in proficiency testing
- Defensibility of data submitted to regulatory agencies for compliance reporting
Types of lab mixers used in environmental testing laboratories
Lab mixers in environmental testing fall into several distinct categories, each engineered to deliver a specific motion profile suited to the regulatory method being performed. Selecting the correct mixer type is the first step in achieving agitation standardization.

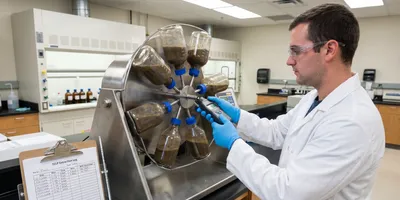

The most commonly used configurations include rotary agitators, end-over-end tumblers, orbital shakers, and reciprocating shakers. Rotary and end-over-end designs are required for EPA Methods 1311 and 1312 (Synthetic Precipitation Leaching Procedure, SPLP) because they ensure continuous turnover of the sample matrix. Orbital and reciprocating shakers are more common in ISO 21268 batch leaching tests and in research applications where horizontal motion is preferred.
| Mixer type | Typical method application | Motion profile |
|---|---|---|
| End-over-end rotary agitator | EPA 1311 TCLP, EPA 1312 SPLP | 360-degree rotation at 30 rpm |
| Orbital shaker | ISO 21268, batch leaching research | Circular horizontal motion |
| Reciprocating shaker | Soil washing studies, ASTM D3987 | Linear back-and-forth motion |
| Magnetic stirrer | Short-duration extractions, kinetic studies | Vortex generation in liquid phase |
ASTM International provides additional guidance on shake extraction equipment in ASTM D3987, which addresses water leaching of solid waste.
How agitation parameters affect leaching extraction results
Agitation parameters influence leaching extraction results by controlling the kinetics of contaminant desorption, dissolution, and partitioning between solid and liquid phases. Rotational speed, vessel fill volume, and extraction duration are the three variables with the greatest documented effect on analyte recovery.
Lab Quality Management Certificate
The Lab Quality Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
Peer-reviewed studies on cement-stabilized and metal-bearing waste have demonstrated that even modest deviations from method-specified rotational speeds can produce measurable differences in reported concentrations of regulated metals such as lead and cadmium. Headspace volume also matters, because insufficient air space limits the tumbling action needed for complete particle suspension. Regulatory methods specify headspace and fill-volume tolerances designed to maintain consistent mixing dynamics across replicate vessels.
Three parameters require routine verification:
- Rotational speed, measured with a calibrated tachometer
- Extraction time, recorded with documented start and end timestamps
- Vessel orientation, confirmed to maintain end-over-end rotation rather than wobble or slippage
Calibration and verification best practices for lab mixers
Calibration and verification of laboratory mixers establish documented evidence that agitation equipment is performing within method-specified tolerances. These activities are required under ISO/IEC 17025 accreditation, which is the international standard for testing and calibration laboratories.
The International Organization for Standardization publishes the relevant requirements in ISO/IEC 17025:2017. Laboratories must maintain calibration records, perform verification at defined intervals, and document any corrective actions taken when equipment falls outside acceptance criteria.
Recommended verification practices include routine tachometer checks of rotational speed, periodic inspections of drive belts and motor housings, and annual preventive maintenance performed by either qualified internal staff or the equipment manufacturer. Laboratories should also retain manufacturer documentation, calibration certificates, and maintenance logs as part of the equipment record. The TNI standard reinforces these requirements for environmental laboratories pursuing accreditation in the United States.
Interested in lab tools and techniques?
How to document lab mixer performance for regulatory compliance
Documenting mixer performance for regulatory compliance requires a written standard operating procedure, recorded verification data, and traceable links between equipment performance and individual sample batches. Regulatory auditors routinely request this documentation during on-site assessments.
A compliant documentation package typically contains the equipment identification number, the method or methods for which the mixer is approved, calibration and verification records with dates and technician initials, and references to specific analytical batches in which the mixer was used. Laboratories operating under EPA programs and state-level certification programs must also retain these records in accordance with program-specific retention requirements. Electronic laboratory information management systems (LIMS) are increasingly used to automate this traceability and to flag equipment that has fallen outside its calibration window.
Common sources of variability in leaching extractions and how to mitigate them
Common sources of variability in leaching extractions include inconsistent vessel loading, drift in rotational speed, temperature fluctuations during extended runs, and operator-dependent assembly of agitation equipment. Each source can be addressed through procedural controls and equipment design choices.
Temperature is a frequently overlooked variable. ASTM D3987 and ISO 21268 both call for extractions to be performed at controlled ambient laboratory temperature, because leaching kinetics are temperature dependent. Laboratories performing long-duration extractions in spaces without environmental control should consider enclosed agitation chambers or temperature-controlled rotating units.
Mitigation strategies include the following:
- Using vessels with consistent geometry and verified seal integrity
- Loading replicate samples to the same fill volume within method tolerances
- Performing duplicate analyses on at least ten percent of samples to monitor within-batch variability
- Reviewing control chart data to detect long-term drift in mixer performance
Building defensible data with standardized lab mixers in environmental testing
Lab mixers in environmental testing are central to producing defensible, reproducible, and regulatory-grade leaching extraction data. Agitation standardization, supported by calibrated equipment, documented procedures, and verification practices aligned with EPA, ASTM, and ISO/IEC 17025 requirements, reduces variability between samples and laboratories. Environmental testing laboratories that invest in proper mixer selection, routine verification, and complete documentation strengthen the credibility of their results and reduce the risk of audit findings or regulatory disputes.
