Selecting the wrong lab stirrer or mixer introduces shear damage, poor blend uniformity, and reproducibility failures that can invalidate entire experimental runs. Lab stirrers and mixers fall into six principal categories, each defined by a specific speed range, torque output, and viscosity ceiling. Matching the agitation method to the sample type is the foundation of analytical accuracy and regulatory compliance across every laboratory setting.
Quick Take
- Magnetic stirrers handle low-viscosity aqueous solutions up to roughly 5 L; overhead mechanical stirrers take over for high-viscosity or large-volume work
- Speed selection is not arbitrary: too slow produces concentration gradients; too fast generates shear forces that degrade sensitive biologics and destabilize emulsions
- Vortex mixers and orbital shakers address small volumes and gentle agitation; high-shear dispersers are reserved for emulsification and particle breakdown
- Regulatory environments add a compliance layer to mixer selection: GMP, USP, and EPA method requirements constrain speed, geometry, and documentation
- The right impeller or attachment is as critical as the motor itself: a mismatched rotor raises viscous samples to dangerous torque loads
What are the main types of lab stirrers and mixers, and how do they differ?
Six instrument categories cover the full range of laboratory agitation needs. Identifying the right type from this set is the first decision any lab makes when specifying lab stirrers and mixers for a new application. Each type occupies a distinct performance envelope defined by speed, torque, volume capacity, and the viscosity range it handles reliably.
Magnetic stirrers use a rotating magnetic field to drive a PTFE-coated stir bar placed directly in the vessel. They are the most common stirrer in general analytical chemistry, suited to low-viscosity aqueous solutions and organic solvents up to roughly 500 centipoise (cP). Most laboratory magnetic stirrer-hotplate combinations operate between 0 and 1,500 RPM, with temperature integration for reactions requiring simultaneous heating.
Overhead mechanical stirrers mount a motor above the vessel and drive an impeller shaft directly into the sample. They handle viscosities from near-water to well above 50,000 cP with the appropriate impeller and scale from milliliter research volumes to 200-liter process development vessels. Speed range on modern units spans 10 to 2,500 RPM, with torque feedback that flags overload conditions before a stall occurs.
Vortex mixers produce rapid orbital motion in a tube or microplate well by driving an off-center cup at speeds up to 3,200 RPM. The contact-free mixing action makes them the standard tool for cell resuspension, reagent reconstitution, and extraction tube agitation in high-throughput workflows.
Orbital and rotary shakers move an entire platform in a circular or figure-eight pattern at 25 to 500 RPM. They are standard in microbiology and cell culture for maintaining suspension without the direct mechanical contact that vortexing or overhead stirring requires.
High-shear dispersers and rotor-stator homogenizers operate from 3,000 to 30,000 RPM and generate intense turbulence at the rotor gap. They are the instrument of choice for emulsification, particle size reduction, and breaking down agglomerates in samples that orbital or magnetic agitation cannot disrupt.
Lab Quality Management Certificate
The Lab Quality Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
Paddle and anchor stirrers are low-speed, high-torque impellers designed for materials that cannot be moved by any other configuration. Operating at 5 to 200 RPM, they process gels, pastes, polymer solutions, and other highly resistive materials where standard drive units stall immediately.
| Type | Speed range | Viscosity limit | Typical max volume | Shear level | Common applications |
|---|---|---|---|---|---|
| Magnetic stirrer | 0–1,500 RPM | ≤500 cP | ~5 L | Low | Buffers, reagent prep, titrations |
| Overhead mechanical stirrer | 10–2,500 RPM | ≤50,000+ cP | Up to 200 L | Variable | Polymers, scale-up, process dev |
| Vortex mixer | 100–3,200 RPM | Low | ≤50 mL per tube | High | Resuspension, extraction, lysis |
| Orbital/rotary shaker | 25–500 RPM | Low to medium | ~5 L (flask) | Low | Cell culture, incubation, extraction |
| High-shear disperser | 3,000–30,000 RPM | Low to medium | ~20 L | Very high | Emulsification, particle breakdown |
| Paddle/anchor stirrer | 5–200 RPM | Very high | Up to 200 L | Low | Gels, pastes, resins, food batches |

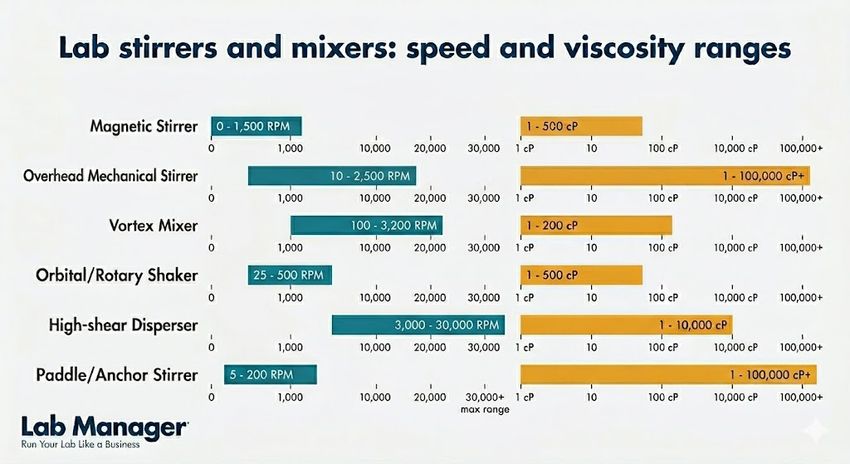

Finding the Right Mix: A comparison of standard laboratory stirrers and mixers mapped by their optimal operational speed (RPM) and fluid viscosity capacity (cP).
GEMINI (2026)
How does viscosity determine speed range and impeller selection?
Viscosity is the primary physical variable in mixer selection, and it interacts with speed in a way that is far from linear. As viscosity increases, the power required to maintain a target agitation intensity rises steeply with both impeller diameter and rotational speed, a relationship governed by the dimensionless Reynolds number for mixing systems. In practical terms, doubling the rotational speed in a viscous sample multiplies the torque load far beyond doubling and risks stalling or permanently damaging the drive unit.
For samples in the 500 to 5,000 cP range, the transition from magnetic to overhead mechanical stirring is the critical decision. Magnetic stir bars lose coupling with the drive magnet above their viscosity threshold, producing the characteristic spinning-out and stall that signals the sample has exceeded the system's capacity. Achieving blend uniformity in high-viscosity samples requires a more powerful drive unit and an impeller geometry matched to the vessel diameter.
Interested in lab tools and techniques?
Pitched-blade, anchor, and helical-ribbon impellers each distribute shear forces differently across the sample volume, and selecting the wrong geometry produces dead zones regardless of the RPM displayed.
Impeller diameter relative to vessel inner diameter carries as much weight as rotational speed. A standard recommendation places impeller diameter at one-third to one-half of vessel inner diameter for turbulent mixing, rising to 90% for viscous anchor or ribbon configurations. An impeller outside this range creates persistent unmixed regions at the vessel wall or generates a surface vortex that pulls air into the sample and introduces gas contamination.
Vessel geometry matters equally. Baffled cylindrical vessels suppress vortex formation across the speed range; unbaffled vessels allow the liquid surface to rotate as a solid body above a certain RPM threshold, producing a deceptive appearance of mixing with minimal actual mass transfer. For oval or rectangular vessels, baffle placement follows vessel geometry, not the cylindrical standard.
Which agitation method suits pharma, food science, environmental, and materials applications?
Application context places additional constraints on mixer selection beyond viscosity and speed.
In biopharmaceutical development, cell culture media and protein formulations impose a strict shear ceiling. Antibodies, enzymes, and viral vectors are susceptible to aggregation and denaturation when exposed to high fluid velocities at rotor-stator gaps. Low-shear agitation for fragile biologics drives a preference for orbital shakers in early-stage cell expansion and for gentle overhead stirring with large-diameter, low-RPM impellers in bioreactor scale-up.
GMP environments add documentation requirements: motor speed calibration records, impeller cleaning validation, and batch-level agitation logs are standard expectations under FDA 21 CFR Part 211.
Food science and beverage development rely heavily on emulsification and dispersion. Producing stable oil-in-water or water-in-oil emulsions for dressings, dairy analogues, and flavor concentrates requires high-shear dispersers capable of reducing droplet size to the submicron range. Emulsification and dispersion for beverage development intersects directly with allergen management: vessels and impellers must be cleaned to validated protocols between product changeovers to prevent cross-contamination between formulations.
Environmental testing introduces a different constraint: method fidelity. EPA leaching procedures such as the Toxicity Characteristic Leaching Procedure (TCLP, SW-846 Method 1311) specify a rotational speed of 30 ± 2 RPM for tumbling extraction, and that requirement is not advisory. Agitation standardization for leaching extractions must match the prescribed geometry and speed precisely, because variation directly affects the leachate concentration reported to regulatory agencies.
End-over-end tumbling devices are the instrument of choice for this work; orbital shakers and magnetic stirrers cannot replicate the specified motion.
Materials science applications span the widest viscosity range of any sector. Mixing polymers, resins, and high-viscosity compounds frequently requires paddle or anchor configurations capable of sustaining torque loads that would stall a standard overhead stirrer. Composite preparation and coating development add a particle-size consideration: dispersers must achieve uniform pigment or filler distribution without generating excessive heat at the rotor gap, which can cause premature crosslinking in reactive systems.
For laboratories working across multiple sample types, confirming sample density and solute concentration before selecting an agitation protocol is a reliable first step. Gravimetric verification using a calibrated analytical balance establishes the physical baseline before any mixing begins and catches preparation errors that would otherwise propagate through the entire run.
What operating practices protect sample integrity and reduce safety incidents?
Operating practices for lab stirrers and mixers divide into three categories: speed management, containment, and maintenance.
Speed management begins with a simple rule: start at the lowest effective speed and increase incrementally. Sudden high-speed starts in partially filled vessels cause splashing and vortex formation that can contaminate the workspace and lose sample volume. Speed-ramp functions, where available, should be used for viscous samples; abrupt acceleration generates torque spikes that stress drive couplings and can shear polymer chains in sensitive formulations.
Actual impeller RPM should be verified against the set point at installation and after any mechanical service, as displayed speed and shaft speed diverge when belts or couplings wear.
Containment requirements scale with speed and sample hazard. At agitation rates above 1,000 RPM in open vessels, controlling splash and aerosol risks at high agitation speeds requires physical barriers (splash guards, vessel lids, or containment enclosures), not procedural caution alone. Volatile solvents and biohazardous samples require operation inside a fume hood or biosafety cabinet regardless of speed.
Vessel geometry also functions as a containment control: wide-mouth, flat-bottomed vessels with baffles reduce vortex formation and improve mixing efficiency at any speed. Never operating beyond the rated volume for a given stir bar size or impeller configuration prevents the surface air entrainment that introduces gas into the sample.
Maintenance priorities focus on three areas. Stir bars should be inspected for chip damage or PTFE coating loss before each use; a damaged bar contaminates the sample and introduces particulates that affect downstream analysis. Impeller shafts and attachments must be cleaned to validated protocols in multi-product environments where cross-contamination is a concern.
Motor current draw on overhead stirrers should be recorded and trended; a rising current at constant load indicates bearing wear or impeller fouling before a mechanical failure occurs and produces an anomalous batch.
How do GMP, ISO, and EPA requirements shape mixer selection and documentation?
Controlled laboratory environments treat mixer selection as a documented decision. In pharmaceutical quality systems operating under ICH Q7 and FDA 21 CFR Part 211, mixing equipment is subject to installation qualification (IQ) and operational qualification (OQ) before use in any batch record. The IQ confirms the equipment was installed to manufacturer specification; the OQ demonstrates that it operates within defined speed and torque tolerances.
Any deviation from qualified parameters requires a written investigation before the batch can be released.
ISO/IEC 17025-accredited laboratories apply similar logic through documented calibration schedules and change-control procedures. Substituting a mixer type, impeller geometry, or speed parameter in an established analytical method requires a change record and, in many cases, a method revalidation before results can be reported. The change control burden is one reason laboratories resist upgrading mixing equipment mid-project; the qualification documentation workload can exceed the time saved by the new instrument.
EPA-regulated environmental laboratories face method-specific prescriptions with less flexibility than pharmaceutical systems. Speed and geometry requirements for extraction procedures are locked in the method text. When transitioning from vortex mixing to overhead mechanical agitation as sample volumes increase in an environmental extraction workflow, the change must be validated against method performance criteria; assuming a more powerful instrument produces equivalent results is not acceptable to a regulator reviewing the data.
Water purity in reagent preparation upstream of mixing affects data integrity throughout the analytical chain. Dissolved organics, ions, or particulates in a diluent carry through to the final mixed sample and cannot be removed by agitation alone. Guidance on laboratory water purification systems covers the graded water types (Type I through Type III) and the monitoring protocols that confirm the source water meets the quality tier required for each assay.
Following a mixing run, many analytical workflows require clarification by centrifugation before the sample reaches the detector. Selecting a centrifuge rotor type and G-force that matches the particle size distribution in the mixed sample prevents incomplete separation and the carry-over of suspended material that distorts absorbance or chromatographic results.
Conclusion: selecting lab stirrers and mixers for reproducible results
Lab stirrers and mixers are not interchangeable utilities. Each of the six main categories occupies a defined performance envelope bounded by viscosity tolerance, speed range, shear output, and volume capacity. Magnetic stirrers remain the workhorse of general analytical chemistry but fail above their viscosity threshold.
Overhead mechanical stirrers extend that range significantly but require deliberate impeller selection. Vortex mixers and orbital shakers serve high-throughput and cell culture contexts where direct mechanical contact is undesirable. High-shear dispersers and paddle stirrers address the extremes of emulsification and high-viscosity processing where no other configuration delivers adequate mixing.
The operating decision compounds with regulatory context. Pharmaceutical, food science, environmental, and materials applications each add method-specific speed, geometry, and documentation requirements that narrow the list of acceptable lab stirrers and mixers. Understanding those constraints before ordering equipment saves both time and validation cost.
For laboratories approaching instrument selection, a structured evaluation of viscosity range, volume, shear sensitivity, and compliance requirements, covering the full range of lab stirrers, mixers, and shakers across these parameters, provides the framework for a defensible purchasing decision.
References
- Paul EL, Atiemo-Obeng VA, Kresta SM, eds. Handbook of Industrial Mixing: Science and Practice. Wiley-Interscience; 2004. ISBN: 978-0-471-26919-9. Available at https://onlinelibrary.wiley.com/doi/book/10.1002/0471451452
- US Environmental Protection Agency. Method 1311: Toxicity Characteristic Leaching Procedure. SW-846. EPA; 1992. Available at: https://www.epa.gov/hw-sw846/sw-846-test-method-1311-toxicity-characteristic-leaching-procedure
- US Food and Drug Administration. 21 CFR Part 211: Current Good Manufacturing Practice for Finished Pharmaceuticals. FDA. Available at: https://www.ecfr.gov/current/title-21/chapter-I/subchapter-C/part-211
- Nienow AW. Reactor engineering in large scale animal cell culture. Cytotechnology. 2006;50(1-3):9-33. DOI: 10.1007/s10616-006-9005-8. Available at: https://pubmed.ncbi.nlm.nih.gov/19003068/
