Reliable mixing underpins reproducibility in polymer chemistry, composite development, and advanced materials research, making lab stirrers in materials science a foundational instrument for scientists working with viscous and reactive systems. Unlike aqueous solutions, polymers and resins introduce non-Newtonian behavior, exothermic reactions, and steep viscosity changes during cure or polymerization, all of which place mechanical, thermal, and design demands on stirring equipment. Selecting the correct stirrer type, impeller geometry, and torque rating directly influences product homogeneity, particle dispersion, and batch-to-batch consistency.

Handling high-viscosity compounds with lab stirrers

Lab stirrers handle high-viscosity compounds by delivering sustained torque at low rotational speeds, which prevents motor stalling and ensures uniform shear distribution throughout the medium. Viscosities encountered in materials science can range from a few hundred centipoise (cP) for thin resins to over 100,000 cP for filled epoxies or molten polymers, requiring overhead stirrers rated for the appropriate torque class.

Manufacturer specifications vary, but overhead mechanical stirrers are commonly available across the following general torque tiers:

• Low-torque units (roughly 20 to 40 Ncm): suitable for solvents, dilute polymer solutions, and unfilled resins below about 10,000 mPa·s.
• Mid-torque units (roughly 60 to 100 Ncm): appropriate for moderately viscous resins, paints, and emulsions.
• High-torque units (200 Ncm and above): required for filled composites, thermoplastics, and curing systems that can exceed 100,000 mPa·s, as reflected in commercial product lines that extend to 400 Ncm and beyond.

As discussed in Handbook of Industrial Mixing: Science and Practice, matching torque capacity to peak process viscosity rather than initial viscosity is essential, because polymerization and crosslinking can substantially increase mixing resistance during a single run.

Impeller selection for polymers and resins

Impeller selection is critical because the geometry of the blade governs flow patterns, shear rates, and energy transfer, all of which determine whether a polymer or resin mixture achieves true homogeneity. The wrong impeller can produce dead zones, entrain air, or generate localized heating that compromises material properties.

Common impeller types used in materials science include the following:

• Anchor impellers, which generate primarily tangential flow with close wall clearance for viscous, shear-sensitive media such as silicones and gels.
• Helical ribbon impellers, which produce axial pumping in the laminar regime and are widely used for high-viscosity polymer solutions and pastes.
• Pitched-blade and propeller impellers, which create axial mixing for moderate-viscosity resins and pre-polymer blends.
• Dissolver (Cowles) blades, which deliver high shear for pigment dispersion in coatings and filled resins.
• Turbine impellers, which generate radial flow useful for emulsion polymerization and reactive systems.

Research published in ChemEngineering on close-clearance impellers in viscous fluids reports that helical ribbon designs sustain effective mixing at lower Reynolds numbers than propeller or turbine geometries, reducing dead zones and energy consumption in laminar-regime systems.

Stirring methods for polymer synthesis and resin formulation

Polymer synthesis and resin formulation typically rely on overhead mechanical stirring rather than magnetic stirring, because magnetic stir bars cannot reliably couple through viscous, particle-laden, or expanding reaction masses. Overhead systems provide direct mechanical drive, controlled speed feedback, and the ability to accommodate sealed reactor configurations.

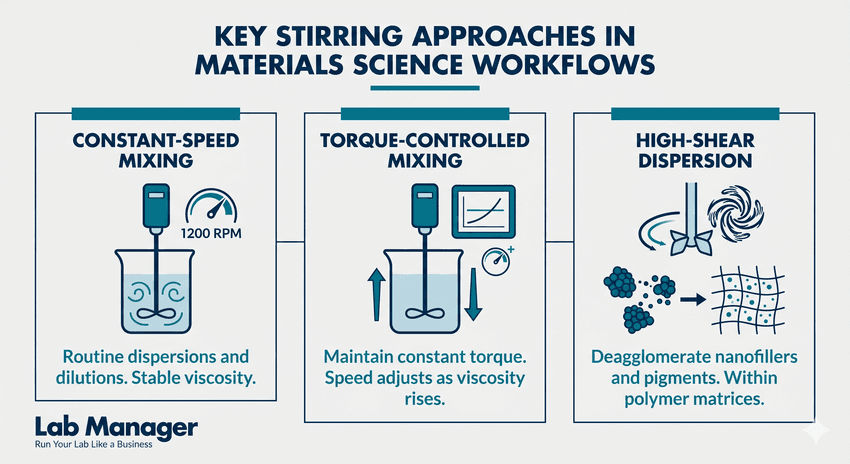

Three stirring approaches dominate materials science workflows:

1. 1. Constant-speed mixing, used for routine dispersions and dilutions where viscosity remains stable.
2.

3. 2. Torque-controlled mixing, in which the stirrer adjusts speed to maintain a target torque setpoint as viscosity rises during cure or polymerization.
4.

5. 3. High-shear dispersion, applied when nanofillers, pigments, or reinforcing particles must be deagglomerated within a polymer matrix.

A 2025 perspective in ACS Central Science emphasizes that mixing parameters remain critical for reproducibility, scalability, and safety in synthetic chemistry, and that documenting impeller geometry and agitation conditions supports both reaction reproducibility and meaningful scale-up.

Lab Quality Management Certificate

The Lab Quality Management certificate is more than training—it’s a professional advantage.

Gain critical skills and IACET-approved CEUs that make a measurable difference.

Safety and process control in laboratory stirrer operation

Safety and process control influence stirrer use because polymerization reactions are frequently exothermic, generate volatile organic compounds, and can experience runaway viscosity changes that strain equipment. Modern overhead stirrers integrate features that mitigate these risks while supporting consistent data capture.

Key safety and control features include the following:

• Overload protection that shuts down the motor before mechanical or thermal failure occurs.
• Torque measurement and digital readout, enabling indirect viscosity tracking during cure profiling.
• Hazardous-location-rated motors for solvent-rich environments, governed in the United States by OSHA 29 CFR 1910.307 and in the European Union by ATEX directives.
• Data logging via USB, RS-232, or Ethernet, which supports documentation practices consistent with ISO 9001 quality management systems and, for FDA-regulated work, the electronic records requirements of 21 CFR Part 11.

Coupling the stirrer to a temperature probe and reaction control software allows scientists to correlate viscosity, temperature, and reaction time, producing process records that support both quality control and scale-up decisions.

Lab stirrers in composite and nanomaterial development

Lab stirrers play a central role in composite and nanomaterial development by ensuring uniform distribution of reinforcing phases such as carbon nanotubes, graphene, silica, and glass fibers within a polymer or resin matrix. Inadequate dispersion is one of the most cited causes of inconsistent mechanical and electrical properties in composite research.

For nanomaterial work, stirring is often combined with complementary techniques. High-shear dissolver blades break up agglomerates, after which ultrasonication or three-roll milling refines particle distribution. Peer-reviewed studies on nanocomposite processing consistently report that dispersion quality, which depends directly on mixing strategy, is among the dominant factors influencing tensile strength, modulus, and electrical conductivity at a given filler loading.

Interested in lab tools and techniques?

Register for a FREE Lab Manager account to subscribe to our Lab Tools & Techniques Newsletter.

Subscribe for Free

For laboratories working at the intersection of polymers and nanofillers, programmable stirrers with documented speed-torque profiles support both reproducibility and intellectual property documentation.

Best practices for mixing high-viscosity compounds in the laboratory

Best practices for mixing high-viscosity compounds in the laboratory center on matching equipment capacity to peak process viscosity, validating impeller geometry against the target flow regime, and documenting every process variable that can influence outcomes. Laboratories should select overhead stirrers with torque capacity that exceeds the expected peak demand, providing headroom to accommodate viscosity excursions during cure or crosslinking. Vessel geometry should align with impeller diameter, typically following a one-third to one-half ratio of impeller to vessel diameter, and baffles should be considered for low-viscosity stages to prevent vortexing. Routine calibration of speed and torque sensors, inspection of shaft couplings, and adherence to manufacturer-specified duty cycles extend equipment life and protect data integrity. Standards published by ASTM International, including ASTM D2196 for rheological properties of non-Newtonian materials by rotational viscometer, provide reference methods that complement stirrer selection and operation.

Optimizing lab stirrers in materials science

Effective use of lab stirrers in materials science depends on aligning torque capacity, impeller geometry, and process control features with the specific demands of polymers, resins, and high-viscosity compounds. Overhead mechanical stirrers with appropriate torque ratings, combined with impellers selected for the target flow regime, deliver the reproducibility required for polymer synthesis, composite fabrication, and nanomaterial research. Integrating safety features, torque feedback, and data logging further strengthens the reliability of mixing operations, supporting both scientific rigor and regulatory compliance across materials laboratories.
