Microplate readers are among the most widely deployed analytical instruments in the laboratory, measuring absorbance, fluorescence, and luminescence signals across 96, 384, or 1536 wells in a single automated run. Their ability to process large sample sets simultaneously has made microplate readers the backbone of workflows ranging from enzyme-linked immunosorbent assay (ELISA) screening and cell viability testing to high-throughput compound library profiling in drug discovery. The instrument's reach extends across nearly every sector of analytical science — from pharmaceutical development and food safety to environmental compliance and materials research — making it one of the few platforms where a single technology decision affects multiple laboratory disciplines at once. Getting consistently reliable data from microplate readers, however, requires deliberate choices at every stage: detection mode, plate format, liquid handling integration, environmental controls, software configuration, and long-term maintenance.
How to select the right detection mode for your microplate reader

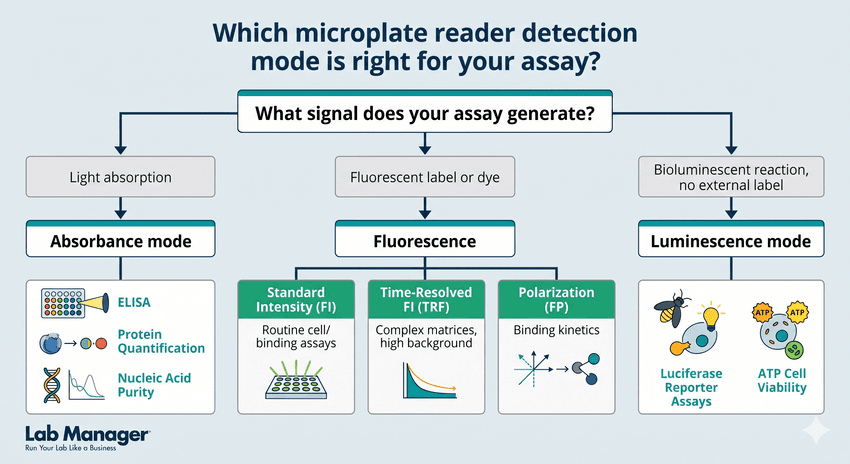

A decision flowchart for selecting the optimal microplate reader detection mode.
GEMINI (2026)
The detection mode a microplate reader uses determines what biochemical signal it can capture, and selecting the wrong mode for an assay is one of the most direct routes to poor data quality. Absorbance mode measures how much incident light a sample attenuates at a specific wavelength, making it the standard choice for ELISA quantification, total protein assays using colorimetric dyes, and nucleic acid purity checks at the 260/280 nm ratio. It is the most widely supported mode across all reader formats and the correct default starting point for labs establishing a new workflow.
Fluorescence intensity (FI) mode excites a labeled molecule and quantifies the emitted signal, offering sensitivity two to three orders of magnitude greater than absorbance — a decisive advantage in cell-based viability assays, receptor binding studies, and kinetic enzyme assays where analyte concentrations fall into the nanomolar range. Luminescence mode detects light generated by a biochemical reaction without any external excitation source, which effectively eliminates autofluorescence background and makes it the preferred choice for luciferase reporter assays and adenosine triphosphate (ATP)-based cell viability measurements. Time-resolved fluorescence (TRF) and fluorescence polarization (FP) extend these capabilities further, suppressing background interference from complex biological matrices such as serum or cell lysate.
Optical architecture is a secondary but important consideration. Filter-based readers use fixed bandpass filters to select excitation and emission wavelengths, delivering high sensitivity and fast measurement speeds suited to routine production assays. Monochromator-based systems use diffraction gratings to scan any wavelength across a continuous spectrum, offering flexibility for assay development at the cost of slightly lower peak sensitivity. Many current multi-mode instruments combine both architectures, routing samples through filters for validated production runs and through the monochromator during method development — a configuration that makes them well-suited to labs running diverse and evolving assay portfolios.
Interested in lab tools and techniques?
Microplate formats compared: 96-well, 384-well, and 1536-well
The choice of well plate format determines how many samples a microplate reader processes per run and how much reagent each data point consumes. Plate geometry is governed by the ANSI/SLAS microplate standards, which define footprint dimensions, well positioning, and flange specifications to ensure compatibility between plates, readers, and automated liquid handling equipment from different manufacturers.
| Plate format | Wells | Typical sample volume | Primary applications | Throughput level |
|---|---|---|---|---|
| 96-well | 96 | 100–200 µL | ELISA, protein quantification, cell viability, routine QC | Low to medium |
| 384-well | 384 | 25–50 µL | Drug screening, kinetics, dose-response curves | Medium to high |
| 1536-well | 1,536 | 2–10 µL | Ultra-high-throughput compound library screening | Very high |
Standard 96-well plates remain the most widely validated format and are the correct starting point for any new assay. Moving to 384-well plates reduces reagent consumption per data point by up to 75% and increases run density fourfold — a meaningful operational gain in labs processing hundreds of samples per day. The 1536-well format is primarily used in ultra-high-throughput screening (uHTS) settings where tens of thousands of compounds must be assessed per campaign, and it requires dispensing systems validated for sub-10 µL delivery to maintain volume accuracy across every well.
Pairing microplate readers with automated liquid handling systems validated at the target volume range is essential before transitioning to any higher-density format. A reader optically configured for 96-well geometry may not maintain uniform illumination or signal detection across a 1536-well plate without instrument-specific reconfiguration — a mismatch that is a common source of well-to-well variability misattributed to the assay chemistry rather than the instrument setup.
What causes poor reproducibility in microplate reader assays
Reproducibility failures in microplate data are rarely caused by a single factor in isolation. They typically arise from the interaction of several controllable variables that individually appear within acceptable limits but together produce systematic error that undermines dose-response analysis, hit calling, and inter-plate comparisons. Understanding and controlling these variables is the foundation of any quality-controlled microplate workflow.
The following factors have the greatest impact on assay consistency:
- Temperature uniformity: heat generated by reader electronics warms outer wells faster than interior wells during measurement, creating reaction rate differences that manifest as edge effects — signals in border wells that deviate measurably from the plate mean
- Plate sealing and evaporation: uncovered wells during incubation concentrate samples through evaporation, particularly in 384- and 1536-well formats where the surface-area-to-volume ratio is high; evaporation-resistant lids or humidity-controlled incubators substantially reduce this effect
- Pipetting precision: volume dispensing errors above ±2% introduce coefficient of variation (CV) values that compromise IC50 curve fitting and reduce statistical power in high-throughput screens
- Plate optical properties: differences in plastic composition, bottom thickness, and surface treatment between plate manufacturers affect absorbance path length and fluorescence excitation uniformity; switching plate suppliers mid-study requires full assay revalidation
- Detector calibration status: lamp intensity and photomultiplier tube sensitivity drift with use; verifying reader performance against certified optical density reference standards on a defined schedule catches signal drift before it enters assay data
- Reagent water purity: elevated total organic carbon in laboratory reagent water raises assay background noise in fluorescence and luminescence modes in ways that are frequently misattributed to reader performance rather than the upstream water supply
Addressing these variables systematically — rather than troubleshooting reactively when CV values rise — is what separates labs that routinely achieve Z-prime factors above 0.6 from those that struggle to meet basic assay qualification thresholds. A detailed framework for identifying, troubleshooting, and preventing edge effects in plate-based assays covers the most common reproducibility failure mode in depth.
How microplate readers are used across laboratory sectors
Microplate readers serve a wide range of analytical disciplines, and the configuration decisions that matter most shift meaningfully depending on the application. Understanding the requirements of each sector informs not just instrument selection but also assay development priorities, validation standards, and data management expectations.
In pharmaceutical and biopharmaceutical research, microplate readers are central to preclinical drug discovery workflows, where speed and data density determine how quickly a compound library can be screened against a biological target. Multiplexing assay strategies in preclinical screening allow research teams to measure multiple biomarkers from a single well — reducing sample consumption and increasing the information yield of each plate. Multi-mode readers capable of both fluorescence and luminescence detection in the same run are particularly valuable in this context, as they support the combination of cell viability, reporter gene, and binding assays within a single campaign.
In food science and quality control laboratories, microplate readers are used primarily for immunoassay-based testing, where sensitivity and regulatory compliance take precedence over throughput. ELISA-based allergen detection in food analysis is one of the most demanding applications in this sector: results must meet defined quantification limits for regulated allergens such as peanut, tree nut, milk, and gluten, and the assay must perform reproducibly across matrix types with widely varying optical backgrounds. Plate-based colorimetric methods also support routine testing of microbial contamination markers, pesticide residues, and mycotoxins in food commodity and ingredient testing programs.
Environmental science laboratories use microplate readers for high-throughput biological effect assessments that would be prohibitively slow in single-sample cuvette formats. Scaling toxicity assays for environmental compliance monitoring across large sample batches — such as effluent samples from industrial discharge points or leachate from contaminated sites — requires readers with stable, temperature-controlled detection chambers and software that can export results directly to regulatory reporting templates. Luminescence-based inhibition assays and fluorescence cell-viability endpoints are both routinely applied in this sector.
In materials science and applied research, microplate readers are increasingly used for combinatorial screening of catalysts, coatings, and polymer formulations, where the ability to measure reaction outcomes across large experimental arrays accelerates development timelines. High-throughput screening of polymer catalyst libraries using colorimetric or fluorometric reaction indicators allows materials scientists to evaluate dozens of formulation variables in parallel — a workflow that would require weeks of sequential single-sample measurements by conventional methods.
Microplate reader software, LIMS integration, and GLP compliance
Modern microplate readers generate substantial data volumes that must be captured, processed, and archived with full traceability. Most instruments ship with proprietary software capable of plate map design, protocol storage, real-time curve fitting, and basic outlier detection — but these tools frequently create data silos when labs operate multiple instruments or work across sites. Connecting microplate readers to LIMS and downstream analysis platforms through open data formats such as comma-separated values (CSV) or XML, or through direct application programming interface (API) integration, eliminates manual transcription steps and creates a searchable, auditable record of every assay run.
For labs operating under good laboratory practice (GLP) or good manufacturing practice (GMP) regulatory frameworks, software must provide user authentication, method locking, and tamper-evident audit trail functionality. These are compliance requirements, not optional features, and they must be verified and documented during instrument qualification before the reader enters any regulated workflow. Automated flagging of wells that fall outside predefined acceptance criteria — saturated signals, failed control wells, or CV values above the assay specification — prevents compromised data from advancing to final reports without mandatory manual review.
Data management planning should also address long-term archiving requirements. Raw data files, instrument logs, and calibration records should be retained on validated storage systems for the duration required by the applicable regulatory framework, with defined access controls and backup schedules that protect against data loss.
Safe operation and long-term maintenance of microplate readers
Safe microplate reader operation requires both instrument-level controls and procedural discipline around the biological and chemical materials used in plate-based assays. Plates containing infectious agents, human-derived biological samples, or hazardous reagents must be handled, sealed, and disposed of in accordance with institutional biosafety protocols — and the reader itself should be decontaminated following any run involving potentially infectious material. Safe handling and decontamination procedures for biohazardous microplates are particularly important in clinical, diagnostic, and research settings where primary patient samples are processed in open plate formats.
Instrument longevity depends on a structured preventive maintenance program. Xenon flash lamps have finite service lives specified in millions of flashes by the manufacturer; tracking cumulative flash count against the specification enables scheduled replacement before signal instability appears in assay results. Optical filters accumulate dust and aerosol contamination from open plates and uncapped reagent reservoirs, and should be inspected on at least a quarterly schedule, with cleaning or replacement timed to inspection findings.
Verification plates carrying certified optical density values provide a practical interim performance check between full calibration service events, confirming absorbance linearity and wavelength accuracy without requiring a service visit. Running a monthly verification protocol and documenting results against acceptance criteria creates an instrument performance history that supports regulatory audits and accelerates troubleshooting when assay performance unexpectedly declines. Staggering maintenance activities to avoid overlap with peak assay campaign periods minimizes operational disruption.
Getting the most from your microplate reader: a systems approach
Microplate readers deliver consistent, high-quality data when detection mode selection, plate format, environmental controls, software integration, and maintenance are treated as a connected system rather than independent decisions. Matching the reader's optical architecture to the assay chemistry, validating liquid handling at the target well density, controlling the variables that drive edge effects and plate-to-plate variability, and connecting instrument output to a verified informatics pipeline together determine whether a lab extracts reliable, publication-quality results or spends time investigating preventable variance. Labs evaluating a new purchase or platform upgrade should consult a structured guide to microplate reader specifications, detection modes, and selection criteria before committing to a platform, as the range of available configurations — from basic single-mode absorbance readers to fully integrated robotic multi-mode systems — varies considerably in capability and cost. A documented maintenance and performance verification schedule completes the framework, protecting both data integrity and instrument longevity across the full range of applications that microplate readers serve.
References
- Auld DS, Coassin PA, Coussens NP, et al. Microplate selection and recommended practices in high-throughput screening and quantitative biology. In: Markossian S, Grossman A, Baskir H, et al., eds. Assay Guidance Manual [Internet]. Bethesda (MD): Eli Lilly & Company and the National Center for Advancing Translational Sciences; 2004-. Published June 1, 2020. https://www.ncbi.nlm.nih.gov/books/NBK558077/
- Society for Laboratory Automation and Screening. ANSI/SLAS microplate standards. https://www.slas.org/education/ansi-slas-microplate-standards/
