Nitrogen blanketing is a foundational technique in pharmaceutical manufacturing, used to displace oxygen and moisture from drug product containers, storage vessels, and filling lines throughout production and final packaging. For any active pharmaceutical ingredient (API) or finished dosage form susceptible to oxidative or hydrolytic degradation, the purity and consistency of that nitrogen supply are directly linked to product stability, shelf life, and regulatory compliance. As on-site gas generator technology matures, pharmaceutical facilities are increasingly moving away from delivered cylinder and cryogenic liquid supply, bringing nitrogen generation in-house under validated, GMP-aligned systems.
Quick take
- Nitrogen blanketing displaces oxygen and moisture from packaging headspace and processing equipment, directly reducing oxidative and hydrolytic degradation of sensitive drug products.
- Purity requirements for pharmaceutical nitrogen vary by application: packaging and general inerting typically require 99.0–99.5% purity, while sterile injectable production and API synthesis may require 99.99% or higher.
- On-site pressure swing adsorption (PSA) generators can deliver nitrogen at purity levels up to 99.999%, with continuous oxygen monitoring required for GMP compliance.
- GMP-regulated facilities must qualify nitrogen generation systems through installation, operational, and performance qualification (IQ/OQ/PQ) protocols and document ongoing purity monitoring.
- Lyophilization (freeze-drying) depends on nitrogen backfill to maintain sterility between drying cycles and prevent moisture reabsorption during stoppering.
How nitrogen blanketing prevents oxidation and degradation in drug products
Nitrogen blanketing pharmaceutical products works by replacing the atmospheric air surrounding a drug substance or finished product with a chemically inert nitrogen atmosphere, eliminating the reactive oxygen and moisture that drive degradation. Oxygen supports oxidative pathways that break down sensitive APIs, including catecholamines such as epinephrine, dopamine, and norepinephrine, as well as many biologic drug substances. Moisture promotes hydrolytic breakdown, particularly in hygroscopic solid dosage forms and lyophilized powders.
The void space inside sealed containers, such as the headspace above a filled vial or blister cavity, is a primary site of concern. When oxygen remains in that headspace, it equilibrates with any dissolved oxygen in the drug solution and accelerates chemical degradation over the product's shelf life. For oxygen-sensitive liquid formulations, nitrogen purging prior to fill and nitrogen blanketing of the headspace after fill together reduce dissolved oxygen to levels low enough to extend shelf life substantially. Research on oxygen-sensitive liquid drug products demonstrates that combining pre-fill purging and post-fill headspace blanketing produces lower dissolved oxygen levels and reduced impurity formation compared to either step performed alone.
The ICH Q1A(R2) guideline on stability testing of new drug substances and products explicitly identifies oxidation as a required stress condition that must be evaluated during forced degradation studies, confirming oxygen exposure as a recognized degradation pathway that product design must address. Facilities that use nitrogen blanketing as a protective measure must demonstrate through stability data that their gas purity and application method are sufficient to maintain product quality through the claimed shelf life.
Interested in lab design?
Pharmaceutical nitrogen purity requirements by application
Not all pharmaceutical nitrogen applications require the same purity grade, and selecting the correct specification is a quality and regulatory decision, not a default. The table below summarizes typical purity ranges by application category.
| Application | Typical nitrogen purity | Key impurity concern |
|---|---|---|
| General inerting and packaging | 99.0–99.5% | Residual oxygen |
| Tablet and powder packaging | 99.5–99.9% | Oxygen, moisture |
| Sterile injectable filling | 99.99%+ | Oxygen, particulates, moisture |
| API synthesis (oxygen-sensitive) | 99.99–99.999% | Oxygen, trace hydrocarbons |
| Lyophilizer backfill | 99.99%+ (sterile filtered) | Particulates, microbial content |
| Vial headspace gassing | 99.9%+ | Oxygen (target: <5% headspace O2) |
The United States Pharmacopeia (USP) specifies a minimum purity of 99.0% for nitrogen used in pharmaceutical manufacturing, while the European Pharmacopoeia sets 99.5% for nitrogen with low oxygen content. These represent regulatory floors, not optimized application targets. Individual products may require tighter specifications, which must be documented in the facility's quality system and justified based on the product's degradation sensitivity.
Impurities beyond residual oxygen also require attention. Water vapor promotes hydrolysis and microbial growth; oil carryover from compressed air feeds contaminates product contact surfaces; and particulate contamination is unacceptable in any sterile application. ISO 8573-1 provides a purity classification framework for compressed gases across particles, water, and oil content, offering a practical tool for specifying process gas quality in pharmaceutical manufacturing contexts.
PSA vs. membrane nitrogen generators: which is right for pharmaceutical manufacturing?
PSA nitrogen generators dominate pharmaceutical applications that require purity above 99.5%, because membrane generators, while simpler and lower-maintenance, typically produce nitrogen in the 95–99.5% range. PSA technology uses carbon molecular sieve (CMS) beds to selectively adsorb oxygen from compressed air under pressure, releasing high-purity nitrogen on demand. By alternating between two CMS vessels, a PSA system regenerates continuously, producing a steady supply without interruption. Purity levels from PSA systems can reach 99.999% or higher, making them suitable for the full range of pharmaceutical nitrogen applications, from general packaging inerting to sterile injectable manufacture and API synthesis.
Membrane generators use semi-permeable hollow fiber bundles that allow oxygen and water vapor to permeate through the fiber walls faster than nitrogen, delivering a continuous nitrogen stream at lower purity. They are appropriate for general packaging lines, quality control environments, and storage blanketing where purity requirements fall within 99.5% or below. For pharmaceutical facilities evaluating generator selection, matching the technology to the validated purity target for each specific application avoids over-specification on low-risk processes while ensuring adequate protection for critical ones. The independent guide to purchasing a lab gas generator covers specification, qualification, and total cost of ownership factors applicable to both generator types.
Key selection criteria for pharmaceutical nitrogen generators include:
- Validated purity output consistent with the highest-specification application served
- Continuous inline oxygen monitoring with auditable data output
- Dew point output of -40°C or lower to prevent moisture carryover
- Oil-free compressed air feed (critical for maintaining process gas quality)
- Support for IQ/OQ/PQ documentation packages required by GMP regulators
GMP requirements for qualifying a pharmaceutical nitrogen generator
On-site nitrogen generators used in GMP pharmaceutical manufacturing must be formally qualified to demonstrate that they consistently produce nitrogen meeting the facility's defined specifications. Qualification is typically structured as a three-stage process: installation qualification (IQ) confirms the system is installed per vendor and user specifications; operational qualification (OQ) verifies performance across the intended operating range; and performance qualification (PQ) confirms consistent output under actual production conditions. All three stages require documented evidence retained as part of the facility's quality management system under 21 CFR Part 211, the FDA's current good manufacturing practice (cGMP) regulations for finished pharmaceuticals.
Continuous monitoring is the industry expectation for GMP nitrogen supply. An inline oxygen analyzer provides real-time purity data, and alarm thresholds trigger defined response procedures when purity drops below specification. Additional impurity testing, covering moisture, oil, particulates, carbon monoxide, and carbon dioxide, should be performed on a defined periodic schedule based on a risk assessment tied to each application. Alarm events and purity deviations must be documented, investigated, and resolved through the facility's corrective and preventive action (CAPA) system. Pharmaceutical manufacturers scaling up nitrogen generation capacity will find the considerations covered in the context of carrier and detector gas purity maintenance for analytical systems directly applicable to establishing monitoring protocols and specification limits.
Nitrogen inert atmosphere in lyophilization and sterile injectable packaging
Lyophilization (freeze-drying) represents one of the most demanding nitrogen applications in pharmaceutical manufacturing, requiring gas that meets both high-purity and sterility criteria. After secondary drying is complete, the lyophilizer chamber is backfilled with sterile, filtered nitrogen to a controlled positive pressure before vial stoppering. Using untreated air at this step risks introducing oxygen and water vapor into the product headspace, compromising the stability advantages that lyophilization is specifically designed to provide. The nitrogen used for backfill must pass through a 0.2-micrometer sterilizing filter to prevent particulate and microbial contamination of open vials during the critical stoppering phase.

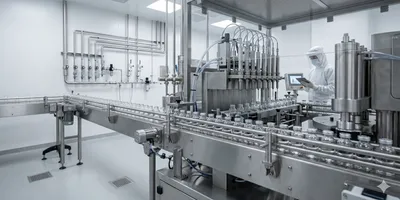

For sterile liquid injectables that do not undergo freeze-drying, nitrogen gassing of the fill line, transfer vessel, and container headspace is standard practice. Target headspace oxygen levels after gassing are typically set at no more than 5% for oxygen-sensitive formulations, with some highly sensitive products requiring headspace values below 1–2%. Headspace oxygen concentration can be measured using laser absorption spectroscopy, fluorescence quenching, or gas chromatography. The gas supply infrastructure needed to maintain these headspace targets reliably, at production scale, is one reason GMP-qualified on-site nitrogen generators are increasingly preferred over delivered supply in sterile manufacturing environments. Guidance on nitrogen and hydrogen generator systems used across the spectrum of laboratory and manufacturing applications provides useful context on the range of generation technologies available, the purity specifications they support, and how generator selection connects to downstream application requirements.
Maintaining nitrogen purity from generator to pharmaceutical packaging line
Producing high-purity nitrogen at the generator is necessary but not sufficient; maintaining that purity through the distribution system to the actual point of use requires active management. Distribution piping material, joint integrity, filtration at point of use, and regular leak detection all affect the final nitrogen purity delivered to packaging lines or filling equipment. Stainless steel or electropolished tubing is preferred for pharmaceutical nitrogen distribution because it minimizes adsorption of trace contaminants and is cleanable. Polymer tubing used in lower-risk applications must be compatible with nitrogen and free of outgassing compounds that could carry over into product contact streams.
Point-of-use filters, typically rated at 0.2 micrometers for sterile applications, serve as the last line of defense against particulate contamination. These filters require periodic integrity testing and replacement on a scheduled or condition-based program. When changes are made to the distribution system, including new connections, extensions, or component replacements, the affected segment of the system must be re-qualified to confirm that purity is not compromised. Facilities that manage nitrogen generation as a critical utility, subject to the same change control and monitoring discipline applied to water systems and HVAC, are best positioned to maintain consistent product protection and audit readiness.
Nitrogen blanketing is a controlled critical parameter in pharmaceutical drug product quality
Nitrogen blanketing pharmaceutical drug products is not a background utility function; it is a controlled critical parameter in product quality assurance. Selecting the correct purity grade for each application, qualifying the generation system under GMP protocols, maintaining continuous purity monitoring, and managing distribution integrity are all necessary components of a robust nitrogen management program. As on-site PSA and membrane generator technology advances, the cost and complexity of producing validated, high-purity nitrogen in-house continues to fall, making generator-based supply the practical choice for most pharmaceutical manufacturing environments. When gas purity at point of use is maintained within validated limits, nitrogen blanketing reliably protects APIs and finished drug products against the oxidative and hydrolytic degradation pathways that threaten both product stability and patient safety.
