Pharmaceutical-grade water is among the most tightly regulated raw materials in drug manufacturing, with quality attributes defined by United States Pharmacopeia (USP) chapters that govern conductivity, total organic carbon (TOC), microbial limits, and endotoxin control. Selecting and validating a lab water purification system that consistently meets these standards is not optional — it is a prerequisite for regulatory compliance and patient safety. Understanding the distinctions between water grades, the purification technologies that produce them, and the qualification protocols that prove their fitness for use is essential for any laboratory operating under current Good Manufacturing Practice (cGMP).
Understanding pharmaceutical water grades and their intended uses
The USP defines several grades of pharmaceutical water, each with distinct specifications and permitted applications. The two primary bulk water grades are Purified Water (PW) and Water for Injection (WFI), and their intended uses dictate the rigor of the purification and monitoring systems required to produce them.
Purified Water is used in the preparation of non-parenteral pharmaceutical products, for cleaning equipment and primary packaging components, and as a solvent or diluent in analytical procedures. It must meet compendial limits for conductivity and TOC but carries no requirement for bacterial endotoxin control. WFI, by contrast, is used in the compounding of parenteral products and as a rinse water for equipment that will contact injectable formulations, and its endotoxin specification — no more than 0.25 endotoxin units (EU) per mL, as defined in the USP WFI monograph — reflects the serious risk of pyrogenic reactions in patients.
The European Pharmacopoeia (EP) also recognizes a third intermediate grade, Highly Purified Water, which bridges the gap between PW and WFI for applications such as the preparation of non-injectable products where endotoxin control is still required. Pharmaceutical labs producing for global markets must understand that while USP and EP have harmonized conductivity and TOC testing methodology significantly, their system design philosophies and some numeric limits are not identical. Consulting the relevant pharmacopeia for each target market remains essential before commissioning a pharmaceutical water system.
Key quality parameters: conductivity, TOC, and microbial control
Three analytical parameters define the chemical and microbiological fitness of pharmaceutical water: conductivity, TOC, and bioburden. Each is governed by a specific USP general chapter, and each requires a distinct testing approach.
Conductivity, measured according to USP General Chapter <645>, provides a sensitive, real-time indicator of dissolved ionic impurities including inorganic salts and carbon dioxide. The Stage 1 in-line limit at 25°C is 1.3 µS/cm for both PW and WFI; if this limit is exceeded, two additional offline test stages are triggered to determine whether the excursion is attributable to carbon dioxide or other ionic contamination.
TOC, measured per USP <643>, quantifies organic contamination by oxidizing carbon compounds and measuring the resulting CO₂. Both PW and WFI carry a TOC limit of 500 ppb (0.5 mg/L). Because TOC monitoring is a direct indicator of how well the purification system is removing trace organics, it is also a sensitive early-warning signal for resin degradation or system contamination — a topic explored in Lab Manager's article on how TOC impacts sensitive lab assays.
Microbial control is monitored against action levels defined in USP <1231>: 100 colony-forming units (CFU) per mL for Purified Water, and 10 CFU per 100 mL for WFI. Alert levels — set tighter than action levels to provide early warning before an out-of-specification event occurs — should be established based on system performance history. For WFI, endotoxin testing using the validated Limulus Amebocyte Lysate method, as described in USP <85>, must be performed at each point of use according to a documented sampling plan.
| Quality parameter | USP purified water limit | USP WFI limit | Test chapter |
|---|---|---|---|
| Conductivity (25°C, Stage 1) | 1.3 µS/cm | 1.3 µS/cm | USP <645> |
| TOC | ≤500 ppb | ≤500 ppb | USP <643> |
| Microbial action level | 100 CFU/mL | 10 CFU/100 mL | USP <1231> |
| Bacterial endotoxins | Not specified | ≤0.25 EU/mL | USP <85> |
| Permitted production method | Multiple | Distillation or equivalent | USP monograph |
Purification technologies for USP-compliant water production
Producing pharmaceutical-grade water from a potable source requires multiple unit operations in series, each targeting a different class of contaminant. No single technology is sufficient to meet compendial specifications from a typical municipal water supply.
Interested in lab tools and techniques?

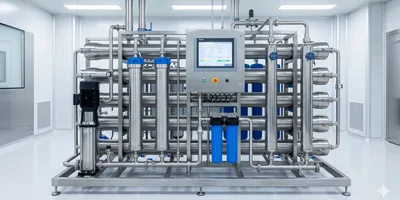

The most common purification train for Purified Water production combines reverse osmosis (RO), electrodeionization, and ultraviolet (UV) irradiation. RO removes the bulk of dissolved ions, colloids, and microorganisms by forcing water through semipermeable membranes. Electrodeionization follows to polish the permeate to conductivity levels well below compendial limits by continuously regenerating ion-exchange resins with an applied electric field — eliminating the chemical regeneration cycles that create compliance complications in mixed-bed systems.
Germicidal UV at 254 nm provides photochemical inactivation of bacteria and certain organic molecules, reducing bioburden risk throughout the distribution loop. The combination of these three technologies represents the industry standard approach for producing pharmaceutical-grade water at the Purified Water grade in cGMP laboratory environments.
WFI production historically required distillation under USP guidelines, reflecting distillation's proven ability to remove endotoxins through the thermodynamic barrier of vaporization. Revised pharmacopeial guidance now permits equivalent purification methods — including double-pass RO combined with ultrafiltration — provided the system can be validated to consistently deliver the endotoxin specification. Regardless of the technology selected, pharmaceutical labs must engineer their distribution systems to prevent microbial proliferation through continuous circulation, maintained at above 70°C for hot loops or at ambient temperature for cold loops — with periodic thermal or chemical sanitization validated at commissioning and repeated on a documented schedule.
Key pretreatment steps that protect downstream purification components include:
- Carbon filtration or sodium bisulfite dosing to remove chlorine and chloramine from source water before it contacts ion-exchange resin or RO membranes
- Multimedia or depth filtration to reduce particulate load and protect RO membrane surfaces
- Water softening to prevent calcium and magnesium scale on RO membranes in high-hardness feed water applications
- 0.2 µm prefiltration immediately upstream of the point-of-use delivery to WFI fill operations
Validation and qualification of pharmaceutical water systems
A pharmaceutical water system cannot be placed into routine use until it has been formally qualified to demonstrate consistent production of water meeting compendial specifications. The industry-standard approach, referenced in both USP <1231> and FDA guidance under 21 CFR Part 211, consists of a three-phase qualification program.
Phase 1 — typically two to four weeks — involves intensive daily sampling at the system outlet and every point of use for all quality attributes. No water produced during this phase may be used for manufacturing; its sole purpose is to establish baseline performance data and demonstrate initial compliance. Phase 2 continues intensive sampling at the same frequency but permits water use for production if Phase 1 results are satisfactory, demonstrating that system quality is maintained under real production loads.
Phase 3 reduces sampling to routine frequency while expanding the monitoring period to one year, capturing seasonal source water variation and demonstrating long-term system stability.
Formal documentation of Installation Qualification, Operational Qualification, and Performance Qualification is mandatory. Installation Qualification verifies that the system was installed according to approved design drawings. Operational Qualification confirms that each unit operation performs within specified limits under controlled test conditions.
Performance Qualification — encompassing all three sampling phases — constitutes the definitive evidence of fitness for intended use. The FDA expects complete, contemporaneous records for each qualification phase, and gaps in this documentation are a common focus of GMP inspections involving pharmaceutical water systems.
The value of a rigorous preventive maintenance program cannot be overstated in this context: a single resin failure or distribution loop sanitization lapse can trigger an OOS investigation and delay batch release. Structured preventive maintenance schedules for lab water purification systems are fundamental to sustaining qualification status between revalidation events.
Sustaining pharmaceutical-grade water compliance in the lab
Producing pharmaceutical-grade water that reliably meets USP purified water and WFI specifications requires more than equipment selection — it demands a validated system, a documented monitoring program, and a maintenance discipline that treats pharmaceutical-grade water quality as a continuous regulatory commitment rather than a one-time commissioning event. Conductivity, TOC, bioburden, and endotoxin monitoring must operate on predefined schedules with alert and action levels that trigger investigation before compendial limits are breached. Pharmaceutical labs that invest in robust water purification infrastructure and rigorous qualification documentation position themselves to withstand regulatory scrutiny, protect product integrity, and maintain uninterrupted manufacturing operations.
References
- United States Pharmacopeia. General Chapter <1231> Water for Pharmaceutical Purposes. USP–NF. The United States Pharmacopeial Convention. https://www.usp.org/frequently-asked-questions/water-pharmaceutical-and-analytical-purposes
- U.S. Food and Drug Administration. Current Good Manufacturing Practice for Finished Pharmaceuticals. 21 CFR Part 211. https://www.ecfr.gov/current/title-21/chapter-I/subchapter-C/part-211
- Collentro, W.V. (2010). Pharmaceutical Water: System Design, Operation, and Validation (2nd ed.). CRC Press/Informa Healthcare. https://www.routledge.com/Pharmaceutical-Water-System-Design-Operation-and-Validation-Second-Edition/Collentro/p/book/9781420077827
