Environmental trace metal laboratories operate in an analytical dimension where ppt sensitivity is the baseline, not the exception. EPA Methods 200.7 and 200.8 require detection of metals in drinking and surface water at concentrations as low as parts per trillion — a regime where a single contaminated volumetric flask or digestion vessel can introduce enough background metal to invalidate an entire analytical batch. Automated laboratory glassware washers address this challenge by replacing the variability of manual acid-washing with locked, reproducible decontamination cycles that generate the documented performance data regulators expect.
Why glassware is the highest-risk contamination source in trace metal labs
At ppt detection levels, the glassware itself becomes a primary contamination vector. Borosilicate glass contains silicon, boron, sodium, aluminum, and trace quantities of iron in its matrix; under acidic sample conditions, these elements leach from the glass surface into the sample solution, elevating background concentrations and producing false-high results. Adsorption is the inverse problem: trace metals in sample solutions bind to glass surfaces and desorb into subsequent samples, creating carry-over interference that is particularly difficult to detect without rigorous blank testing.
EPA Method 200.8 explicitly states that chromic acid must not be used for cleaning glassware, reflecting the reality that legacy cleaning agents can themselves introduce metallic contamination. EPA Method 1669, the clean sampling protocol for trace metals at water quality criteria levels, categorizes improperly cleaned labware alongside reagent impurity and atmospheric deposition as a primary source of sample contamination. Both methods require glassware to be scrupulously cleaned — a standard that manual washing cannot reliably sustain at scale.
The limitations of manual acid washing in high-throughput trace metal labs

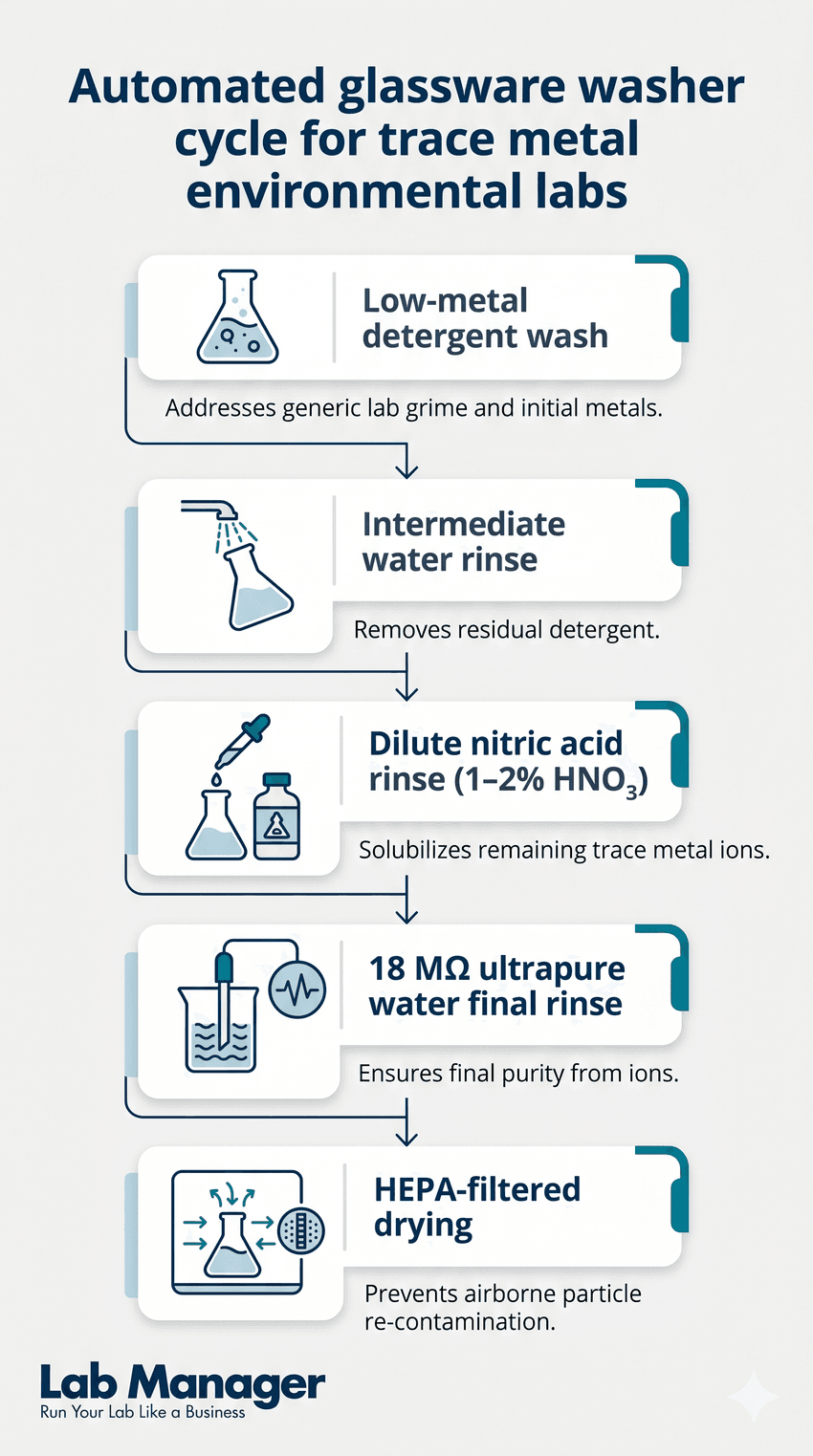

A step-by-step breakdown of the automated glassware washing cycle for trace metal environmental labs.
GEMINI (2026)
Manual glassware decontamination protocols in trace metal laboratories typically involve soaking in dilute nitric acid followed by multiple rinses with 18 MΩ deionized water, then drying in a clean environment. This procedure is chemically sound but operationally fragile. Acid soak concentration, soak duration, rinse volume, and rinse water purity all vary between technicians, and shortcuts during high-throughput periods — abbreviated rinse steps, reuse of acid soak solutions, air-drying in uncontrolled environments — consistently compromise outcomes.
Interested in lab design?
Automated laboratory glassware washers replace these variables with programmable cycles that lock in acid rinse concentration, contact time, rinse water specification, and drying conditions. A validated washer cycle produces documented, time-stamped evidence that the same decontamination parameters were applied to every item in every load, supporting the data defensibility that environmental compliance testing requires. The protocols for preventing chemical carryover in laboratory glassware washers are directly transferable to trace metal applications, with the addition of acid rinse and ultrapure final-rinse stages.
Designing automated wash cycles for trace metal-free results
Configuring laboratory glassware washers for trace metal environmental work requires attention to four critical cycle parameters: wash chemistry, acid rinse integration, final rinse water quality, and drying environment.
Key cycle design specifications for trace metal environmental laboratory glassware washers include:
- Detergent selection: Low-metal, instrument-grade liquid detergents formulated for trace analysis; avoid standard laboratory detergents that may contain zinc or iron as impurity metals, which will carry over directly into the sample matrix
- Acid rinse stage: A dedicated dilute nitric acid rinse step (typically 1–2% HNO₃) integrated into the cycle sequence to strip metal ions adsorbed on glass surfaces; acid concentration and contact time must be defined in the cycle validation
- Final rinse water quality: An 18 MΩ ultrapure water rinse as the last wash stage, fed from a point-of-use ultrapure water system connected directly to the washer; inline conductivity sensors should confirm the rinse water meets specification before the cycle completes
- Controlled drying: HEPA-filtered drying air to prevent atmospheric particulate — including airborne metal-containing dust — from recontaminating glassware during the drying phase
- Dedicated racks and load segregation: Separate rack programs for volumetric glassware, digestion vessels, and sample preparation ware, preventing cross-contamination between item types with different trace metal risk profiles
The table below maps cycle requirements to the specific contamination risks they address in trace metal environmental analysis:
| Contamination risk | Cycle control mechanism | Relevant EPA method requirement |
|---|---|---|
| Metal leaching from glass | Low-pH acid rinse stage | Methods 200.7, 200.8: scrupulously clean glassware |
| Trace metal adsorption carry-over | Acid rinse + 18 MΩ final rinse | Method 1669: labware as primary contamination source |
| Detergent residue on glassware | Conductivity-verified rinse end-point | Methods 200.7, 200.8: reagent interference prevention |
| Atmospheric recontamination | HEPA-filtered drying cycle | Method 1669: contamination control during storage |
| Cross-batch carry-over | Validated cycle logs per load | EPA data defensibility: documented QA/QC records |
Meeting EPA method documentation requirements
Environmental compliance laboratories operating under EPA Methods 200.7, 200.8, and related analytical methods must accompany results with documented quality assurance records — laboratory reagent blanks, calibration verification, and equipment cleanliness evidence — that demonstrate the analytical system was free of contamination for each sample batch. Automated laboratory glassware washers contribute directly to this chain by generating time-stamped cycle logs for every run, capturing wash temperature, acid rinse parameters, final-rinse conductivity, and drying duration. When a regulatory auditor questions the cleanliness of labware used in a specific batch, those logs provide the traceable, objective evidence needed to defend the data.
The guide to achieving analytical purity using lab glassware washers outlines how to establish performance standards in a format aligned with EPA quality assurance requirements. Laboratories should also account for how residual detergents affect analytical results, since detergent carry-over in trace metal work can introduce matrix interference and false-high metal signals from formulation components; conductivity end-point verification is the primary in-cycle control for this risk.
Integrating glassware washers into trace metal laboratory workflow
Glassware washer integration in an environmental trace metal laboratory must account for throughput variability and the contamination risk hierarchy among different glassware types. Volumetric flasks and digestion vessels used directly in sample preparation carry the highest risk and require the full acid rinse and 18 MΩ final rinse cycle. Graduated cylinders and transfer ware used upstream of the final analytical step can typically be processed on standard cycles, freeing washer capacity for priority items during peak analytical periods.
Optimizing cycle times and water usage is a particular consideration in trace metal labs because ultrapure water consumption in an 18 MΩ final rinse cycle is substantially higher than a standard municipal water rinse. Laboratories should size their ultrapure water system capacity against projected washer demand, and should factor in washer scheduling when planning large analytical batches under regulatory holding time constraints.
Proper storage of cleaned glassware is the final step that automated washing cannot perform but must protect against. Glassware should be stored inverted in HEPA-filtered enclosures or sealed with parafilm immediately after the drying cycle completes, preventing atmospheric metal recontamination between cleaning and use. This storage discipline is an extension of the contamination-control logic that governs heavy metal detection in environmental water analysis and should be documented as part of the laboratory's standard operating procedures.
Conclusion: automated glassware washers are a data quality tool in trace metal labs
In environmental trace metal laboratories, laboratory glassware washers are not a housekeeping convenience — they are an analytical quality tool with a direct line to data validity and regulatory defensibility. By integrating acid rinse stages, ultrapure water final rinses, conductivity verification, and HEPA-filtered drying into validated, documented cycles, automated laboratory glassware washers close the contamination gap that manual protocols leave open. For laboratories operating under EPA Methods 200.7, 200.8, and 1669, this systematic decontamination is a foundational component of a defensible quality assurance program.
References
- U.S. Environmental Protection Agency. Method 200.8: Determination of Trace Elements in Waters and Wastes by Inductively Coupled Plasma — Mass Spectrometry. EPA, 1994 (rev. 5.4). https://www.epa.gov/sites/default/files/2015-06/documents/epa-200.8.pdf
- U.S. Environmental Protection Agency. Method 1669: Sampling Ambient Water for Trace Metals at EPA Water Quality Criteria Levels. EPA Office of Water, 1996. https://www.epa.gov/sites/default/files/2015-10/documents/method_1669_1996.pdf
- U.S. Environmental Protection Agency. Method 200.7: Determination of Metals and Trace Elements in Water and Wastes by Inductively Coupled Plasma — Atomic Emission Spectrometry. EPA, 1994. https://www.epa.gov/esam/method-2007-determination-metals-and-trace-elements-water-and-wastes-inductively-coupled
