Flowmeter for Applications Requiring a High Degree of Cleanliness

Single clean bore measurement tube construction is suitable for almost any application where cleanliness is important


Titan Enterprises

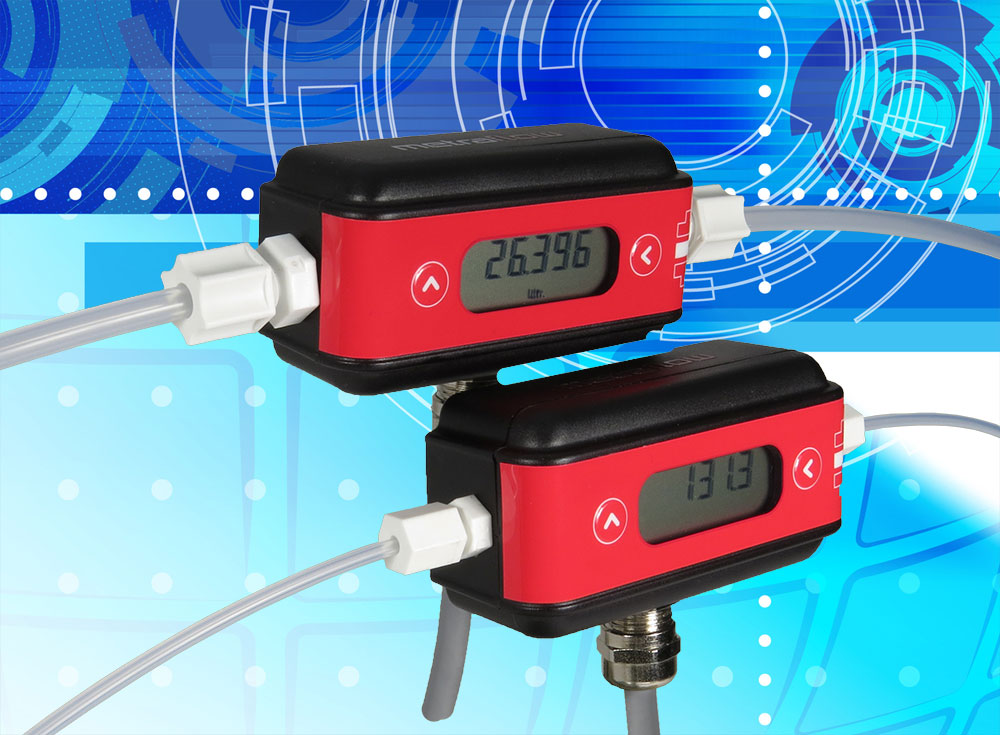

The Metraflow ultrasonic flowmeter from Titan Enterprises offers an ideal solution for flow monitoring applications requiring a high degree of cleanliness such as are found in the  pharmaceutical, medical, semiconductor and ultra-pure water markets.

Typically production processes in these markets require flow measurement devices able to cope with low flow rates and construction from ultra-pure materials so as to maintain hygienic, sterile, and sanitary conditions.

The single clean bore measurement tube construction of the Metraflow ultrasonic flowmeter makes it ideal for almost any application where cleanliness is important. Made from high performance perfluoroalkoxy alkane (PFA) polymer, the Metraflow ultrasonic flowmeter offers wide chemical resistance and the ability to precisely monitor process flow temperatures up to 60ºC (140ºF) and pressures up to 28 bar (406 psi). Using patented ultrasonic technology, with a single unbroken measurement tube, the Metraflow is a non-invasive device with excellent accuracy (calibrated to +/- 1.0% reading) and repeatability across flow ranges from 20 to 5000 ml/min.

The Metraflow uses Titan Enterprises patented transit time ultrasonic technology to accurately measure liquid traveling through a PFA flow tube. The compact integrated electronic, display, and sensor package offers superior performance in a single assembly. Computer and operational connections are separate, permitting setting and interface monitoring during normal operation through the Titan Interface Software. The units, time base, set points, and analog and digital outputs can all be set through the USB connector. The versatile software system also enables user configuration of other parameters such as flow alarms, cut off levels, and even datalogging.

For further information on the Metraflow ultrasonic flowmeter please visit https://www.metraflowmeter.com/ or contact Titan Enterprises on +44-1935-812790 / sales@flowmeters.co.uk.

Titan Enterprises

Coldharbour Business Park Sherborne Dorset DT9 4JW UK
