Residual detergents left on glassware after an inadequate wash cycle are among the most insidious sources of analytical error in the laboratory. Glassware washer validation — the process of confirming that a cleaning cycle reliably removes all interfering residues to an acceptable level — is not a regulatory formality but a data integrity prerequisite. Without it, labs risk systematic bias that presents as instrument variability or reagent inconsistency rather than revealing its true source. Understanding how detergent residues interact with specific analytical techniques is the first step toward building a validation program that protects result quality.
How detergent residues alter analytical measurements
Detergent residues affect analytical measurements through several distinct mechanisms, and the severity of interference depends on both the residue type and the measurement principle involved. Surfactant molecules interact with analytes, reagents, and measurement surfaces in ways that alter absorbance readings, shift electrode potentials, suppress immunological binding, and disrupt chromatographic separation. The effect is not always linear or predictable — trace surfactant contamination can produce inconsistent results across a batch rather than a consistent offset, making it particularly difficult to detect through routine QC review.
Ionic detergents are especially problematic for electrochemical measurements. Anionic surfactants such as linear alkylbenzene sulfonates can adsorb onto pH electrode membranes and ion-selective electrode surfaces, altering the electrode's response curve and introducing a systematic bias that shifts calibration without generating an obvious instrument error flag. Cationic detergents interact with negatively charged analytes and surfaces, causing precipitation or aggregation that elevates apparent turbidity and scatters incident light in spectrophotometric measurements.
Even non-ionic detergents — typically selected for their lower residue risk in automated washers — can form thin films on optical surfaces and glassware interior walls that reduce transmission and elevate baseline absorbance at the wavelengths used in UV-vis and fluorescence methods. Because this contamination exists at a sub-visible level, it will not be identified during routine visual inspection of cleaned glassware. Enzyme-based assays are also vulnerable: detergent molecules that access enzyme active sites can disrupt hydrophobic interactions critical to catalytic function, reducing assay signal in a way that mimics reagent degradation rather than contamination.
Interested in lab design?
Analytical techniques most vulnerable to detergent carryover
Not all analytical techniques carry equal risk from detergent carryover, but many of the methods most commonly used in high-throughput QA/QC workflows are among the most susceptible. Understanding where vulnerability is highest allows labs to prioritize glassware washer validation efforts and apply the most stringent acceptance criteria where they matter most.
| Analytical technique | Primary interference mechanism | Risk level |
|---|---|---|
| UV-vis spectrophotometry | Surfactant film elevates baseline absorbance; affects Beer-Lambert linearity | High |
| Enzyme-linked immunoassays (ELISA) | Surfactant competes with antigen for plate binding sites; suppresses signal | High |
| Ion-selective electrode (ISE) potentiometry | Ionic surfactants adsorb to membranes; shift calibration curve | High |
| HPLC / reverse-phase chromatography | Surfactant contaminates stationary phase; alters retention times and peak shape | Moderate–high |
| Atomic absorption / ICP-OES | Surfactant residue introduces organic carbon matrix effects; suppresses or enhances analyte signal | Moderate |
| Gravimetric analysis | Surfactant film adds mass to tared vessels; biases weighing results | Moderate |
| Titrimetry | Surfactant can mask endpoints or cause premature indicator color change | Low–moderate |
Spectrophotometric and immunoassay techniques sit at the top of the risk profile because both depend on optical measurement of surface or solution interactions where even monolayer-level contamination is analytically significant. Chromatographic methods deserve particular attention in multi-user labs: surfactant carryover from a single contaminated flask introduced into an HPLC system can foul the stationary phase and cause peak shape problems that persist across many subsequent injections, long after the original source has been identified. Labs running any of these methods should treat glassware cleanliness as a validated analytical parameter, not a background assumption. The broader framework for achieving and verifying labware purity provides useful context for establishing cleanliness standards appropriate to each application.
Designing a glassware washer validation protocol for QA/QC environments
A glassware washer validation protocol establishes, through documented testing, that a defined wash cycle consistently delivers glassware that meets specified residue acceptance criteria for its intended application. Effective glassware washer validation follows the same logical structure as any analytical method validation exercise: define acceptance criteria first, select suitable test methods, run challenge conditions across the expected range of operational variables, and document results in a format that supports audit review.
Acceptance criteria should be application-specific. For UV-vis and enzyme assay applications, a blank absorbance reading from a washed vessel filled with HPLC-grade water should not deviate from the reagent baseline by more than the method's established limit of quantitation. For ion-selective electrode and ionic-sensitive applications, final rinse water conductivity of ≤1.0 µS/cm — consistent with the ASTM D1193 specification for Type II reagent water — provides a practical, instrument-readable, and auditable acceptance threshold.
Four test methods cover the majority of glassware washer validation requirements in QA/QC laboratory settings:

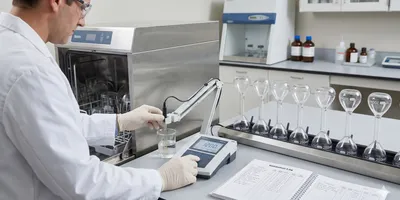

- Conductivity measurement of final rinse effluent detects ionic residues from surfactant components and dissolved tap water ions; target ≤1.0 µS/cm at 25°C
- Total organic carbon (TOC) swab testing of inner glassware surfaces quantifies non-ionic and organic surfactant residue that conductivity measurement does not detect; acceptance limits should reflect the sensitivity of downstream assays
- Blank absorbance testing fills a washed vessel with HPLC-grade water and measures absorbance at the target method's working wavelength; any elevation above the reagent blank signals optical contamination
- pH deviation testing detects alkaline or acidic detergent residue; a shift of 0.2 pH units or more from the baseline water reading indicates inadequate rinsing, as specified in CLSI GP40
Worst-case glassware geometry — volumetric flasks, burettes, and narrow-necked vessels — should always serve as the validation challenge piece rather than standard beakers, since these geometries trap wash water in dead-volume zones with reduced spray arm coverage. If the most difficult geometry passes, simpler shapes can be considered validated by extension. This approach reflects the principle underlying ICH Q2(R2) that validation parameters should be assessed at the boundaries of the method's intended use, not just at midpoint conditions.
Integrating washer validation into a laboratory quality management system
Glassware washer validation only delivers sustained QA/QC value when it is embedded in a laboratory quality management system (QMS) rather than treated as a standalone event. This means linking validation records to the washer's equipment qualification documentation, incorporating washer performance into the lab's change control procedure, and establishing a re-validation schedule that keeps pace with operational changes in detergent supplier, cycle program, or glassware type.
The most practical QMS integration point is the equipment logbook or electronic record. Each wash cycle used for glassware destined for critical analyses should generate a record capturing the cycle program identifier, detergent lot number, final rinse conductivity reading, and the operator's identity. When a subsequent analytical result is anomalous and contamination is under investigation, this record provides the evidentiary chain needed to either confirm or exclude the washer as a contributing cause — a critical capability during regulatory inspections and deviation investigations alike. The chemical residue risks that make this record-keeping necessary are explored in depth in the glassware washer safety and contamination prevention framework applicable to GMP-adjacent labs.
Trend monitoring adds a predictive dimension to glassware washer validation that point-in-time testing cannot provide. Gradual drift in final rinse conductivity, for example, can indicate fouling of spray arm nozzles, deterioration of the water purification system feeding the final rinse supply, or increasing detergent buildup in the wash chamber — all of which precede a contamination event rather than coinciding with one. Reviewing wash cycle performance data on a monthly or quarterly basis allows corrective action before analytical results are compromised, converting glassware washer validation from a reactive compliance exercise into a proactive quality tool.
Conclusion: Glassware washer validation as a standing QA/QC commitment
Glassware washer validation is not an administrative burden imposed by regulators — it is a practical instrument for protecting the analytical data that laboratory decisions depend on. Detergent residues interact with assay reagents, electrode membranes, and optical systems in ways that introduce bias, suppress signal, and generate inconsistent results that conventional troubleshooting rarely identifies as cleaning-related. Labs that define application-specific acceptance criteria, validate their wash cycles systematically, and integrate washer performance data into their QMS are eliminating a source of analytical error that is both preventable and, when left unaddressed, genuinely difficult to find.
References
- ASTM International. Standard Specification for Reagent Water (ASTM D1193-06R18). ASTM International. https://www.astm.org/Standards/D1193.htm
- Clinical and Laboratory Standards Institute (CLSI). Preparation and Testing of Reagent Water in the Medical Laboratory, 5th ed. (GP40). CLSI, 2024. https://clsi.org/shop/standards/gp40/
- International Council for Harmonisation (ICH). Validation of Analytical Procedures (ICH Q2(R2)). ICH, 2023. https://www.ich.org/page/quality-guidelines
