Criminal justice integrity relies on unimpeachable forensic evidence handling. This must occur within a secure laboratory environment. Laboratory professionals face a constant challenge. They must maintain sample purity and security while navigating complex workflows. Facility design plays a pivotal role here. Physical infrastructure must actively support chain of custody protocols. It must also aid in contamination control. A well-planned facility mitigates specific risks. These include environmental degradation, unauthorized access, and cross-contamination. Architects and lab directors must collaborate. They create spaces meeting rigorous accreditation standards like ISO/IEC 17025. Security is integrated directly into the infrastructure. This ensures every piece of forensic evidence remains admissible. It stays uncompromised from intake to final disposition.

Architectural zoning strategies for forensic evidence chain of custody

Physical layout dictates material and personnel flow. This enforces protocol adherence and helps secure forensic evidence. Strategic zoning creates distinct boundaries. These separate public areas, administrative spaces, and restricted analytical zones. This separation minimizes the risk of unauthorized personnel encountering sensitive materials. The design process must prioritize a unidirectional flow of evidence. Samples must move from intake to processing and finally to storage. This prevents backtracking through contaminated or unsecured areas.

Evidence intake and initial triage

The evidence intake area serves as the primary checkpoint for the entire facility. This space requires specific architectural features. These facilitate secure custody transfer from law enforcement to laboratory personnel. Design elements often include secure pass-through lockers, reinforced transaction windows, and video-monitored vestibules. These features allow for the physical exchange of items. They maintain a barrier between external parties and the sterile laboratory environment.

Implementing a "man-trap" or airlock system at the entrance adds physical security. This prevents tailgating. It ensures only authorized individuals can access the intake zone. Furthermore, the intake area must offer sufficient workspace. This is needed for initial packaging inspection and barcoding. Proper lighting, ideally exceeding 100 foot-candles, is crucial. It enables technicians to identify subtle packaging breaches immediately upon receipt. Secure design integrates several critical features to bolster intake security:

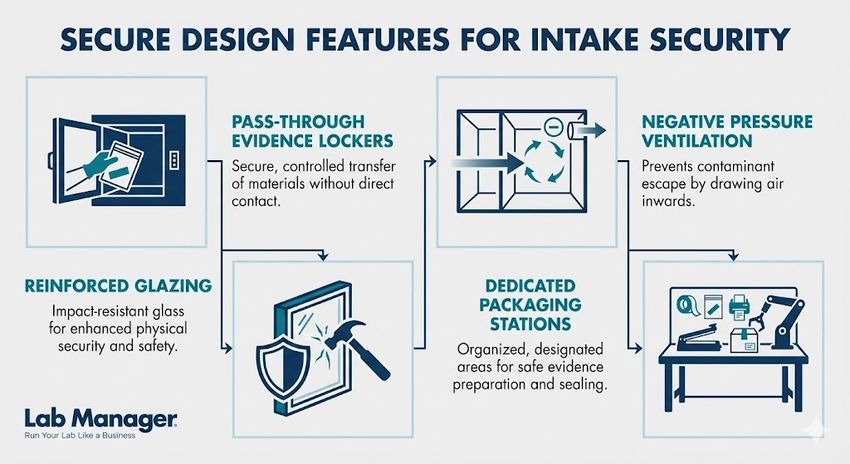

• Pass-through evidence lockers facilitate secure transfer without requiring direct physical contact.
• Negative pressure ventilation contains particulates from unsealed narcotics or biologicals.
• Reinforced glazing protects staff during interactions with law enforcement officers.
• Dedicated packaging stations provide sterile surfaces for resealing compromised evidence.

Separation of conflicting activities

Modern forensic labs handle diverse evidence types. These range from biological fluids to firearms and illicit drugs. Design configurations must isolate these disciplines to prevent trace contamination. For example, a facility might handle both DNA extraction and high-quantity drug analysis. This requires physical separation. It prevents bulk drug particulates from compromising trace chemical analysis. Walls extending to the structural deck provide necessary isolation. They are superior to walls stopping at the drop ceiling.

Lab Management Certificate

The Lab Management certificate is more than training—it’s a professional advantage.

Gain critical skills and IACET-approved CEUs that make a measurable difference.

Ideally, the floor plan positions general circulation corridors around the perimeter. This allows maintenance personnel to access utility systems. They can do so without entering secure evidence processing zones. Such a layout preserves the chain of custody. It strictly limits the number of individuals with physical access to the lab interior.

Environmental controls for preserving forensic evidence integrity

Precise climate regulation prevents material degradation. It protects sensitive biological and chemical samples throughout the evidence lifecycle. Mechanical systems in a forensic laboratory must do more than provide comfort. They must act as preservation tools. Fluctuations in temperature and humidity can be destructive. They rapidly destroy the evidentiary value of DNA samples, toxicology blood draws, and latent prints. Therefore, the HVAC design must function as a critical component of the evidence management system.

Specialized HVAC requirements

Different evidence types demand specific environmental conditions. Biological material requires cool, dry environments. This inhibits bacterial growth and hydrolysis. The National Institute of Standards and Technology (NIST) provides guidelines. They suggest long-term DNA storage areas maintain temperatures below -20°C. Short-term bulk storage should remain at room temperature with humidity levels below 60%.

Interested in lab design?

Sign up for the free Lab Design Newsletter from our sister site, Lab Design News.

Is the form not loading? If you use an ad blocker or browser privacy features, try turning them off and refresh the page.

By completing this form, you agree to receive news updates and relevant promotional content from Lab Design News. You may unsubscribe at any time. View our Privacy Policy

HVAC systems must employ redundant components to guarantee continuous operation. A failure in a walk-in freezer's cooling unit can be catastrophic. Consequently, facility designs should include backup generators. They should also include uninterruptible power supplies (UPS). These must be dedicated to refrigeration units and climate control systems.

Contamination mitigation via airflow

Airflow directionality is critical. It protects forensic evidence from airborne contaminants. Laboratories processing DNA require positive pressure in pre-amplification rooms. This keeps contaminants out. Post-amplification rooms need negative pressure. This contains amplified DNA products. This pressure differential strategy prevents the migration of amplicon into clean areas.

High-Efficiency Particulate Air (HEPA) filtration systems serve as the standard. They remove airborne particulates in biological processing areas. The facility design should position air supply and return vents carefully. They should sweep air away from the evidence preparation surface. The air should move toward filtration units. This laminar flow approach minimizes dust settling. It prevents potential contaminants from landing on open evidence.

Integrating cyber-physical security for digital forensic evidence

Modern laboratories must accommodate digital growth. The volume of digital devices and data in forensic investigations is expanding exponentially. The management of digital forensic evidence requires a fusion of disciplines. It needs both physical security and IT infrastructure. Digital evidence differs from physical samples. It faces threats like remote wiping, electromagnetic interference, and network intrusion. Facility design must address these invisible threats. Specialized construction techniques and network architecture are required.

RF shielding and isolation

Mobile devices seized as evidence often remain active. They may stay connected to cellular networks. This connectivity poses a risk. Suspects or accomplices could remotely delete data. To mitigate this, forensic labs incorporate radio frequency (RF) shielded rooms. Faraday cages are also integrated into the architectural design. These enclosures block external signals. Analysts can then examine devices safely without risk of remote tampering.

Construction of these shielded areas involves conductive materials. Copper or aluminum foil is used within the walls, floors, and ceilings. Penetrations for power and data cables require special handling. Waveguides must be used to maintain the shield's integrity. Verifying attenuation levels is critical. This validation step must occur before the facility becomes operational.

Server room security and data redundancy

As data volume grows, on-site server rooms become modern evidence vaults. These spaces require physical hardening. They need the same security as a traditional gun vault or drug locker. Walls should be reinforced to resist forced entry. Doors must utilize high-security locking mechanisms.

Furthermore, fire suppression systems in server rooms must utilize clean agents. Water sprinklers should be avoided to prevent hardware damage. Data redundancy protocols are essential. These include off-site backups or cloud solutions compliant with CJIS policy. This ensures digital forensic evidence survives physical disasters affecting the primary facility.

Advanced access control systems in forensic labs

Multi-layered security protocols restrict unauthorized interaction. They control access to samples at every stage of analysis. A secure design moves beyond simple key locks. It utilizes technology to create an immutable audit trail. This records who accessed which area and when. This data becomes part of the evidence's chain of custody documentation.

Biometric integration and zoning

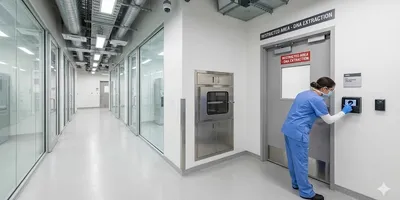

Biometric authentication offers higher security than keycards. Keycards can be lost or stolen. Iris scanners or fingerprint readers are placed at critical control points. These include evidence vaults and DNA analysis suites. They ensure positive identification of personnel. The security system should allow administrators to define granular access zones. For instance, a firearms examiner needs specific access. They require the ballistics tank and armory. However, they do not need entry to the toxicology storage freezer. Effective zoning relies on a tiered security approach using specific technologies:

• Iris recognition scanners restrict access to high-sensitivity DNA extraction labs.
• Dual-authentication keypads enforce two-person rules for accessing bulk drug vaults.
• RFID tracking monitors the movement of forensic evidence containers in real-time.
• Anti-passback protocols prevent the reuse of credentials to bypass entry logs.

Surveillance coverage and retention

Closed-circuit television (CCTV) placement requires strategic planning. It must cover all evidence handling areas without creating blind spots. High-definition cameras should monitor intake windows, corridor transitions, and vault interiors. The lighting design must support the camera system. It ensures clear image capture even in low-light conditions. Emergency lighting ensures coverage during power outages.

Storage capacity for surveillance footage is also a design consideration. Accreditation bodies often specify retention periods. The IT infrastructure must support massive storage requirements. High-definition video from multiple feeds must be retained. Retention periods may be 30, 60, or 90 days, depending on agency policies.

Optimizing workflows to prevent forensic evidence contamination

Laboratory layout directly influences contamination prevention. Designers must analyze specific laboratory workflows. They create a spatial arrangement that enforces best practices naturally. For example, vestibules should separate office areas from analytical spaces. These serve as gowning areas for Personal Protective Equipment (PPE). This physical transition zone acts as a barrier. It reminds staff of sterility requirements before entering the lab. Furthermore, equipment positioning is key. Placing a biosafety cabinet near a doorway is risky. It can cause air turbulence that compromises the cabinet's protective curtain. Designers can map the movement of evidence and people. This helps eliminate cross-traffic patterns. It prevents accidental transfer of trace materials between incompatible disciplines.

Future-proofing facility design for secure forensic evidence management

Forensic laboratories must adopt flexible design principles to ensure long-term viability. They must adapt to evolving technologies and evidence types. Forensic science advances rapidly. Requirements for managing forensic evidence will change over the building's lifespan. Modular casework, scalable IT infrastructure, and adaptable utility grids are solutions. They allow the facility to reconfigure spaces without major renovations. Investing in a resilient and secure design today is crucial. It protects the credibility of the laboratory's work for decades to come.

FAQ

What is the role of hvac in preserving forensic evidence?

HVAC systems regulate temperature and humidity to slow biological degradation and prevent mold growth, which preserves the integrity of sensitive DNA and biological samples.

How does laboratory design impact chain of custody?

Laboratory design impacts chain of custody by establishing unidirectional flows and secure transfer zones that physically prevent unauthorized access and document every movement of the evidence.

Why is unidirectional flow important for forensic labs?

Unidirectional flow prevents cross-contamination by ensuring that evidence moves from dirty intake areas to clean processing zones without backtracking through previously accessed spaces.

What security standards apply to digital forensic evidence?

Digital forensic evidence requires protection against remote wiping via RF shielding and adherence to data security standards like CJIS to prevent unauthorized network access.
