Tomocube Launches Novel High-Resolution Holotomography Microscope

Ground-breaking technology unlocks rapid and simple label-free 3-D and 4-D live cell imaging

by Tomocube
Register for free to listen to this article
Listen with Speechify

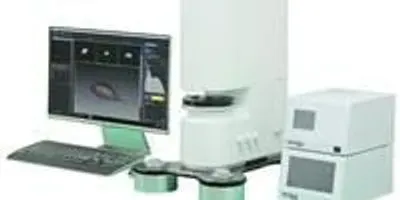

A novel optical microscope utilizing diffraction tomography to generate 3-D holographic images of unlabelled live cells is now available from Tomocube. Called HT-1, the new microscope delivers quantitative nanoscale, real-time, dynamic images of individual living cells quickly and simply without any sample preparation.

The holotomography images also deliver vital information on unique cell properties, including cell volume, shapes of sub-cellular organelles, cytoplasmic density, surface area, and deformability. The simplicity of operation and elimination of any preparative requirement will allow more researchers and clinicians to quantitatively study cell pathophysiology and the efficacy of drug treatments.

Get training in Lab Crisis Preparation and earn CEUs.One of over 25 IACET-accredited courses in the Academy.
Lab Crisis Preparation Course

“Unlike expensive atomic force, electron and laser-scanning light microscopes that require extensive sample preparation and/or labelling, the HT-1’s 3D imaging technology relies on the same fundamental property of light as traditional phase contrast microscopes,” says Aubrey Lambert, Tomocube’s Chief Marketing Officer. “When light passes through any object, a phase shift is observable depending on its refractive index (RI). If this emergent light is viewed together with the original light, brightness changes can be seen dependent on the degree of phase shift. In the Tomocube microscope, a 3D image, or tomogram, is created from the RI measured at each 3-dimensonal location during a 360-degree rotation. A similar concept using X-rays and nuclear magnetic moments is found in CT and MRI scanners.”

At the heart of the HT-1 is a complex digital micromirror device (DMD) optical light shaper, consisting of several hundred thousand micromirrors arranged in a rectangular array. Each individual mirror can be tilted plus or minus 12 degrees and the use of the DMD eliminates the need for moving parts in the lightpath. This patented technology allows the HT-1 to set its control beam rotation and rapidly switch its illumination angle to generate the 3D RI tomogram of the sample.

All the functions of the HT-1 are controlled by the TomoStudio software suite. A flexible user interface provides fast imaging capability and 2D/3D/4D visualization of the cellular images based on 3D RI distributions of the cells and tissues.

According the Lambert, “Cellular analysis plays a crucial role in a wide variety of research and diagnostic activities in the life sciences although the information available is limited by current microscopy techniques. The Tomocube HT-1 overcomes many of these limitations and open new vistas for researchers and clinicians to understand, diagnose and treat human diseases.”

Main features

  • 3-D Refractive Index – measurable bioimaging through Quantitative Phase Imaging (QPI)
  • No labelling or sample preparation – rapid and convenient
  • Very low laser power – zero stress on the sample
  • High resolution - optical resolution below 200 nm (Max. 110 nm)
  • Fast in 2D and 3D
  • High impact, Low cost
