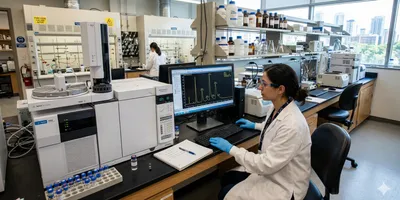

Scientist analyzing gas chromatography (GC) chromatogram peaks with tailing on a computer monitor in a modern analytical chemistry laboratory.

Troubleshooting Peak Tailing in Gas Chromatography Workflows

Systematic strategies to diagnose and eliminate peak tailing issues that compromise GC data quality and regulatory compliance

Written byCraig Bradley
| 5 min read
Register for free to listen to this article
Listen with Speechify
0:00
5:00

Peak tailing in gas chromatography remains one of the most frustrating obstacles for laboratories pursuing reliable quantitative analysis and regulatory compliance. This common chromatographic anomaly—where peaks exhibit asymmetric trailing edges rather than sharp Gaussian profiles—compromises resolution, accuracy, and reproducibility across analytical workflows. For lab managers overseeing high-throughput operations, understanding the root causes of peak tailing translates directly to reduced rework, improved data quality, and lower operational costs.

Systematic troubleshooting requires examining the entire sample path from injection port through detector, as tailing can originate from active sites in the inlet liner, column degradation, poor sample preparation, or detector contamination. This guide provides laboratory leaders with a structured diagnostic approach to identify and eliminate peak tailing sources, ensuring your GC systems deliver the sharp, symmetric peaks essential for defensible analytical results.

Understanding the Root Causes of Peak Tailing in GC Analysis

Peak tailing represents one of the most persistent challenges facing laboratory managers overseeing gas chromatography operations. When chromatographic peaks exhibit asymmetry with extended trailing edges, your lab faces quantification errors that compromise data quality and regulatory compliance. Understanding the fundamental mechanisms behind peak tailing enables you to implement targeted corrections rather than pursuing trial-and-error troubleshooting approaches.

The primary culprits behind peak tailing fall into three categories: active sites within the injection system or column, inappropriate method parameters, and sample matrix interactions. Active sites on metal surfaces bind polar or basic compounds through electrostatic interactions, causing delayed elution of molecular subpopulations. Column degradation progressively exposes silanol groups that create similar binding environments, particularly problematic for nitrogen-containing pharmaceuticals and acidic metabolites.

Injection port conditions exert substantial influence on peak shape quality through thermal decomposition pathways and discriminatory sample transfer. Inlet liners with excessive residue or degraded deactivation layers promote analyte adsorption during vaporization, creating the characteristic tailing profile. Septum particles and non-volatile sample components accumulate over hundreds of injections, gradually transforming initially acceptable peak shapes into problematic chromatography.

Tailing Factor RangeOperational ImpactRecommended Action
1.0 to 1.2Acceptable performance for most applicationsMonitor trending during routine QC
1.2 to 1.5Reduced resolution and precisionInvestigate system maintenance needs
Above 1.5Significant quantification errorsImplement immediate corrective measures

Method development decisions including carrier gas selection, flow rate optimization, and temperature programming directly affect peak symmetry characteristics. Insufficient oven temperature during elution prolongs analyte residence time on the stationary phase, amplifying minor adsorption effects into visible tailing. Your laboratory's preventive maintenance schedule and calibration verification protocols determine whether peak tailing emerges gradually or appears suddenly.

Column-Related Causes of Peak Tailing

Column degradation represents the most frequent source of peak tailing in gas chromatography systems. Active sites develop on the column surface when the stationary phase deteriorates through oxidation, thermal stress, or contamination. These sites interact with analyte molecules, causing asymmetric peaks that compromise quantitative accuracy and method validation.

Sample matrix components accumulate in the column inlet over time, creating a secondary interaction zone. Non-volatile residues from biological samples, environmental extracts, or petrochemical materials deposit on the stationary phase. This contamination layer generates additional retention mechanisms that delay elution of targeted compounds.

Column installation errors introduce system voids that produce characteristic tailing patterns. Improper ferrule positioning creates dead volume between the injector and column inlet. Poor connections at the detector end allow analytes to disperse before detection, broadening peaks and reducing resolution.

  • Inspect column inlet for visible discoloration or particulate buildup indicating contamination
  • Verify ferrule compression by checking for gaps between the column nut and injector body
  • Test column performance with a standard mix to establish baseline peak symmetry values
  • Trim 15-30 cm from the inlet end if contamination remains localized
  • Replace columns when trimming fails to restore acceptable peak shape parameters

Temperature programming rates affect how analytes interact with compromised column surfaces. Slow temperature ramps increase residence time in damaged sections, amplifying tailing effects. Rapid heating may reduce tailing visibility but sacrifices resolution between critical peak pairs.

Preventive maintenance schedules minimize column-related tailing issues. Regular inlet liner replacement prevents contamination transfer to the column. Routine leak checks using electronic detectors identify connection problems before they impact data quality.

Column and Injection Port Maintenance for Peak Shape Optimization

The condition of your column and injection port directly determines whether you achieve sharp, symmetrical peaks or encounter persistent tailing issues. Degraded stationary phases, contaminated inlet liners, and worn septa introduce active sites that interact with analytes, causing the asymmetric peaks that compromise your quantitation accuracy. Implementing a systematic maintenance schedule prevents these problems before they impact your analytical results and extends the operational life of expensive column investments.

Column degradation manifests as increased tailing factors for active compounds like alcohols, amines, and carboxylic acids while less polar analytes remain unaffected. Oxygen exposure breaks down stationary phase polymers, creating acidic sites that retain polar functional groups through hydrogen bonding or ionic interactions. When you observe selective tailing of only your most polar analytes, the stationary phase has likely undergone thermal or oxidative damage requiring column replacement or trimming of the inlet end.

Inlet liner contamination accumulates from repeated sample injections, depositing nonvolatile matrix components that create adsorptive surfaces throughout the injection zone. Replace inlet liners after every 100 to 200 injections for dirty matrices or extend to 500 injections for clean solvents and standards. Deactivated liners with silanized surfaces minimize analyte interaction, while packed liners containing glass wool or deactivated quartz help distribute sample evenly for split injections.

  • Trim 20 to 30 centimeters from the column inlet when tailing suddenly appears for previously well-resolved peaks
  • Replace septa every 50 to 100 injections to prevent particulate shedding and maintain proper sealing pressure
  • Condition new columns at 40 degrees above maximum operating temperature for four to eight hours under carrier gas flow
  • Store columns with end caps sealed and purge with inert gas when not in use for extended periods

Ferrule condition also affects peak shape through improper sealing that allows dead volume or air intrusion at column connections. Overtightened ferrules cold-work the material, creating gaps when thermal cycling occurs during temperature programming, while undertightened connections permit sample bypassing or oxygen infiltration.

Conclusion: Maintaining Peak Performance Through Systematic Troubleshooting

Peak tailing in gas chromatography represents a preventable source of analytical error that compromises data quality and laboratory productivity. Systematic troubleshooting requires evaluating column condition, injection port cleanliness, carrier gas purity, and sample matrix compatibility in sequential order. Laboratory managers should establish routine maintenance protocols that address these variables before they manifest as chromatographic problems.

Implementing standardized workflows for column conditioning, liner replacement, and inlet maintenance reduces troubleshooting time by 40 to 60 percent. Training staff to recognize early indicators of peak tailing enables proactive intervention before complete system failure occurs. Documentation of corrective actions builds institutional knowledge that accelerates future problem resolution.

Maintenance TaskFrequencyImpact on Peak Shape
Liner replacementEvery 100-200 injectionsHigh
Column trimmingAs needed for contaminationHigh
Septum replacementEvery 50-100 injectionsMedium
Gas filter replacementAnnually or per manufacturer specsMedium

Successful peak tailing resolution depends on methodical diagnosis rather than random component replacement, which wastes resources and extends instrument downtime. Modern laboratories benefit from establishing baseline performance metrics that facilitate objective assessment of chromatographic quality over time. Investment in preventive maintenance delivers measurable returns through improved data reliability and reduced unplanned service interventions.

This article was created with the assistance of Generative AI and has undergone editorial review before publishing.
Add Lab Manager as a preferred source on Google

Add Lab Manager as a preferred Google source to see more of our trusted coverage.

Frequently Asked Questions (FAQs)

  • What is the acceptable asymmetry factor for GC peaks?

    Most regulatory guidelines specify an asymmetry factor between 0.95 and 1.15, though values up to 1.5 may be acceptable depending on the application and compound class.

  • How often should I replace the GC inlet liner to prevent tailing?

    Replace inlet liners every 50-100 injections for dirty samples or every 200-500 injections for clean samples, depending on matrix complexity and visible contamination.

  • Can peak tailing be caused by the carrier gas quality?

    Yes, moisture or oxygen contamination in carrier gas can degrade the stationary phase and cause active sites that produce tailing, especially for polar compounds.

  • When should I trim the column versus replacing it entirely?

    Trim 0.5-1 meter from the inlet end if contamination is suspected; replace the column if tailing persists after trimming or if you observe baseline drift and poor peak shape across all analytes.
