Routine environmental, industrial, and clinical monitoring relies on accurate volatile organic compound (VOC) analysis to detect harmful contaminants. Because VOCs readily evaporate at room temperature, capturing and quantifying these analytes requires highly specialized instrumental techniques. Gas chromatography (GC) remains a widely accepted standard for this task—as supported by numerous core methodologies published by the EPA and ASTM International—offering the separation power necessary to isolate complex mixtures of volatile analytes.

For laboratory managers, processing VOC samples presents a continuous operational challenge. High-throughput demands are typically balanced against the need for extreme precision, particularly when detecting trace-level toxins like benzene, trichloroethylene, and vinyl chloride. Whether evaluating a municipal water supply, monitoring indoor air quality, or testing soil from an industrial brownfield, selecting an appropriate sample introduction and detection methodology directly impacts your laboratory's turnaround time and cost per sample.

What are the regulatory requirements for VOC analysis using gas chromatography?

Environmental and industrial testing laboratories typically adhere to strict regulatory frameworks that dictate permissible limits for VOCs in various matrices. In the United States, the Environmental Protection Agency (EPA) specifies approved analytical methods for compliance monitoring under the Clean Water Act, Safe Drinking Water Act, and the Resource Conservation and Recovery Act (RCRA).

Whitepaper

Achieve GC Sustainability Goals That Also Cut Costs

See how on-site hydrogen generation cuts emissions and carrier gas expenses without disrupting workflow

Read Whitepaper

For solid waste and groundwater matrices, laboratories widely utilize EPA Method 8260 ("Volatile Organic Compounds by Gas Chromatography/Mass Spectrometry"), which dictates the use of gas chromatography coupled with mass spectrometry (GC-MS). For ambient and indoor air monitoring, EPA Compendium Method TO-15 ("Determination of Volatile Organic Compounds in Air Collected in Specially-Prepared Canisters") outlines the collection of samples, followed by GC-MS analysis. Compliance generally requires not only achieving the required limits of detection (LOD) but also maintaining rigorous documentation of instrument calibration, tune checks, and initial demonstration of capability (IDC). Failure to meet these stringent requirements can result in invalidated data and severe legal consequences for the facility relying on the results, including regulatory fines, data rejection by governing bodies, and compliance violations.

How does sample introduction impact VOC testing and GC performance?

The physical state and matrix of a sample heavily influence how it should be introduced into the gas chromatograph. Because liquid or solid matrices generally cannot be injected directly into a standard capillary GC column without causing severe contamination and peak degradation, lab managers typically utilize specialized sample introduction systems.

The three most common techniques for VOC analysis include:

• Static headspace extraction: Ideal for high-concentration samples in complex matrices (like blood or heavily contaminated wastewater). The sample is heated in a sealed vial, and a portion of the vapor phase is injected into the GC. It is robust, easily automatable, and helps minimize instrument maintenance, though it may lack the sensitivity needed for ultra-trace analysis.
• Purge-and-trap (P&T): A common standard for trace-level water and soil analysis (e.g., EPA Method 524.2 for purgeable organics in water and EPA Method 8260 for solid waste). An inert gas bubbles through the aqueous sample, sweeping VOCs onto an analytical trap. The trap is then rapidly heated to desorb the analytes into the GC. This concentrates the sample, yielding exceptional detection limits, but requires meticulous moisture control to help prevent system freezing or mass spectrometer degradation.
• Thermal desorption: Primarily used for air monitoring. A known volume of air is drawn through a sorbent tube that captures VOCs. The tube is subsequently heated to release the analytes into the GC.

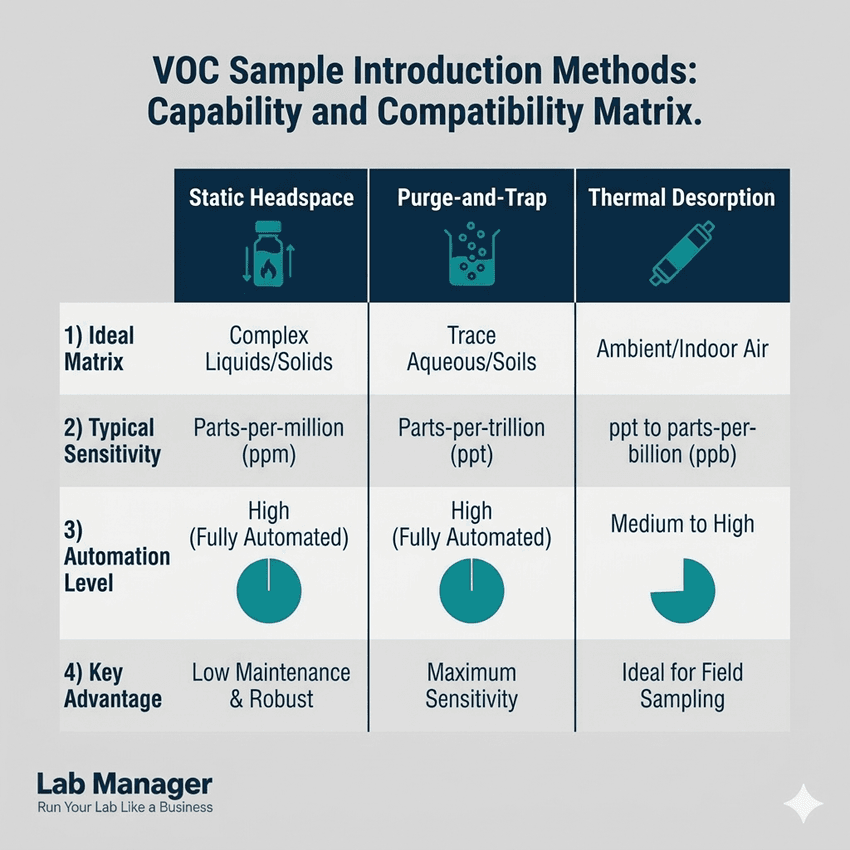

A side-by-side comparison of these sample introduction methods is summarized in Infographic 1.

Choosing the right gas chromatography detector for VOC analysis

Selecting an appropriate detector depends on the target analytes, required detection limits, and capital budget. While mass spectrometry is a highly reliable technique for unknown identification and regulatory compliance, other detectors offer cost-effective alternatives for routine screening applications.

Table 1 compares the operational differences between common GC detectors used for VOCs. Note that the typical detection limit ranges provided below are broadly indicative and will vary depending on instrument configuration and method optimization.

Table 1: Comparison of common gas chromatography detectors for VOC analysis.

For legally defensible environmental data, GC-MS is often considered an industry standard due to its ability to provide structural confirmation of co-eluting peaks. However, for industrial quality control or simple hydrocarbon screening, an FID requires less maintenance, consumes less expensive carrier gas, and can offer a more robust daily operating experience for high-volume lab environments.

How to manage carryover and cross-contamination in VOC testing

Achieving the trace detection limits required by modern environmental regulations demands meticulous contamination control. Because VOCs are ubiquitous in the modern environment—found in cleaning products, laboratory markers, and building materials—the laboratory itself can become a primary source of background interference. Lab managers should invest in specialized infrastructure and procedural controls to help protect sample integrity.

Interested in lab tools and techniques?

Register for a FREE Lab Manager account to subscribe to our Lab Tools & Techniques Newsletter.

Subscribe for Free

High-throughput laboratories frequently struggle with system carryover, where high-concentration samples contaminate subsequent blank or low-level samples. To manage this, operators should optimize GC bake-out methods, programming the oven to reach maximum safe temperatures at the end of every run to drive off residual semi-volatile compounds from the column.

Routine inlet maintenance is equally critical. Septa and inlet liners should be replaced on a regular, usage-based schedule to help prevent the build-up of active sites that can adsorb target analytes or cause ghost peaks. Furthermore, sample storage refrigerators should be strictly segregated; storing highly contaminated industrial waste samples near pristine drinking water samples significantly increases the risk of cross-contamination through the headspace of the vials.

Conclusion: Streamlining your VOC analysis and gas chromatography workflows

Effective volatile organic compound analysis requires a highly strategic approach to laboratory operations. Lab managers should ensure their facilities utilize appropriate sample introduction protocols, select analytical detectors suited for their specific target lists, and maintain rigorous contamination control standards. By aligning analytical hardware with the lab's exact throughput and regulatory requirements, testing facilities can reduce long-term operating costs, minimize instrument downtime, and confidently deliver accurate, compliant data.

This article was created with the assistance of Generative AI and has undergone editorial review before publishing.
