3D Printed Nasal Swabs Work as Well as Commercial Swabs for COVID Testing

A multisite clinical trial provides the first evidence that both devices are comparable for accurate detection of COVID-19 infection

by University of South Florida
Register for free to listen to this article
Listen with Speechify
First author Summer Decker, PhD, directs the USF Health Radiology-Tampa General Hospital Division of 3D Clinical Applications, which creates and prints 3D anatomical models for surgeons and other clinicians and designs medical devices.
© USF Health|University of South Florida

TAMPA, FL — As COVID-19 quickly spread worldwide this spring, shortages of supplies, including the nasopharyngeal (nasal) swabs used to collect viral samples, limited diagnostic testing.

Now, a multisite clinical trial led by the University of South Florida Health (USF Health) Morsani College of Medicine and its primary hospital affiliate Tampa General Hospital (TGH) provides the first evidence that 3D-printed alternative nasal swabs work as well, and safely, as the standard synthetic flocked nasal swabs.

Get training in Lab Crisis Preparation and earn CEUs.One of over 25 IACET-accredited courses in the Academy.
Lab Crisis Preparation Course

The results were published online Sept. 10 in Clinical Infectious Diseases. A commentary accompanying the paper cites the authors' timely, collaborative response to supply chain disruptions affecting testing capacity early in the pandemic.

Seeking a solution to an unprecedented demand for nasal swabs at their own institution and others, USF Health researchers in the Departments of Radiology and Infectious Diseases reached out to colleagues at TGH; Northwell Health, New York's largest health care provider; and leading 3D-printer manufacturer Formlabs. Working around the clock, this multidisciplinary team rapidly designed, tested and produced a 3D printed nasal swab prototype as a replacement for commercially-made flocked nasal swabs. Bench testing (24-hour, three-day, and leeching) using respiratory syncytial virus as a proxy for SARS-CoV-2, as well as local clinical validation of the final prototype (fabricated with FDA-approved nontoxic, surgical grade materials), was successfully completed in mid-March 2020.

The larger-scale clinical trial began in late March at three sites: TGH, Northwell Health, and Philadelphia-based Thomas Jefferson University Hospital. (Other sites joined later.)

Although USF Health held a provisional patent on the concept and design of the new 3D printed swab, they freely shared the information with hospitals, clinics, governments, and international agencies experiencing supply chain shortages. Since the first batches of 3D printed swabs were processed, tens of millions of the USF Health-invented devices have been used in 22 countries, said lead author Summer Decker, PhD, an associate professor of radiology at the USF Health Morsani College of Medicine. Dr. Decker directs the USF Health Radiology-TGH Division of 3D Clinical Applications, a group with expertise in creating and printing 3D anatomical models for surgeons and other clinicians as well as designing medical devices.

"In the midst of a pandemic, our team of experts representing academic medicine, health care delivery systems, and the medical device industry put aside boundaries to quickly work together toward a common purpose," Dr. Decker said. "It's rewarding that the novel design for a 3D swab we created has been adopted around the world, equipping more providers to diagnose COVID-19 and hopefully help prevent its spread."

Related Article: Turning to DIY Options for Needed COVID-19 Equipment

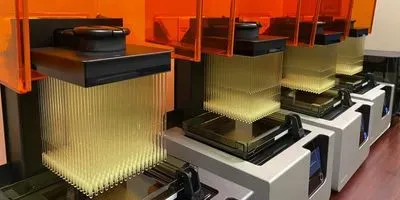

The 3D printed nasal swabs invented by USF Health to address COVID-19 diagnostic testing shortages are in use around the world. The swabs were specifically designed for patients using FDA-approved surgical grade material.
© USF Health|University of South Florida

The gold standard for diagnosing respiratory infections is to look for viral genetic material found in mucosal fluid collected with a long, slender swab inserted into the patient's nose and back of the throat. The nasal swab is put into a plastic tube with chemicals that stabilize the sample until the virus-specific genetic material can be extracted and amplified by polymerase chain reaction (PCR) in a diagnostics laboratory. Conventional swabs feature a bushy tip coated with nylon flock; the USF Health doctors designed a tip with a 3D printed textured pattern able to capture a sufficient sample for COVID testing while keeping patient safety and comfort in mind.

The clinical trial fully tested the safety and effectiveness of this 3D printed swab in 291 symptomatic adults undergoing COVID-19 screening at the TGH, Northwell Health and Thomas Jefferson University Hospital sites. The 3D printed nasal swab was compared to the standard synthetic nasal swab across three SARS-CoV-2 testing platforms FDA-authorized for emergency use—a modified version of the Center for Disease Control and Prevention's real-time reverse transcriptase PCR diagnostic panel, and two commercial molecular diagnostic tests.

Kami Kim, MD, infectious diseases division director at the University of South Florida Health (USF Health) Morsani College of Medicine, led the multisite clinical trial comparing the performance of commercial nasal swabs with the 3D-printed alternative.
© USF Health|University of South Florida

"This trial provided the first rigorous head-to-head comparison to make sure that the 3D swab performed as well as the standard," said principal investigator Kami Kim, MD, professor and division director for infectious disease at the USF Health Morsani College of Medicine. "Across all three platforms used in our study, we demonstrated that the commercial swab and the 3D printed swab were comparable for accurate detection of COVID-19 infection."

For both swabs, the only adverse patient reaction documented during the trial was a few instances of slight nasal bleeding. The cost of materials per 3D printed nasal swab ranges from 26-to 46-cents, while commercial swabs cost about $1 each, the authors reported.

Given the ongoing need for widespread COVID-19 testing, the study authors concluded that 3D printing technology offers a viable, cost-efficient option to address swab supply shortages, particularly when local hospitals or other clinical sites already have 3D printing labs equipped to print and process the devices.

Frank Rybicki, MD, PhD, vice chair of operations and quality at the University of Cincinnati College of Medicine's Department of Radiology, wrote a commentary on 3D printing in medicine to accompany the Clinical Infectious Diseases paper. The article frames the contributions of Decker et. al. in the context of the larger 3D manufacturing community.

"Among all parts 3D printed during COVID-19, nasopharyngeal swabs have received the most attention, with participants ranging from humanitarians to charlatans," Dr. Rybicki wrote in his summary. "The authors should be congratulated for staying on the right side of the curve, and for their perseverance, leadership, scientific rigor, and good will."

- This press release was originally published on the USF Health website
