A New Way to Display the 3-D Structure of Molecules

Metal-organic frameworks provide a new platform for solving the structure of hard-to-study samples

by Lawrence Berkeley National Laboratory
Register for free to listen to this article
Listen with Speechify

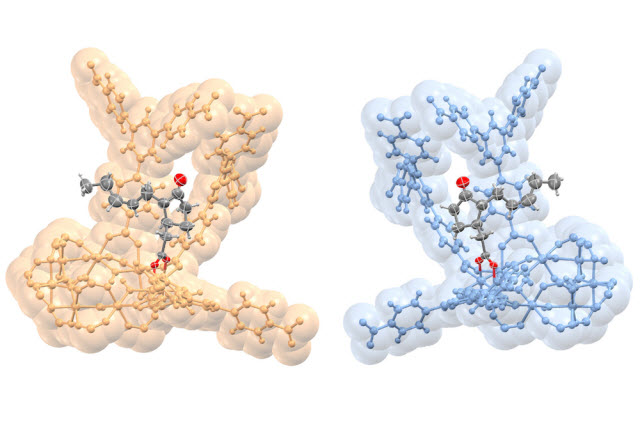

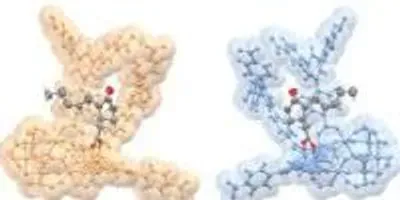

opposite configurations in the molecular structure of a plant hormone called jasmonic acidMirror, mirror: This rendering shows opposite configurations in the molecular structure of a plant hormone called jasmonic acid (gray and red) that are bound to nanostructures (gold and blue) called MOFs, or metal-organic frameworks.Image Credit: S. Lee, E. Kapustin, O. Yaghi/Berkeley Lab and UC Berkeley

Researchers at the Department of Energy’s Lawrence Berkeley National Laboratory (Berkeley Lab) and UC Berkeley have created a sort of nanoscale display case that enables new atomic-scale views of hard-to-study chemical and biological samples.

Their work, published online Aug. 18 in the journal Science, could help to reveal new structural details for a range of challenging molecules—including complex chemical compounds and potentially new drugs—by stabilizing them inside sturdy structures known as metal-organic frameworks (MOFs).

Get training in Lab Crisis Preparation and earn CEUs.One of over 25 IACET-accredited courses in the Academy.
Lab Crisis Preparation Course

The researchers introduced a series of different molecules that were chemically bound inside these porous MOFs, each measuring about 100 millionths of a meter across, and then used X-ray techniques to determine the precise molecular structure of the samples inside the MOFs.

The samples ranged from a simple alcohol to a complex plant hormone, and the new method, dubbed “CAL” for covalent alignment (the molecules form a type of chemical bond known as a covalent bond in the MOFs), enables researchers to determine the complete structure of a molecule from a single MOF crystal that contains the sample molecules in its pores.

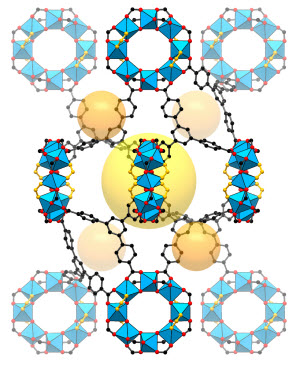

structure of a nanostructure known as a metal-organic framework or MOFThis illustration shows the structure of a nanostructure known as a metal-organic framework or MOF. The structure possesses a handedness (like a right-handed vs. left-handed person), known as “chirality,” that enables researchers to identify the same kind of handedness in molecules that bind within it.Image Credit: S. Lee, E. Kapustin, O. Yaghi/Berkeley Lab and UC BerkeleyThe MOFs in the study, which are identical and are easy to manufacture in large numbers, provided a sort of backbone for the sample molecules that held them still for the X-ray studies—the molecules otherwise can be wobbly and difficult to stabilize. The researchers prepared the samples by dipping the MOFs into solutions containing different molecular mixes and then heating them until they crystallized.

“We wanted to demonstrate that any of these molecules, no matter how complex, can be incorporated and their structure determined inside the MOFs,” said Omar Yaghi, a materials scientist at Berkeley Lab and chemistry professor at UC Berkeley who led the research.

The MOFs also possess a particular handedness known as “chirality”—like a left-handed person vs. a right-handed person—that selectively binds with molecular samples that also possess this handedness. The difference in a molecule’s handedness is particularly important for pharmaceuticals, as it can mean the difference between a medicine and a poison.

“This is one of the holy grails: how to crystallize complex molecules, and to determine their chirality,” Yaghi said.

Seungkyu Lee and Eugene A. Kapustin, Berkeley Lab researchers and UC Berkeley graduate students who participated in the latest work, said hard-to-study proteins, such as those important for drug development, are high-priority targets for the new technique.

“We are aiming for those molecules that have never been crystallized before,” Kapustin said. “That’s our next step. So we cannot only show the arrangement of atoms, but also the handedness of molecules, in which pharmaceutical companies are interested.”

One of the best methods for studying any molecule’s 3-D structure in atomic detail is to form it into a crystal. Then, researchers point intense X-ray light at the crystal, which produces a pattern of spots—like light off of a disco ball. Such patterns serve as a fingerprint for fully mapping the molecule’s 3-D structure.

Some molecules are difficult to form into crystals, though, and the process of crystallizing a single molecule can in some cases involve years of effort and expense.

“To crystallize a molecule typically involves a trial-and-error method,” Yaghi said. “Every chemist and biologist has to submit to this process. But in this MOF material you don’t need all that—it traps the molecule and orders it. It’s a way to bypass that trial-and-error approach to crystallography.”

Different types of MOFs, with different pore sizes, could be tested to find out which ones work best with different types of samples, Lee said.

Importantly, the MOFs in the latest study did not appear to distort the natural, intact structure of the molecules. Researchers say it’s possible to determine the complete 3-D structure of a molecule even if the samples only fill about 30 percent of a MOF’s pores.

Researchers determined the atomic structure of the MOFs and the bound molecules with X-rays at Berkeley Lab’s Advanced Light Source (ALS), and they also studied the MOFs using a technique called nuclear magnetic resonance (NMR) at Berkeley Lab’s Molecular Foundry.

In all, the researchers studied 16 different molecules bound inside the MOF pores, including a plant hormone called jasmonic acid whose chiral structure had never been directly determined before, other plant hormones known as gibberellins, methanol, and other acids, and alcohols.

the structure of 16 molecules that were studied while bound to metal-organic frameworks This illustration shows the structure of 16 molecules that were studied while bound to metal-organic frameworks (MOFs) that exhibit handedness. The frameworks stabilized the molecules for study with X-rays.Illustration credit: Credit: S. Lee, E. Kapustin, O. Yaghi/Berkeley Lab and UC Berkeley

The metals in the MOF framework itself can actually serve to enhance the quality of the X-ray images, Kapustin said, adding that in one case the technique allowed researchers to distinguish between two nearly identical plant hormones based on the difference in a single atomic bond.

Researchers could see structural details down to hundredths of a nanometer—less than the diameter of some atoms. “You can see with such precision whether it is a double bond or a single bond, or if this is a carbon atom or some other atom,” Lee said. “Once you bind a molecule in the MOF, you can learn the absolute structure very precisely since the chirality of the MOF serves as a reference during the structure refinement.”

This work was supported by BASF SE in Germany and the King Abdulaziz City for Science and Technology Center of Excellence for Nanomaterials and Clean Energy Applications.

The Advanced Light Source and Molecular Foundry are both DOE Office of Science User Facilities.

For more information about Omar Yaghi’s research, visit
