Modern lab design and facility construction, particularly within the biopharma sector, face increasingly stringent requirements aimed at safeguarding product quality and patient safety. Effective contamination control strategies, which current good manufacturing practice (GMP) guidelines define, form the core of these requirements. Establishing a cleanroom environment is not merely an exercise in facility layout; it creates the fundamental infrastructure that dictates operational standards, material flow, and regulatory compliance. Understanding the necessary design elements from conception ensures that the final facility operates efficiently and meets the meticulous standards global regulatory bodies set forth.

The foundational GMP and cleanroom classification standards

Compliance begins with a clear understanding of the regulatory landscape and the scientific principles underpinning contamination control. Good manufacturing practice (GMP) is a system that ensures manufacturers consistently produce and control products according to quality standards. The application of GMP principles influences every aspect of facility function, from process flow to personnel training. Crucially, the facility itself must prevent contamination, mislabeling, and mix-ups. Guidelines such as the U.S. Food and Drug Administration's (FDA) 21 Code of Federal Regulations (CFR) and the European Union’s Annex 1, which govern the manufacture of sterile medicinal products, codify this.

Proper classification of the manufacturing space, which the concentration of airborne particulate matter defines, forms a key component of GMP compliance. Organizations such as the International Organization for Standardization (ISO) 14644-1 establish cleanroom standards, assigning classes from ISO Class 1 (cleanest) to ISO Class 9 (least clean).

These classifications dictate the required air change rates, filtration levels (HEPA/ULPA), and personnel gowning protocols. The appropriate cleanroom class selection must directly address the risks the manufacturing process poses.

Implementing strict zonal control and unidirectional facility flow

The physical arrangement and flow within a cleanroom facility remain paramount to contamination control. This concept, often termed zonal control, mandates that processes proceed from areas of higher cleanliness to areas of lower cleanliness without cross-contamination. Designers achieve this by creating strictly separated areas for different activities: raw material reception, component preparation, processing, filling, and finishing.

The concept of unidirectional flow applies to three key vectors: materials, personnel, and waste.

• Personnel Flow: Individuals must enter through dedicated gowning airlocks designed to minimize particle transfer. Sequential gowning steps correlate directly with the required cleanroom classification (e.g., Grade C requires more extensive gowning than Grade D). Separate clean and dirty corridors must be established to ensure personnel who have entered a clean area do not unnecessarily traffic through lower-grade zones.
• Material Flow: Raw materials and components must enter the cleanroom through designated pass-through chambers (static or dynamic). These often incorporate interlocks to prevent simultaneous door opening and facilitate surface decontamination procedures (wipe-down, sterilization) before materials enter critical areas. Segregation must be maintained between dirty components and cleaned, sterilized items.
• Facility Layout: Effective lab design incorporates pressure differentials between adjacent classified areas. For example, a Grade A zone must maintain a higher pressure than the adjacent Grade B zone, ensuring any air leakage flows out of the cleaner area. Operators must seal doors, walls, and ceilings to maintain these pressure envelopes. Designing the facility as a series of connected boxes with sequential pressure gradients is a key tenet of GMP compliance for sterile manufacturing.

Critical material selection for surfaces and process equipment

The materials used in cleanroom construction and internal furnishings must support easy, effective, and frequent cleaning and disinfection, in line with GMP requirements. The design strictly prohibits porous, fibrous, or shedding materials as they generate particulates.

Advanced Lab Management Certificate

The Advanced Lab Management certificate is more than training—it’s a professional advantage.

Gain critical skills and IACET-approved CEUs that make a measurable difference.

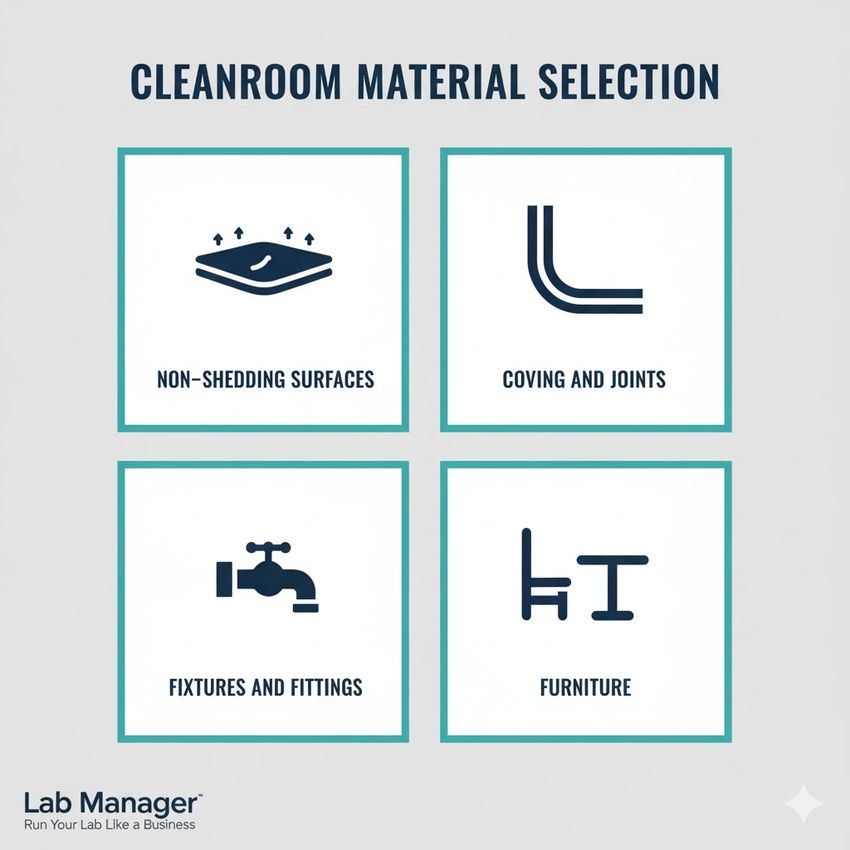

Key considerations for material selection include:

• Non-Shedding Surfaces:



  Walls, ceilings, and floors must be monolithic, non-shedding, and durable against repeated chemical exposure. Epoxy or polyurethane coatings for floors are common due to their seamless and durable nature. Wall and ceiling panels are typically smooth, non-porous materials, often sandwich panels with a metallic or rigid polymer finish.
• Coving and Joints: The facility must cove (round) all internal wall-to-wall, wall-to-floor, and wall-to-ceiling junctions, avoiding sharp 90-degree corners. This eliminates particle-trapping crevices and facilitates exhaustive cleaning protocols. Sealants used for joints must be non-toxic and resistant to cleaning agents.
• Fixtures and Fittings: Installers must flush-mount and seal lighting fixtures into the ceiling grid to eliminate ledges and potential air leakage points. Manufacturers should construct process equipment from materials like stainless steel (e.g., 316L) with smooth, polished finishes, allowing for validated cleaning-in-place (CIP) and sterilization-in-place (SIP) procedures. Installers must route utilities, such as electrical conduit and piping, external to the cleanroom wherever possible, entering only at specific, sealed points.
• Furniture: Designers must construct work surfaces and seating from non-porous, cleanable materials designed specifically for the cleanroom environment. Standard wood or upholstered furniture is incompatible with GMP requirements. The principle is that every exposed surface must support effective cleaning and disinfection according to a validated protocol.

Advanced HVAC design and differential pressure management

The heating, ventilation, and air conditioning (HVAC) system is the single most critical engineering component in maintaining cleanroom classification and GMP requirements. The HVAC system controls airborne particles, temperature, humidity, and pressure differentials.

Air Filtration and Changes:

• Air entering a classified cleanroom must pass through high-efficiency particulate air (HEPA) filters, which are capable of removing 99.97% of airborne particles 0.3 µm in diameter.
• The cleanroom classification directly determines the frequency of air changes per hour (ACH). Grade A and B zones (ISO 5) typically require hundreds of ACH, ensuring high airflow velocity and rapid removal of generated particles. Lower-grade zones have lower, yet still tightly controlled, ACH requirements.
• In critical Grade A processing areas, air supply must be unidirectional (laminar flow), meaning air flows in parallel streams over the processing zone at a constant velocity, effectively sweeping particles away from the critical product exposure site.

Differential Pressure Control:

Maintaining the correct pressure cascade, typically 10–15 Pascals (Pa) between adjacent areas, is essential for preventing the influx of lower-grade air into higher-grade zones.

• The HVAC system must be robustly designed with redundancy and continuous monitoring systems. Pressure sensors linked to alarms actively track the differential pressure at airlocks and between zones.
• Dampers and controls automatically adjust supply and exhaust air volumes to maintain the set point, regardless of door openings or process fluctuations.
• Installers must install the entire air handling system, including ducts and filter housings, to prevent particle contamination from internal system components from being introduced into the cleanroom space. This level of technical control represents a significant investment in lab design infrastructure.

Achieving long-term compliance and operational efficiency

For biopharma manufacturing, establishing a facility that meets initial GMP and cleanroom standards is only the first step. Long-term compliance depends on rigorous documentation, validation, and maintenance protocols. All critical systems, including the HVAC and water for injection (WFI) systems, must undergo exhaustive installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) before the facility achieves operational readiness. Furthermore, an effective preventative maintenance program and continuous environmental monitoring are essential for detecting drift from validated parameters. A well-designed facility, informed by stringent GMP principles, becomes an asset that ensures product quality, minimizes regulatory risk, and supports efficient operation throughout its lifecycle.

Frequently asked questions about cleanroom design

What is the primary difference between ISO and GMP cleanroom standards?

The International Organization for Standardization (ISO) 14644-1 provides a universal, technical standard based purely on airborne particulate concentration. Good Manufacturing Practice (GMP) is a regulatory quality system (such as FDA or EU) that mandates the ISO standards for classified areas (e.g., Grade A/B often correlates to ISO 5) but also encompasses non-classification requirements like personnel hygiene, documentation, process flow, and validation.
