The laboratory fume hood is the most critical piece of primary containment equipment in the chemical sciences, providing a physical and aerodynamic barrier between hazardous vapors and the scientist working with them. Fume hoods protect personnel by drawing contaminated air away from the work zone and exhausting it safely out of the building—a mechanism that sounds straightforward but depends on a precise balance of airflow engineering, user behavior, and building infrastructure. For laboratory managers, understanding how fume hoods work and why proper operation matters is not peripheral knowledge. It is the operational baseline for a safe, compliant, and cost-effective lab.
Across industries, fume hoods serve very different purposes. The hood used in a pharmaceutical analytical lab managing volatile organic compounds (VOCs) operates under different expectations than the perchloric acid wash-down hood required in a heavy inorganic digestion environment. The high-performance low-flow hood installed in a new LEED-certified research building presents different commissioning challenges than the legacy constant-air-volume unit that has been running in the same fume hood bay for twenty years. Despite these differences, the principles governing containment, airflow management, face velocity, and safe daily use are universal—and consistently misunderstood.
This guide addresses those fundamentals in a way that supports both technical decision-making and the development of a systematic fume hood management program.
How fume hoods create containment: the fundamentals of airflow
A laboratory fume hood creates a containment zone by drawing room air inward through the sash opening at a controlled velocity, preventing hazardous vapors, aerosols, and particulates from escaping into the operator's breathing zone. This inward airstream is the primary containment mechanism. It is maintained by the building exhaust system—either a dedicated exhaust fan or a central air-handling unit—creating negative pressure inside the cabinet relative to the surrounding room.
The face velocity is the speed at which air travels through the plane of the sash opening, typically expressed in feet per minute (fpm) or meters per second. It is the single most important performance indicator of a fume hood. ANSI/ASHRAE 110-2016 is the authoritative test method for evaluating fume hood performance—it defines how hoods are tested, not the specific velocity they must achieve. Performance targets are set by separate standards: ANSI/AIHA Z9.5, the consensus standard for laboratory ventilation, specifies an average face velocity of 80–120 fpm with no single measurement deviating more than 20% from that average. OSHA's non-mandatory guidance (29 CFR 1910.1450 Appendix A) describes adequate face velocity as typically 60–100 fpm, with the optimal value depending on hood design geometry, hazard classification, and room airflow conditions.
Interested in lab design?
A common misconception is that higher face velocity always means better containment. In fact, excessive face velocity—above 125 fpm in most hood designs—generates turbulence inside the cabinet and at the sash plane. This turbulence destabilizes the inward airstream and can carry contaminated air outward, past the sash, and toward the operator. This is why hood performance is specified within a range, not simply as a minimum threshold.
Containment is also vulnerable to disturbances that have nothing to do with the hood's exhaust rate. Cross-drafts from nearby HVAC supply diffusers, the wake created by a person walking past an open sash, or equipment placed too close to the sash opening can all disrupt the inward airflow pattern. These are behavioral and environmental variables, not equipment deficiencies—and they account for a disproportionate share of fume hood-related exposure incidents. Sash discipline, equipment placement, and laboratory traffic patterns are operational concerns every lab manager must address as part of a functional hood safety program.
What types of laboratory fume hoods are available?
Laboratory fume hoods are not a single product category. They are a family of containment devices, each engineered for a specific chemical hazard profile and operational context. Selecting the wrong hood type for the work being performed is a safety risk that specification sheets and purchase orders alone cannot prevent. The table below outlines the most common fume hood types and their primary applications.
| Hood Type | Primary Application | Key Distinguishing Feature |
|---|---|---|
| Ducted general-purpose | Organic solvents, acids, routine chemistry | Exhausts to atmosphere; most broadly applicable |
| Ductless recirculating | Low-toxicity VOCs with validated carbon filtration | Portable; no external duct infrastructure required |
| Perchloric acid wash-down | Perchloric acid digestions | Integral water wash system prevents explosive perchlorate salt buildup in ductwork |
| High-performance low-flow (HPLF) | Energy-conscious labs, VAV-integrated spaces | Maintains containment at reduced face velocities (60–80 fpm) |
| Radioisotope | Radioactive tracers, nuclear medicine | Lead-lined or stainless steel construction for radiation shielding |
| Auxiliary air (supply air) | High-volume labs with limited HVAC capacity | Introduces untempered supply air at the sash to reduce building HVAC load |

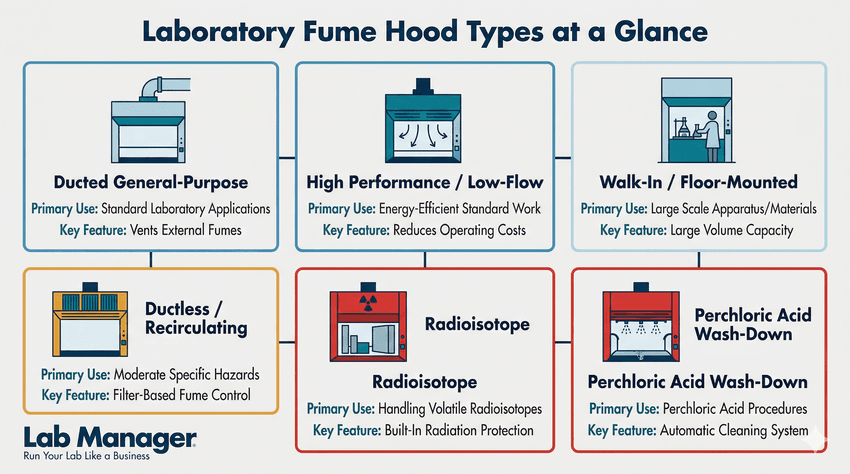

A quick-reference guide to six common laboratory fume hood types, categorized by standard, moderate, and high-hazard applications.
GEMINI (2026)
Two distinctions deserve specific emphasis for lab managers overseeing mixed-use spaces.
Biological safety cabinets (BSCs) are not fume hoods. This is among the most consequential misunderstandings in laboratory safety. A Class II BSC protects the operator and the sample from biological hazards using HEPA filtration and recirculated or exhausted air. It is not rated, tested, or designed for chemical vapor containment. Using a BSC in place of a fume hood when working with volatile solvents or toxic chemicals is a serious safety violation with potentially life-threatening consequences.
Ductless recirculating hoods are not universally appropriate. They rely entirely on activated carbon filtration to capture chemical vapors before recirculating air back into the lab. This approach is only appropriate for well-characterized, low-toxicity compounds where the carbon media has been validated for the specific chemicals in use, and where filter saturation is actively monitored. For any work involving mineral acids, perchloric acid, acutely toxic materials, or compounds with unknown toxicological profiles, a ducted hood is the only defensible choice.
Face velocity standards, certification requirements, and performance monitoring
Fume hood compliance is an ongoing program, not a one-time installation event. Specifying the correct hood type is the starting point; maintaining verified, documented performance over the hood's service life is the actual work of compliance.
In the United States, ANSI/ASHRAE 110-2016 defines three test conditions: as-manufactured (AM), as-installed (AI), and as-used (AU). A hood that passes AM testing at the factory does not guarantee acceptable performance in the field. The AI test—conducted after installation with the building HVAC system operating under real conditions—is required before the hood is put into service. The AU test, which accounts for the actual equipment and configurations used on the work surface, provides the most operationally relevant performance data and is particularly important for compliance-sensitive applications.
The Scientific Equipment and Furniture Association (SEFA) publishes SEFA 1-2010, which establishes recommended practices for fume hood design and installation that complement the ASHRAE test protocol. Regulatory agencies including OSHA reference these standards when evaluating laboratory safety programs. For facilities operating under GMP or GLP frameworks, fume hood performance records must be audit-ready and traceable to the test methods used.
Core performance checkpoints for a functional fume hood management program include:
- Annual face velocity certification: Conducted by a qualified industrial hygienist or HVAC commissioning technician using a calibrated anemometer, with measurements taken at a defined grid across the sash opening at multiple sash heights.
- Smoke visualization testing: A low-tech but informative method for visualizing airflow patterns at the sash plane and identifying turbulence hot spots before they become exposure events.
- Alarm system verification: Modern fume hoods equipped with airflow monitors should be tested to confirm that audible and visual alarms activate reliably when face velocity drops below the minimum safe threshold.
- HVAC integration review: Fume hood performance is inextricably tied to the building's air supply and exhaust balance. Any change to building HVAC—new equipment, duct modifications, changes in building occupancy—should trigger a re-evaluation of hood performance.
Establishing proper face velocity testing protocols as a scheduled, documented procedure rather than a reactive response to incidents is the mark of a mature lab safety program. For analytical work where sample integrity depends on contamination control, preventing airborne contamination during sensitive laboratory preparations requires a more systematic approach to hood qualification that extends beyond routine annual certification to include contamination risk assessment specific to the assay.
Fume hood applications across laboratory disciplines
The core requirements for fume hood performance apply universally, but specific hazard profiles, regulatory frameworks, and workflow demands vary considerably by discipline. Understanding these distinctions enables laboratory managers to make better decisions about hood specification, placement, maintenance schedules, and staff training priorities.
Pharmaceutical and biopharma laboratories routinely handle highly potent active pharmaceutical ingredients (HPAPIs) and process solvents with strict occupational exposure limits (OELs) that may fall in the microgram or nanogram range. Containment verification for these applications may require surrogate testing methods beyond standard ASHRAE 110 protocols. A targeted approach to managing VOC exposure limits in pharmaceutical laboratory fume hoods is essential for facilities working toward 21 CFR or GMP compliance.
Food science and quality control laboratories use fume hoods for acid-based digestions, solvent extractions, and sample preparation workflows that involve concentrated mineral acids. The chemical hazards in food laboratory environments are frequently underestimated. Concentrated nitric, hydrochloric, and sulfuric acids generate toxic fumes that require the same level of engineering control as any analytical chemistry application, and safe handling of concentrated acids in food analysis fume hoods demands both appropriate hood selection and verified face velocity performance.
Environmental testing laboratories work with persistent organic pollutants (POPs), pesticide and herbicide extraction solvents, and matrices contaminated with trace-level toxics that require careful containment throughout sample preparation. The high-boiling-point solvents used in EPA extraction methods—dichloromethane, hexane, acetone—present real inhalation hazards at room temperature, and handling toxic reagents during environmental sample extractions within compliant hood conditions is a regulatory as well as occupational health obligation.
Materials science and applied research laboratories increasingly work with engineered nanomaterials, reactive metal powders, and synthetic intermediates whose toxicological profiles may be incompletely characterized. Standard general-purpose ducted hoods may require supplemental containment measures for dry nanopowders, where particle resuspension and airflow turbulence can compromise containment. The specific challenges of safe nanomaterial and volatile solvent handling in materials science laboratory fume hoods deserve a purpose-built risk assessment rather than a default to general laboratory hood practices.
Variable air volume systems and sustainable fume hood energy management
Fume hoods are among the most energy-intensive single pieces of equipment in a research building. A typical constant-air-volume (CAV) fume hood exhausts approximately 750–1,000 cubic feet of conditioned air per minute—air that has already been heated, cooled, humidified, or dehumidified by the building's HVAC system. Depending on climate and utility rates, a single CAV hood can represent $3,000–$8,000 per year in HVAC energy costs when seasonal heating and cooling loads are accounted for. A large research facility with dozens of hoods running around the clock carries a correspondingly significant energy burden.
Variable air volume (VAV) fume hood systems address this by modulating exhaust flow in response to sash position. As the sash is lowered, airflow is reduced proportionally while the face velocity is maintained within the safe operating range through coordinated control of the exhaust damper and the supply air system. When the sash is raised, exhaust volume increases to compensate. Closing the sash on a VAV hood can reduce airflow by 60–80%, with overall energy savings varying considerably depending on sash use patterns, climate, and building HVAC configuration—provided the VAV controls are correctly commissioned, calibrated, and integrated with the building automation system.
High-performance low-flow (HPLF) hoods extend this further by achieving safe containment at face velocities of 60–80 fpm instead of the conventional 100 fpm threshold, further reducing the volume of conditioned air exhausted per hour. These systems require careful commissioning and are most effective in well-controlled laboratory environments where room airflow patterns are stable.
Behavioral interventions remain the lowest-cost energy improvement available to any laboratory:
- Closing sashes on idle hoods reduces exhaust volume immediately, whether or not the hood is equipped with VAV controls.
- Shutting down hoods not scheduled for overnight or weekend use—where building safety and HVAC design permit—eliminates exhaust and supply air conditioning loads during low-occupancy periods.
- Consolidating work to reduce the number of hoods operating simultaneously lowers both energy costs and the maintenance burden on the exhaust system.
- Scheduling regular ductwork inspections to identify and correct pressure drop increases keeps exhaust fans operating at their design points.
A comprehensive approach to fume hood energy efficiency and operational cost reduction combines VAV or HPLF technology with behavioral programs and building-level HVAC optimization to deliver measurable reductions in both operating costs and the lab's carbon footprint.
Purchasing, installation, and commissioning a laboratory fume hood
Selecting a fume hood is a capital decision that spans procurement, infrastructure, and safety compliance. The hood must be matched to the building's exhaust capacity, the chemical hazard profile of planned work, relevant regulatory standards, and the physical dimensions of the laboratory space. A detailed evaluation of what to assess when selecting a laboratory fume hood covers specification criteria, vendor evaluation, and total cost of ownership in depth.
Installation and commissioning are as important as selection. Key commissioning steps that should be documented before a hood is placed into service include:
- Verification of as-installed face velocity across the full sash travel range under real operating conditions (ANSI/ASHRAE 110 AI protocol)
- Integration testing with the building automation system (BAS), including alarm interface confirmation
- Verification of exhaust stack dilution ratios at the point of atmospheric discharge, confirming that exhausted air will not re-enter through HVAC intakes or operable windows
- Documented staff training confirming that all users of the hood have received instruction in proper sash operation, equipment placement, and emergency procedures
No fume hood should be accepted into service without a completed commissioning report demonstrating that ANSI/ASHRAE 110 AI criteria have been met and that building HVAC integration is functioning as designed.
Conclusion: building a fume hood management program that works
Laboratory fume hoods are foundational safety infrastructure, but their effectiveness is not guaranteed by installation alone. A hood that is correctly selected for its chemical hazard profile, maintained to ANSI/ASHRAE 110 performance standards, certified annually, and operated with consistent sash discipline provides reliable, defensible containment across the full range of laboratory applications. A hood that is mismatched to the work, infrequently tested, or used without operational protocols is among the most common and preventable sources of chemical exposure in research and analytical settings.
For laboratory managers, the fume hood program is an opportunity to demonstrate the operational maturity of the laboratory safety culture. Systematic face velocity certification, VAV adoption for energy efficiency, hazard-matched hood selection by discipline, and documented staff training are the components of a program that reduces risk, lowers operating costs, and produces the audit-ready records that regulatory frameworks require. The detailed guidance in each related article linked throughout this guide supports implementation at the discipline and workflow level, turning these principles into specific, actionable practices.
References
- American National Standards Institute / ASHRAE. (2016). ANSI/ASHRAE 110-2016: Method of Testing Performance of Laboratory Fume Hoods. Available from the ANSI webstore: https://webstore.ansi.org/standards/ashrae/ANSIASHRAEStandard1102016
- American Industrial Hygiene Association (AIHA). Lab Ventilation Guidebook, 2nd edition. AIHA. https://www.aiha.org/education/marketplace/lab-ventilation-guidebook
- Occupational Safety and Health Administration (OSHA). Laboratory Safety — Chemical Fume Hoods (QuickFacts). U.S. Department of Labor. https://www.osha.gov/sites/default/files/publications/OSHAquickfacts-lab-safety-chemical-fume-hoods.pdf
