Within rigorous scientific environments, laboratory vacuum pumps serve as foundational instruments essential for processes ranging from rotary evaporation and filtration to mass spectrometry and lyophilization. Maintaining high-level performance in these vacuum pumps closely correlates with experimental reproducibility, laboratory safety, and overall operational efficiency. When equipment operates below baseline specifications, laboratories face increased risks of sample contamination, compromised data integrity, and costly workflow interruptions. Implementing systematic optimization strategies facilitates precise pressure control, mitigates premature mechanical wear, and promotes equipment longevity. This comprehensive analysis explores fundamental mechanisms, tailored maintenance protocols, and advanced operational parameters recommended to sustain high-fidelity vacuum systems in modern research and clinical settings.
Strategic selection of laboratory vacuum pumps for chemical compatibility
The foundation of vacuum pump optimization begins long before the equipment is powered on; it starts with strategic procurement based on specific application requirements. Deploying incorrect technology for a particular chemical process frequently represents a primary cause of premature equipment failure. Laboratory vacuum pumps generally fall into two broad categories: wet (oil-sealed) pumps and dry (oil-free) pumps. Understanding the mechanical and chemical limitations of each type is highly important for laboratory personnel.
Oil-sealed rotary vane vacuum pumps are traditionally favored for applications requiring high ultimate vacuum levels, such as freeze-drying, Schlenk line operations, and serving as backing pumps for high-vacuum analytical instruments. The oil in these systems serves three critical functions: it lubricates moving parts, seals the microscopic clearances between the rotor vanes and the stator, and dissipates heat generated during gas compression. However, this reliance on oil creates vulnerabilities. When exposed to harsh solvent vapors, acidic gases, or heavy moisture loads, the pump oil can quickly degrade, emulsify, or become highly corrosive.
Conversely, dry vacuum pumps, including diaphragm and scroll pumps, eliminate oil from the swept volume. Diaphragm pumps utilize flexible membranes (often coated with highly resistant fluoropolymers like PTFE) to move gases. While diaphragm vacuum pumps typically cannot achieve the ultra-low ultimate pressures of their rotary vane counterparts, their exceptional chemical resistance makes them an optimal choice for rotary evaporation, gel drying, and vacuum filtration involving aggressive solvents.
Interested in lab tools and techniques?
To optimize operational lifespan, laboratory managers are advised to carefully match the pump's construction materials with the chemical environment. Table 1 outlines the general compatibility and operational parameters of standard vacuum technologies.
Table 1: Comparison of common laboratory vacuum pumps
Pump Technology | Lubrication Type | Typical Ultimate Vacuum | Chemical Resistance | Primary Laboratory Applications |
|---|---|---|---|---|
Rotary Vane | Oil-Sealed | 10⁻³ mbar | Low to Moderate (Often requires cold traps for harsh chemicals) | Lyophilization, Schlenk lines, Mass spectrometry backing |
Diaphragm | Dry (Oil-Free) | 1 to 10 mbar | Excellent (When utilizing PTFE components) | Rotary evaporation, vacuum filtration, gel drying |
Scroll | Dry (Oil-Free) | 10⁻² mbar | Moderate (Susceptible to particulate damage) | Clean vacuum processes, analytical instrument backing |
Selecting a pump constructed with chemically compatible wetted parts helps prevent internal corrosion, thereby establishing an initial framework for operational efficiency and an extended equipment lifespan.
Routine preventative maintenance strategies for laboratory vacuum pumps
Consistent, systematic maintenance protocols represent a highly effective method for optimizing laboratory vacuum pumps. Reactive maintenance—addressing issues only after an operational failure occurs—frequently results in extensive internal damage, costly repairs, and unacceptable equipment downtime. Establishing proactive standard operating procedures (SOPs) helps ensure equipment remains within intended factory specifications.
For oil-sealed vacuum pumps, monitoring and managing oil quality is a critical maintenance task. Hydrocarbon-based pump oils degrade through oxidation, thermal stress, and contamination by ingested chemical vapors. Degraded oil loses its lubricity and sealing properties, forcing the pump to work harder to achieve the desired pressure, which subsequently increases internal operating temperatures and accelerates mechanical wear.

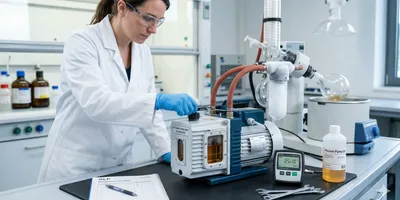

Laboratory personnel should inspect the oil sight glass daily before initiating operations. The oil should appear clear and light in color. If the oil presents a cloudy, milky appearance, water or solvent emulsification has likely occurred. A dark brown or black coloration generally indicates thermal degradation or severe chemical contamination. In heavily utilized systems, or those exposed to high vapor loads, oil changes may be recommended monthly or even weekly. When handling highly reactive compounds or strong oxidants, standard hydrocarbon oils present a severe safety hazard; in such environments, inert perfluoropolyether (PFPE) fluids are typically required by safety protocols. Furthermore, all waste oil should be handled and disposed of in accordance with Environmental Protection Agency (EPA) regulations concerning hazardous laboratory waste.
Dry vacuum pumps, while eliminating the need for oil changes, require distinct preventative maintenance routines. The flexible membranes and valves within diaphragm pumps experience physical fatigue over time. Preventative maintenance schedules usually dictate the replacement of these internal wear components based on operational hours rather than calendar time. Operating a diaphragm pump until the membrane physically ruptures can lead to process fluid entering the mechanical drive area, potentially transforming a standard maintenance procedure into a major failure requiring significant component replacement.
Routine maintenance protocols for all types of laboratory vacuum pumps should also include:
- Exhaust filter replacement: Oil mist filters (demisters) capture aerosolized oil droplets from the pump exhaust. Saturated filters create backpressure, reducing efficiency and potentially expelling hazardous oil mists into the laboratory atmosphere, which could violate Occupational Safety and Health Administration (OSHA) permissible exposure limits (PELs).
- Cooling system inspection: Motor cooling fans and ventilation grilles should remain free of dust and debris. Thermal overload is known to significantly reduce the lifespan of the electric motors driving the pumps.
- Drive belt examination: For belt-driven models, technicians are advised to routinely check for proper belt tension, cracking, and glazing to promote efficient power transmission.
Maintaining meticulous maintenance logs not only supports equipment longevity but also aligns with the Food and Drug Administration's (FDA) Good Laboratory Practice (GLP) regulations (21 CFR Part 58), which recommend documented routine inspection, cleaning, and maintenance of all laboratory equipment.
Operational best practices to maximize vacuum pump efficiency
Beyond physical maintenance, the daily operational habits of laboratory personnel heavily influence the longevity and efficiency of vacuum pumps. Implementing optimized operational workflows helps minimize mechanical stress and protects internal components from chemical degradation.
Implementing cold traps
Ingesting massive volumes of condensable vapors—such as water, ethanol, or more aggressive organic solvents—drastically impairs pump performance. When these vapors enter an oil-sealed pump, they condense during the compression cycle, mixing with the oil and compromising its structural integrity. To help prevent this, protective cold traps are commonly installed between the application and the vacuum inlet. Cold traps utilize refrigerants (such as liquid nitrogen or dry ice/isopropanol slurries) to freeze vapors out of the gas stream before they reach the pump mechanism.
For optimal efficiency, cold traps should be properly sized for the expected vapor load and emptied promptly after every operational cycle. Allowing a cold trap to overfill or warm up while still under vacuum can result in the rapid sublimation of the trapped solvents, driving a concentrated vapor load directly into the pump housing.
Utilizing the gas ballast valve
Modern rotary vane laboratory vacuum pumps feature a mechanical gas ballast valve, an often-underutilized component that is highly useful for optimizing performance. When pumping condensable vapors, the gas ballast introduces a small volume of atmospheric air (or an inert gas like nitrogen) into the compression chamber during the final stage of the pumping cycle. This added air prevents the partial pressure of the ingested vapor from reaching its condensation point. As a result, the vapor remains in a gaseous state and is expelled through the exhaust rather than condensing into the pump oil. Operators should open the gas ballast when pumping wet samples or solvents and leave it open for 15 to 30 minutes after the application finishes to purge residual moisture from the oil.
Warm-up and cool-down procedures
Vacuum pumps tend to operate most efficiently at their designated thermal equilibrium. Activating a pump and immediately applying a full vacuum load strains the motor and forces cold, highly viscous oil to lubricate tight clearances. Personnel are advised to allow oil-sealed vacuum pumps to operate at atmospheric pressure or against a closed inlet valve for 15 to 20 minutes prior to connecting the active application. This warm-up period allows the oil to reach an optimal operating temperature, promoting proper vapor pressure and lubrication.
Similarly, an enforced cool-down and purge phase helps extend equipment lifespan. After concluding a process, leaving the pump running with the inlet sealed and the gas ballast open for 30 minutes strips volatile contaminants from the oil, preparing the instrument for its next use and mitigating internal corrosion during idle periods.
Troubleshooting and performance monitoring for laboratory vacuum pumps
Even with rigorous maintenance and optimized operational practices, laboratory vacuum pumps may occasionally exhibit performance deviations. Establishing baseline performance metrics and deploying systematic troubleshooting methodologies allows facilities to identify and rectify minor issues before they escalate into terminal failures.
The most critical performance metric is typically the pump's ultimate pressure (or base vacuum). This value represents the lowest pressure the pump can achieve when isolated from all external systems. Laboratory facilities should measure and record the ultimate pressure of new or freshly serviced vacuum pumps using an accurate digital vacuum gauge, such as a Pirani or capacitance manometer.
When a pump fails to reach its expected ultimate vacuum, technicians should systematically investigate the following common culprits:
- System Leaks: A failure to reach ultimate vacuum frequently originates outside the pump itself. Worn O-rings, cracked vacuum tubing, or improperly seated glassware create pathways for atmospheric air to enter the system. Technicians can utilize helium leak detectors or perform isolation tests (rate-of-rise tests) to distinguish between a true mechanical leak and internal outgassing.
- Contaminated Lubricant: As previously noted, compromised oil possesses a higher vapor pressure than clean oil. As the pump attempts to pull a deep vacuum, the contaminants within the oil begin to boil off (outgas), creating a false gas load that prevents the system from achieving its target pressure. Flushing the system and replacing the oil often resolves this issue.
- Worn Internal Clearances: In older pumps, the physical friction between vanes and stators, or the degradation of PTFE diaphragms, reduces overall volumetric efficiency. If oil changes and leak checks fail to restore performance, the pump may require a comprehensive mechanical rebuild utilizing a manufacturer-specified service kit.
Auditory and tactile observations also provide vital diagnostic data. Healthy rotary vane vacuum pumps generally produce a characteristic "gurgling" sound when pulling deep vacuum, transitioning to a quiet hum. Loud mechanical knocking or grinding noises frequently indicate severe bearing wear, broken springs, or damaged vanes. Excessive casing temperatures or strong vibrations suggest motor misalignment, exhaust blockages, or severe internal friction, which usually warrant immediate shutdown and inspection.
Conclusion: maximizing the lifespan of laboratory vacuum pumps
Optimizing laboratory vacuum pumps requires a multifaceted approach integrating strategic equipment selection, disciplined preventative maintenance, and scientifically sound operational practices. By understanding the mechanical capabilities and chemical vulnerabilities of different pump technologies, laboratory facilities can reduce premature degradation and support continuous operational readiness. Implementing rigorous oil management protocols, utilizing protective cold traps, properly managing condensable vapors through gas ballasting, and establishing baseline performance metrics directly contribute to extending equipment lifespan. Ultimately, viewing vacuum pumps not merely as utility devices, but as highly engineered scientific instruments requiring calibrated care, promotes sustained experimental accuracy, protects laboratory personnel, and optimizes the return on capital investments in laboratory infrastructure.
