High-throughput laboratories face a relentless operational challenge: how to scale assay volumes without compromising data quality. As modern workflows grow, implementing advanced microplate management systems has become the absolute cornerstone of successful laboratory automation. Yet, a critical bottleneck remains: moving physical plates between storage, preparation, and detection instruments like a high-performance microplate reader. Human hands carrying plates from a liquid handler to an incubator, and then to a reader, introduce timing variability, transfer delays, and contamination risks.

To resolve these operational friction points, modern research and QA/QC facilities are increasingly adopting integrated microplate technology to orchestrate their runs. By incorporating these tools, facilities transition from isolated instrument workstations to fully automated, highly cohesive operations.

What is a microplate management system and how does it work?

An integrated microplate management system is a coordinated platform of hardware and software designed to store, identify, transport, and schedule assays across various analytical instruments. Instead of treating liquid handlers, plate washers, and readers as independent islands of automation, these systems tie them together into a unified workflow.

The key components of automated plate handling

The physical hardware of these systems typically falls into several distinct categories:

1. Microplate stackers: These devices are designed for high-capacity, sequential loading of plates. They operate under a first-in, first-out (FIFO) or last-in, first-out (LIFO) paradigm, making them ideal for straightforward, linear protocols.

2. Microplate hotels and carousels: These storage systems are designed for random-access retrieval. Unlike stackers, hotels allow the system to select any plate in the inventory at any time, which is essential for complex assays requiring variable incubation times or dynamic sorting.

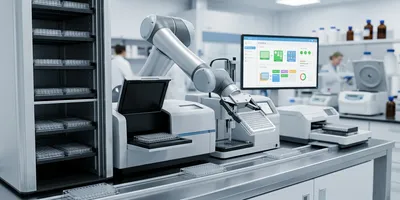

3. Robotic arms: These mechanical handlers—either gantry (X-Y-Z linear axis) or articulated (multi-jointed anthropomorphic) arms—physically transfer plates between storage devices, liquid handlers, and the loading nest of a microplate reader.

4. Software orchestration: The digital brain that manages instrument scheduling, barcode verification, and data flow across the entire platform.

Key insight: The primary value of choosing comprehensive microplate management systems lies not only in mechanical transport, but in the intelligent scheduling software that keeps high-value laboratory automation instruments operating at maximum capacity.

What is the difference between a microplate stacker and a microplate hotel?

A microplate stacker stores and accesses plates sequentially in a vertical column, meaning plates must be processed in the order they were loaded. In contrast, a microplate hotel provides random-access storage, allowing a robotic arm to retrieve any individual plate from any slot at any point in the workflow without disturbing adjacent plates.

How microplate management systems resolve automation bottlenecks

The evolution of modern microplate technology has shifted standard laboratory assays from simple 96-well plates to high-density 384-well and 1536-well formats. While these high-density formats exponentially increase data generation, they make manual handling virtually impossible. A single misaligned plate or a minor delay in transferring a kinetic assay plate to a reader can ruin an entire day’s run.

In micro-volume reactions, liquids are exceptionally sensitive to ambient conditions. Issues such as edge-effect evaporation, temperature fluctuations, and meniscus changes occur rapidly when plates sit on open laboratory benches waiting for manual transfer.

Implementing laboratory automation at the plate-handling level eliminates these physical and temporal bottlenecks. Automated systems ensure that plate transfer times are precise to the second. This level of temporal consistency is crucial for kinetic assays, cellular studies, and time-sensitive enzymatic reactions where incubation durations must be strictly identical across all assay runs.

Consider a typical drug discovery laboratory running a cellular assay: A 30-second delay in transferring a 1536-well plate from a liquid handler to an incubator can lead to uneven temperature distribution across the peripheral wells. By utilizing an automated robotic handler on a linear track, the microplate management system ensures that every single plate experiences the exact same transit time, ambient exposure, and environmental history, removing the risk of spatial plate drift before it reaches the microplate reader.

Operational note: Manual plate handling remains one of the largest contributors to limited walk-away time and tracking errors in modern high-throughput laboratories.

To help lab managers evaluate the transition from manual to automated operations, the table below highlights the operational contrasts:

Comparison of manual plate handling vs. automated systems

Key scheduling software features for laboratory automation

Without sophisticated software, even the most advanced robotic hardware is nothing more than a mechanical arm. Modern microplate management systems rely on dynamic scheduling software to maximize instrument utilization.

Dynamic vs. static scheduling

Static scheduling software calculates a rigid path for all plates before the run begins. However, if a plate washer experiences a pressure drop or a microplate reader takes slightly longer to process a high-density plate, a static schedule breaks down, leading to idle instruments or ruined assays.

Dynamic scheduling software constantly recalculates workflows in real-time. If one path is blocked or delayed, the software automatically reroutes other plates to maintain optimal throughput. Advanced dynamic schedulers also feature error-recovery protocols. For example, if a reader experiences an error, the software will automatically park active plates inside a climate-controlled incubator or hotel to preserve sample viability while notifying the laboratory technician.

How does scheduling software optimize microplate automation?

Scheduling software optimizes microplate automation by dynamically calculating the processing time for each plate across readers, washers, and liquid handlers. It prevents resource conflicts and ensures that time-sensitive assays (such as kinetic readings) are executed with precise, uniform incubation intervals.

Furthermore, robust integration with Laboratory Information Management Systems (LIMS) is vital. As a plate moves through the automated cycle, its barcode is scanned at every station. This creates a digital thread, linking preparation parameters, wash cycles, reagent batches, and final reader data directly to the plate's unique ID.

Strategic considerations: footprint, modularity, and compliance

When evaluating new hardware, lab managers must consider several technical, physical, and regulatory factors. In pharmaceutical QA/QC, clinical diagnostics, and regulated biotechnology environments, data integrity is paramount.

Achieving compliance under FDA 21 CFR Part 11 and ISO 23783-1

In the United States, laboratories must comply with FDA 21 CFR Part 11, which outlines strict requirements for electronic records and signatures. Similarly, in Europe, laboratories must adhere to EudraLex Annex 11. Automated systems facilitate compliance by generating immutable, timestamped logs of every physical action and data transfer. Every time a microplate is moved, read, or washed, the software records the operator ID, timestamp, and instrument status.

Furthermore, modern liquid handling and plate management systems are governed by the ISO 23783-1 metrological standard. This standard regulates the volumetric performance, vocabulary, and testing parameters for automated pipetting, ensuring that the liquid delivery systems integrated with your plate handlers maintain consistent accuracy and precision over time.

Compliance benefit: Automated tracking eliminates human error from audit trails, standardizing documentation and simplifying the pathway to regulatory compliance.

Footprint, modularity, and future-proofing

Beyond compliance, lab managers must evaluate physical footprint and flexibility. High-throughput systems can consume significant bench space. To mitigate this, many lab managers look for vertical solutions—such as tall microplate hotels or carousels—or modular systems that allow a laboratory to start with a simple stacker and later upgrade to a multi-instrument workstation. Additionally, ensure that any selected system supports the standard Society for Laboratory Automation and Screening (SLAS) microplate footprint dimensions to maintain compatibility with existing consumables.

Optimizing laboratory workflows with integrated microplate technology

Advanced microplate technology is no longer a luxury reserved solely for ultra-high-throughput pharmaceutical screening centers. As modern biotechnology demands greater throughput, higher data integrity, and strict regulatory compliance, automated plate handling has become a core necessity for clinical, academic, and industrial labs alike. By carefully evaluating hardware options, dynamic scheduling capabilities, and LIMS integration, lab managers can eliminate workflow bottlenecks, secure their data audit trails, and maximize the return on their analytical instrument investments.

This article was developed with AI-assisted research and reviewed by Erika Russell.
