Surgeons removing a malignant brain tumor don’t want to leave cancerous material behind. But they’re also trying to protect healthy brain matter and minimize neurological harm.
Once they open up a patient’s skull, there’s no time to send tissue samples to a pathology lab—where they are typically frozen, sliced, stained, mounted on slides and investigated under a bulky microscope—to definitively distinguish between cancerous and normal brain cells.
But a handheld, miniature microscope being developed by University of Washington mechanical engineers could allow surgeons to “see” at a cellular level in the operating room and determine where to stop cutting.
“Surgeons don’t have a very good way of knowing when they’re done cutting out a tumor,” said senior author Jonathan Liu, UW assistant professor of mechanical engineering. “They’re using their sense of sight, their sense of touch, pre-operative images of the brain—and oftentimes it’s pretty subjective.
“Being able to zoom and see at the cellular level during the surgery would really help them to accurately differentiate between tumor and normal tissues and improve patient outcomes,” said Liu.
To continue reading this article, sign up for FREE to
Membership is FREE and provides you with instant access to eNewsletters, digital publications, article archives, and more.

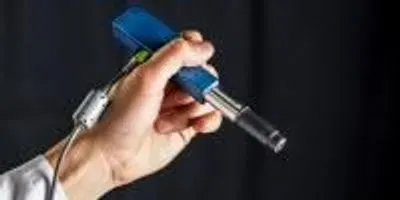

UW mechanical engineers are developing a handheld microscope to help doctors and dentists distinguish between healthy and cancerous cells in an office setting or operating room.Photo credit: Dennis Wise/University of WashingtonSurgeons removing a malignant brain tumor don’t want to leave cancerous material behind. But they’re also trying to protect healthy brain matter and minimize neurological harm.
Once they open up a patient’s skull, there’s no time to send tissue samples to a pathology lab—where they are typically frozen, sliced, stained, mounted on slides and investigated under a bulky microscope—to definitively distinguish between cancerous and normal brain cells.
But a handheld, miniature microscope being developed by University of Washington mechanical engineers could allow surgeons to “see” at a cellular level in the operating room and determine where to stop cutting.
“Surgeons don’t have a very good way of knowing when they’re done cutting out a tumor,” said senior author Jonathan Liu, UW assistant professor of mechanical engineering. “They’re using their sense of sight, their sense of touch, pre-operative images of the brain—and oftentimes it’s pretty subjective.
“Being able to zoom and see at the cellular level during the surgery would really help them to accurately differentiate between tumor and normal tissues and improve patient outcomes,” said Liu.
The handheld microscope, roughly the size of a pen, combines technologies in a novel way to deliver high-quality images at faster speeds than existing devices. Researchers expect to begin testing it as a cancer-screening tool in clinical settings next year.
UW mechanical engineering doctoral students and assistant professor Jonathan T.C. Liu work to align a handheld microscope for cancer detection in patients. From left to right: Ye Chen, Linpeng “Peter” Wei, Liu and Chengbo Yin.Photo credit: Dennis Wise, University of Washington
For instance, dentists who find a suspicious-looking lesion in a patient’s mouth often wind up cutting it out and sending it to a lab to be biopsied for oral cancer. Most come back benign.
That process subjects patients to an invasive procedure and overburdens pathology labs. A miniature microscope with high enough resolution to detect changes at a cellular level could be used in dental or dermatological clinics to better assess which lesions or moles are normal and which ones need to be biopsied.
To create a handheld dual-axis confocal microscope, UW engineers miniaturized the larger microscope prototype seen on the table into a device roughly the size of a pen.Photo credit: Dennis Wise, University of Washington“The microscope technologies that have been developed over the last couple of decades are expensive and still pretty large, about the size of a hair dryer or a small dental x-ray machine,” said co-author Milind Rajadhyaksha, associate faculty member in the dermatology service at the Memorial Sloan Kettering Cancer Center in New York City. “So there’s a need for creating much more miniaturized microscopes.”
Making microscopes smaller, however, usually requires sacrificing some aspect of image quality or performance such as resolution, field of view, depth, imaging contrast or processing speed.
“We feel like this device does one of the best jobs ever—compared to existing commercial devices and previous research devices—of balancing all those tradeoffs,” said Liu.
The miniature microscope uses an innovative approach called “dual-axis confocal microscopy” to illuminate and more clearly see through opaque tissue. It can capture details up to a half millimeter beneath the tissue surface, where some types of cancerous cells originate.
In the video below, for instance, researchers produced images of fluorescent blood vessels in a mouse ear at various depths ranging from 0.075 to 0.125 millimeters deep.
“Trying to see beneath the surface of tissue is like trying to drive in a thick fog with your high beams on–you really can’t see much in front of you,” Liu said. “But there are tricks we can play to see more deeply into the fog, like a fog light that illuminates from a different angle and reduces the glare.”
The microscope also employs a technique called line scanning to speed up the image-collection process. It uses micro-electrical-mechanical—also known as MEMS—mirrors to direct an optical beam which scans the tissue, line by line, and quickly builds an image.

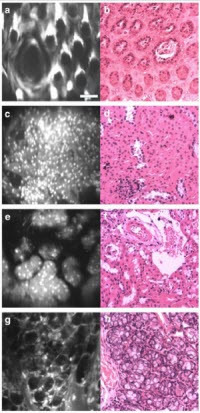

The real-time microscope images (left) illuminate similar details in mouse tissues as the images (right) produced during an expensive, multi-day process at a clinical pathology lab.Image courtesy of the University of WashingtonImaging speed is particularly important for a handheld device, which has to contend with motion jitter from the human using it. If the imaging rate is too slow, the images will be blurry.
In the paper, the researchers demonstrate that the miniature microscope has sufficient resolution to see subcellular details. Images taken of mouse tissues compare well with those produced from a multi-day process at a clinical pathology lab—the gold standard for identifying cancerous cells in tissues.
The researchers hope that after testing the microscope’s performance as a cancer- screening tool, it can be introduced into surgeries or other clinical procedures within the next two to four years.
“For brain tumor surgery, there are often cells left behind that are invisible to the neurosurgeon. This device will really be the first to let you identify these cells during the operation and determine exactly how much further you can reduce this residual,” said project collaborator Nader Sanai, professor of neurosurgery at the Barrow Neurological Institute in Phoenix. “That’s not possible to do today.”
Co-authors include UW mechanical engineering doctoral students Chengbo Yin, Ye Chen, Linpeng “Peter” Wei, Steven Leigh and Michael Rosenberg; postdoctoral researchers Adam K. Glaser and Prasanth Pillai; Memorial Sloan Kettering Cancer Center’s Sanjeewa Abeytunge, Gary Peterson and Christopher Glazowski; and Stanford University research scientist Michael Mandella.
