Scientists Build a Better Eye on Our World

Science begins with observation, and many defining moments in scientific progress followed the introduction of new ways to observe the world, from microscopes and telescopes to X-rays and MRIs.

by University of Chicago
Register for free to listen to this article
Listen with Speechify

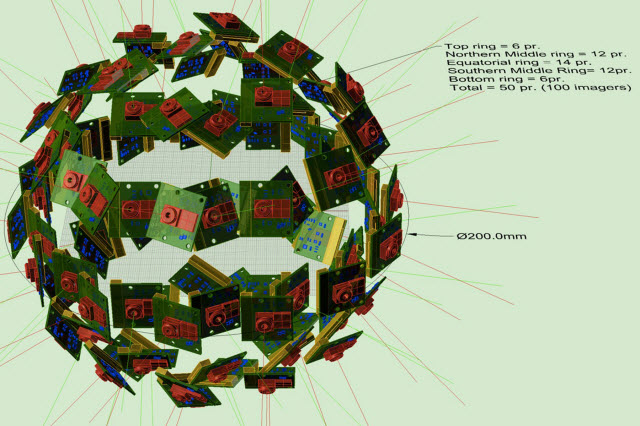

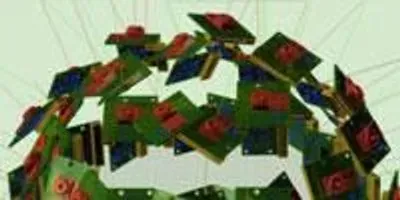

SENSEI camera arrangement of 50 pairs of current HDTV 5-mpixel, 1080p sensors.SENSEI camera arrangement of 50 pairs of current HDTV 5-mpixel, 1080p sensors.Illustration by Greg Dawe, UCSDThe Electronic Visualization Laboratory at the University of Illinois at Chicago has been awarded a $3 million National Science Foundation grant to develop an extraordinary new camera — really an array of dozens of video cameras — that can capture images in 360 degrees and three dimensions.

Imagine the difference between seeing a fish dart through the narrow field of an underwater camera and seeing the fish and the entire surrounding area.

“We see a fish whip by, but you have no idea why. What might be chasing it? It’s a very myopic view,” said Daniel Sandin, a co-founder of EVL who worked on the development of the Sensor Environment Imaging (SENSEI) Instrument project.

Get training in Effectively Advocating for the Lab and earn CEUs.One of over 25 IACET-accredited courses in the Academy.
Effectively Advocating for the Lab Course

SENSEI will show you what’s chasing the fish, how big it is, and how far away it was when it spooked that fish.

SENSEI will capture the the whole sphere of the surrounding environment, in stereo, with calibrated depth, providing information of how far away objects are and allowing estimates of their size and mass. The video image exhibits true colors and brightness, Sandin said.

EVL has worked before with multiple images to create a single complete 360-degree panoramic image, making it possible to explore Medinet Habu — the mortuary temple of Ramses III, located on the west bank of Luxor in Egypt — in the projected virtual reality of the CAVE2™.

To create a composite view of multiple images, “you have to stitch together pictures that overlap and are taken at different angles,” said Maxine Brown, director of EVL and principal investigator on the project.

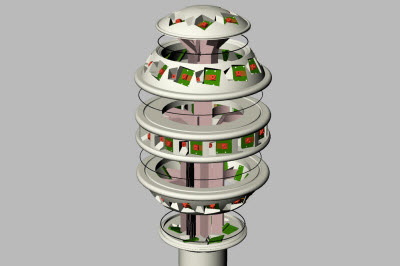

Exploded view of SENSEI with cabling shown in mauveExploded view of SENSEI with cabling shown in mauve.Illustration by Greg Dawe, UCSDBut SENSEI is video, she said, “which means not one picture, but 30 per second, in stereo and from multiple cameras, not only set at different angles but sitting at different points.”

A successful prototype will require that the developers engineer configurable, portable, sensor-based camera systems capable of handling a huge amount of data, displays for viewing the 3-D stereoscopic images, and network systems that allow collaboration.

In addition, SENSEI will need hardware scaffolding for its sensor arrays, data acquisition and computing platforms, telemetry and communications, and software.

The cellphone market has driven improvements in miniaturization and resolution in camera technology that combine with EVL’s strength in visualization of big data and computer networks to make the project doable, said Brown.

Investigators include oceanographers interested in studying coral reefs and kelp forests; computer scientists viewing social networking in animals; astronomers looking at the night sky from a high-altitude balloon and telescopes around the world; archeologists opening a window on cultural heritage; and public health experts working on emergency preparedness.

Robert V. Kenyon, Andrew E. Johnson and Tanya Berger-Wolf, all of UIC computer science, are co-principal investigators on the grant.

Researchers at four other institutions will contribute to the project and receive sub-awards from UIC: University of California, San Diego, led by Truong Nguyen; University of Hawai'i at Manoa, led by Jason Leigh; Scripps Institution of Oceanography, led by Jules Jaffe; and Jackson State University, led by François Modave.
