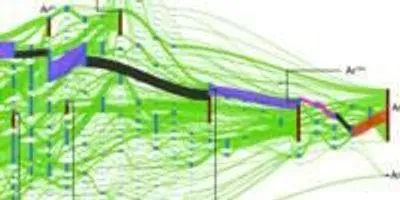

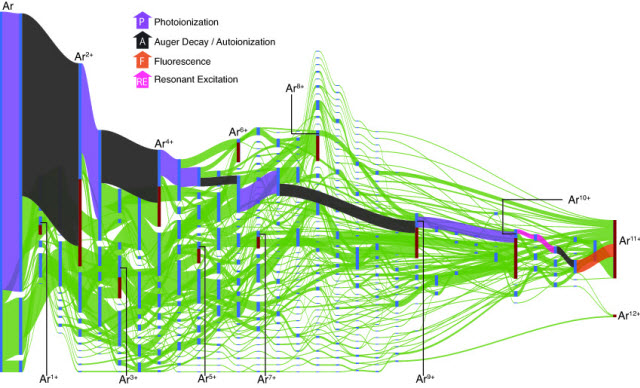

A Sankey diagram illustrating transition probabilities between the accessible electronic configurations (EC) of an argon atom exposed to an intense XFEL pluse at 480-electronvolts. The vertical bars represent ECs, and the width of each green branch, going from left to right, indicate the transition probability.Argonne National LaboratoryOne important step toward ultrafast imaging of samples with a single X-ray shot is understanding the interaction of extremely brilliant and intense X-ray pulses with the sample, including ionization rates.

Scientists from the U.S. Department of Energy's Argonne National Laboratory and SLAC National Accelerator Laboratory developed an extended Monte Carlo computational scheme that for the first time includes bound-bound resonant excitations that dramatically enhance ionization rates and can lead to an unexpectedly high degree of electron stripping.

The extended computation scheme addresses a daunting challenge for the standard rate equation approach – managing the exponentially large number of electron configurations that can occur when one or more excitations occur. The scheme computes atomic data only on demand, that is, when a specific electronic configuration is accessed.

"This strategy allows for a natural and efficient way to identify the most probable path through the quadrillions of electronic configurations to the final state," Argonne Distinguished Fellow Linda Young said.

With the extended Monte Carlo rate equation (MCRE) model, the researchers studied the ionization dynamics of argon atoms that received a 480-electronvolt XFEL pulse, in which the resonance-enhanced X-ray multiple ionization mechanism was critical to generating otherwise inaccessible charge states.

“Based on the computer simulations, we can now understand the very efficient ionization of our samples beyond what was previously believed to be the physical limit,” said Christoph Bostedt, a senior staff scientist at SLAC. “Understanding the process gives you the means to control it.”

XFEL imaging capability relies on the diffract-before-destroy concept, in which a high-fluence, ultrashort X-ray pulse generates a diffraction pattern prior to Coulomb explosion; reconstruction of many such patterns will render a 3-D model.

Due to the massive number of electronic rearrangements – ranging into the billions and beyond – during the femtosecond X-ray pulse, it is important to gain a deep understanding of the dynamic response individual atoms have to intense X-ray pulses.

With the extended MCRE approach scientists not only gained the first theoretical verification of resonance-enhanced multiple ionization (REXMI) pathways for inner-shell ionization dynamics of argon atoms, but also verified the REXMI mechanism for previously observed ultra-efficient ionization in krypton and xenon.  The extended MCRE scheme makes possible the theoretical exploration of resonant high-intensity X-ray physics.

Hard XFEL pluses, such as those available at SLAC’s Linac Coherent Light Source (LCLS) where this experiment was conducted, provide unparalleled opportunities to characterize, down to the atomic level, complex systems on ultrafast time scales.

This research was funded by the U.S Department of Energy's Office of Science, Office of Basic Energy Sciences. The LCLS is a DOE Office of Science User Facility.

Phay Ho and Linda Young of Argonne and Christoph Bostedt and Sebastian Schorb of SLAC developed the extended Monte Carlo rate equation approach.

Also see "Theoretical Tracking of Resonance-Enhanced Multiple Ionization Pathways in X-Ray Free-Electron Laser Pulses" at the Physical Review Letters website.
