Brookhaven Lab physicist Huolin Xin in front of an aberration-corrected scanning transmission electron microscope at the Center for Functional Nanomaterials.Photo courtesy of Brookhaven National LaboratoryUPTON, NY — Building a better battery is a delicate balancing act. Increasing the amounts of chemicals whose reactions power the battery can lead to instability. Similarly, smaller particles can improve reactivity but expose more material to degradation. Now a team of scientists from the U.S. Department of Energy's (DOE) Brookhaven National Laboratory, Lawrence Berkeley National Laboratory, and SLAC National Accelerator Laboratory say they've found a way to strike a balance—by making a battery cathode with a hierarchical structure where the reactive material is abundant yet protected.

Test batteries incorporating this cathode material exhibited improved high-voltage cycling behavior—the kind you'd want for fast-charging electric vehicles and other applications that require high-capacity storage. The scientists describe the micro-to-nanoscale details of the cathode material in a paper published in the journal Nature Energy January 11, 2016.

"Our colleagues at Berkeley Lab were able to make a particle structure that has two levels of complexity where the material is assembled in a way that it protects itself from degradation," explained Brookhaven Lab physicist and Stony Brook University adjunct assistant professor Huolin Xin, who helped characterize the nanoscale details of the cathode material at Brookhaven Lab's Center for Functional Nanomaterials (CFN).

X-ray imaging performed by scientists at the Stanford Synchrotron Radiation Lightsource (SSRL) at SLAC along with Xin's electron microscopy at CFN revealed spherical particles of the cathode material measuring millionths of meter, or microns, in diameter made up of lots of smaller, faceted nanoscale particles stacked together like bricks in a wall. The characterization techniques revealed important structural and chemical details that explain why these particles perform so well.

The lithium ion shuttle

Chemistry is at the heart of all lithium-ion rechargeable batteries, which power portable electronics and electric cars by shuttling lithium ions between positive and negative electrodes bathed in an electrolyte solution. As lithium moves into the cathode, chemical reactions generate electrons that can be routed to an external circuit for use. Recharging requires an external current to run the reactions in reverse, pulling the lithium ions out of the cathode and sending them to the anode.

Reactive metals like nickel have the potential to make great cathode materials—except that they are unstable and tend to undergo destructive side reactions with the electrolyte. So the Brookhaven, Berkeley, and SLAC battery team experimented with ways to incorporate nickel but protect it from these destructive side reactions.

They sprayed a solution of lithium, nickel, manganese, and cobalt mixed at a certain ratio through an atomizer nozzle to form tiny droplets, which then decomposed to form a powder. Repeatedly heating and cooling the powder triggered the formation of tiny nanosized particles and the self-assembly of these particles into the larger spherical, sometimes hollow, structures.

Using x-rays at SLAC's SSRL, the scientists made chemical "fingerprints" of the micron-scale structures. The synchrotron technique, called x-ray spectroscopy, revealed that the outer surface of the spheres was relatively low in nickel and high in unreactive manganese, while the interior was rich in nickel.

"The manganese layer forms an effective barrier, like paint on a wall, protecting the inner structure of the nickel-rich 'bricks' from the electrolyte," Xin said.

But how were the lithium ions still able to enter the material to react with the nickel? To find out, Xin's group at the CFN ground up the larger particles to form a powder composed of much smaller clumps of the nanoscale primary particles with some of the interfaces between them still intact.

"These samples show a small subset of the bricks that form the wall. We wanted to see how the bricks are put together. What kind of cement or mortar binds them? Are they layered together regularly or are they randomly oriented with spaces in between?" Xin said.

Nanoscale details explain improved performance

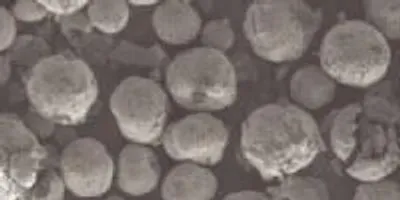

Scanning and transmission electron micrographs of the cathode material at different magnifications. These images show that the 10-micron spheres (a) can be hollow and are composed of many smaller nanoscale particles (b). Chemical "fingerprinting" studies found that reactive nickel is preferentially located within the spheres' walls, with a protective manganese-rich layer on the outside. Studying ground up samples with intact interfaces between the nanoscale particles (c) revealed a slight offset of atoms at these interfaces that effectively creates "highways" for lithium ions to move in and out to reach the reactive nickel (d).Images courtesy of Brookhaven National LaboratoryUsing an aberration-corrected scanning transmission electron microscope—a scanning transmission electron microscope outfitted with a pair of "glasses" to improve its vision—the scientists saw that the particles had facets, flat faces or sides like the cut edges of a crystal, which allowed them to pack tightly together to form coherent interfaces with no mortar or cement between the bricks. But there was a slight misfit between the two surfaces, with the atoms on one side of the interface being ever so slightly offset relative to the atoms on the adjoining particle.

"The packing of atoms at the interfaces between the tiny particles is slightly less dense than the perfect lattice within each individual particle, so these interfaces basically make a highway for lithium ions to go in and out," Xin said.

Like tiny smart cars, the lithium ions can move along these highways to reach the interior structure of the wall and react with the nickel, but much larger semi-truck-size electrolyte molecules can't get in to degrade the reactive material.

Using a spectroscopy tool within their microscope, the CFN scientists produced nanoscale chemical fingerprints that revealed there was some segregation of nickel and manganese even at the nanoscale, just as there was in the micron-scale structures.

"We don't know yet if this is functionally significant, but we think it could be beneficial and we want to study this further," Xin said. For example, he said, perhaps the material could be made at the nanoscale to have a manganese skeleton to stabilize the more reactive, less-stable nickel-rich pockets.

"That combination might give you a longer lifetime for the battery along with the higher charging capacity of the nickel," he said.

This work was supported by the Assistant Secretary for Energy Efficiency and Renewable Energy, Vehicle Technologies Office, of the U.S. Department of Energy. The Center for Functional Nanomaterials at Brookhaven Lab and the Stanford Synchrotron Radiation Lightsource at SLAC are both DOE Office of Science User Facilities supported by the DOE Office of Science (BES).
