The foundational work of modern analytical labs across pharmaceuticals, environmental testing, and quality control hinges on the reliable performance of separation science instrumentation. Efficient and accurate sample analysis demands that chromatography systems be treated not merely as instruments, but as integrated analytical platforms, representing the most essential tools for quality data generation. A strategic approach to procurement is necessary to ensure that new systems meet current throughput requirements, possess the flexibility for future methodological advances, and integrate seamlessly into existing digital infrastructures. This guide provides a detailed framework for evaluating both the hardware—the physical instrumentation—and the indispensable Chromatography Data System (CDS) software, detailing critical factors for comprehensive selection.

Optimizing Chromatography Techniques: A Focus on System Specifications

The selection of chromatographic hardware must align directly with the primary analytical objectives of the laboratory. Whether the application requires high-performance liquid chromatography (HPLC), ultra-high-performance liquid chromatography (UHPLC), gas chromatography (GC), or ion chromatography (IC), the fundamental metrics of instrument performance—precision, sensitivity, and robustness—remain paramount.

Webinar

Accurate and Reliable Elemental Speciation with PerkinElmer

Join Lab Manager and our experts as we discuss how PerkinElmer’s technology delivers reliability, sensitivity, and accurate results

Watch Webinar

Liquid Chromatography (LC) Considerations

For LC-based techniques, the pump mechanism is critical to retention time reproducibility and system reliability. Modern analytical labs frequently favor UHPLC for increased speed and resolution in complex separations. Key specifications for pump evaluation include:

• Pressure Limit and Flow Rate Range: UHPLC systems should offer pressure limits exceeding 18,000 psi (1250 bar) to support high-efficiency, sub-2 µm particle columns. The flow rate precision and pulsation must be minimal across the entire operational range to maintain optimal separation efficiency in chromatography.
• Detector Sensitivity and Selectivity: The choice of detector significantly impacts the limit of detection (LOD) and limit of quantification (LOQ). Diode array detectors (DAD) offer spectral data for peak purity checks, while mass spectrometry (MS) detectors provide unparalleled sensitivity and selectivity. Low noise and drift specifications of the detector are primary determinants of overall system sensitivity in liquid chromatography.
• Gradient Mixing Technology and Dwell Volume: Evaluate the gradient formation mechanism (e.g., high-pressure vs. low-pressure mixing). Low-pressure systems offer solvent flexibility but typically have larger dwell volumes, affecting method transfer. High-pressure systems provide precise and fast mixing but may limit solvent channel capacity.
• Autosampler Precision: Low carryover and high injection volume precision are essential for reliable quantitative chromatography. A fast injection cycle time is also vital for high-throughput analytical labs to maximize instrument utilization.
• Solvent Management and Degassing: Systems must include an efficient, active vacuum degasser to prevent gas bubbles in the mobile phase, which can cause pump instability and detector noise, directly impacting the quality of the chromatography baseline.
• Flow Path Inertness and Materials: The composition of the wetted surfaces (e.g., tubing, needle, seal, and heat exchanger) is critical. For sensitive samples (such as metal-coordinating analytes or biologics), a bio-inert flow path (PEEK or specialized coatings) should be prioritized over standard stainless steel to prevent unintended adsorption or corrosion within the chromatography unit.
• Thermostating: Precise temperature control of the column compartment and autosampler is a prerequisite for robust method transfer and minimizing method variability, which is especially important in high-resolution chromatography.

Gas Chromatography (GC) Considerations

For volatile compound analysis, GC systems require careful assessment of the inlet, column oven, and detector technology. The GC platform is an essential tool for quality control in many industries.

• Inlet Type: Split/splitless inlets are common, but programmable temperature vaporization (PTV) inlets offer enhanced flexibility for large-volume injections and the analysis of samples in dirty matrices.
• Oven Performance: Fast temperature ramp rates and precise temperature control ensure rapid analysis times and repeatable separations.
• Detector Selection and Mass Spectrometry Coupling: The appropriate detector (e.g., FID, TCD, ECD) must be selected based on the analyte properties and required sensitivity. A key procurement question is whether the application requires the definitive structural confirmation provided by pairing gas chromatography with mass spectrometry (GC-MS).
• Column Selection and Chemistry: The appropriate GC column—defined by its stationary phase chemistry, length, internal diameter, and film thickness—must be determined by the sample type and separation complexity to achieve optimal results. Analytical labs must carefully match the column to the specific analysis.
• Throughput and Automation: Throughput requirements necessitate evaluating the inclusion of an autosampler and its injection cycle speed, which can drastically improve the efficiency of high-volume analytical labs.
• Carrier Gas Options and Safety: The choice of carrier gas (eluent gas), typically helium, nitrogen, or hydrogen, impacts separation speed and cost. Given increasing helium prices, evaluating the viability and safety implications of using hydrogen as an alternative carrier is a critical operational consideration for modern chromatography systems.

The reliability of the oven and detector contributes to the overall stability of the chromatography technique. Ultimately, the instrument architecture—whether the system is modular or integrated—affects maintenance and upgrading. Modular systems allow for the independent replacement or upgrading of components (e.g., swapping a detector for an MS detector), offering greater long-term flexibility and control over the chromatography platform. Furthermore, the ease of system use and the robustness of the accompanying analytical software are key factors in minimizing operator training and maximizing data quality.

Chromatography Data Systems (CDS) Software: Ensuring Data Integrity and Compliance

A chromatography instrument is only as powerful as the software used to control it, acquire data, and manage results. The CDS is an essential tool that dictates workflow, data integrity, and regulatory compliance. Procurement must prioritize a robust, scalable, and compliant CDS platform that supports modern analytical labs.

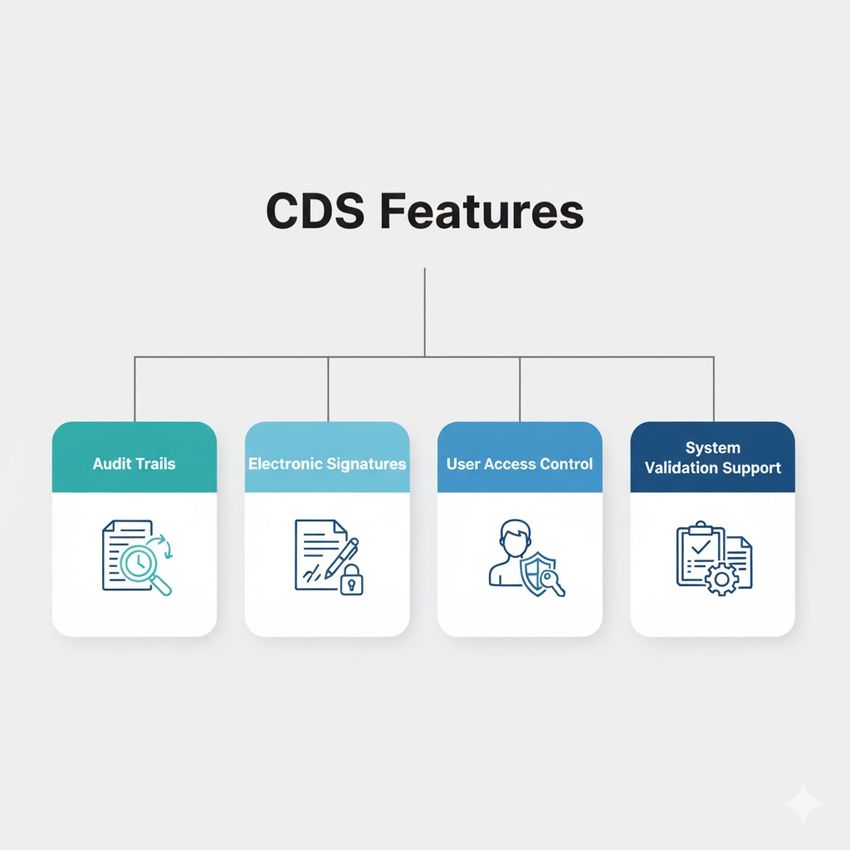

Data Integrity and Regulatory Compliance Features

In regulated analytical labs (e.g., environments governed by GLP/GMP), compliance with regulations such as the FDA’s 21 CFR Part 11 and EU GMP Annex 11 is non-negotiable. The CDS must provide comprehensive features to ensure data integrity, aligning with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, and Enduring/Available).

• Audit Trails:



  The system must automatically record every action, modification, and deletion applied to data files, methods, or user accounts, detailing who performed the action, the date/time, and the rationale. This is critical for all validation activities in chromatography.
• Electronic Signatures: The system must have the ability to enforce electronic approvals and reviews of methods, samples, and results, linking the unique signature to the data it confirms.
• User Access Control: Granular security settings that assign specific permissions (e.g., data acquisition only, processing and reporting, system administration) to different user roles, preventing unauthorized changes to chromatography methods or data.
• System Validation Support: The CDS should include tools and comprehensive documentation to facilitate the required installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) processes, minimizing the validation burden on analytical labs.

Scalability, Integration, and Data Processing

A modern laboratory requires software that can grow with the operation. Scalability means the CDS can handle a growing number of instruments and data files across multiple chromatography techniques without performance degradation.

The move towards enterprise-level CDS solutions ensures that the core chromatography data is centrally managed, facilitating global data access and review while significantly simplifying IT maintenance and system validation efforts across the analytical labs.

Consumables and Method Development: The Column as an Essential Tool

While often categorized as operational expenditure, the selection of chromatography columns and consumables is a critical factor influencing both system performance and cost-effectiveness. The best hardware configuration will fail to deliver results if the incorrect stationary phase or substandard consumables are utilized. Proper management of these essential tools is key to success in chromatography.

Lab Management Certificate

The Lab Management certificate is more than training—it’s a professional advantage.

Gain critical skills and IACET-approved CEUs that make a measurable difference.

Column Technology and Selection

The column is the heart of the chromatography separation. The choice of stationary phase chemistry (e.g., C18, C8, Phenyl-Hexyl, HILIC) and particle technology (fully porous, superficially porous, monolithic) must be optimized for the specific analyte and matrix.

• Particle Size and Backpressure: Smaller particles (e.g., sub-2 µm for UHPLC) increase efficiency and resolution but also require higher operating pressure. Standard HPLC typically uses 3 µm or 5 µm particles. This relationship dictates the necessary hardware specifications.
• Column Dimensions and Sensitivity: Inner diameter (ID) and length affect sensitivity and analysis time. Narrow-bore columns (e.g., 2.1 mm ID) are often preferred for mass spectrometry compatibility due to reduced solvent consumption and increased concentration sensitivity, improving the detection limits of chromatography methods.
• Reproducibility: Procurement decisions should favor column manufacturers that demonstrate high batch-to-batch reproducibility to ensure methods developed on one column can be reliably executed on another. Lack of column consistency is a major source of system failure in analytical labs.

Protecting the Chromatography System

Small consumables are essential tools that impact the long-term reliability of chromatography equipment. These components are relatively inexpensive but crucial for preventive maintenance.

• In-line Filters and Frits: Necessary to protect expensive columns from particulate matter, pump seal debris, and check valve fragments. Regular replacement prevents costly repairs and premature column failure, safeguarding the integrity of the chromatography platform.
• Pump Seals and Check Valves: These parts are subject to continuous wear and tear. Having a supply of high-quality replacement parts is crucial for minimizing system downtime, especially when operating high-pressure UHPLC chromatography systems.
• Injector Seals and Needles: These must be routinely replaced to maintain injection accuracy and prevent carryover, ensuring the integrity of the quantitative data generated by the chromatography instrument.

Standardizing consumables across multiple units or analytical labs can simplify inventory management and facilitate bulk purchasing, reducing the total cost of ownership for the essential tools used in daily chromatography operations.

Managing the Financial and Regulatory Lifecycle of Chromatography Equipment

The initial purchase price of chromatography equipment is only one component of the total expenditure. A holistic Total Cost of Ownership (TCO) analysis includes operational costs, maintenance, and long-term support, which can often exceed the capital investment over the system's operational lifespan. Analytical labs must account for these factors when evaluating instruments, utilizing a rigorous approach to chromatography procurement.

Analyzing Operational and Maintenance Costs

Operational costs are driven primarily by solvent consumption, energy usage, and consumables (columns, lamps, pump seals). UHPLC, for example, often reduces solvent costs due to faster analysis times and lower flow rates compared to traditional HPLC. Maintenance is best managed through detailed service agreements.

• Service Contracts: Evaluate contracts based on guaranteed response time, parts inclusion, and preventative maintenance (PM) frequency. A comprehensive PM schedule is key to minimizing unscheduled downtime, especially for high-throughput chromatography systems.
• Spare Parts Inventory: For analytical labs with high usage or those located remotely, maintaining a small inventory of common failure parts (e.g., pump seals, fuses, detector lamps) can significantly reduce the time a chromatography system is out of service.
• Warranty and Support: Assess the manufacturer’s commitment to remote diagnostics and technical support. Quick access to expert troubleshooting for both the hardware and the CDS software is a major determinant of laboratory efficiency.
• Capital Expenditure Strategy: When assessing the initial purchase price, analytical labs must consider procurement options, including new, refurbished, or used gas chromatography systems, to best fit budget constraints while meeting performance and warranty requirements.

Obsolescence and Validation Planning

The long-term value of a chromatography system is tied to its supportable lifespan and the ease of method transfer.

• Obsolescence Planning: Consider the expected lifespan of the CDS software and hardware. Systems approaching five to seven years of age may face difficulty obtaining vendor support or compatible parts. A procurement plan should include a proactive strategy for instrument replacement or upgrading to maintain current chromatography technology.
• Method Transfer Support: If methods need to be transferred from older to newer chromatography platforms, the manufacturer should provide tools, documentation, and technical expertise to manage column scaling, gradient adjustments, and instrument bandspreading differences. This is particularly relevant when moving from traditional HPLC to modern UHPLC essential tools.
• Validation Costs: Factor in the cost of re-validating analytical methods and performing system suitability testing and qualification upon installation or major software upgrades. This is a recurring, yet essential tool for compliance in all regulated analytical labs utilizing chromatography.

Strategic Investment in Future-Proof Chromatography

A successful procurement strategy for chromatography systems moves beyond a simple feature-by-feature comparison. It requires a comprehensive assessment of how the hardware and the CDS software integrate to serve the laboratory's long-term operational and regulatory needs. By focusing on hardware performance metrics, data integrity features, total cost of ownership, and the selection of appropriate consumables, analytical labs can ensure their investment in these essential tools yields maximum productivity and defensible data for the duration of the instrument’s lifecycle. Making a rigorous, data-driven procurement choice today secures the analytical capabilities of the laboratory for tomorrow.

Frequently Asked Questions (FAQ) on Chromatography Procurement

What is the primary difference between HPLC and UHPLC chromatography systems for a procurement decision?

UHPLC (Ultra-High-Performance Liquid Chromatography) systems operate at significantly higher pressures (typically >1,000 bar) than conventional HPLC. This high pressure allows the use of smaller particle size columns, leading to faster analysis times, higher peak resolution, and improved sensitivity, but requires a higher initial capital investment and specific hardware, making it a key consideration for chromatography labs focused on high throughput.

How does the Chromatography Data System (CDS) software impact regulatory compliance in analytical labs?

The CDS software is the most essential tool for regulatory compliance (e.g., 21 CFR Part 11). A compliant CDS enforces data integrity by providing secure, configurable user access controls, comprehensive, non-editable audit trails detailing every action, and robust electronic signature functionality to verify analytical results and methods, ensuring data is Attributable, Legible, Contemporaneous, Original, and Accurate in all chromatography work.

When calculating the total cost of ownership for chromatography, what are the hidden essential tools and costs to factor in?

Beyond the instrument's capital cost, hidden TCO elements include routine consumables (columns, detector lamps, seals), solvent disposal costs, annual service contracts (which can be 8-15% of the instrument's price annually), and the labor cost associated with system re-qualification (IQ/OQ/PQ) and software validation after upgrades. These lifecycle factors are crucial for managing the budget of analytical labs.

What hardware feature is most critical for achieving high-resolution chromatography?

In liquid chromatography, the most critical hardware feature for high resolution is the pump's ability to maintain high pressure stability (low pulsation) and precise solvent composition (accurate mixing) when using sub-2 µm columns, which are essential tools for high-resolution separations.
