Trace evidence analysis requires forensic laboratories to extract maximum information from microscopic, often degraded samples. Inductively coupled plasma mass spectrometry (ICP-MS) provides an essential capability for these environments, offering simultaneous, multi-element quantification at part-per-billion (ppb) or part-per-trillion (ppt) detection limits.
Because forensic casework routinely involves materials that are too small or complex for traditional bulk analysis, ICP-MS allows examiners to characterize the precise elemental fingerprint of items like glass shards, paint chips, and ballistic fragments. This highly sensitive elemental profiling goes beyond basic physical matching, enabling labs to generate objective, statistical probabilities that link a questioned sample to a known source.
Why is ICP-MS used for forensic trace analysis?
ICP-MS provides forensic laboratories with the sensitivity and dynamic range necessary to detect trace elemental impurities that serve as unique identifiers in manufactured materials.
Trace evidence, such as soda-lime glass or automotive paint, often shares identical major chemical components. Traditional techniques like refractive index (RI) measurements or energy dispersive X-ray spectrometry (SEM/EDX) can group these materials by class, but they frequently lack the sensitivity to distinguish between items originating from the same manufacturing plant but different production batches.
ICP-MS bridges this gap. By ionizing a sample in a high-temperature argon plasma and separating the resulting ions by their mass-to-charge ratios, the instrument measures minor and trace elements—such as strontium, zirconium, barium, and neodymium—that are present at ultratrace levels. The unique ratios of these unregulated impurities act as an elemental profile. When compared against baseline databases, these profiles provide strong associative evidence to either include or exclude a suspect’s connection to a crime scene.
How do solid and liquid sample introduction methods compare in ICP-MS?
Forensic ICP-MS workflows primarily utilize either solution nebulization for dissolved samples or laser ablation for the direct, nearly non-destructive analysis of solid fragments.
The sample introduction method dictates the sample preparation workflow, throughput, and destructive nature of the test.

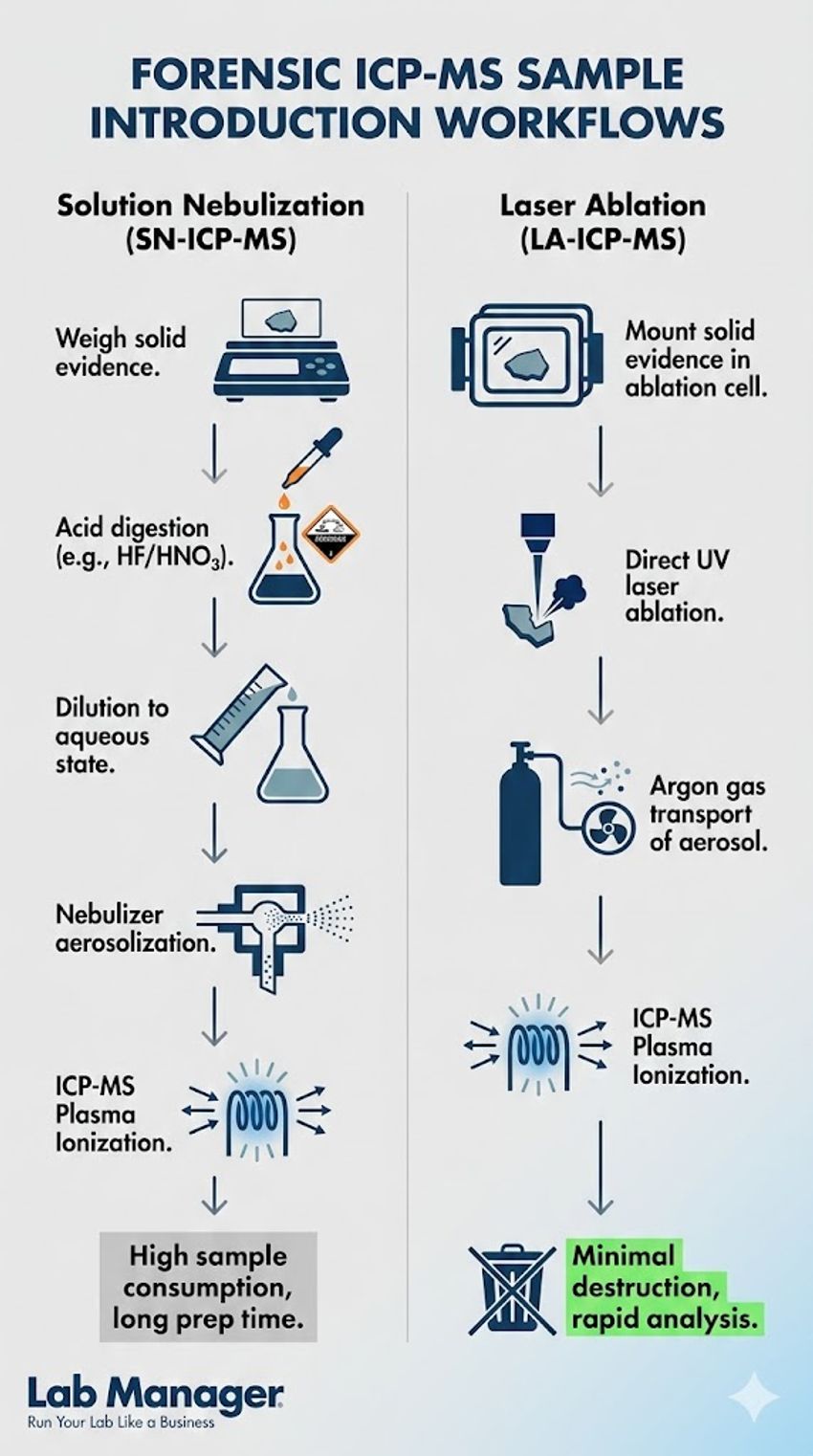

This workflow comparison highlights the streamlined nature of Laser Ablation (LA-ICP-MS) against traditional Solution Nebulization.
GEMINI (2026)
- Solution nebulization (SN-ICP-MS): This is the traditional approach, requiring the solid sample to be digested in strong acids (often utilizing hydrofluoric acid for glass). While SN-ICP-MS is highly accurate and easily calibrated with liquid standards, it consumes the entire sample and requires extensive, hazardous preparation time.
- Laser ablation (LA-ICP-MS): This technique uses a high-energy ultraviolet laser (typically 213 nm) to vaporize microscopic craters into the surface of a solid sample. The resulting aerosol is swept directly into the ICP-MS argon plasma. LA-ICP-MS is the preferred technique for forensic trace evidence because it requires virtually no sample preparation, mitigates contamination risks, and consumes only nanograms of material, preserving the bulk of the evidence for subsequent re-testing or court presentation.
How do forensic labs standardize glass evidence analysis using ICP-MS?
Standardized protocols ensure that forensic laboratories use consistent LA-ICP-MS methodologies and matrix-matched standards for interpreting glass evidence.
Glass fragments transferred during a break-in or hit-and-run are among the most common trace materials analyzed via ICP-MS. To ensure data reliability and court admissibility, the forensic community relies on strict standardized methods. ASTM E2927 is the standard test method for quantitative elemental analysis of glass samples using LA-ICP-MS, providing a consensus-based approach to sampling and interpretation.
Accurate calibration requires matrix-matched reference materials. The National Institute of Standards and Technology (NIST) and forensic working groups have developed specialized float glass standard reference materials (SRMs), which provide consensus concentration values for up to 17 trace elements.
By using these standard methods alongside comprehensive vehicle windshield databases, forensic statisticians can calculate a likelihood ratio (LR). This ratio provides a quantitative statistical weight, replacing subjective expert opinions with mathematical data regarding the probability that a questioned glass shard matches a specific broken window versus a random pane.
How does ICP-MS improve gunshot residue and ballistics analysis?
ICP-MS offers superior sensitivity over traditional colorimetric tests for detecting gunshot residue and profiling the isotopic composition of ballistic fragments.
When a firearm is discharged, it expels gunshot residue (GSR) containing distinct elemental markers—primarily lead (Pb), barium (Ba), and antimony (Sb). Traditional field tests, such as the sodium rhodizonate colorimetric test, only confirm the presence of lead and lack the sensitivity required for long-distance discharges or minute traces on clothing.
Interested in lab tools and techniques?
ICP-MS readily detects and quantifies these GSR elements at trace levels. Furthermore, the technique can analyze the lead-isotope ratios within deformed bullet fragments recovered from a scene or victim. Because lead sourced from different geographical mines exhibits unique isotopic signatures, laboratories can compare the isotopic fingerprint of an unidentifiable bullet fragment to unfired ammunition recovered from a suspect.
What are the quality control requirements for forensic ICP-MS?
Maintaining the integrity of ICP-MS data requires rigorous quality control protocols to mitigate background contamination and isobaric interferences.
Because ICP-MS can detect elements at the parts-per-trillion level, the risk of environmental contamination in the laboratory is exceptionally high. Forensic facilities must implement strict controls, which typically include:
- Cleanroom environments: Sample preparation areas for solution nebulization must utilize Class 100 (ISO 5) clean hoods and ultra-pure, trace-metal-grade reagents.
- Interference management: Polyatomic and isobaric interferences (where different ions share the same mass-to-charge ratio) can skew results. Modern instruments mitigate this using collision/reaction cell technology (CCT/CRC) or tandem mass spectrometry (ICP-MS/MS) to isolate the target analyte.
- Routine tuning: Instruments require daily tuning utilizing certified reference materials to ensure optimal detector sensitivity, mass calibration, and low oxide formation rates prior to running case samples.
Conclusion: Maximizing trace evidence capabilities
ICP-MS has fundamentally advanced the capabilities of the forensic trace evidence laboratory. By transitioning from bulk physical comparisons to highly precise, multi-elemental profiling, lab managers can provide investigators with definitive, statistically backed associations. Whether comparing the trace impurities in soda-lime glass or the isotopic ratios of a deformed bullet, investing in LA-ICP-MS methodologies allows forensic facilities to deliver rapid, non-destructive, and highly defensible analytical results.
