Improved Polymer and New Assembly Method for Ultra-Conformable 'Electronic Tattoo' Devices

Process uses household inkjet printer without soldering to create 750 nm-thin elastomeric sheet

Written byWaseda University
| 2 min read
Register for free to listen to this article
Listen with Speechify
0:00
2:00

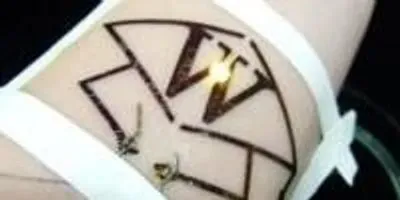

sandwich of printed circuits and SBS elastomer This sandwich of printed circuits and SBS elastomer is just 750 nm thick, for extremely high flexibility and comfort.Photo credit: Waseda UniversityTokyo — A group of researchers at Waseda University has developed processes and materials for ultrathin stick-on electronic devices using elastomeric "nanosheet" film, achieving ease of production while also preserving high elasticity and flexibility fifty times better than previously reported polymer nanosheets.

This research was published in the Journal of Materials Chemistry C online edition on Feb. 1.

Smart electronics and wearable devices have several requirements for widespread adoption, especially ease of fabrication and wearing comfort. The materials and processes developed by the Waseda University team represent huge strides forward in both criteria.

Lab manager academy logo

Advanced Lab Management Certificate

The Advanced Lab Management certificate is more than training—it’s a professional advantage.

Gain critical skills and IACET-approved CEUs that make a measurable difference.

Inkjet printing of circuitry and low-temperature fixing allow production of electronic devices which are durable and functional but also extremely thin and flexible enough for use as a comfortable, skin-fitting appliance, while also maintaining the easy handling properties and protection of elastomeric films. At only 750 nm, the new film is ultra-thin and flexible. These advances could help change the nature of wearable electronics from objects like wristwatches to items less noticeable than a band-aid.

The Waseda team also established a method of joining electronic components without soldering, allowing thinner and more flexible elastomer films (SBS: polystyrene-polybutadiene-polystyrene). Conductive "wiring" is created by inkjet printing, which can be done with a household type printer without the need for clean room conditions. Further, conductive lines and elements such as chips and LEDs are connected by adhesive sandwiching between two elastomeric nanosheets, without using chemical bonding by soldering or special conductive adhesives.

Thanks to the simple, low-temperature processes, the resulting ultrathin structures achieve better adhesion, without using adhesive matter such as tape or glue, better elasticity and comfort for skin-contact applications. The new system was proven functional for several days on an artificial skin model.

These results were achieved through collaboration among three specialties: Molecular assembly and biomaterials science; medical robotics and rehabilitation engineering; and micro-electromechanical systems, thanks to collaborative structures at Waseda University.

Interested in chemistry and materials science?

Subscribe to our free Chemistry & Materials Science Newsletter.

Is the form not loading? If you use an ad blocker or browser privacy features, try turning them off and refresh the page.

By subscribing, you agree to receive email related to Lab Manager content and products. You may unsubscribe at any time.

Uses for these products are expected to include human-machine interfaces and sensors in the form of electronic tattoos, as radically improved tools for the fields of medicine, healthcare, and sports training.

These applications are the subject of further investigation by the Waseda University Institute of Advanced Active Aging Research.
