The convergence of multiple detection techniques into unified workflows is fundamentally changing modern research. Multimodal analysis is essential across biological sciences, materials research, and pharmaceutical development. These integrated approaches demand a highly specialized lab design to support complex instrumentation. Effective planning for multimodal analysis facilities directly impacts data integrity, researcher efficiency, and overall operational throughput in analytical labs. This comprehensive review explores the critical considerations and design principles for creating next-generation spaces that enable the efficient and reliable execution of multimodal analysis protocols.
Strategic Co-Location for Multimodal Analysis Workflows
Designing an analytical lab for multimodal analysis begins with understanding the sequential nature of the experiments. Instruments are often linked. They may be connected physically through automation or virtually through data processing. This linking is crucial to generate a complete picture of the sample.
Strategic co-location means placing interconnected instruments close together. This placement minimizes sample transit time and reduces the risk of sample degradation or contamination. It also maximizes operator oversight of the entire multimodal analysis chain.

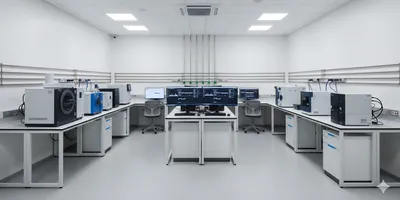

In a typical setup, a sample often moves sequentially: from preparation to spectroscopy, then chromatography, and finally to mass spectrometry or imaging. Ineffective lab design forces long, manual transfers. This creates bottlenecks and significant quality control challenges. Optimized layouts favor linear or U-shaped workflows where adjacent benches and dedicated transfer windows facilitate quick movement between instruments.
The key considerations for co-location include:
- Throughput Matching: Instruments with similar throughput (e.g., a high-volume liquid chromatography system feeding an equally high-volume mass spectrometer) must be positioned together. Mismatched throughput requires staging areas that consume valuable space.
- Vibration and Magnetic Field Isolation: Highly sensitive techniques require strict isolation. This includes high-resolution electron microscopy or certain forms of spectroscopy (critical components in multimodal analysis). These must be segregated from high-vibration sources like centrifuges, HVAC equipment, and even pedestrian traffic. Dedicated vibration-damped concrete pads or isolated piers must be integrated into the lab design during construction. These are often designed to meet the strict environmental vibration criteria detailed in the industry-standard Generic Vibration Criteria (VC) Curves, which align with principles outlined in standards like ISO 2631 (related to building vibration and human exposure) and specific manufacturer guidelines for high-resolution imaging.
- Data Acquisition Hubs: A central data station must be positioned to monitor and control the adjacent instruments used for the multimodal analysis workflow. This minimizes the need for personnel to constantly move between instrument interfaces, promoting real-time data integration and oversight.
Optimizing Sample Preparation and Staging for Multimodal Analysis
Sample preparation is often the most time-consuming and contamination-sensitive step in any analytical lab. This is particularly true for multimodal analysis, which may require multiple distinct preparation protocols for a single specimen. The lab design must create a clear separation between preparatory areas and the primary analysis zone. Preparatory areas are where samples are often exposed to reagents, grinding, or extraction; the primary analysis zone houses highly sensitive instruments.
An effective strategy involves implementing a tiered zoning system:
- Dirty/Wet Prep Zone: Dedicated areas for initial sample handling, homogenization, chemical extraction, and gross manipulation. This zone requires durable, chemically resistant surfaces, robust ventilation (fume hoods), and proximity to sinks and disposal units.
- Clean/Dry Prep Zone (Staging): Areas for final sample processing, such as filtration, dilution, and aliquoting. This zone acts as the transition point before samples enter the instrumentation area. It should feature smooth, easy-to-clean bench tops, dedicated micro-balances, and laminar flow hoods. Cleanliness is sometimes governed by the particulate control requirements defined in ISO 14644 for cleanroom environments. This is essential to minimize airborne particulate contamination that could compromise subsequent multimodal analysis.
- Instrumentation Zone: Housing the primary analytical equipment, designed with minimal movement and strict environmental controls.
Preparation Type | Design Requirement | Location Consideration |
|---|---|---|
Microscopy/Imaging | Dedicated light-tight areas, low vibration floors, specialized anti-static surfaces. | Away from high-traffic corridors and major building infrastructure. |
Separation Science | Space for solvent and waste storage, robust chemical ventilation, and access to specialty gases (e.g., nitrogen, helium). | Proximity to exterior walls for easy gas line routing and solvent disposal. |
Bioreagents/Cell Work | Biosafety cabinets, controlled temperature zones, material separation protocols. | Near cold storage and away from heat-generating analytical equipment. |
This clear separation protects the capital equipment investment and ensures the integrity of the results generated during multimodal analysis.
Critical Infrastructure and Utility Planning for Multimodal Setups
Modern multimodal analysis equipment places high infrastructural demands on a facility. These often exceed the capabilities of standard laboratory fit-outs. Failure to plan for specialized utilities and environmental controls has consequences. It can severely limit the functionality and reliability of the analytical labs. The entire analytical lab must operate under quality management systems, often structured around ISO 9001 principles, to ensure that environmental and utility controls are consistently maintained and documented.
Power and Connectivity
Multimodal analysis instrumentation often requires high-amperage, dedicated electrical circuits. Sometimes, three-phase power is necessary. The lab design must account for:
- Dedicated Circuits: Each major instrument must have its own, clean electrical circuit. This is especially true for equipment involving lasers or high vacuum pumps. Dedicated circuits prevent electrical interference and voltage fluctuations that could corrupt data acquisition.
- UPS Integration: Uninterruptible Power Supplies (UPS) must be sized appropriately for critical instruments. They provide temporary clean power during minor utility fluctuations, allowing for safe equipment shutdown.
- Data Cabling and Networks: High-speed network connections (e.g., fiber optic) are mandatory for transferring the massive data volumes generated by integrated multimodal analysis systems. Data ports must be strategically located adjacent to instruments, integrated into bench architecture rather than run across floors.
Environmental Control and Ventilation
Specific instruments within a multimodal analysis suite may have conflicting environmental needs. For example, mass spectrometers require substantial heat dissipation. In contrast, high-resolution microscopes demand strict temperature and humidity stability.
- Thermal Management: Instrument-specific heat load calculations must inform the HVAC design. The goal is to maintain room temperature stability. Stable temperature is crucial for instrument calibration and reducing thermal drift during long multimodal analysis runs. The analytical lab layout must incorporate dedicated exhaust ventilation for heat-generating equipment.
- Air Quality and Pressure: Positive or negative pressure gradients may be required for certain zones. For instance, mass spectrometry chambers require clean, dry air. This necessitates dedicated air filtration (scrubbers) to remove particulates and solvent vapors that could interfere with ionization.
- Gas Management: A centralized system for specialty gases (nitrogen, argon, helium) is preferred. Gas lines must be installed via overhead or perimeter service chases. They should utilize seamless stainless-steel tubing in compliance with standards like ISO 7396-1 or equivalent industry standards for high-purity systems. This minimizes leaks and maintains the ultra-high purity required for sensitive multimodal analysis. Shutoff valves must be clearly marked and easily accessible outside the immediate instrument area.
Developing Modular and Adaptable Multimodal Analysis Facilities
The pace of technological change in analytical labs is fast. This necessitates a lab design philosophy that prioritizes modularity and flexibility. A facility built around today’s instrumentation for multimodal analysis must be adaptable. It must be capable of supporting future generations of equipment without major structural renovations.
Lab Management Certificate
The Lab Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.
This requires a move away from fixed casework toward flexible, modular furniture systems.
- Modular Casework: Utilizing movable bench units, adjustable shelving, and universal utility spine systems allows for rapid reconfiguration of the analytical lab layout. If an instrument is replaced or relocated, utility hookups (power, water, gas) can be accessed from the spine and moved with minimal disruption.
- Service Corridors: Incorporating dedicated service corridors or wall chases simplifies maintenance and upgrades. Technicians can access critical utilities, plumbing, and electrical panels from outside the primary lab space. This reduces downtime, minimizes contamination risks, and allows maintenance to occur while multimodal analysis operations continue.
- Future-Proofing Space: Every lab design for multimodal analysis should include planned "empty" spaces designated for expansion. These spaces, equipped with capped utilities and modular power drops, anticipate the installation of a future major instrument without requiring reallocation of existing operational areas. A buffer zone of at least 25% of the primary analytical floor space is a recommended industry standard for long-term scalability.
The flexibility inherent in modular lab design not only accommodates future instruments but also facilitates the rapid adoption of new multimodal analysis techniques. This proactive approach ensures the long-term viability and competitive edge of the analytical labs.
Essential Considerations for Optimized Multimodal Analysis Facility Planning
Successful lab design for multimodal analysis means the physical environment must support complex, integrated technological requirements. Meticulous initial planning—addressing infrastructure, co-location, and modularity—yields long-term dividends. These benefits include improved operational efficiency, better data quality, and compliance. By treating the physical facility as an extension of the analytical instrument itself, laboratory management can ensure the seamless execution of highly complex, high-throughput multimodal analysis projects now and in the future. The design must always focus on minimizing risks associated with sample movement, environmental variability, and utility interference to maintain the high standards required in modern analytical labs.
Frequently Asked Questions (FAQ)
What is the ideal floor plan for a dedicated multimodal analysis lab?
Interested in lab design?
Is the form not loading? If you use an ad blocker or browser privacy features, try turning them off and refresh the page.
By completing this form, you agree to receive news updates and relevant promotional content from Lab Design News. You may unsubscribe at any time. View our Privacy Policy
The ideal floor plan typically follows a U-shaped or linear flow, grouping sequential instruments for efficient sample transfer, minimizing operator movement, and separating wet chemical preparation zones from sensitive instrumentation zones.
How does lab design minimize cross-contamination in analytical labs?
Minimizing contamination requires establishing tiered zones—dirty prep, clean staging, and instrumentation—supported by specialized HVAC systems (e.g., localized laminar flow, differential room pressures) and adherence to standards like ISO 14644 for cleanliness control.
What specific utility upgrades are necessary for multimodal analysis equipment?
Specific utility upgrades often include dedicated high-amperage electrical circuits, three-phase power, high-purity gas delivery systems (ISO 7396-1 compliant or similar), dedicated instrument exhaust ventilation, and high-speed fiber optic data infrastructure to handle large multimodal analysis datasets.
Why is modularity important in modern analytical labs?
Modularity is crucial for future-proofing the facility, allowing the facility to adapt to new instrumentation or evolving multimodal analysis techniques without costly and disruptive structural renovations.
