Most Realistic View Yet of a Coronavirus Spike's Protein Structure

Study with relative of virus that causes COVID-19 paves the way for seeing more clearly how spike proteins initiate infections, to better prevent and treat them

by SLAC National Accelerator Laboratory
Register for free to listen to this article
Listen with Speechify

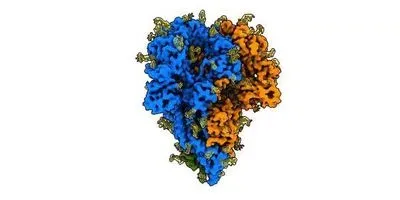

This image shows the detailed structure of a "spike" from a coronavirus that causes cold symptoms—a milder relative of the virus that causes COVID-19. Spikes bind to receptors on the cells of their victims to start infections. They consist of three protein molecules, shown in blue, green, and orange, studded with sugar molecules (yellow) that play an important role in the virus's life cycle and in its ability to evade the immune system. Scientists at SLAC National Accelerator Laboratory and Stanford University made the image with a new method that shows spikes in their natural state, yielding quicker and more realistic snapshots of the infection apparatus.
K. Zhang et al., Quarterly Reviews of Biophysics Discovery, 2020

Coronaviruses like the one that causes COVID-19 are studded with protein "spikes" that bind with receptors on the cells of their victims—the first step in infection. Now scientists have made the first detailed images of those spikes in their natural state, while still attached to the virus and without using chemical fixatives that might distort their shape.

They say their method, which combines cryogenic electron microscopy (cryo-EM) and computation, should produce quicker and more realistic snapshots of the infection apparatus in various strains of coronavirus, a critical step in designing therapeutic drugs and vaccines.

Get training in Lab Crisis Preparation and earn CEUs.One of over 25 IACET-accredited courses in the Academy.
Lab Crisis Preparation Course

"The advantage of doing it this way is that when you purify a spike protein and study it in isolation, you lose important biological context: How does it look in an intact virus particle? It could possibly have a different structure there," said Wah Chiu, a professor at DOE's SLAC National Accelerator Laboratory and Stanford University and senior author of the study. They described their results in Quarterly Reviews Biophysics Discovery.

Seven strains of coronaviruses are known to infect humans. Four cause relatively mild illnesses; the other three—including SARS-CoV-2, the virus that causes COVID-19—can be deadly, said co-author Jing Jin, an expert in the molecular biology of viruses at Vitalant Research Institute in San Francisco. Scientists at Vitalant hunt for viruses in blood and stool samples from humans and animals, screen blood samples during outbreaks like the current pandemic, and study interactions between viruses and their hosts.

The virus that causes COVID-19 is so virulent that there are only a few cryo-EM labs in the world that can study it with a high enough level of biosafety controls, Jin said. So for this study, the research team looked at a much milder coronavirus strain called NL63, which causes common cold symptoms and is responsible for about 10 percent of human respiratory disease each year. It's thought to attach to the same receptors on the surfaces of human cells as the COVID-19 virus does.

Rather than chemically removing and purifying NL63's spike proteins, the researchers flash-froze whole, intact viruses into a glassy state that preserves the natural arrangement of their components. Then they made thousands of detailed images of randomly oriented viruses using cryo-EM instruments at the Stanford-SLAC Cryo-EM Facilities, ­­­­digitally extracted the bits that contained spike proteins, and combined them to get high-resolution pictures.

"The structure we saw had exactly the same structure as it does on the virus surface, free of chemical artifacts," Jin said. "This had not been done before."

The team also identified places where sugar molecules attach to the spike protein in a process called glycosylation, which plays an important role in the virus's life cycle and in its ability to evade the immune system. Their map included three glycosylation sites that had been predicted but never directly seen before.

Although a German group has used a similar method to digitally extract images of the spike protein from SARS-CoV-2, Jin said, they had to fix the virus in formaldehyde first so there would be no danger of it infecting anyone, and this treatment may cause chemical changes that interfere with seeing the true structure.

Going forward, she said, the team would like to find out how the part of the spike that binds to receptors on human cells is activated, and also use the same technique to study spike proteins from the virus that causes COVID-19, which would require specialized biohazard containment facilities.

- This press release was originally published on the SLAC website. It has been edited for style
