Laboratory fume hoods are essential safety devices, but they carry a significant and often underappreciated operational cost. Every cubic foot of conditioned air a fume hood exhausts must be replaced by the building's HVAC system with fresh, heated or cooled air — a continuous energy cycle that runs whether the hood is in active use or sitting idle overnight. In a large research building, fume hood exhaust can account for 30–50% of total HVAC energy consumption. Addressing this cost requires a combination of equipment upgrades, system controls, and sustained behavioral change across the laboratory team.
This article focuses on the operational side of fume hood energy management — the decisions, programs, and technologies that reduce energy use while maintaining the airflow performance and containment that safe laboratory work requires. The foundation of that performance — correct face velocity, airflow design, and hood type selection — is covered in depth in the Lab Manager guide to fume hood operations and airflow management.
Understanding the energy burden of laboratory fume hoods
A single constant-air-volume (CAV) fume hood operating at full exhaust continuously draws approximately 750–1,000 cubic feet per minute of conditioned room air through its sash opening. The building's air handling unit must replace every cubic foot exhausted with an equal volume of fresh outdoor air, then heat or cool that air to maintain room temperature. In a northern climate with a long heating season, this continuous replacement load translates to $3,000–$8,000 per year per hood in HVAC energy costs, depending on local utility rates and weather.
Laboratories in research-intensive institutions often contain dozens of fume hoods, many of which operate on CAV systems and run continuously regardless of occupancy or sash position. The aggregate energy burden is substantial. Laboratory buildings are among the most energy-intensive building types in the country, consuming anywhere from four to ten times more energy per square foot than commercial office buildings, according to data from the U.S. Department of Energy's joint laboratory energy efficiency programme. Ventilation systems, dominated by fume hood exhaust, account for 40–70% of total laboratory energy use, according to research published by MIT and Lawrence Berkeley National Laboratory.
Interested in lab design?
The energy cost also has a carbon dimension that increasingly affects institutional sustainability goals and regulatory reporting. Each kilowatt-hour of electricity consumed by an exhaust fan, and each unit of gas burned to heat replacement air, has an associated emissions factor. For institutions with net-zero commitments or carbon reporting obligations, fume hood energy consumption is a visible and tractable target.
Variable air volume systems: the primary engineering intervention
Variable air volume (VAV) fume hood systems reduce energy consumption by modulating exhaust flow in direct response to sash position rather than maintaining a constant maximum exhaust volume regardless of how the sash is set. When the sash is lowered, a VAV control valve in the exhaust duct partially closes, reducing airflow while the control system simultaneously adjusts room air supply to maintain pressure balance. The face velocity at the sash opening is maintained within safe limits throughout. When the sash is raised, the valve opens and exhaust volume increases accordingly.
The table below compares the typical operating characteristics and energy profiles of the three main fume hood exhaust configurations.
| System type | How airflow is controlled | Energy consumption at minimum sash | Suitability for retrofit |
|---|---|---|---|
| Constant air volume (CAV) | Fixed exhaust volume regardless of sash position | High — same as at full sash | Not applicable |
| Variable air volume (VAV) | Exhaust modulates proportionally to sash position | Low — 60–80% reduction from maximum | Yes — retrofit kits available |
| High-performance low-flow (HPLF) | Fixed or VAV at reduced face velocity (60–80 fpm) | Lowest — less air moved at all sash positions | Yes — purpose-designed hoods |

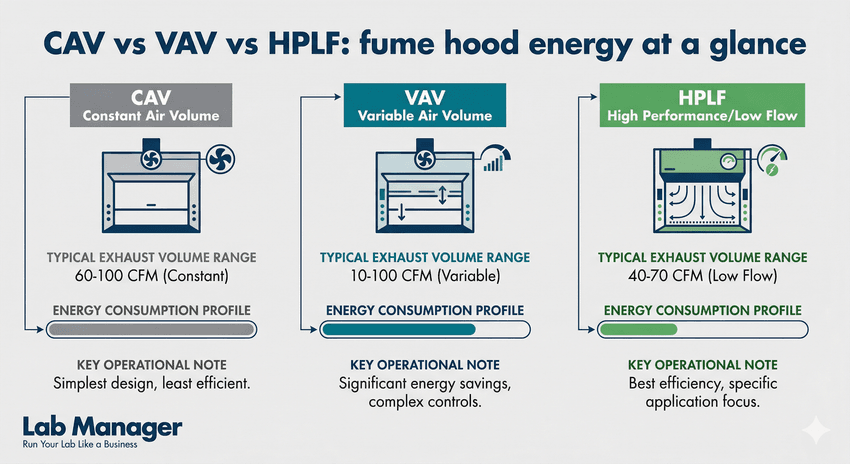

A quick comparison of Constant Air Volume (CAV), Variable Air Volume (VAV), and High Performance/Low Flow (HPLF) fume hoods, detailing their typical exhaust volumes, energy consumption profiles, and operational efficiencies.
GEMINI (2026)
The practical airflow reduction achievable with a VAV system depends on how often hood users lower the sash when not actively working inside the hood. A VAV hood with its sash perpetually open at full height delivers no energy benefit over a CAV hood. Realizing the savings potential of VAV technology therefore requires coupling the engineering intervention with a sash management program — a point that is frequently underemphasized in VAV specification discussions.
Retrofit VAV kits — which replace the fixed exhaust damper with a modulating valve and add sash position sensing — are available for most standard bench-top hoods and typically cost 10–20% of the price of a new hood. Payback periods of two to three years are commonly reported in published case studies, primarily driven by reductions in HVAC energy load.
Sash management programs: the highest-return behavioral intervention
Sash management programs are structured institutional campaigns that train hood users to lower the sash to the minimum working height whenever active manipulation is not in progress, and to close it completely when leaving the hood unattended. The term "Shut the Sash" was popularized across university research settings through campaigns at institutions including Harvard Green Labs, UC Davis, and Lawrence Berkeley National Laboratory, and has since been widely adopted across academic, government, and industrial laboratories.
The energy case is straightforward. On a CAV hood, closing the sash does not reduce energy consumption because the exhaust volume is fixed. But on a VAV system, lowering the sash from fully open to its designated minimum position can reduce exhaust volume by 60–80%, cutting the HVAC load correspondingly for the duration the sash remains at that position. If a hood operates with a closed or partially closed sash for just half of the working day, and fully closed overnight, the cumulative annual savings per hood are significant.
Effective sash management programs typically include:
- Initial training for all hood users covering the energy rationale, correct sash positions for different work types, and the safety reminder that a partially closed sash also provides better splash protection than a fully raised one
- Visible reminder materials — sash stop indicators, stickers at the working height line, or posted signage — that make the correct position obvious without requiring recall
- Regular audits in which lab managers or EHS staff walk fume hood bays and record sash positions, with results shared with the laboratory group
- Incentive structures in some institutions, where laboratories that demonstrate consistent sash compliance receive recognition or are credited with energy savings against their operating budgets
Automatic sash closers, which use presence sensors to detect when an operator has stepped away from the hood and motor the sash to the minimum position after a set delay, remove the behavioral component entirely for the unoccupied period. These systems are particularly effective in shared or multi-user hood bays where enforcement of sash discipline is difficult.
High-performance low-flow hoods and reduced face velocity design
High-performance low-flow (HPLF) fume hoods are engineered to maintain safe containment at face velocities of 60–80 fpm rather than the conventional 100 fpm baseline, using optimized internal baffling, aerodynamic airfoil sills, and precisely shaped bypass geometry to achieve stable inward airflow at lower exhaust volumes. Because the volume of air that must be exhausted is proportional to both face velocity and sash opening area, reducing the face velocity target by 20–40% produces a proportional reduction in exhaust volume and a corresponding reduction in HVAC load — before any VAV modulation is applied.
HPLF hoods perform best in well-controlled laboratory environments where room cross-draft velocities are low and consistent. They require rigorous commissioning, including tracer gas containment testing per ANSI/ASHRAE 110-2016, to verify that the reduced face velocity is achieving equivalent containment to a conventional hood at the specific installation conditions. They are not universally appropriate — in laboratories with high foot traffic, nearby HVAC supply diffusers, or frequently opened doors, the lower inflow velocity is more vulnerable to disruption by cross-drafts, and the containment benefit may be compromised.
When installed in appropriate environments and correctly commissioned, HPLF hoods in VAV configurations represent the current state of the art in fume hood energy efficiency, combining reduced per-unit exhaust volume with dynamic modulation based on sash position.
Building the operational case: monitoring, metrics, and ROI
Fume hood energy optimization programs are most sustainable when they are supported by ongoing measurement rather than treated as a one-time installation project. The metrics that matter most for operational tracking include:
- Average sash height across the hood fleet, measured by sash position sensors on VAV systems or by periodic manual audit on CAV systems. This is the primary leading indicator of program effectiveness.
- Total exhaust volume, logged by the building automation system (BAS) for VAV-equipped labs, which directly reflects realized energy savings against the baseline.
- HVAC energy consumption per square foot of laboratory space, trended over time to show the cumulative impact of both equipment upgrades and behavioral programs.
- Alarm frequency, which tracks how often face velocity alarms trigger — a high alarm rate may indicate that energy-efficiency measures have pushed exhaust volumes toward the lower limit of safe performance and that the system needs rebalancing.
Laboratory managers presenting the business case for VAV retrofits or HPLF hood replacements should frame the return on investment in terms of energy cost avoidance per year, using actual local utility rates and hood usage profiles rather than generic estimates. In most institutional settings, the combination of CAV-to-VAV retrofit cost plus associated controls work pays back within three to four years through energy cost avoidance alone, before factoring in any carbon credit or sustainability reporting value.
Conclusion: energy efficiency as a lab operations discipline
Fume hood energy optimization is not a facilities engineering concern that sits outside the laboratory manager's scope — it is a direct operational responsibility with measurable financial and environmental consequences. VAV systems provide the primary engineering lever; sash management programs activate that lever through user behavior; HPLF hoods reduce the baseline energy requirement at the equipment level; and ongoing monitoring ensures that savings are maintained as hood populations change and building HVAC conditions evolve. Together, these elements form a coherent energy management program that reduces operating costs without compromising the containment performance that the laboratory's safety obligations require.
References
- U.S. Department of Energy, Better Buildings Solution Center. Reduce Laboratory Energy Use — Fume Hood Sash Management and Ventilation Efficiency. https://betterbuildingssolutioncenter.energy.gov/toolkits/reduce-laboratory-energy-use
- American Society of Safety Professionals (ASSP). (2022). ANSI/ASSP Z9.5-2022: Laboratory Ventilation. Available from the ANSI webstore: https://webstore.ansi.org/standards/asse/ansiasspz92022
- Occupational Safety and Health Administration (OSHA). Laboratory Safety — Chemical Fume Hoods (QuickFacts). U.S. Department of Labor. https://www.osha.gov/sites/default/files/publications/OSHAquickfacts-lab-safety-chemical-fume-hoods.pdf
