Precise quantification of DNA and RNA is a critical requirement in modern drug discovery. Molecular accuracy directly impacts the efficacy of downstream genomic assays and therapeutic validation. Utilizing UV-Vis spectrophotometers allows laboratory professionals to determine concentration and purity levels efficiently. These instruments ensure that starting materials meet the rigorous standards required for high-throughput screening and lead optimization. By leveraging the strong UV absorbance due to conjugated double bonds in nucleic acid bases, these tools provide a non-destructive method to validate the integrity of genetic templates.
How do UV-Vis spectrophotometers measure nucleic acid concentration?
The Beer-Lambert Law states that absorbance is directly proportional to concentration and path length. UV-Vis spectrophotometers apply this principle by measuring the amount of light absorbed at 260 nm as it passes through a liquid sample. This specific wavelength is used because the conjugated double bonds within the purine and pyrimidine rings of nucleic acids exhibit a distinct absorbance peak in the ultraviolet spectrum.
Standard extinction coefficients are used throughout the biotechnology industry to convert these absorbance values into mass-based concentrations. For instance, an absorbance (A260) of 1.0 corresponds to 50 micrograms per milliliter (µg/mL) for double-stranded DNA (dsDNA), 40 µg/mL for RNA, and 33 µg/mL for single-stranded DNA (ssDNA). These values are widely recognized benchmarks in molecular biology protocols.
Accuracy in these measurements is vital for the reproducibility of results in drug discovery pipelines. If initial concentrations are miscalculated, subsequent steps like polymerase chain reaction (PCR) or next-generation sequencing (NGS) fail or produce biased data that misleads lead optimization. Organizations such as the National Institute of Standards and Technology (NIST) provide reference materials, specifically NIST SRM 2082, to assist laboratories in calibrating their instruments.
What are the standard methods for assessing nucleic acid purity?
The primary method for assessing nucleic acid purity involves calculating the ratio of absorbance at 260 nm to the absorbance at 280 nm, commonly known as the A260/A280 ratio. This ratio identifies the presence of protein contamination, as proteins absorb light at 280 nm due to aromatic amino acids like tryptophan and tyrosine. For pure DNA, an A260/A280 ratio of 1.8 is expected, while pure RNA yields a ratio of 2.0.
In addition to protein detection, a second ratio comparing absorbance at 260 nm to 230 nm (A260/A230) identifies organic contaminants or salts remaining from the extraction process. Phenol, EDTA, and various carbohydrates absorb strongly at 230 nm, and a low ratio in this range indicates that the sample may inhibit downstream enzymatic reactions. In drug discovery, maintaining A260/A230 values between 2.0 and 2.2 is important for the stability of sensitive chemical libraries and enzymatic screening assays.
Interested in lab tools and techniques?
Standardized protocols from the Clinical and Laboratory Standards Institute (CLSI) emphasize the role of these ratios in rigorous quality control. Using UV-Vis spectrophotometers to monitor these benchmarks allows technicians to determine whether a sample requires further purification before proceeding to expensive analyses. This screening reduces the risk of costly failures in late-stage drug discovery projects where sample availability is limited and high-value materials are at stake.
Why is micro-volume sampling critical in drug discovery?

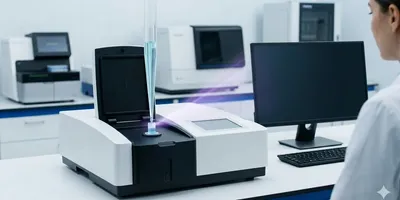

Micro-volume UV-Vis spectrophotometers enable the quantification of nucleic acids using as little as 0.5 to 2.0 microliters of sample, which preserves genetic material for downstream testing. Traditional cuvette-based systems required larger volumes, which is wasteful when working with rare clinical isolates or expensive synthetic oligonucleotides. By reducing the need for high-volume dilutions, micro-volume systems streamline the workflow and decrease the consumption of laboratory reagents and buffer solutions.
These instruments utilize surface tension to create a liquid bridge between two optical fibers, establishing a precise and variable path length that adjusts to the sample concentration. This technology allows for a wide dynamic range, meaning both highly concentrated and very dilute samples are measured on the same device without manual adjustment. In the fast-paced environment of drug discovery, the ability to process hundreds of samples per day with minimal preparation is a significant operational advantage.
Recent comparative studies have validated that micro-volume systems provide the accuracy and precision required for pharmaceutical research. Researchers integrate these spectrophotometers into high-throughput screening (HTS) protocols where speed and sample conservation are the highest priorities. This integration ensures that the initial "hit-to-lead" phase of drug discovery is supported by verified genomic data without sacrificing valuable research material.
What are the limitations and considerations for UV-Vis analysis?
UV-Vis spectrophotometers do not distinguish between intact nucleic acids and degraded fragments or free nucleotides. Because the A260 measurement relies on the absorbance of nitrogenous bases, free-floating nucleotides contribute to the total absorbance value, leading to an overestimation of functional DNA or RNA concentration. Consequently, UV-Vis data should be supplemented with electrophoresis or fluorometric assays when structural integrity is a primary concern for the specific assay.
Temperature and pH also influence the accuracy of spectrophotometric readings. Changes in the ionic strength or pH of the buffer can shift the absorbance peak or alter the extinction coefficient of the nucleic acid. Therefore, researchers use the same buffer for the "blank" measurement as was used to dissolve the sample to ensure that background interference or solvent effects are properly subtracted.
The World Health Organization (WHO), particularly in the WHO Technical Report Series No. 961, suggests that laboratories maintain regular calibration schedules for their optical equipment. Periodic verification of wavelength accuracy and photometric linearity ensures that UV-Vis spectrophotometers remain within the tolerances required for pharmaceutical research. Consistent maintenance is a hallmark of a high-functioning laboratory environment dedicated to rigorous drug discovery.
Data management and digital integration in the laboratory
Digital integration of UV-Vis spectrophotometers into Laboratory Information Management Systems (LIMS) is a requirement for maintaining data integrity and traceability in drug discovery. Modern instruments export quantification data directly into centralized databases, eliminating the potential for human error associated with manual data entry. This connectivity ensures that every DNA or RNA sample is tracked from the initial extraction through to the final assay result, creating a transparent audit trail for internal and external review.
Standardized data formats allow for easier comparison across different departments or global research sites within a pharmaceutical organization. In drug discovery, where multi-center collaborations are common, the ability to share verified nucleic acid concentrations in real-time accelerates the decision-making process for lead candidates. These digital workflows also facilitate alignment with regulatory standards such as 21 CFR Part 11, which governs electronic records and signatures in the pharmaceutical industry.
Automated reporting features within UV-Vis software flag samples that fall outside of predefined purity or concentration thresholds. This monitoring allows laboratory managers to focus their attention on problematic samples rather than reviewing every individual result manually. By leveraging these digital features, drug discovery teams maintain high velocity while ensuring that the quality of genomic inputs remains consistent across all project phases.
Conclusion: Summarizing the role of spectrophotometry in drug discovery
The use of UV-Vis spectrophotometers is a standard component of the drug discovery workflow, providing the speed and reliability needed for nucleic acid quantification. By establishing benchmarks for concentration and purity, these instruments ensure that genomic research is built upon a foundation of accurate molecular data. As the pharmaceutical industry continues to move toward personalized medicine and complex biologics, the precision offered by UV-Vis spectrophotometers will continue to be a primary contributor to laboratory efficiency and therapeutic development.
