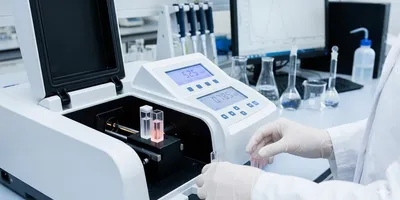

For laboratory professionals, understanding how to operate a UV-vis spectrophotometer is essential for producing accurate, reproducible results. These instruments serve as the foundation across pharmaceutical, clinical, and environmental laboratories. Understanding their mechanics impacts the reliability of your quantitative and qualitative analyses. From determining macromolecule concentrations to monitoring reaction kinetics, they provide data that inform scientific outcomes, quality control metrics, and regulatory compliance.
Maintaining industry standards means more than simply loading a sample cuvette and recording an absorbance value. It requires a solid understanding of optical physics, precise calibration protocols, and systematic error resolution. This guide explains how to operate, maintain, and troubleshoot UV-vis spectrophotometers for accurate, reproducible lab results.
How UV-Vis Spectrophotometers Work
To use UV-vis instruments effectively, laboratory personnel should first understand the physical and chemical principles governing optical spectroscopy. Ultraviolet-visible spectroscopy operates on the principle that molecules absorb specific frequencies of electromagnetic radiation. This causes electrons to transition from a resting ground state to an excited energy state.
In practice, UV-vis measurements commonly cover about 190/200 nm to 780/800 nm, depending on the instrument design and application. When a target molecule (the analyte) absorbs radiation within this range, the pattern of absorption provides information regarding its electronic structure and absolute concentration.
The mathematical cornerstone governing these devices is the Beer-Lambert law. This principle states that the quantity of light absorbed by a substance is directly proportional to both the concentration of the absorbing species and the path length of the optical sample cell. The law is mathematically expressed as A = εbc, where:
- A represents the measured absorbance.
- ε (Epsilon) denotes the molar absorptivity, a constant specific to the molecule at a given wavelength.
- b indicates the path length of the cuvette, traditionally standardized at 1 centimeter (cm).
- c signifies the concentration of the target analyte in the solution.
While this law provides a reliable framework for quantitative analysis, professionals should recognize its limitations. Many methods become less reliable above roughly 1–2 AU, depending on instrument design and method validation. At higher concentrations, solute-solute interactions, refractive-index changes, and instrumental effects can all cause departures from Beer-Lambert behavior.
Chemical deviations also frequently occur. Changes in solvent pH, the presence of molecular dimerization, or interactions with complex buffers can alter the absorption spectrum. Consequently, operating UV-visible spectroscopy equipment requires careful validation of the linear dynamic range for every unique assay. Analysts generally construct multipoint calibration curves to verify that sample concentrations fall securely within established detection limits.
Interested in lab tools and techniques?
Key Components of a UV-Vis Spectrophotometer
The analytical capabilities of a spectrophotometer rely on precise internal hardware. Understanding this optical pathway helps operators perform maintenance and isolate failures quickly.
The optical journey begins at the light source. Traditional systems utilize dual-lamp configurations to cover the broad spectral range. Deuterium arc lamps generate emission spectra across the ultraviolet region (190 nm to 400 nm). Tungsten-halogen lamps provide illumination throughout the visible and near-infrared regions (400 nm to roughly 1100 nm). Modern systems increasingly incorporate xenon flash lamps, which emit a continuous spectrum from the deep UV through the visible range. Many xenon-flash systems require little to no warm-up compared with traditional deuterium/tungsten systems.
Following the light source, the energy enters the monochromator. This component isolates specific, narrow bands of light. The monochromator typically consists of an entrance slit, a dispersive element (frequently a holographic diffraction grating), and an exit slit. The diffraction grating separates the polychromatic light into its component wavelengths. This allows the operator to select the precise wavelength required for the assay.
After passing through the sample compartment, the remaining transmitted light strikes the detector. The detector converts the incoming photons into a measurable electrical signal.
- Photomultiplier Tubes (PMTs): PMTs multiply the electron signal generated by incoming photons. They offer exceptional signal-to-noise ratios, particularly at low light levels.
- Silicon Photodiodes: Common in routine laboratory instruments, these solid-state detectors offer excellent linearity, physical durability, and a wide dynamic range.
- Photodiode Arrays (PDAs): PDA detectors utilize a linear array of discrete photodiodes. This architecture allows simultaneous measurement of wavelengths across the broad UV-vis spectrum. It accelerates data acquisition and enables kinetic monitoring of rapid chemical reactions.
The structural arrangement of these components dictates the instrument's operational category. Laboratory professionals typically encounter three primary configurations:
Instrument Architecture | Description | Primary Advantages | Common Applications |
|---|---|---|---|
Single-Beam | Light travels along a single optical path from the source, through the sample, to the detector. | Highly compact design, greater optical throughput, and lower initial acquisition costs. | Routine educational labs, basic QA/QC colorimetric testing. |
Double-Beam | A mechanical chopper or beam splitter divides the light into two distinct paths: one passing through a reference cell and the other through the sample cell. | Continuously corrects for fluctuations in lamp intensity and detector sensitivity; provides highly stable baselines. | High-precision analytical chemistry, pharmaceutical formulation, regulatory compliance assays. |
Split-Beam (Dual-Beam) | Similar to double-beam, but utilizes a beam splitter to send a portion of light directly to a dedicated reference detector before reaching the sample. | Offers excellent stability without the mechanical complexity of moving choppers. | Fast-paced clinical diagnostics and high-throughput environmental testing. |
Best Practices for UV-Vis Operation
Achieving reproducible data relies on strict adherence to standardized operational protocols. Even sophisticated equipment can produce erratic data if operators neglect foundational laboratory techniques.
Initial Preparation and Environmental Control: Analytical instruments operate best in stable environments. Laboratories should position equipment on vibration-damping benches, away from direct sunlight, heating vents, or drafty corridors. Ambient temperature fluctuations directly impact optical alignment and the refractive index of sample solutions. For instruments utilizing traditional deuterium and tungsten-halogen lamps, operators should adhere to the manufacturer-specified thermal warm-up period. This stabilization phase allows the lamps to reach physical and electrical equilibrium, mitigating baseline drift.
Cuvette Selection and Handling Protocols: The cuvette acts as the interface between the optical system and the chemical sample. Proper cuvette selection represents a key factor for accurate readings.
- Quartz (Fused Silica): Recommended for measurements in the ultraviolet range (below 340 nm). Quartz maintains optical transparency down to roughly 190 nm, making it ideal for DNA, RNA, and pure protein quantification.
- Optical Glass: Suitable for visible spectrum analyses (above 340 nm). Glass absorbs heavy amounts of UV radiation and can produce unusable or falsely elevated absorbance readings below its cutoff point.
- Plastics (Polystyrene/PMMA): Widely utilized for high-throughput visible range assays. Specialized UV-transparent plastics exist but generally lack the pristine clarity of true quartz.
Operators should generally touch only the frosted or ridged sides of the cuvette. Fingerprints on the optical faces introduce significant light scattering and absorption artifacts. Prior to insertion, operators typically wipe the optical windows gently with lint-free, non-abrasive optical tissues.
Blanking and Solvent Considerations: Establishing a clean baseline represents a critical step in generating accurate quantitative data. The "blank" solution should ideally contain the same solvent system, buffer components, and chemical reagents present in the final analytical sample. This process subtracts the inherent absorbance of the solvent matrix and the cuvette material from the final calculation.
Furthermore, analysts should remain aware of the "UV cutoff" limits of their chosen solvents. The UV cutoff defines the wavelength below which the solvent itself absorbs strongly. Acetone has a high UV cutoff (about 330 nm), so it is generally unsuitable for low-wavelength UV measurements.
Instrument Qualification and Regulatory Compliance: USP General Chapter <857> recommends verification of wavelength accuracy, absorbance accuracy, stray light, and resolution using certified materials. Establishing rigorous qualification protocols supports ongoing regulatory compliance and GMP data integrity.
UV-Vis Troubleshooting Guide
Despite meticulous maintenance, laboratory professionals may encounter operational anomalies. Mastering systematic diagnostic strategies helps minimize downtime. Effectively troubleshooting spectrophotometer operation means categorizing symptoms and isolating the root cause.
Symptom: Excessive Baseline Noise and Fluctuating Absorbance
When the digital readout fluctuates wildly or the spectral graph displays a jagged baseline, the instrument is likely struggling with signal-to-noise ratios.
Root Cause 1: Lamp Degradation. Lamp life varies by model and lamp type; many systems specify roughly 1,000 or more operating hours. As lamps age, luminous intensity drops. This prompts the detector to amplify weak signals, which inherently amplifies electrical noise.
- Corrective Action: Check the lamp usage logs within the software. Replace lamps approaching their designated hour limits and perform subsequent optical realignment.
Root Cause 2: Microbubbles in the Cuvette. Suspended air bubbles scatter the internal light beam erratically.
- Corrective Action: Carefully degas samples via sonication or gentle tapping prior to measurement. Allow refrigerated samples to acclimate to room temperature to prevent outgassing inside the sample compartment.
Root Cause 3: Inadequate Sample Volume. If the sample volume falls below the minimum fill line, the light beam may strike the liquid meniscus. This causes optical distortion.
- Corrective Action: Ensure adequate coverage of the optical beam window. Consider utilizing micro-volume cuvettes or specialized aperture masks for limited sample sizes.
Symptom: Significant Baseline Drift During Assays
Baseline drift manifests as a slow, continuous increase or decrease in absorbance readings over time. This happens independently of chemical changes in the sample.
Root Cause 1: Inadequate Thermal Stabilization. The internal lamps or the detector have not reached thermal equilibrium.
- Corrective Action: Extend the initial warm-up period. Verify that external laboratory temperatures remain stable and the instrument's cooling fans operate without obstruction.
Root Cause 2: Photodegradation of the Sample. Continuous exposure to high-intensity UV radiation can break down light-sensitive analytes during prolonged measurements.
- Corrective Action: Limit the sample's exposure time to the optical beam. Utilize closed-compartment protocols or switch to instrumentation equipped with pulsed xenon flash lamps.
Symptom: Non-Linearity at High Analyte Concentrations
When plotting a calibration curve, the data points at the highest concentrations fail to rise proportionally.
Root Cause 1: Stray Light Interference. Stray light acts as a primary mechanical cause of Beer-Lambert law deviations. Dust on the internal mirrors, degraded gratings, or physical light leaks allow unselected wavelengths to reach the detector.
- Corrective Action: Ensure the sample compartment lid securely closes during readings. Operators should periodically quantify stray light using specialized liquid cutoff filters. If stray light exceeds acceptable thresholds, professional lab instrument preventive maintenance might be required.
Root Cause 2: Exceeding Detector Dynamic Range. The solution absorbs so much light that the detector struggles to accurately differentiate transmitted photons from background electrical noise.
- Corrective Action: Dilute the highly concentrated samples mathematically. Re-measure the absorbance, and multiply by the appropriate dilution factor to calculate the original concentration.
Symptom: Wavelength Shifts and Peak Inaccuracies
Known chemical absorbance peaks appear at incorrect nanometer designations on the spectrum graph.
Root Cause: Monochromator Misalignment. Physical jarring, extreme temperature shifts, or mechanical wear can misalign the diffraction grating.
- Corrective Action: Perform a formal spectroscopy calibration routine. Operators can verify wavelength accuracy using certified reference materials such as holmium oxide standards traceable to NIST.
Conclusion: Delivering Reliable UV-Vis Results
The successful deployment of UV-vis spectrophotometers requires a synthesized approach to scientific operations. Laboratory professionals should bridge the gap between theoretical optical physics and practical daily execution. By deeply understanding the mechanics of light generation, the limitations of the Beer-Lambert law, and the requirements for environmental control, analysts can better protect their data against common errors.
Adopting proactive troubleshooting protocols transforms unexpected instrument downtime from a chaotic delay into a manageable event. With validated workflows and routine qualification, UV-vis spectrophotometers can deliver reliable results across regulated laboratory applications.
This article was created with the assistance of Generative AI and has undergone editorial review before publishing.
