Analytical measurements in the laboratory generally rely on proper temperature compensation when using pH meters. Without temperature compensation, pH meters may not adjust for the temperature-dependent changes in electrode sensitivity, which can lead to measurement errors in quality control and research applications. Understanding the thermodynamic principles governing pH electrodes allows laboratory professionals to optimize calibration routines, maintain data integrity, and follow established scientific methodologies.
Why temperature compensation is necessary for accurate pH meter readings
Temperature compensation is necessary for pH meters because the millivolt output of a pH electrode often changes in proportion to the temperature of the sample. This physical relationship suggests that a pH meter should adjust its calculation algorithm to reflect the actual temperature of the measured solution. If this adjustment does not occur, the resulting pH value can be mathematically inconsistent, potentially compromising the validity of the chemical analysis.
The basis for this requirement lies in the Nernst equation, which defines the relationship between ion activity and electrode potential. As the temperature of a solution increases, the kinetic energy of the hydrogen ions typically increases, altering the electrical potential generated at the glass membrane. Consequently, temperature compensation adjusts the electrode response for the sample’s actual temperature so the meter applies the appropriate Nernst slope during measurement.
Variations in temperature do not always affect solutions uniformly across the pH scale. The margin of error introduced by thermal fluctuations generally expands as the sample pH moves further away from the isopotential point, which is typically near pH 7 in many glass electrode systems. Therefore, samples featuring acidic or alkaline profiles often require temperature compensation to help prevent analytical discrepancies during routine laboratory testing.
Regulatory bodies and scientific standards organizations highlight the importance of this thermal adjustment process. USP <791> emphasizes the use of a suitable, properly calibrated potentiometric system for compendial pH measurements. Furthermore, EPA methods note that temperature affects pH measurement in two ways: electrode response can be compensated for, but temperature-driven changes in the sample’s actual pH are sample-dependent and are not typically corrected by the meter software alone.
Failing to account for these thermal variables can result in batch inconsistencies, research delays, or regulatory questions in industrial settings. Laboratory personnel should verify that their pH meters are executing temperature compensation protocols before recording data for official reports. Implementing standard operating procedures that detail thermal management helps mitigate these preventable measurement errors.
Interested in lab tools and techniques?
How automatic temperature compensation functions in modern pH meters
Automatic temperature compensation (ATC) functions in modern pH meters by utilizing a thermistor or resistance temperature detector (RTD) to monitor the sample temperature. This sensor feeds thermal data to the microprocessor of the pH meter, allowing the instrument to apply the temperature-dependent electrode slope. By updating this slope, the device ensures that the displayed pH value reflects the ionic activity at the time of measurement.

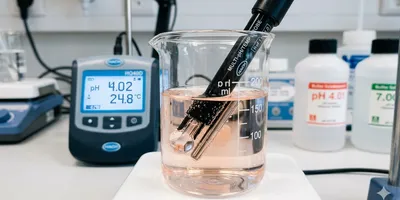

The physical integration of the temperature sensor can occur within different hardware configurations based on the manufacturer's design. Many analytical instruments feature a multi-sensor probe where the pH glass membrane, the reference junction, and the temperature thermistor reside together in a single body. Alternatively, some laboratory systems utilize a standalone temperature probe that connects to a separate input channel on the pH meter.
Regardless of the physical configuration utilized, the internal processing mechanics are similar across most modern devices. The pH meter cross-references the millivolt signal from the pH electrode with the temperature reading provided by the thermistor. It then applies a correction factor based on the expected temperature-dependent behavior of the calibrated electrode.
Core ATC component functions include:
- Thermistor/RTD: Measures the temperature of the sample fluid.
- Microprocessor: Applies the Nernst equation correction to incoming data.
- Display Interface: Presents the temperature-corrected pH reading to the user.
Laboratory professionals often benefit from ATC because it reduces the need for manual temperature data entry, minimizing the risk of human error. This automation is useful during chemical titrations or biological reaction monitoring where the temperature of the solution can fluctuate. The continuous mathematical adjustment provided by ATC helps ensure that the recorded pH profile remains accurate throughout the process.
However, analytical personnel should understand the functional boundaries of automatic temperature compensation to avoid misinterpreting experimental results. ATC algorithms are designed to correct for the temperature-dependent changes in the electrode's physical response, not for the chemical shift in the solution's actual pH. It is helpful to distinguish between correcting electrode response and observing changes in the sample’s true pH with temperature.
Automatic vs. manual temperature compensation in pH meters
A primary difference between automatic and manual temperature compensation is the method by which the temperature variable is provided to the pH meter. Automatic temperature compensation utilizes an electronic sensor to provide continuous thermal data to the instrument without operator intervention. In contrast, manual temperature compensation requires the technician to measure the sample temperature with an external thermometer and enter this numerical value into the device interface.
Manual temperature compensation is often suitable when the sample and buffers are at a stable, known temperature. For example, if both the calibration buffers and the test samples are equilibrated in a water bath at 25 degrees Celsius, manual data entry is generally sufficient. The laboratory professional inputs 25 degrees Celsius, and the pH meter applies a constant correction factor to subsequent analytical readings.
While manual compensation is effective under stable conditions, it can be challenging to manage in dynamic thermal environments. If a sample temperature changes during analysis, a manually entered temperature value may become outdated, leading to measurement errors. Automatic temperature compensation is often preferred in these scenarios by adjusting the correction factor as the fluid's thermal environment changes.
Comparison of temperature compensation methods:
- Data Input Mechanism: ATC relies on automation; Manual relies on user-dependent entry.
- Sample Environment Suitability: ATC handles fluctuating temperatures; Manual is best for thermal equilibrium.
- Hardware Dependencies: ATC requires a thermistor probe; Manual requires an external thermometer.
Many regulatory and quality control protocols suggest which compensation method should be utilized for specific analytical tasks. In regulated environments, laboratories should choose a compensation approach that supports reliable measurements, documented procedures, and complete data records. Laboratory managers should evaluate their specific workflow requirements and regulatory obligations when selecting the temperature compensation methodology for their pH meters.
How temperature variations affect the Nernstian slope during pH measurement
Temperature variations affect the Nernstian slope by altering the theoretical millivolt output generated per unit change in pH. According to established thermodynamic principles, the ideal mathematical slope of a pH electrode at 25 degrees Celsius is 59.16 millivolts per pH unit. As the actual temperature of the analytical environment deviates from this baseline, the millivolt yield per pH unit changes in a linear fashion.
When the temperature of the sample increases above the 25 degrees Celsius baseline, the slope value also increases, resulting in a higher millivolt output per pH unit. Conversely, when the sample temperature drops below the standard baseline, the theoretical slope decreases. For instance, at 0 degrees Celsius, the theoretical slope falls to 54.20 millivolts, while at 100 degrees Celsius, it rises to 74.04 millivolts.
This physical phenomenon is why temperature compensation in pH meters is important for accurate and reproducible laboratory work. If an instrument assumes a static slope of 59.16 millivolts while testing a heated sample at 50 degrees Celsius, the resulting calculation will be less accurate. The pH meter utilizes temperature compensation protocols to identify the slope value corresponding to the current temperature, supporting the mathematical conversion of voltage to pH.
The reference table below illustrates the relationship between the physical temperature and the theoretical Nernstian slope output:
Temperature (°C) | Theoretical Nernstian Slope (mV/pH) |
|---|---|
0 | 54.20 |
10 | 56.18 |
20 | 58.16 |
25 (Standard Baseline) | 59.16 |
30 | 60.15 |
40 | 62.13 |
The mathematical intersection of these temperature-dependent slope lines typically occurs at the isopotential point, which represents the zero-millivolt output level for the electrode. In a well-behaved glass electrode system, this isopotential point is often near pH 7. Because thermal measurement error tends to increase as the pH moves away from this neutral point, temperature compensation is particularly important when analyzing acidic or basic chemical solutions.
Temperature compensation corrects the millivolt output of the pH meter's electrode, but it does not alter the physical changes in a solution's pH caused by thermal fluctuations. For many commercial alkaline buffers, the true buffer value shifts with temperature; for example, a nominal pH 10.01 buffer is often around 10.06 at 20 °C, depending on the formulation. Laboratory professionals should cross-reference the manufacturer's temperature-dependence charts during calibration to ensure the pH meters are standardized to the actual buffer values.
Best practices for calibrating pH meters with temperature compensation
A recommended practice for calibrating pH meters with temperature compensation is to ensure that buffer solutions and analytical environments remain temperature-controlled. Although automatic temperature compensation algorithms adjust for thermal deviations, accurate calibrations often occur when the buffers are maintained near 25 degrees Celsius. Calibrating at a stable temperature minimizes the mathematical extrapolation the microprocessor performs, establishing a reliable baseline slope.
Laboratory professionals should utilize fresh calibration buffers featuring documented temperature profiles provided by the manufacturer. High-quality commercial buffer solutions typically include a temperature-dependence table on the bottle, detailing the pH value of the liquid at various intervals. During the calibration phase, the pH meter should be set to recognize the specific pH value corresponding to the current buffer temperature rather than the nominal value.
Many modern pH meters featuring automatic buffer recognition reference internal data tables to adjust for this chemical behavior during the calibration sequence. If a laboratory instrument lacks this automated recognition feature, the technician should manually adjust the calibration point to match the value listed on the manufacturer's thermal table. Following this step helps maintain the precision benefits associated with temperature compensation in pH meters.
Routine maintenance and verification of the temperature sensor are important components of standard operating procedures. The internal thermistor embedded within an ATC probe can drift over time, which may result in incorrect data being sent to the calculation engine. Analytical laboratories should periodically verify the ATC probe's thermal accuracy by comparing its output against an independent, traceable reference thermometer.
When transitioning a pH electrode between solutions with different temperatures, adequate equilibration time should be provided. The reference element and the exterior glass membrane generally require time to adapt to thermal changes before they generate a stable millivolt output. Taking an analytical reading before the probe has achieved thermal equilibrium can generate transient errors that affect the accuracy of the temperature compensation software.
Maximizing laboratory accuracy with temperature compensation in pH meters
Proper temperature compensation is a standard operational requirement for achieving accurate and reproducible chemical results when using pH meters in laboratory environments. By adjusting the theoretical slope of the electrode to match the physical reality of the sample, these systems help prevent mathematical errors. Laboratory professionals should prioritize the implementation of temperature compensation protocols, as understanding these thermodynamic principles supports analytical measurements that reflect the chemical composition of the tested solutions.
