Ultrasensitive Sensor Using N-Doped Graphene

This technique can detect trace amounts of molecules in a solution at very low concentrations, some 10,000 times more diluted than can be seen by the naked eye

by Penn State Materials Research Institute
Register for free to listen to this article
Listen with Speechify

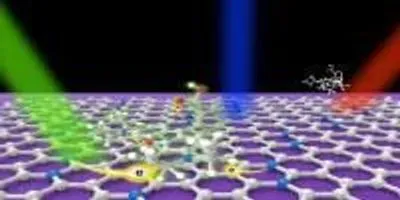

Doped GrapheneA model showing the charge transfer (e-) mechanism of Rhodamine B molecules (top) interacting with N-doped graphene (bottom sheet) when excited with different laser lines, which leads to ultrasensitive molecular sensor with N doped graphene. The white, blue and red balls represent carbon, nitrogen and oxygen atom respectively.Image Courtesy of: Terrones Lab, Penn State

(University Park, PA)—A highly sensitive chemical sensor based on Raman spectroscopy and using nitrogen-doped graphene as a substrate was developed by an international team of researchers working at Penn State. In this case, doping refers to introducing nitrogen atoms into the carbon structure of graphene. This technique can detect trace amounts of molecules in a solution at very low concentrations, some 10,000 times more diluted than can be seen by the naked eye.

Raman spectroscopy is a widely adopted identification technique used in chemistry, materials science, and the pharmaceutical industry to detect the unique internal vibrations of various molecules. When a laser light irradiates crystals or molecules, it scatters and shifts colors. That scattered light can be detected in the form of a Raman spectrum, which constitutes a fingerprint for every Raman-active irradiated system.

Related Article: Researchers at the UPV/EHU Characterize the Materials of Punta Begoña Galleries

“Basically, different colors in the visible spectrum will be associated to different energies,” says Mauricio Terrones, professor of physics, chemistry, and materials science at Penn State, who led the research. “Imagine each molecule has a particular light color emission, sometimes yellow, sometimes green. That color is associated with a discrete energy.”

The team choose three types of fluorescent dye molecules for their experiments. Fluorescent dyes, which are frequently used as markers in biological experiments, are particularly hard to detect in Raman spectroscopy because the fluorescence tends to wash out the signal. However, when the dye is added to the graphene or N-doped graphene substrate, the photoluminescence—fluorescence—is quenched.

On its own, the Raman signal is so weak that many methods have been used to enhance the signal. A recently developed enhancement technique uses pristine graphene as a substrate, which can enhance the Raman signal by several orders of magnitude. In a paper published online today, July 22, in the journal Science Advances, Terrones and colleagues reveal that adding nitrogen atoms to the pristine graphene further enhances sensitivity and, importantly, they give a theoretical explanation for how graphene and N-doped graphene cause the enhancement.

“By controlling nitrogen doping we can shift the energy gap of the graphene, and the shift creates a resonance effect that significantly enhances the molecule’s vibrational Raman modes,” says lead author Simin Feng, a graduate student in Terrones’ group.

“This is foundational research,” says Ana Laura Elias, a coauthor and research associate in Terrones’ lab. “It is hard to quantify the enhancement because it will be different for every material and color of light. But in some cases we are going from zero to something we can detect for the first time. You can see a lot of features and study a lot of physics then. To me the most important aspect of this work is our understanding of the phenomenon. That will lead to improvements in the technique. ”

Terrones adds, “We carried out extensive theoretical and experimental work. We came up with an explanation of why nitrogen-doped graphene works much better than regular graphene. I think it’s a breakthrough, because in our paper we explain the mechanism of detecting certain molecules.”

Related Article: Researchers Stack the Odds for Novel Optoelectronic 2D Materials

Because of graphene’s chemical inertness and biocompatibility, the team expects that the new technique will be effective in detecting trace amounts of organic molecules. Elias is excited about the prospect of combing the technique with available portable Raman spectrometers that can be taken to remote places to detect, for instance, dangerous viruses. The fluorescent dyes they studied will make it fast and easy to see the presence of compounds inside biological cells. Because the technique is simple—just dip the graphene substrate into a solution for a short amount of time—it should be feasible to create an entire library of the Raman spectrum of specific molecules, Terrones says.

Researchers from Brazil, China, and Japan contributed to this work while visiting the Terrones lab at Penn State. The paper is titled “Ultrasensitive Molecular Sensor Using N-doped Graphene through Enhanced Raman Scattering.”

Other coauthors include Maria Cristina dos Santos, Brazil; Bruno R. Carvalho, Brazil; Ruitao Lv, China; Qing Li, China; Kazunori Fujisawa, Penn State; Yu Lei, Penn State; Nestor Perea-López, Penn State; Morinobu Endo, Japan; Minghu Pan, China; and Marcos A. Pimenta, Brazil.

Funding was provided by MURI grants from the U.S. Army Research Office and the U.S. Air Force Office of Scientific Research. Agencies within their home countries provided support for the visiting faculty and students.

Mauricio Terrones is director of the Center for Two-Dimensional and Layered Materials (2DLM) at Penn State's Materials Research Institute. Contact him at
