The discovery of a new high-performance material rarely happens in a single experiment. It emerges from systematically exploring thousands of compositional variations — adjusting salt concentrations, solvent ratios, additive loadings, and catalyst precursor combinations across large arrays of parallel samples. Automated liquid handling is the operational foundation that makes this scale of combinatorial exploration tractable, transforming materials research from a serial, hypothesis-driven process into a parallel, data-driven one.
Why manual formulation is the rate-limiting step in materials discovery
In a conventional materials lab, a researcher manually prepares each formulation by weighing, dissolving, diluting, and transferring components one at a time. A skilled chemist running a multivariable electrolyte study — varying salt concentration, co-solvent ratio, and functional additive content — may manage two or three unique formulations per day. To explore even a modest three-variable, four-level design of experiments (DoE) properly requires 64 compositions; at manual throughput, that represents weeks of bench time before a single electrochemical result is in hand.
The consequences extend beyond speed. Manual serial preparation introduces cumulative volumetric errors with every transfer, and those errors are non-random — they correlate with analyst fatigue, instrument calibration, and ambient humidity. When the goal is to map a continuous composition space and identify performance trends, systematic preparation error collapses the resolution of the dataset. Automated liquid handling removes this variable entirely by executing every aspiration and dispense step from the same programmed method file, holding volume accuracy to within 1% CV across every well in a 96-position array.
How automated liquid handlers build combinatorial composition libraries

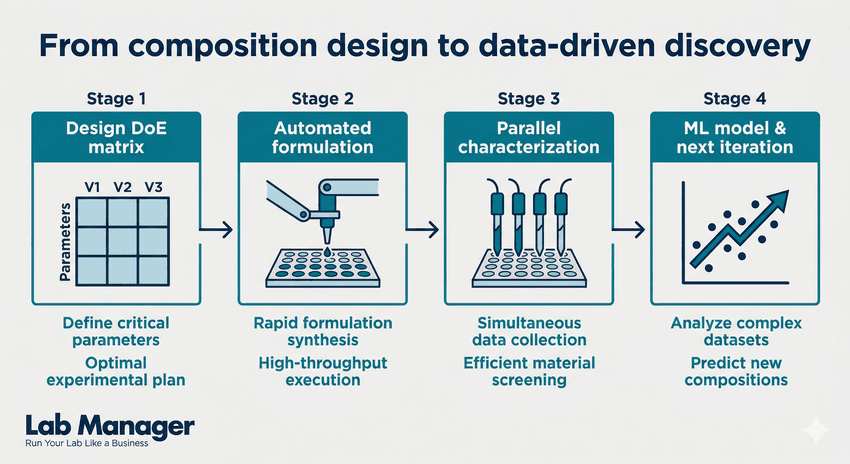

A four-step workflow illustrating the integration of automation and machine learning in modern laboratories—from designing initial Design of Experiments (DoE) matrices to leveraging data-driven models for predicting new formulations.
GEMINI (2026)
The core operation in materials formulation automation is serial dilution and combinatorial mixing: the instrument draws from a set of stock solutions or neat reagents and dispenses precisely defined volumes into each well of a multiwell plate or tube array according to a programmed composition matrix. A single run can generate a complete DoE library — hundreds of unique formulations — in the time it would take a technician to manually prepare a handful.
The workflow for a typical liquid electrolyte library looks like this:
- Stock preparation: Neat solvents (e.g., ethylene carbonate, dimethyl carbonate) and concentrated salt solutions are loaded into defined deck positions as source reservoirs.
- Compositional dispensing: The liquid handler dispenses each component at the calculated volume into each target vial or well, stepping through the composition matrix row by row.
- Mixing and equilibration: An integrated orbital shaker or vortex station homogenizes each formulation in place before downstream characterization.
- Daughter plate generation: Aliquots from the library are replicated into secondary plates for parallel measurement of conductivity, viscosity, and electrochemical performance.
- Data tagging: Barcode or RFID scanning links each physical sample to its preparation record in the LIMS, enabling full traceability from composition to result.
| Formulation parameter | Manual throughput | Automated throughput |
|---|---|---|
| Unique compositions per day | 2–5 | 50–200+ |
| Volume accuracy (CV) | 2–5% | <1% |
| Operator time per formulation | 15–30 min | <2 min |
| Dataset size (3-variable DoE) | Days–weeks | Hours |
Battery electrolyte screening: the defining application
No area of materials science has embraced automated liquid handling more aggressively than battery electrolyte research. Liquid electrolytes for lithium-ion, sodium-ion, and next-generation chemistries are defined by three or more simultaneously varying parameters — conducting salt identity and concentration, primary solvent blend, and functional additive content — with each combination producing a unique ionic conductivity, electrochemical window, and interfacial behavior. Manually exploring this space is prohibitively slow relative to the pace of the energy storage industry.
Researchers have demonstrated just how transformative this approach can be. A 2026 peer-reviewed study published in ACS Applied Energy Materials prepared 132 unique sodium-ion battery electrolyte formulations entirely using automated liquid handling, deploying them into parallel multichannel full cells for simultaneous electrochemical evaluation. Machine learning analysis of the resulting dataset identified NaFSI salt concentration as the dominant performance variable — an insight that would have required months of sequential manual testing to establish with equivalent statistical confidence (Ono et al., 2026). A broader review in Advanced Energy Materials confirms the pattern: liquid electrolytes are ideally suited to combinatorial automation because composition arrays differing in solvent ratios and additive loadings are generated by simple mixing, and automated high-throughput platforms can explore a broad compositional region in a fraction of the time of conventional methods (Benayad et al., 2022).
Interested in lab design?
The instrumentation challenge specific to battery electrolyte work is inert atmosphere compatibility. Many lithium and sodium salt solutions are highly moisture-sensitive, requiring that the automated liquid handling platform operate inside an argon- or nitrogen-filled glove box. Modern compact benchtop liquid handlers are now purpose-built for this integration, with footprints small enough to fit standard glove box chambers and electronics rated for continuous inert atmosphere operation. Labs working at the frontier of next-generation battery materials development are finding that ALH investment decisions increasingly hinge on this inert atmosphere capability.
Catalyst screening and coating formulation
Battery electrolytes are the most prominent example, but the same combinatorial logic applies across several other materials domains where automated liquid handling delivers comparable acceleration.
In heterogeneous catalyst development, precursor solutions of metal salts must be prepared at precise concentration ratios and dispensed onto support materials in defined loadings. A liquid handler can generate a complete catalyst impregnation library — varying metal loading, promoter concentration, and pH — across a 96-tube rack in a single automated run. The alternative, preparing each impregnation solution by hand and tracking tube-to-tube consistency manually, introduces the same errors that invalidate composition–performance correlations in electrolyte work.
In protective coating and adhesive formulation, automated liquid handling enables systematic variation of resin-to-hardener ratios, solvent blend compositions, and additive concentrations across a plate format compatible with downstream rheology or adhesion testing. Labs developing epoxies, UV-cure resins, or conductive inks for printed electronics rely on this approach to compress formulation development cycles that previously required weeks of iterative manual blending. Volatile solvents common in coating systems require the same temperature-controlled reservoir strategy used in electrolyte work — keeping source vessels chilled reduces vapor pressure and prevents the continuous compositional drift that occurs when volatile components evaporate during extended automated runs.
Integrating automated liquid handling with data-driven materials workflows
The value of automated liquid handling in materials science compounds when the platform is tightly coupled to downstream measurement and data management. A standalone instrument that generates 200 formulations but requires manual measurement of each one simply moves the bottleneck rather than eliminating it. The most effective implementations integrate the liquid handler with inline or at-line characterization — conductivity probes, UV-Vis spectrophotometers, rheometers — so that composition, preparation metadata, and measured properties are captured together in a single machine-readable dataset.
This integrated data structure is what makes machine learning genuinely useful in materials discovery. When every formulation has a confirmed composition from the instrument's dispense log, a confirmed preparation history from the LIMS audit trail, and a set of measured properties from automated characterization, the resulting dataset has the quality and scale needed to train predictive models and guide the next round of experiments with active learning. Dave et al. demonstrated exactly this closed-loop potential, coupling a robotic liquid handling platform with a machine learning algorithm that autonomously iterated toward optimal Li-ion electrolyte formulations without human intervention between cycles (Dave et al., 2022). Labs already building out the core infrastructure for automated liquid handling are, in effect, laying the data pipeline that underpins this next generation of materials research.
Conclusion: Automated liquid handling as a materials discovery platform
In materials science, the ability to generate and characterize large, well-controlled composition libraries is becoming as fundamental to research productivity as the analytical instruments that measure them. Automated liquid handling enables the combinatorial throughput, volumetric precision, and data traceability that manual formulation cannot provide at scale — across battery electrolytes, catalyst precursors, coating systems, and beyond. Lab managers equipping materials R&D facilities should treat automated liquid handling not as a pipetting convenience but as a core discovery infrastructure investment, selected for inert atmosphere compatibility, deck flexibility, and integration depth with downstream measurement and LIMS.
References
- Ono, M., Takahashi, M., Tamura, R., and Matsuda, S. (2026). Unveiling electrolyte design principles for sodium-ion batteries using combinatorial electrochemistry and machine learning-assisted analysis. ACS Applied Energy Materials, 9(3), 1405–1411. https://doi.org/10.1021/acsaem.5c03028
- Benayad, A., et al. (2022). High-throughput experimentation and computational freeway lanes for accelerated battery electrolyte and interface development research. Advanced Energy Materials, 2022, 12, 2102678. https://doi.org/10.1002/aenm.202102678
- Dave, A., Mitchell, J., Burke, S., Lin, H., Whitacre, J., and Viswanathan, V. (2022). Autonomous optimization of non-aqueous Li-ion battery electrolytes via robotic experimentation and machine learning coupling. Nature Communications, 13, 5454. https://doi.org/10.1038/s41467-022-32938-1
