Executive Summary

The pipette is the most frequently used tool in the laboratory, an extension of the scientist's hand. Yet, it is often purchased based on habit rather than health or precision.

A pipette is not just a liquid mover; it is a repetitive motion machine. A scientist performing a 96-well ELISA by hand will press the plunger nearly 400 times in an hour. Over a career, this leads to Repetitive Strain Injury (RSI). For the Lab Manager, the purchase decision is a balance between Initial Cost (Manual) and Long-Term Health & Accuracy (Electronic). A manual pipette is robust and cheap, but user-dependent. An electronic pipette offers programmable consistency and zero thumb strain, but requires charging and care.

Buying the wrong pipette leads to user fatigue, which leads to bad data. Buying a "Universal" pipette that doesn't actually fit your tip stock leads to leaks and frustration.

This guide outlines the physics of air displacement, the importance of "Light Touch" springs, and the hidden costs of calibration to ensure your liquid handling is as precise as your science.

1. Understanding the Technology Landscape

Pipettes are categorized by their drive mechanism (manual vs. electronic) and channel count (single vs. multi). The market has evolved significantly from the early days of heavy, thumb-crushing pistons to modern, lightweight, motorized systems designed to eliminate user variability and fatigue. While the basic function remains moving liquid via air displacement, the nuances in spring tension, material science, and electronic programming define the difference between a tool that lasts a decade and one that causes repetitive strain injury within a year. Understanding these mechanical distinctions is the first step in building a liquid handling fleet that balances budget with biology.

Core Pipette Types

• Manual Single Channel: The classic. Driven by the user's thumb.
  • Pros: Robust, no battery required, autoclavable.
  • Cons: High thumb force, user-dependent accuracy (speed variation), risk of RSI.
  • Best for: General low-throughput work, teaching labs, and non-standard volumes that vary sample-to-sample.
• Manual Multi-Channel (8 or 12): Designed for 96-well plates.
  • Pros: Increases throughput 8-12x.
  • Cons: Requires high force to mount/eject tips (rocking required to seal all channels). Hard to seal all channels perfectly with generic tips, leading to uneven volumes across the plate.

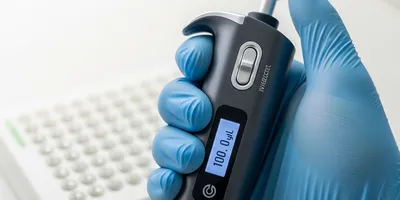

• Electronic Single Channel: Motorized piston. The thumb just clicks a button; the motor does the work.
  • Pros: Zero force. Programmable modes (Dilution, Mixing, Reverse Pipetting). High reproducibility as the motor controls the aspiration speed, removing user variability.
  • Cons: Expensive ($300-$800), heavy battery, requires charging.
• Electronic Multi-Channel: The productivity king. Motorized dispensing across 8, 12, or 16 channels.
  • Pros: Consistent dispensing across the plate. Modes like "Multi-Dispense" (step out) speed up plating cells by dispensing aliquots from a single aspiration.
  • Cons: Heavy in the hand due to the large motor and battery. Expensive upfront cost.

2. Critical Evaluation Criteria: The Decision Matrix

The choice of pipette is strictly dictated by the volume of work (throughput) and the precision required by the assay. Using a manual single-channel pipette to fill a 384-well PCR plate is not just slow; it is a guarantee of fatigue-induced error and "row skipping." Conversely, using a complex electronic multi-channel for a single tube transfer is operational overkill. This decision matrix helps you map your specific workflow intensity and plate formats to the right tool, ensuring you aren't paying for automation you don't need or suffering through manual labor you shouldn't be doing.

Decision Track 1: Throughput & Ergonomics

• "I run occasional PCR or Western Blots." → Manual Single Channel
  • Context: Low repetition. Precision is key, but fatigue is manageable.
  • Hardware: Premium Manual Pipette (Light Spring).
  • Estimated Cost: $200 – $400
• "I run daily ELISAs or Cell Culture." → Electronic Multi-Channel
  • Context: High repetition. RSI is a major risk. Uniformity across the plate is critical to avoid "edge effects" or variable data.
  • Hardware: 8 or 12 Channel Electronic Pipette.
  • Estimated Cost: $800 – $1,500
• "I do complex serial dilutions." → Electronic Single/Multi
  • Context: You need mixing protocols. An electronic pipette can mix automatically (up/down cycles), ensuring consistency that manual mixing often lacks due to thumb fatigue.

Decision Track 2: Tip Compatibility

• Universal Cone:
  • Fits most "Universal" tips. Low consumable cost.
  • Risk: Tips may fall off or leak if not hammered on. The "universal" fit varies by brand, leading to potential seal issues.
• Dedicated/LTS Cone:
  • Proprietary tip design (e.g., Rainin LTS).
  • Pros: Ultra-low force to mount/eject. Seals perfectly every time due to a physical stop.
  • Cons: You are locked into that vendor's tips forever. Higher consumable cost and supply chain risk.

3. Key Evaluation Pillars

Once the fundamental type (Manual vs. Electronic) is selected, the specific engineering features determine the daily user experience and long-term data integrity. A pipette is a hand-held tool; if it is heavy, unbalanced, or requires excessive force, it will cause hand cramps and lead to sloppy technique. Furthermore, a confusing electronic interface or a slippery volume lock can lead to disastrous dosing errors. These "under-the-hood" specifications are what differentiate a generic liquid mover from a precision instrument.

A. Ergonomics (Weight & Force)

RSI is the #1 occupational hazard in the lab.

• Plunger Force: How many Newtons does it take to push to the first stop? Good manual pipettes are < 3N. High spring tension causes thumb inflammation over time.
• Ejection Force: Ejecting tips often requires more force than pipetting. Look for "Geared" or "Levered" ejection mechanisms that reduce thumb strain by amplifying your input force.
• Weight: Electronic pipettes are heavier due to the battery. Ensure the balance point sits comfortably in the hand (hook over the finger), not dragging the wrist down.

B. Volume Lock

• The Problem: In manual pipettes, the volume adjustment knob can drift while you are twisting your thumb to pipette, changing 100µL to 102µL mid-experiment without you noticing.
• The Solution: A robust Volume Lock mechanism. It must be easy to disengage for adjustment but impossible to slip during use.

C. Material & Durability

• Autoclavability: Can you steam sterilize the whole pipette, or just the lower shaft? Fully autoclavable is better for sterile labs (Cell Culture/Microbiology) to prevent contamination.
• Chemical Resistance: Is the handle resistant to Ethanol, Bleach, and DNA-Away? Some plastics crack or become sticky over time when exposed to common lab cleaning agents. PVDF is highly resistant.

4. The Hidden Costs: Total Cost of Ownership (TCO)

While the initial purchase price of a pipette is relatively low, the lifecycle cost is dominated by calibration and consumables. A pipette is a measuring instrument that drifts over time due to spring fatigue and seal wear. Ignoring maintenance leads to "silent failures" where volumes drift out of spec, ruining expensive reagents. Lab Managers must budget for the recurring costs of ISO-certified calibration and the potential premium for high-quality tips to ensure the instrument remains accurate throughout its life.

5. Key Questions to Ask Vendors

1. "What is the blow-out volume?" (Ensure the piston stroke is long enough to eject viscous liquids fully).

2. "Is the battery user-replaceable?" (On electronic units, if the battery is built-in, the whole pipette has to be sent for service when it dies. A user-replaceable battery is preferred.)

3. "Does it fit my current tip stock?" (Ask for a demo unit and try your existing tips. Do they seal? Do they fall off? Do they eject easily?)

4. "Is the lower part autoclavable?" (Essential for contamination control. If you have to disassemble it with tools to autoclave, users won't do it.)

6. FAQ: Quick Reference for Decision Makers

Q: Air Displacement vs. Positive Displacement?

A: Air Displacement (standard) has an air cushion between the piston and liquid. It is sensitive to temperature and viscosity. Positive Displacement (capillary/piston tips) has the piston inside the tip, touching the liquid. Essential for volatiles (acetone), viscous (glycerol), or radioactive samples.

Q: Should I buy a set or individual sizes?

A: Sets (P10, P200, P1000) offer better value and often include a stand. However, check if the ranges overlap effectively for your protocols.

Q: How often should I calibrate?

A: Most labs calibrate annually. GLP/GMP labs may require 3-month or 6-month intervals. "As Found" data is critical to know if you were using a bad pipette before the fix.

7. Emerging Trends to Watch

• Connected Pipettes (Bluetooth & IoT)
  • Modern pipettes are joining the "Smart Lab" ecosystem. Bluetooth-enabled units connect to tablets or LIMS systems, pushing the specific protocol parameters (volume, mix cycles) directly to the pipette. This prevents user error (e.g., dispensing 10 µL instead of 5 µL) and creates a digital log of the pipetting event. For complex 96-well maps, the tablet app can guide the user well-by-well ("Dispense into Row A, Column 1"), significantly reducing the risk of lost samples.
• Eco-Friendly Tips (Waste Reduction)
  • Laboratories generate massive amounts of plastic waste, primarily from rigid tip boxes. The industry is shifting toward "Reload" systems where wafers of tips are stacked in thin plastic or cardboard sleeves, allowing users to refill a single robust box hundreds of times. This reduces plastic waste by 50-70% and lowers shipping costs, aligning with corporate sustainability goals without compromising sterility.
• Adjustable Spacer Multi-Channels (Workflow Efficiency)
  • The bottleneck in many workflows is moving samples from microcentrifuge tubes (wide spacing) to 96-well plates (narrow spacing). Adjustable spacer pipettes feature a mechanism that expands and contracts the nozzle width. This allows a user to pick up 8 samples from a tube rack and dispense them directly into a microplate in one motion, eliminating the tedious and error-prone process of single-channel transfers.

Conclusion: Purchasing a pipette is a purchase of ergonomics and precision. A manual pipette is a reliable soldier, but an electronic pipette is a force multiplier that protects your staff's health and your data's reproducibility. By balancing the tip ecosystem with the user's comfort, Lab Managers can ensure that the most common action in the lab remains the most accurate.
