Executive Summary

The microscope is the most ubiquitous instrument in science, yet it is often the most poorly specified. A mismatch between the user’s application and the objective lens can result in eye strain, poor data, and wasted budget.

While the basic physics of magnification haven't changed in a century, the technology surrounding it—LED illumination, infinity-corrected optics, and AI-driven cameras—has revolutionized what a benchtop microscope can do.

Whether you are performing routine clinical cytology, inspecting circuit boards, or conducting cell culture research, the quality of your data depends on the quality of your glass.

This guide helps Lab Managers navigate the "Optical Triangle" of Resolution, Contrast, and Depth of Field to secure an instrument that meets both current needs and future applications.

1. Understanding the Technology Landscape

The first step is determining the architecture of the frame based on the sample type.

Core Microscope Types

• Stereo Microscopes (Dissecting): Often the first step in any workflow, these instruments act as a bridge between the macroscopic and microscopic worlds. They provide a realistic, three-dimensional view that is essential for manipulation, allowing users to work with tools under the lens in real-time.
  • Architecture: Two separate optical paths (one for each eye) create a 3D perception of depth. Low magnification (5x–50x).
  • Best for: Sample preparation, dissection, electronics inspection, and sorting organisms.
• Compound Upright Microscopes: This is the iconic laboratory instrument, designed for viewing thin, transparent specimens mounted on glass slides. It utilizes high-power objectives to resolve fine cellular details that are invisible to the naked eye, prioritizing resolution over depth of field.
  • Architecture: Single optical path (split at the head). High magnification (40x–1000x). The objective lens looks down at the sample.
  • Best for: Glass slides, pathology, histology, and bacteriology.
• Compound Inverted Microscopes: When samples cannot be flipped or squashed onto a slide, the inverted microscope is required. By placing the optics below the stage, it allows researchers to view living cells in their natural environment—be it a flask, petri dish, or well plate—without compromising sterility or sample integrity.
  • Architecture: The objective lens sits under the stage, looking up.
  • Best for: Living cells in petri dishes or flasks (where the sample is on the bottom of a container), tissue culture.

2. Critical Evaluation Criteria: The Decision Matrix

Use this text-based flow to map your application to the correct specifications.

Decision Track 1: Sample Nature

• Large, Opaque, or Requires Manipulation? → Stereo Microscope
  • Need: Long working distance (space between lens and sample) to allow for forceps or soldering irons. Requires reflected (top-down) illumination.
  • Estimated Cost: $1,500 – $12,000 (Dependent on zoom ratio, stand stability, and lighting options).
• Mounted on a Slide (High Res)? → Upright Compound
  • Need: High Numerical Aperture (NA) objectives for sub-micron resolution. Requires transmitted (bottom-up) illumination through the sample.
  • Estimated Cost: $2,500 – $25,000 (Range covers basic clinical units up to fully motorized research frames with fluorescence).
• Living Cells in Culture Media? → Inverted Compound
  • Need: Long Working Distance Condenser to clear the height of a flask, and Phase Contrast or DIC (Differential Interference Contrast) to render transparent cells visible.
  • Estimated Cost: $6,000 – $45,000+ (Simple tissue culture scopes vs. advanced live-cell imaging systems).

Decision Track 2: The Objectives (The most critical component)

• Routine / Educational: Achromat
  • Performance: Corrects for 2 colors (Red, Blue) and spherical aberration at one wavelength. The center 65% of the field is sharp, but edges may blur (curvature of field). Good for visual teaching, poor for cameras.
  • Estimated Cost: $100 – $300 per lens
• Clinical / Routine Lab: Plan Achromat
  • Performance: "Plan" denotes flat-field correction (90%+ flat). The entire view is sharp from center to edge. This is the minimum standard for clinical diagnosis, pathology, and any application involving a camera.
  • Estimated Cost: $400 – $900 per lens

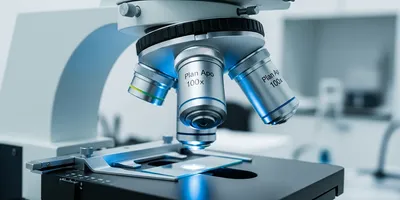

• Research / Critical Color: Plan Apochromat (Plan Apo)
  • Performance: Corrects for 3-4 colors (Red, Blue, Green, Violet) and spherical aberration. Features the highest Numerical Aperture (NA) for maximum resolution and brightness. Essential for low-light fluorescence and high-end publication images.
  • Estimated Cost:$1,800 – $5,000+ per lens

3. Key Evaluation Pillars

A. Ergonomics (The Hidden ROI)

Long hours at the microscope can lead to repetitive strain injuries (RSI) and significant fatigue, which directly impacts user concentration and data accuracy. Ergonomics is not a luxury; it is a critical safety feature. When evaluating a frame, consider how the instrument adapts to the user, rather than forcing the user to adapt to the instrument.

• Tilting Head: Can the eyepieces angle up/down to suit different user heights?
• Stage Controls: Are the X/Y stage drive handles adjustable (telescoping) or fixed? Low-positioned controls reduce arm fatigue.
• Eye Point: High-eyepoint eyepieces are mandatory for users who wear glasses.

B. Illumination: Halogen vs. LED

The light source is the heartbeat of the microscope. It dictates color fidelity, sample integrity, and maintenance downtime. The industry has largely migrated away from hot, yellowing tungsten bulbs toward cool, consistent LED sources, but understanding the trade-offs remains important for specific color-critical applications.

• Halogen: The old standard. Excellent Color Rendering Index (CRI) but it generates heat (bad for live cells) and bulbs burn out frequently.
• LED: The new standard. Cool light (good for cells), 20,000+ hour lifespan, and constant color temperature (doesn't turn yellow when dimmed). Recommendation: Always choose LED for new purchases unless specific color-matching requires Halogen.

C. Digital Integration

In today's data-driven environment, a microscope without a camera path is a dead end. Whether for collaboration, publication, or AI analysis, the ability to capture high-fidelity images is as important as the view through the eyepieces. Decisions made here determine if your system is future-proof or obsolete upon arrival.

• Trinocular Head: Always buy a "Trinocular" head (third port for a camera) even if you don't buy a camera immediately. Adding a port later is expensive or impossible.
• Sensor Size: Don't just look at Megapixels. A 5MP camera with a large sensor (1 inch) is better than a 20MP camera with a tiny sensor (1/2.5 inch) for low-light sensitivity.

4. The Hidden Costs: Total Cost of Ownership (TCO)

5. Key Questions to Ask Vendors

1. "Is the optical system 'Infinity Corrected'? " (Infinity systems allow you to insert accessories like fluorescence filters into the light path without changing magnification or focus. This is standard for modern labs).

2. "What is the 'Field Number' (FN) of the eyepieces?" (Standard is 20mm. High-end is 22mm or 25mm. A larger FN gives you a wider view, speeding up slide scanning).

3. "Does the LED illumination have 'Eco-Mode'?" (Auto-shutoff features save energy and extend life if users walk away).

4. "Can I try the microscope with my slides?" (Standard demo slides look good on anything. Your specific stain or sample thickness is the real test).

6. FAQ: Quick Reference for Decision Makers

Q: Do I need 1000x magnification?

A: Only if you are looking at bacteria or extremely small details. 1000x requires Immersion Oil, which is messy and requires cleaning. For tissue/cells, 400x (40x objective) is usually the maximum dry magnification needed.

Q: What is Phase Contrast?

A: A technique to make transparent specimens (like unstained living cells) visible without killing/staining them. Essential for tissue culture labs.

Q: C-Mount vs. Eyepiece Camera?

A: Always use a dedicated C-Mount camera on a trinocular port. "Eyepiece cameras" (that slot into the ocular tube) generally have poor optics and a small field of view.

7. Emerging Trends to Watch

• Digital Pathology & Whole Slide Imaging (WSI): The traditional workflow of mailing glass slides is rapidly being replaced by high-throughput scanners that digitize entire slides at high resolution. This allows pathologists to diagnose cases remotely on 4K monitors, facilitates instant second opinions, and enables the use of AI diagnostic tools. However, Lab Managers must plan for significant IT infrastructure, as WSI generates terabytes of data.
• Smart Microscopes & Augmented Reality (AR): New "hybrid" instruments overlay digital information directly into the optical field of view. These smart microscopes can perform real-time cell counting, classify tissue types, or measure confluence automatically as the user scans the slide. This reduces subjective human error and dramatically speeds up routine tasks like differential counts.
• Heads-Up Displays & Tablet Integration: To combat ergonomic strain, manufacturers are moving away from traditional eyepieces toward large, integrated high-definition screens or tablets. While this "heads-up" approach improves posture and makes training easier (multiple people can view the sample simultaneously), users should be aware of the resolution trade-off: a 4K screen still resolves less detail than the human eye looking through high-quality glass optics.

Conclusion: A microscope is only as good as its glass. By prioritizing Plan-corrected optics, ergonomic frames, and LED illumination, Lab Managers can ensure their team produces crisp, accurate data while minimizing physical strain.
