Vacuum pumps serve as essential components for diverse laboratory workflows, ranging from simple filtration and rotary evaporation to the high-vacuum requirements of mass spectrometry and freeze-drying. For laboratory managers, the decision to invest in a specific vacuum technology centers on the trade-off between oil-free pump cleanliness and rotary vane vacuum depth.
While the upfront acquisition cost of a rotary vane pump is often lower, long-term operational costs can escalate due to recurring maintenance and the need for peripheral protection. Conversely, oil-free pumps—while commonly requiring a higher initial capital investment—offer a cleaner environment and can significantly reduce the frequency of technician intervention. Selecting a pump that does not align with the application can lead to sample contamination, equipment failure, and unexpected downtime.
Optimizing a laboratory’s vacuum infrastructure involves a clear understanding of the application's vacuum depth needs, the chemical nature of the vapors being handled, and the facility's capacity for routine upkeep. By aligning these factors, lab managers can support both scientific accuracy and budgetary efficiency.
How do vacuum depth and displacement differ between technologies?
The operational difference between these technologies begins with the mechanism used to achieve vacuum. Rotary vane pumps are positive-displacement pumps that utilize a rotating assembly of vanes within a cylindrical housing. A thin film of oil creates a highly effective seal between the vanes and the pump wall. This allow the system to reach an ultimate vacuum commonly as low as 10^-3 mbar or 10^-4 mbar, depending on the specific model and current condition of the pump. This "wet" design is often required for applications demanding deep vacuum, such as high-vacuum manifolds (Schlenk lines) or molecular distillation.
Oil-free pumps, which in many cases utilize diaphragm or scroll technology, rely on mechanical seals or high-precision clearances rather than oil. While this approach helps eliminate the risk of oil back-migration into the sample, it generally limits the ultimate vacuum depth. A standard two-stage diaphragm pump may only reach 7 mbar to 1 mbar. While this is often sufficient for rotary evaporation or vacuum ovens, it may be inadequate for tasks requiring the removal of high-boiling-point solvents. However, some advanced high-end variants are capable of reaching levels slightly below 1 mbar.
Interested in lab tools and techniques?
What are the maintenance costs of rotary vane vacuum pumps?
The lower purchase price of a rotary vane pump can sometimes mask a significant tail of operational expenses. The oil in these pumps acts as a lubricant, sealant, and coolant. However, it also serves as a potential trap for contaminants. When working with organic solvents or corrosive gases, the oil can become degraded, acidic, or diluted. This process may lead to internal corrosion and loss of vacuum performance.
To maintain these systems, lab managers generally implement a consistent maintenance schedule. Common requirements include:
- Oil changes: These may be required monthly or even weekly in high-throughput environments.
- Filter replacement: Oil mist filters (exhaust filters) should be monitored and replaced. This helps prevent oil vapors from entering the laboratory atmosphere.
- Cold trap maintenance: To protect the pump oil from solvent intake, cold traps using liquid nitrogen or dry ice are often necessary. These require regular monitoring and represent a recurring consumable expense.

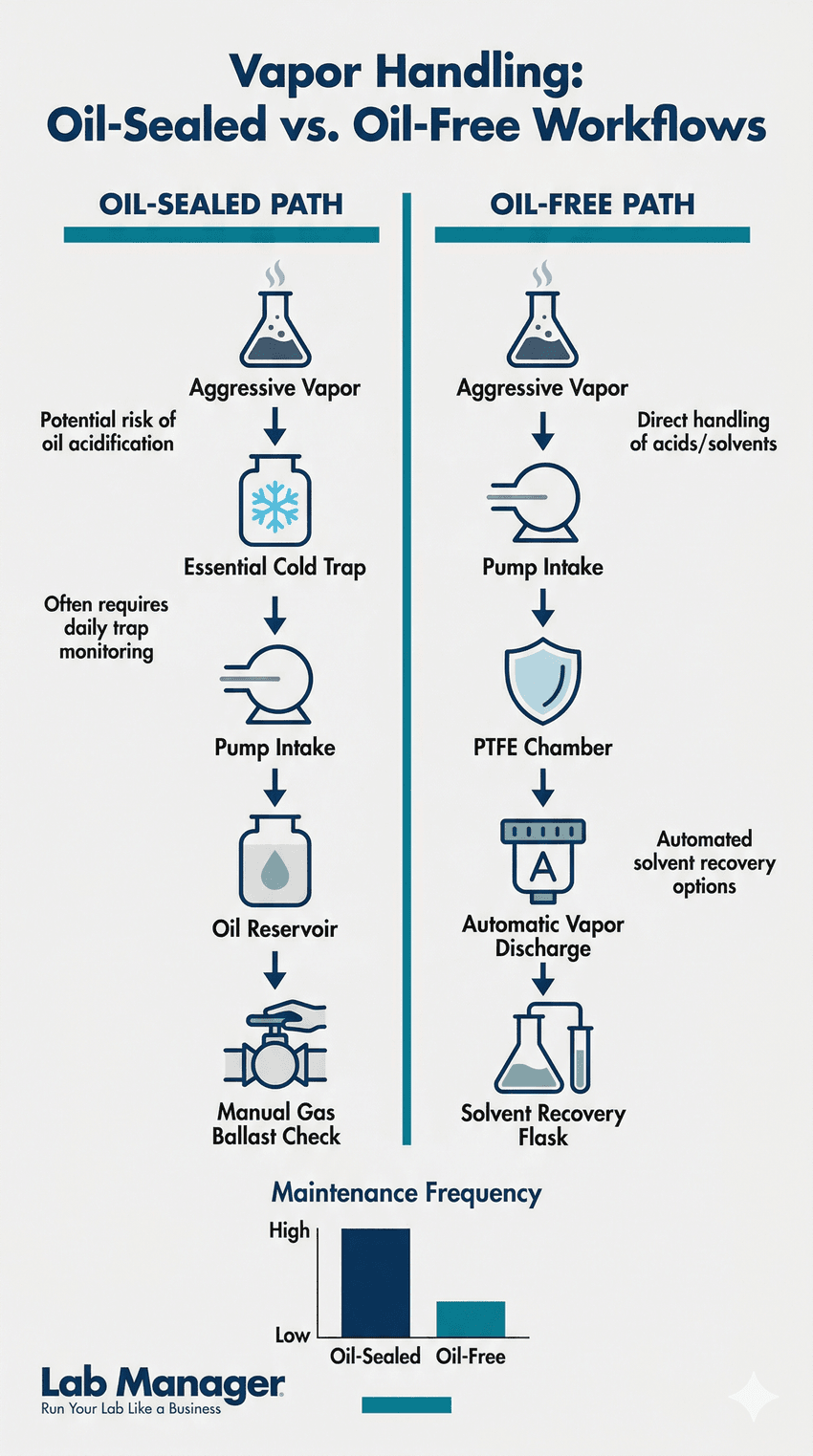

When should you use oil-free vacuum pumps for corrosive chemicals?
While oil-sealed pumps are traditional workhorses, oil-free technology offers a "dry" path to lower maintenance, higher sustainability, and automated efficiency.
GEMINI (2026)
Oil-free diaphragm pumps have significantly impacted chemistry laboratory operations by offering high chemical resistance. Many of these pumps are constructed with solid PTFE (Teflon) heads and perfluoroelastomer valves. This "chemistry-design" allows the pump to handle aggressive solvent vapors without the internal degradation often seen in oil-sealed systems.
Because there is no oil to monitor or change, the primary maintenance task for an oil-free pump is generally the periodic replacement of the diaphragms and valves. In many modern systems, these components are designed for 10,000 to 15,000 hours of operation. However, these intervals are highly manufacturer-dependent. They also vary based on the intensity of chemical exposure. This predictable maintenance cycle can allow lab managers to schedule downtime more effectively. It also reduces the likelihood of catastrophic pump failure during a critical experiment.
How do oil-free pumps impact lab sustainability and energy costs?
Modern lab management frequently includes sustainability as a key performance indicator. In models equipped with variable-speed control, oil-free pumps can offer significant energy savings. Traditional rotary vane pumps often run at a constant speed regardless of the vacuum demand. Modern diaphragm pumps can slow down once the target vacuum is reached. This can save electricity and may also reduce noise and vibration levels in the laboratory.
Furthermore, the environmental cost of oil disposal is an important consideration. Used vacuum pump oil is often classified as hazardous waste, depending on local and national regulations. By transitioning to oil-free systems, laboratories can potentially eliminate this waste stream. This transition may simplify Environmental Health and Safety (EHS) compliance and reduce the facility's overall environmental impact.
How to choose a vacuum pump based on your lab application
For laboratory leaders, the choice between these technologies should generally be driven by the "Ultimate Vacuum vs. Application" requirements. Table 1 provides a quick reference for common laboratory tasks.
Table 1: Vacuum Technology Application Matrix
Application | Typical Required Vacuum Depth | Recommended Technology |
|---|---|---|
Simple Filtration | ~100 mbar | Oil-Free (Diaphragm) |
Rotary Evaporation | 2–10 mbar | Oil-Free (Chemistry Diaphragm) |
Vacuum Oven (Drying) | < 1 mbar | Rotary Vane or Scroll |
Schlenk Line / Manifold | 10^-3 mbar | Rotary Vane |
Lyophilization (Freeze-Drying) | < 10^-3 mbar | Rotary Vane |
Mass Spectrometry (Backing) | < 10^-3 mbar | Rotary Vane or Scroll |
While rotary vane pumps are often the preferred choice for high-vacuum needs, they are commonly avoided for general-purpose solvent removal if a suitable oil-free alternative is available. The increased reliability and decreased maintenance of dry pumps can often justify the higher initial price point in low-to-medium vacuum applications.
Conclusion: optimizing vacuum pump selection for your lab
Selecting the appropriate vacuum pump technology is a strategic decision that affects a laboratory's throughput, safety, and budget. While rotary vane pumps remain a standard for reaching deep vacuum levels, their reliance on oil introduces a maintenance burden and a potential risk of contamination. For many common chemistry and biological applications, oil-free technology—particularly PTFE-based diaphragm pumps—can provide a robust, sustainable, and cost-effective solution over the life of the instrument. Lab managers who prioritize total cost of ownership over initial acquisition cost find that oil-free systems often offer high long-term value through reduced labor requirements, fewer consumables, and enhanced process reliability.
