Efficient filtration is a core component of many modern water analysis facilities. Whether processing municipal drinking water for public safety or analyzing wastewater effluent for environmental compliance, laboratory personnel often rely on vacuum-driven filtration. This process helps separate suspended solids, isolate microorganisms, and prepare liquid matrices for downstream trace metal analysis.
For lab managers overseeing these workflows, the vacuum pump powering this process serves as a key piece of analytical infrastructure. High-throughput demands are typically balanced against the need to protect sensitive equipment from corrosive vapors and liquid ingress. Selecting a suitable vacuum technology can impact turnaround times, minimize disruptive maintenance intervals, and help ensure that sample preparation adheres to environmental testing methodologies.
How do vacuum pumps support water analysis workflows?
Vacuum filtration accelerates the separation of particulate matter from liquid samples by creating a pressure differential across a filter membrane. In environmental testing, this mechanism is highly valuable across multiple regulatory workflows. The speed and consistency of the vacuum strongly influence how quickly a lab can clear its daily sample backlog.
One common application is the determination of Total Suspended Solids (TSS). In methods such as EPA Method 160.2 (U.S. EPA, 1999), a precisely measured volume of water is pulled through a pre-weighed glass fiber filter. The efficiency of the vacuum pump affects how quickly the liquid is drawn through the increasingly clogged membrane. Slow filtration can delay analysis and potentially alter the biological or chemical state of the sample as it sits on the bench.
Similarly, microbiological workflows require a gentle, consistent vacuum. This includes testing for total coliforms or E. coli using membrane filtration methods like EPA Method 1603 (U.S. EPA, 2014). If the vacuum pressure is too aggressive, it can rupture fragile bacterial cells. High pressure might also pull cells through the membrane pores, potentially leading to falsely low colony counts and reporting errors.
Sample filtration is also vital when preparing water samples for elemental analysis. Technicians must remove particulates before running dissolved metals on an ICP-MS. According to technical guidance from Agilent Technologies, suspended particles easily clog standard micro-flow concentric nebulizers. Robust vacuum systems ensure that fine silicates and organic matter do not pass through and compromise this sensitive instrumentation.
Interested in lab tools and techniques?

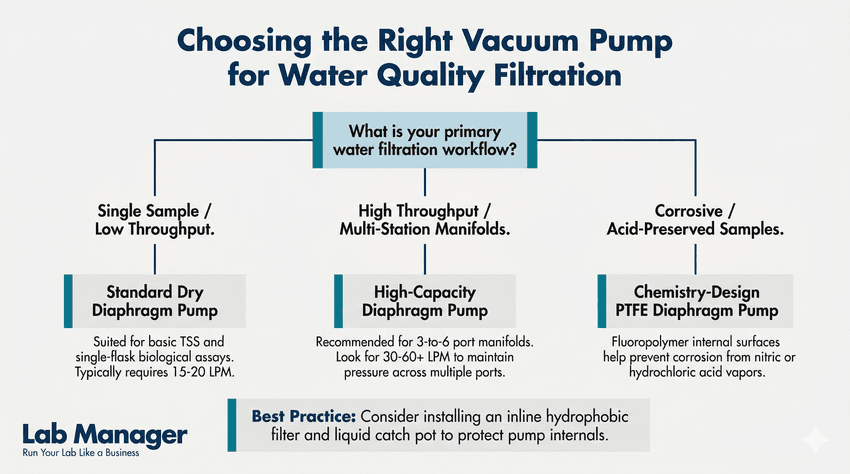

How to choose a vacuum pump for water filtration systems
Selecting a vacuum pump for water filtration isn't a "one size fits all" decision. Whether you are running single-sample assays or managing high-throughput manifolds with corrosive vapors, the right hardware ensures both data accuracy and equipment longevity.
GEMINI (2026)
Choosing an appropriate vacuum pump requires lab managers to evaluate their facility’s specific daily sample volume, the chemical nature of the samples, and the physical footprint of the workspace. Traditional oil-sealed rotary vane pumps offer deep vacuum capabilities, but they are often less suitable for aqueous filtration. They require higher maintenance and carry a risk of internal condensation and oil emulsification when exposed to water vapor.
Today, oil-free diaphragm pumps are widely used for environmental water filtration. These dry pumps typically require less maintenance, do not generate oil mist, and handle high moisture loads significantly better than rotary vane pumps. When outfitting a lab, managers should verify that the pump’s flow rate (measured in liters per minute, or LPM) is sufficient to drive the laboratory's filtration hardware. Based on manufacturer specifications, a single-station flask setup typically requires flow capacities around 15–20 LPM. Meanwhile, a multi-station manifold often requires 30–60+ LPM to maintain suction across multiple active ports.
Chemical compatibility is another factor. Water samples preserved with strong acids (like nitric acid for metals analysis) can release corrosive vapors during filtration. In these scenarios, utilizing a pump with polytetrafluoroethylene (PTFE) or similarly fluorinated contact surfaces can help prevent internal corrosion, premature diaphragm wear, and equipment downtime.
Table 1: Vacuum pump considerations based on filtration setup
Pump Feature | Single-Station Flask | Multi-Station Manifold (3-6 ports) | Acid-Preserved Samples |
|---|---|---|---|
Flow Rate Requirement | Low (typically 15-20 LPM) | High (typically 30-60+ LPM) | Variable based on manifold size |
Ultimate Vacuum | Moderate (~100-150 mbar) | Moderate (~100-150 mbar) | Moderate (~100-150 mbar) |
Recommended Pump Type | Standard dry diaphragm pump | High-capacity diaphragm pump | PTFE-coated chemistry diaphragm pump |
Accessory Needs | Basic inline filter | High-capacity liquid catch pot | Cold trap or exhaust condenser |
Protecting vacuum pumps from liquid damage and contamination
Even high-quality vacuum pumps can fail prematurely if liquid enters the pump head. In water analysis laboratories, accidental aspiration of filtrate is a common cause of vacuum pump damage. Lab managers should implement physical safeguards to protect this infrastructure.
A primary line of defense is a properly sized liquid catch pot (or vacuum trap) installed between the filtration apparatus and the vacuum pump. This trap serves as a buffer. It captures liquid that might accidentally bypass the primary receiving flask or manifold before it reaches the pump mechanism.
Additionally, laboratories can utilize inline hydrophobic filters on the vacuum tubing. These disposable filters allow air and vapors to pass through while physically blocking liquid droplets and aerosols. This protects the pump from mechanical damage and helps prevent potential biological aerosols—such as those generated during wastewater processing—from being exhausted into the ambient laboratory environment.
Maintaining vacuum pumps for regulatory compliance
Operational readiness benefits from a proactive maintenance approach. Reactive maintenance—fixing a pump only after it fails—can lead to workflow bottlenecks, delayed reporting, and compromised sample holding times.
Lab managers should consider establishing standard operating procedures (SOPs) for routine vacuum system checks. Daily tasks often include emptying catch pots and inspecting vacuum tubing for cracks or degraded seals that could reduce suction efficiency. Periodic tasks might involve evaluating the pump's ultimate vacuum pressure against baseline specifications to detect early signs of diaphragm wear.
Furthermore, running the pump for a few minutes after filtration workflows are completed can help purge residual moisture from the pump heads. This simple venting practice minimizes internal condensation, which can otherwise lead to valve sticking and reduced efficiency over time. Maintaining a detailed equipment log of these maintenance activities is also recommended, as auditors may request documentation demonstrating that ancillary equipment supporting regulated methods is functioning within expected parameters.
Conclusion: Optimizing vacuum pumps for environmental water testing
Vacuum pumps are a key component of water analysis operations, supporting the high-throughput filtration required by many environmental laboratories. By evaluating pump flow rates, verifying chemical compatibility, and implementing safeguards against liquid ingress, lab managers can reduce the likelihood of equipment downtime. Proactive maintenance and the strategic use of protective traps help extend the lifespan of laboratory infrastructure and maintain the consistent vacuum pressures needed to support regulatory compliance and deliver accurate environmental data.
This article was created with the assistance of Generative AI and has undergone editorial review before publishing.
