The accurate characterization of fluid behavior relies fundamentally on the reproducibility of viscosity measurements across different operators and timeframes. Variations in flow measurements often indicate inconsistencies in sample handling, thermal history, or shear application. They rarely reflect actual changes in material properties. Laboratory professionals must implement rigorous environmental controls and standardized operating procedures. This allows them to distinguish true rheological shifts from experimental error.
Establishing environmental controls for reproducible viscosity measurements
Environmental fluctuations represent the most significant source of error when attempting to improve the reproducibility of viscosity measurements. Viscosity is highly sensitive to temperature changes. For many liquids, a temperature variance of just 1°C can result in a viscosity change of 2% to 10%. Laboratory professionals must utilize precise temperature control systems, such as Peltier plates or circulating water baths, to maintain thermal stability within ±0.05°C during testing.
External vibrations can also introduce noise into flow measurements. This is particularly true when measuring low-viscosity fluids or using sensitive rotational rheometers. Instruments should be mounted on heavy, vibration-damping tables away from centrifuges, vacuum pumps, or high-traffic areas. The physical leveling of the viscometer is equally critical. Off-axis rotation creates concentricity errors that distort shear rate calculations.
Humidity control is essential for hygroscopic samples, which may absorb moisture from the atmosphere and alter their rheological profile during testing. A controlled humidity environment or the use of solvent traps can prevent sample modification during longer test sequences. Adhering to standards such as ISO 3219 ensures that these environmental parameters are documented and kept within acceptable limits.
Optimizing sample preparation for consistent flow measurements
The mechanical history of a sample prior to analysis directly impacts the reproducibility of viscosity measurements. Many complex fluids exhibit thixotropic behavior. In these cases, viscosity decreases with time under shear and recovers when at rest. Inconsistent mixing, shaking, or pouring techniques can induce varying states of shear structure breakdown before the measurement even begins.
Standardizing the resting time—or "equilibrium time"—after loading the sample is mandatory for consistent flow measurements. This rest period allows the material to recover its microstructure. It also ensures the sample reaches thermal equilibrium with the measurement geometry. For high-viscosity pastes or gels, avoiding the entrapment of air bubbles during loading is crucial. Bubbles reduce the effective shear area and lead to artificially low viscosity readings.
Lab Management Certificate
The Lab Management certificate is more than training—it’s a professional advantage.
Gain critical skills and IACET-approved CEUs that make a measurable difference.

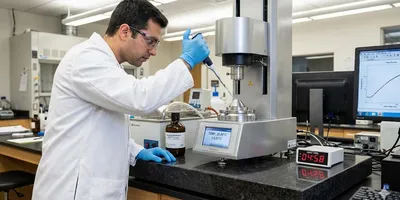

Sample volume accuracy plays a vital role, specifically in cone-and-plate or parallel-plate geometries. Under-filling the gap results in insufficient torque. Conversely, over-filling can cause edge effects that skew the data. Using a positive displacement pipette or trimming excess material from the geometry edge is recommended. This ensures that the exact required volume is tested every time.
Selecting measurement geometries to ensure viscosity reproducibility
Choosing the correct geometry is fundamental to achieving valid flow measurements and avoiding artifacts like wall slip or turbulence. Cone-and-plate geometries are often preferred for their uniform shear rate across the sample. This makes them ideal for absolute viscosity determination. However, they are unsuitable for samples containing large particles. These particles can jam in the narrow gap truncation.
For particle-laden suspensions, concentric cylinders or parallel plates with a larger gap setting are necessary to prevent particle jamming. The general rule, aligned with standards such as ISO 3219, is that the gap size must be at least 10 times the diameter of the largest particle in the suspension. Violating this ratio compromises the reproducibility of viscosity measurements. It introduces physical interference into the flow field.
Surface friction is another variable. Smooth geometries may cause wall slip in emulsions or greases. In this scenario, the material slides along the sensor surface rather than flowing. In such cases, serrated or cross-hatched geometries should be employed to engage the sample fully. Properly documenting the geometry type and gap setting is required for any dataset to be reproducible by another laboratory.
Defining shear rate protocols for accurate flow data
Flow measurements are meaningless without a defined shear rate, except for strictly Newtonian fluids. Most industrial fluids are non-Newtonian. This means their viscosity changes as a function of shear rate. Reporting a single viscosity number without specifying the shear rate or shear stress applied is insufficient. It makes the data impossible to reproduce.
Laboratory professionals must design test methods that cover the relevant shear range for the material’s intended application. For example, a paint sample should be tested at high shear rates to simulate spraying. It should also be tested at low shear rates to simulate leveling and sagging. Ramping shear rates up and down can also reveal hysteresis loops, providing insight into the time-dependent breakdown and recovery of the sample structure.
Data collection intervals also affect the resolution and quality of the results. Setting a sufficient integration time for each data point allows the shear stress signal to stabilize. This reduces noise in the final output. Automated software routines can enforce specific equilibrium criteria before recording a data point. This significantly enhances the reproducibility of viscosity measurements.
Managing calibration standards for viscosity measurement reproducibility
Regular calibration and verification with standard reference materials are non-negotiable for maintaining data integrity. Newtonian viscosity standards should be used to verify instrument performance. These are typically silicone or mineral oils with certified values traceable to national metrology institutes like NIST. These verifications should occur at intervals defined by the laboratory's quality management system, often daily or weekly depending on throughput.
Calibration differs from verification; it involves adjusting the instrument's internal constants (such as spring factors or gap zeroing) to align with reference values. Full calibration is typically performed annually by a certified service engineer, while verification is a user-performed check. If a verification check fails, no further flow measurements should be conducted. Testing must pause until the root cause—whether bearing friction, geometry damage, or temperature offset—is resolved.
It is advisable to maintain control charts of verification results over time to identify drift in instrument performance. A gradual shift in verification values often signals impending bearing failure or electronic drift. Catching this early prevents catastrophic data errors. Compliance with ASTM D445 or similar industry-specific standards provides a robust framework for these quality assurance protocols.
Controlling temperature for the reproducibility of viscosity measurements
Precise temperature control is the single most critical factor in ensuring the reproducibility of viscosity measurements. Viscosity acts as a function of temperature, typically following the Arrhenius relationship. Therefore, even minor thermal gradients can introduce significant errors into flow data. Modern rheometers employ various temperature control mechanisms. These include fluid jackets, Peltier plates, and forced convection ovens. Each mechanism is suited to different viscosity ranges and test durations.
Consider highly temperature-sensitive materials like asphalt binders or polymer melts. A gradient of just 0.1°C across the sample gap can skew results beyond acceptable tolerance limits. Laboratory professionals must verify that the sample temperature matches the set point temperature. Thermal lag often occurs in materials with low thermal conductivity. Allowing sufficient soak time for the sample to reach thermal equilibrium is a mandatory step in any robust viscosity protocol.
Conclusion: Achieving the reproducibility of viscosity measurements
The reproducibility of viscosity and flow measurements is a direct reflection of a laboratory’s operational discipline and control over experimental variables. Professionals must strictly manage temperature, standardize sample history, select appropriate geometries, and adhere to calibration schedules. By doing so, they can eliminate the noise that obscures true material behavior. Consistent flow measurements are not merely about the instrument; they are the result of a holistic approach to rheological testing.
