Laboratory managers overseeing mass spectrometry, rotary evaporation, or vacuum desiccation recognize that "vacuum" is rarely a binary state. Vacuum "depth" (ultimate pressure) and stability over time significantly influence the success of sensitive assays. Inconsistent pressure levels can lead to "bumping" (explosive boiling), potential sample cross-contamination, or incomplete solvent removal, which can compromise data quality and lab productivity.
Maintaining consistent vacuum pump stability often requires a proactive approach to equipment selection, leak detection, and routine maintenance. For many sensitive assays, the variation between 2 mbar and 10 mbar can, in some cases, represent the difference between a successful sample concentration and a failed batch. Understanding these variables helps lab leaders implement standard operating procedures (SOPs) that help ensure assay reproducibility.
Why vacuum pump stability affects reproducibility
In sensitive assays, the boiling point of a solvent is directly tied to the ambient pressure within the system. This is analogous to how water boils at a lower temperature at high altitudes due to decreased atmospheric pressure. If the vacuum level fluctuates, the evaporation rate changes, which can potentially lead to the thermal degradation of heat-sensitive analytes or the loss of volatile target compounds.
Consistent pressure is also important for mass spectrometry interfaces, where stable internal pressures are typically required for efficient ion transmission. A higher pressure (shallower vacuum) decreases the mean free path of molecules, leading to more frequent collisions and reduced signal-to-noise ratios. By standardizing vacuum parameters, lab managers can reduce the "hidden" variables that frequently cause inter-day drift in analytical results.
How to identify and mitigate laboratory vacuum leaks
A common cause of inconsistent vacuum pump stability is a physical leak in the system. Even a minor breach in a manifold or a degraded O-ring can prevent a pump from reaching its intended ultimate pressure.
Lab managers should consider training staff to perform regular "blank-off" tests, where the pump is isolated from the application and its pressure is measured directly. If the pump does not reach its factory-specified depth during a blank-off test, the issue is likely internal, such as contaminated oil or worn diaphragms. If the pump performs well in isolation but fails when connected to the assay, the leak is likely situated within the glassware, tubing, or seals of the application itself.
Interested in lab tools and techniques?

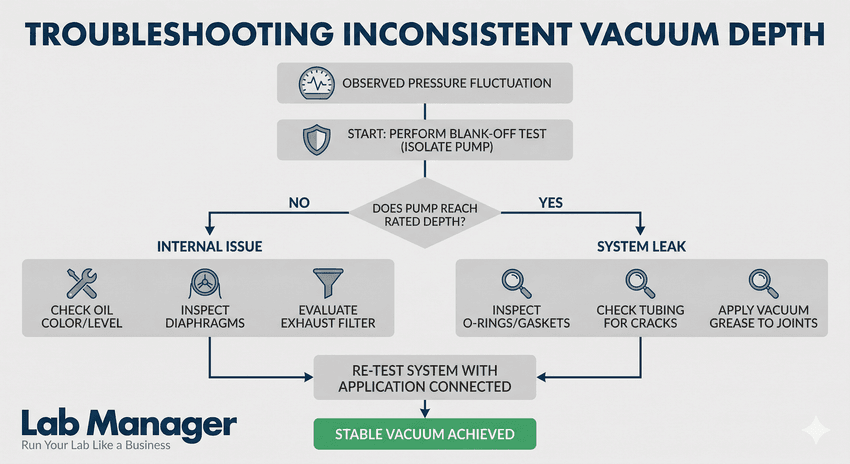

The troubleshooting process for vacuum stability is summarized in Infographic 1.
nconsistent vacuum depth can stall an entire workflow. This step-by-step logic gate helps you quickly differentiate between internal hardware failure and external system leaks.
GEMINI (2026)
How vacuum pump controllers improve stability
For sensitive assays requiring high precision, relying solely on a pump's ultimate vacuum is rarely sufficient. Digital vacuum controllers function as a central management component, using solenoid valves or variable-speed motors to maintain a specific pressure setpoint regardless of minor system fluctuations.
Two-point control systems open and close a valve to keep pressure within a defined range, while speed-controlled pumps adjust the motor RPM to match the required operating pressure precisely. Speed-controlled systems are generally preferred for sensitive assays as they tend to reduce vibration, decrease noise, and can extend the service life of pump components by avoiding continuous full-speed operation.
The impact of temperature on vacuum pump performance
Lab managers should account for environmental and sample temperature when troubleshooting vacuum level issues. As a pump operates, the compression of gases generates heat; if the pump becomes too hot, its efficiency may drop, and the ultimate vacuum can become shallower.
Furthermore, if a pump is used to pull a vacuum on a cold trap or a chilled manifold, the condensation of vapors inside the pump head can occur. In oil-sealed pumps, this can lead to oil emulsification, which typically diminishes the pump's ability to create a deep vacuum. Implementing a "gas ballast" protocol—where a small amount of dry air is allowed to sweep through the pump—is often a standard operational requirement for clearing these condensable vapors. While gas ballast helps remove vapors and improves long-term performance, it may slightly reduce the achievable vacuum during operation.
Choosing the best vacuum technology for sensitive assays
The chemistry of the assay generally dictates the pump technology required to maintain a stable pressure level. For applications involving aggressive solvents like TFA (trifluoroacetic acid) or acetonitrile, a chemically resistant diaphragm pump is often the industry standard. These "dry" pumps do not use oil, which helps eliminate the risk of sample contamination and can reduce maintenance overhead.
However, for ultra-deep vacuum requirements (typically less than 10^-3 mbar), such as those found in lyophilization (freeze-drying) or high-end MS, oil-sealed rotary vane pumps remain a common choice. Lab managers should weigh the deeper vacuum capabilities of rotary vane pumps against the increased maintenance requirements of regular oil changes and the need for high-efficiency exhaust filters to maintain lab air quality.
Conclusion: Best practices for optimizing vacuum pump stability
Maintaining consistent vacuum pump stability is an ongoing operational task that benefits from appropriate equipment, regular monitoring, and clear staff SOPs. By investing in digital controllers, performing routine leak checks, and matching pump chemistry to application needs, lab managers can reduce a significant source of analytical variability. A stable operating pressure supports the integrity of the assay and helps protect the laboratory’s productivity by minimizing sample loss and reducing potential equipment downtime.
