Automated liquid handling high-throughput screening (HTS) is the backbone of modern pharmaceutical drug discovery, enabling labs to test hundreds of thousands of compounds against biological targets in the time it once took to evaluate a few hundred. The scale at which pharma and biopharma organizations now operate — routinely screening compound libraries of 100,000 to more than one million discrete samples — is only achievable through robotic liquid handling systems capable of sub-microliter dispensing with reproducible, traceable precision. For laboratory managers overseeing HTS operations, understanding how liquid handling technology integrates across the full screening workflow is essential to maximizing both throughput and data quality. Lab Manager's complete guide to implementing automated liquid handling provides a broader operational foundation for teams building or expanding these capabilities.
Why plate format determines everything in HTS

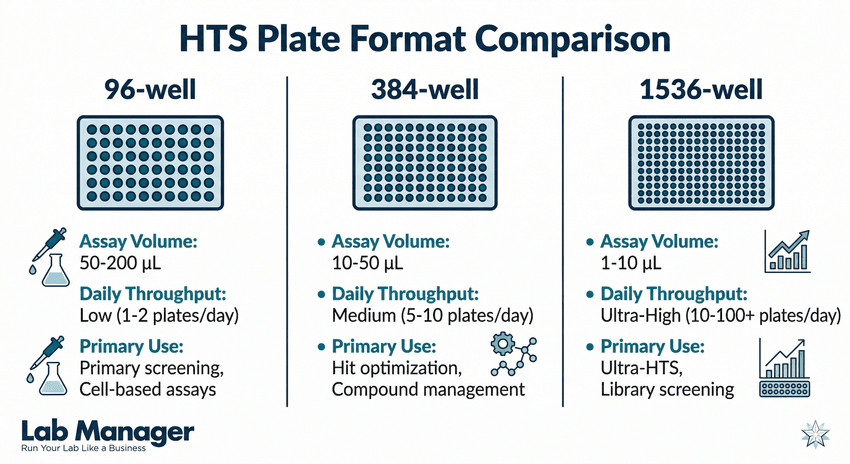

From primary screening to ultra-HTS: Find the perfect fit for your lab's workflow with our quick HTS Plate Format Comparison guide.
GEMINI (2026)
The microplate format chosen for a screening campaign directly governs reagent consumption, throughput, instrument compatibility, and the degree of liquid handling precision required. Standard 96-well plates remain common in early feasibility and assay development work, but the majority of primary HTS campaigns in pharmaceutical settings now run in 384-well format, with ultra-high-throughput programs using 1536-well plates to further compress reagent volumes and increase daily compound throughput.
Moving from 96- to 384-well format reduces assay volume from a typical 100–200 µL per well to 10–50 µL. Moving to 1536-well format compresses volumes further to 2–10 µL. Each step down demands a corresponding increase in liquid handling precision: at 2 µL total volume, a dispensing error of 0.2 µL represents a 10% deviation — a level of imprecision that would invalidate dose-response curves and produce uninterpretable hit data. Automated liquid handlers equipped with disposable tip technology or acoustic droplet ejection (ADE) are the only practical tools for maintaining dispensing accuracy and carryover control at these volumes.
| Plate format | Typical assay volume | Throughput (compounds/day) | Primary application |
|---|---|---|---|
| 96-well | 100–200 µL | 1,000–5,000 | Assay development, validation |
| 384-well | 10–50 µL | 10,000–50,000 | Primary HTS, secondary screening |
| 1536-well | 2–10 µL | 50,000–200,000+ | Ultra-HTS, large library campaigns |
Acoustic droplet ejection and nanoliter dispensing
Acoustic droplet ejection (ADE) has become the gold standard for compound transfer in high-throughput pharmaceutical screening. ADE systems use focused acoustic energy to eject precise nanoliter droplets — typically 2.5 nL to 100 nL — directly from source plates into assay plates, with no tip contact and therefore no carryover between compounds. This contactless approach eliminates the single largest source of compound-to-compound contamination in HTS workflows and enables the same source plate to be used across multiple assay campaigns without degradation from repeated pipette contact.
For labs that cannot justify the capital cost of an ADE platform, high-quality air-displacement liquid handlers with verified low-volume performance down to 200–500 nL remain effective for 384-well HTS. The key validation requirement in either case is demonstrating dispensing accuracy and precision across the full working volume range under the specific environmental conditions of the screening lab — temperature, humidity, and DMSO concentration in the compound stocks all affect dispensing performance and must be characterized before a campaign begins.
- Acoustic droplet ejection (ADE): Contactless, nanoliter-scale transfer; no tip carryover; ideal for compound management and 1536-well campaigns
- Air-displacement pipetting: Sub-microliter to milliliter range; tip-based; suited for 96- and 384-well assay preparation and reagent addition
- Positive displacement pipetting: Handles viscous or volatile reagents that defeat air-displacement systems; used for specialized biochemical assays
- Bulk reagent dispensing: Non-selective; optimized for adding common reagents (assay buffer, detection reagents) to entire plates at high speed
Assay compatibility and liquid handling precision requirements
The biochemical or cell-based assay format chosen for a screening campaign carries specific liquid handling requirements that must be matched to instrument capability before campaign launch. Fluorescence-based assays — including fluorescence intensity, fluorescence polarization, and time-resolved FRET (TR-FRET) — are among the most common HTS formats and generally tolerate standard tip-based liquid handling well, provided that evaporation from open plates is minimized through fast dispensing cycles and plate sealing.
Cell-based assays present greater complexity. Dispensing live cells requires tip geometries and aspiration speeds that minimize shear stress, and cell suspension homogeneity must be maintained throughout the dispense cycle to ensure consistent cell density across all wells of a 384- or 1536-well plate. Automated liquid handlers used for cell dispensing should be validated specifically for the cell type in use, as density variability as small as 15–20% across a plate can produce Z-factor values below the accepted threshold of 0.5 — the minimum statistical quality criterion for a valid HTS assay as established in the foundational work of Zhang and colleagues.
Interested in lab design?
The Z-factor (Z') remains the primary assay quality metric for HTS, calculated from the separation between positive and negative control distributions relative to their combined variability. A Z' ≥ 0.5 is the accepted minimum for a screening-ready assay; values ≥ 0.6 are preferred for primary campaigns. Liquid handling variability — specifically inter-well CV in control wells — is one of the dominant contributors to Z-factor depression, making dispenser qualification a direct driver of campaign success. For labs managing multiple concurrent HTS programs, Lab Manager's analysis of lab automation in pharma provides useful context on how automation investment connects to broader productivity and data quality outcomes.
Compound management and library integrity
Automated liquid handling is not limited to the assay plate itself — it is equally critical in the compound management infrastructure that supports an HTS program. Compound libraries stored as DMSO solutions in source plates must be transferred, reformatted, and diluted with nanoliter precision to prepare screening-ready daughter plates. Any error in this upstream step propagates directly to the assay: an incorrectly concentrated compound will produce a false negative or an artifactual hit, neither of which can be corrected after the campaign has run.
Best practice in pharma HTS compound management includes gravimetric verification of dispensed volumes, periodic acoustic mass spectrometry spot-checking of compound identity and concentration, and a documented chain of custody linking each source plate barcode to its assay daughter plates. Automated liquid handlers integrated with plate hotel storage systems and barcode readers can execute these workflows with minimal human intervention while generating a complete electronic record of every transfer event. This traceability is not optional in regulated pharmaceutical environments: as with all GxP-relevant data, compound management records must meet FDA 21 CFR Part 11 requirements for electronic record integrity and audit trail completeness.
Building a reliable HTS platform with automated liquid handling
Establishing a dependable automated liquid handling high-throughput screening platform requires decisions at three levels: instrument selection, method validation, and ongoing performance monitoring. At the instrument level, labs must match dispenser type and throughput class to the plate formats, assay volumes, and compound library size of their programs. Consulting Lab Manager's independent purchasing guide for automated liquid handlers provides a structured framework for evaluating instrument classes against operational requirements before committing to a system.
Method validation for HTS should follow a defined statistical acceptance protocol — establishing accuracy, precision, linearity, and carryover specifications for each plate format and volume range in use — and should be repeated whenever dispenser hardware, tips, or software is updated. Ongoing monitoring through scheduled performance checks using fluorescent dyes or gravimetric verification catches drift before it affects live campaign data. Labs that implement this monitoring discipline consistently report higher Z-factor reproducibility and fewer failed campaigns compared to those that rely solely on instrument self-diagnostics.
The long-term value of automated liquid handling high-throughput screening is compounded over time as method libraries mature and operators develop programming proficiency. The incremental cost of running each additional screening campaign decreases while data quality improves. Teams evaluating how to connect their liquid handler to broader lab data infrastructure should also review how automated liquid handling integrates into existing lab workflows, particularly the sections covering LIMS connectivity and protocol version control — both of which are directly relevant to regulated HTS environments. The transition from a manually intensive assay pipeline to a fully automated HTS operation typically takes two to three years to fully optimize, but throughput and reproducibility gains begin accumulating from the first validated campaign.
References
- Hansel, C. S., Plant, D. L., Holdgate, G. A., Collier, M. J., Plant, H., et al. (2022). Advancing automation in high-throughput screening: Modular unguarded systems enable adaptable drug discovery. Drug Discovery Today, 27(8), 2051–2056. https://doi.org/10.1016/j.drudis.2022.03.010
- Blay, V., Tolani, B., Ho, S. P., & Arkin, M. R. (2020). High-throughput screening: Today's biochemical and cell-based approaches. Drug Discovery Today, 25(10), 1807–1821. https://doi.org/10.1016/j.drudis.2020.07.024
- Holland, I., & Davies, J. A. (2020). Automation in the life science research laboratory. Frontiers in Bioengineering and Biotechnology, 8, 571777. https://doi.org/10.3389/fbioe.2020.571777
