Executive Summary

Mixing is the most fundamental operation in the laboratory, yet it is often delegated to the least sophisticated equipment. A magnetic stir plate is the default choice for 90% of chemists, but for the 10% working with viscous resins, slurries, or scale-up reactors, that default choice is a recipe for failure.

The market is divided by the mechanics of force transmission. Magnetic Stirrers rely on a magnetic coupling through glass; they are convenient and sealed, but lose coupling ("spin out") as viscosity rises. Overhead Stirrers use a direct mechanical drive shaft; they provide the raw torque needed to turn peanut butter but require an open vessel. High-Shear Homogenizers use a rotor-stator generator to physically rip particles apart, creating emulsions that simple stirring can never achieve.

For the Lab Manager, the purchase decision is a balance of Viscosity and Volume. Buying an overhead stirrer based on horsepower alone ignores the critical role of the impeller shape. Buying a magnetic stirrer without considering the flask bottom shape leads to poor mixing and decoupling.

This guide outlines the physics of fluid dynamics, the necessity of torque compensation, and the safety implications of spark-free motors to ensure your mixtures are homogeneous and your equipment survives the strain.

1. Understanding the Technology Landscape

The term "Mixer" is a catch-all for three distinct technologies that operate on different physical principles. To select the right instrument, Lab Managers must first characterize the "Flow Behavior" of their sample. Is it a Newtonian fluid (like water) that flows easily? Or is it a Non-Newtonian fluid (like lotion) that resists movement until a certain force is applied? Matching the drive mechanism to the fluid's resistance is the only way to ensure consistent processing without burning out the motor.

Core Instrument Types

• Magnetic Stirrer (Hotplate Stirrer): The ubiquitous benchtop unit. A rotating magnet inside the base drives a PTFE-coated bar inside the vessel.
  • Mechanism: Magnetic Coupling.
  • Best for: Low viscosity liquids (water, buffers), sealed flasks, and reactions requiring simultaneous heating.
  • Limit: Decouples (spins out) in thick liquids (> 2,000 cP) or if the stir bar is too large.

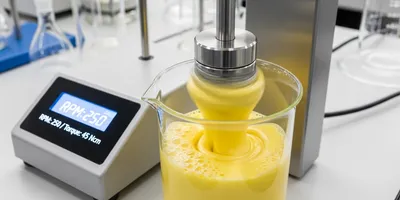

• Overhead Stirrer: A motor mounted on a stand drives a stainless steel shaft and impeller directly.
  • Mechanism: Direct Mechanical Drive.
  • Best for: High viscosity (polymers, paints, creams), large volumes (20L+), and reproducible scale-up.
  • Feature: Maintains constant speed even as viscosity changes (Torque Compensation).
• High-Shear Homogenizer (Rotor-Stator): A shaft with a blade spinning at 20,000 RPM inside a stationary cage.
  • Mechanism: Shear Force. It draws liquid in and forces it out through slots, physically tearing droplets apart.
  • Best for: Emulsions (Oil/Water), dispersing pigments, lysing cells, and particle size reduction.
• Vortex Mixer: An eccentric drive cup that shakes a tube rapidly.
  • Best for: Instant re-suspension of pellets in test tubes or Eppendorf tubes. Not for continuous mixing.

2. Critical Evaluation Criteria: The Decision Matrix

The decision to buy a mixer is dictated entirely by the viscosity of the sample and the outcome required (Flow vs. Dispersion). A magnetic stirrer moves liquid; a homogenizer destroys structure. Using a stirrer to make a mayonnaise emulsion will take forever and likely fail; using a homogenizer to dissolve salt will generate unnecessary heat. Use this decision matrix to map your process goal to the correct hardware class.

Decision Track 1: The Viscosity & Volume

• "I am mixing water, buffers, or organic solvents (< 1 Liter)." → Magnetic Stirrer
  • Context: Low resistance. The magnetic coupling is sufficient.
  • Hardware: Standard ceramic-top stir plate.
  • Estimated Cost: $300 – $900
• "I am mixing oils, lotions, or large batches (5 - 20 Liters)." → Overhead Stirrer
  • Context: High resistance or mass. A magnetic bar will decouple. You need torque.
  • Hardware: Digital Overhead Stirrer (40–100 Ncm torque).
  • Estimated Cost: $1,500 – $3,500

Decision Track 2: The Process Goal

• "I need to dissolve a powder or blend two liquids." → Stirrer (Magnetic or Overhead)
  • Goal: Macromixing (Bulk flow).
• "I need to make a stable emulsion or suspension." → High-Shear Homogenizer
  • Goal: Micromixing (Droplet reduction). You need energy density to overcome surface tension.
  • Estimated Cost: $2,500 – $6,000

3. Key Evaluation Pillars

Once the fundamental technology is selected, the specific engineering features determine the reproducibility and safety of the process. A basic analog stirrer relies on the user to "eyeball" the vortex, whereas a digital unit maintains exact RPM regardless of viscosity changes. These "under-the-hood" specifications—specifically Torque, Impeller Geometry, and Motor Type—are what differentiate a reliable process tool from a disposable gadget.

A. Torque (Ncm) vs. Speed (RPM)

For Overhead Stirrers, Torque is more important than Speed.

• The Physics: Torque is the turning force. High viscosity requires High Torque.
• The Trade-off: High-speed motors often have low torque (like a race car). High-torque motors often have lower max speeds (like a tractor).
• The Spec: Look for Ncm (Newton Centimeters). 20 Ncm is for water; 200+ Ncm is for paste.

B. Impeller Geometry (The Tool)

The shape of the blade determines the flow pattern.

• Propeller (Marine): Axial flow (downward). Good for high speed, low viscosity.
• Anchor / Paddle: Tangential flow. Scrapes the walls. Essential for high viscosity polymers that stick to the glass.
• Dissolver / Cowles: Radial flow. High shear teeth for breaking up agglomerates.

C. Motor Type (Brushless vs. Brushed)

• Brushed DC: Cheaper, but brushes wear out and create sparks. unsafe for volatile solvents.
• Brushless DC (BLDC): Spark-free, maintenance-free, cleaner, and maintains constant speed under load. Mandatory for fume hood work with solvents.

4. The Hidden Costs: Total Cost of Ownership (TCO)

A mixer seems like a one-time purchase, but the accessories required to make it useful can double the cost. Unlike a balance that sits on the bench, an overhead stirrer requires a structural support system to handle the torque.

5. Key Questions to Ask Vendors

Vendor brochures often quote "Maximum Volume" based on water. Stirring 20L of water is easy; stirring 20L of shampoo is a heavy-duty task. Ask these targeted questions to ensure the unit has the muscle to handle your specific material reality.

1. "What is the maximum viscosity (in mPas or cP) at the full volume rating?" (A unit might stir 20L of water, but only 1L of honey. Demand the viscosity curve.)

2. "Does the unit have 'Torque Trend' monitoring?" (Advanced units display the torque change over time. This acts as a proxy for viscosity change, allowing you to monitor polymerization or drying in real-time.)

3. "Is the chuck 'Keyless'?" (Old chucks require a dedicated key to tighten the impeller shaft. If you lose the key, you can't change the tool. Keyless (hand-tighten) chucks are standard on modern units.)

4. "Does it have a 'Through-Shaft' design?" (This allows you to push the impeller shaft up through the motor body to adjust the height, rather than moving the heavy motor up and down the stand.)

6. FAQ: Quick Reference for Decision Makers

Q: Why does my magnetic stir bar keep jumping (Spinning out)?

A: Several reasons: 1) The speed is too high for the viscosity. 2) The bar is decoupled (weak magnet). 3) The flask bottom is curved (round bottom), and you are using a flat bar instead of an Oval or Egg-shaped bar designed for round flasks.

Q: Can I use an Overhead Stirrer in a sealed flask?

A: Yes, but you need a Stirrer Bearing (PTFE or Glass) that fits the flask's ground glass joint (e.g., 24/40). This allows the shaft to spin while maintaining a vacuum or inert atmosphere.

Q: Viscosity vs. Thixotropy?

A: Viscosity is resistance to flow. Thixotropy is when a fluid gets thinner the longer you stir it (like ketchup). Overhead stirrers with Constant Speed control are essential for thixotropic fluids to ensure the shear rate remains consistent as the material thins out.

7. Emerging Trends to Watch

• Smart Stirrers (IoT & Digital Documentation)
  • Stirrers are joining the connected lab, moving beyond simple knobs to full digital interfaces. New units continuously log RPM, Torque, and Temperature to a micro-SD card or transmit data to the cloud via Wi-Fi. This provides a crucial digital audit trail for formulation labs, allowing researchers to prove that a batch was mixed at exactly 500 RPM for 30 minutes, or to analyze torque curves remotely to determine the exact moment a polymerization reaction finished.
• Integrated Weighing (Streamlined Formulation)
  • Some advanced magnetic stir plates now feature a built-in load cell (balance) under the heating plate. This allows chemists to tare the beaker and weigh solids or liquids directly into the vessel while it is stirring. This "all-in-one" approach simplifies solution preparation, saves valuable bench space by removing the need for a separate top-loading balance, and eliminates transfer losses associated with weighing boats.
• Reaction Blocks (Dry Heating Revolution)
  • Safety officers are driving a shift away from traditional oil baths, which are messy, present a fire hazard, and create disposal issues. Labs are adopting engineered aluminum reaction blocks that fit precisely onto circular stirrers. These blocks can hold multiple vials or round-bottom flasks simultaneously, providing uniform heat transfer and magnetic stirring without the risk of hot oil spills or the need for messy cleanup.

Conclusion: Purchasing a stirrer is an exercise in matching power to resistance. If you are mixing aqueous solutions, a Magnetic Stirrer offers convenience and sealed operation. If you are processing viscous formulations or scaling up, an Overhead Stirrer offers the necessary torque and geometric control. By prioritizing the physics of the impeller and the durability of the motor, Lab Managers can ensure their mixtures are homogeneous and their workflows are reproducible.
